2011 FORD KUGA handle

Electronic Engine Controls - 2.0LDuratorq-TDCi (100kW/136PS) - DW,
Emission Requirements: Stage
IV 303-14B
Electronic Engine Controls - 2.0L Duratorq-TDCi (100kW/136PS) -
DW/2.0L Duratorq-TDCi
(103kW/140PS) - DW/2.0L
Duratorq-TDCi (120kW/163PS) - DW,
Emission Requirements: Stage
V 303-14C
Automatic Transmission/Transaxle Automatic Transmission/Transaxle - Vehicles With: 5-Speed Automatic
Transaxle - AW55 AWD 307-01A
Automatic Transmission/Transaxle - Vehicles With: 6-Speed Automatic
Transaxle - 6DCT450, LHD
4WD/RHD 4WD 307-01B
Automatic Transmission/Transaxle External Controls 307-05
Manual Transmission/Transaxle, Clutch and
Transfer Case Four-Wheel Drive Systems 308-07
Exhaust System Exhaust System - 2.0L Duratorq-TDCi (DW) Diesel 309-00
Fuel System - General Information Fuel Tank and Lines 310-01
Speed Control 310-03
GROUP 4 Electrical
Climate Control System
Climate Control 412-01
Auxiliary Climate Control 412-02
Instrumentation and Warning Systems Instrument Cluster 413-01
Horn 413-06
Warning Devices 413-09
Parking Aid 413-13
Battery and Charging System Battery, Mounting and Cables 414-01 Generator and Regulator
414-02
Information and Entertainment Systems Information and Entertainment System 415-01
Lighting Exterior Lighting 417-01
Interior Lighting 417-02
Daytime Running Lamps (DRL) 417-04
Electrical Distribution Module Communications Network 418-00
Electronic Feature Group Anti-Theft - Active 419-01
Multifunction Electronic Modules 419-10
GROUP 5 Body and Paint
Body and Paint
Rear View Mirrors 501-09
Seating 501-10
Glass, Frames and Mechanisms 501-11
Instrument Panel and Console 501-12
Handles, Locks, Latches and Entry Systems 501-14
Wipers and Washers 501-16
Safety Belt System 501-20A
Supplemental Restraint System 501-20B
GROUP 7 General Wiring
Information
Wiring Information
General Information 700-00
Fuse and Relay Information 700-01
Power Distribution 700-02
Grounding Strategy 700-03
Electrical Connectors 700-04
Index
2011.0 Kuga
BACK TO CHAPTER INDEX
TO MODEL INDEXFORD KUGA 2011.0MY WIRING DIAGRAMS
PAGE 2 OF 2

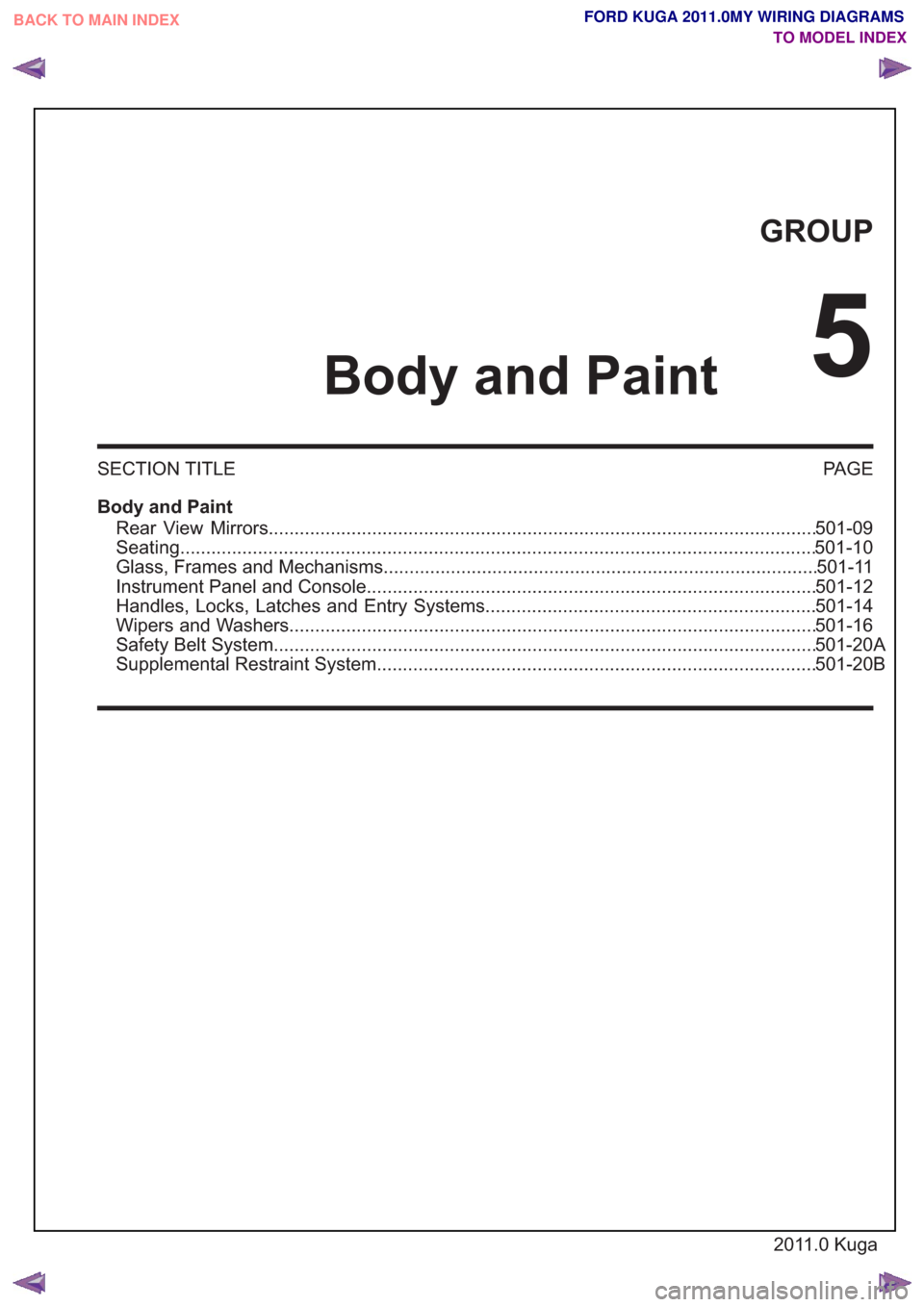

GROUP
Body and Paint
5
SECTION TITLEPAGE
Body and Paint Rear View Mirrors.................................................................\
.........................................501-09
Seating........................................................................\
................................................ ...501-10
Glass, Frames and Mechanisms..............................................................\
......................501-11
Instrument Panel and Console.................................................................\
......................501-12
Handles, Locks, Latches and Entry Systems................................................................501-14
Wipers and Washers..................................................................\
....................................501-16
Safety Belt System..................................................................\
.......................................501-20 A
Supplemental Restraint System..................................................................\
...................501-20B
2011.0 Kuga
BACK TO MAIN INDEX
TO MODEL INDEXFORD KUGA 2011.0MY WIRING DIAGRAMS

SECTION 501-14 Handles, Locks, Latches and Entry
Systems
VEHICLE APPLICATION:2011.0 Kuga
PA G E
CONTENTS
ELECTRICAL SCHEMATICS
501-14-3
Power Door Locks — LHD 4WD/LHD FWD, Vehicles Without: Remote Keyless Entry
(RKE) ........................................................................\
....................................................... .
501-14-5
Power Door Locks — LHD 4WD/LHD FWD, Vehicles Without: Remote Keyless Entry
(RKE) ........................................................................\
....................................................... .
501-14-7
Power Door Locks — 2.5L Duratec (147kW/200PS) - VI5, LHD 4WD, Vehicles With:
Remote Keyless Entry (RKE) ........................................................................\
...................
501-14-9
Power Door Locks — 2.5L Duratec (147kW/200PS) - VI5, LHD 4WD, Vehicles With:
Remote Keyless Entry (RKE) ........................................................................\
...................
501-14-11
Power Door Locks — 2.0L Duratorq-TDCi (100kW/136PS) - DW, LHD 4WD/LHD FWD,
Vehicles With: Remote Keyless Entry (RKE) ....................................................................
501-14-13
Power Door Locks — 2.0L Duratorq-TDCi (100kW/136PS) - DW/2.0L Duratorq-TDCi
(103kW/140PS) - DW/2.0L Duratorq-TDCi (120kW/163PS) - DW, LHD 4WD/LHD FWD,
Emission Requirements: Stage V, Vehicles With: Remote Keyless Entry (RKE) .............
501-14-15
Power Door Locks — RHD 4WD/RHD FWD, Vehicles Without: Remote Keyless Entry
(RKE) ........................................................................\
....................................................... .
501-14-17
Power Door Locks — RHD 4WD/RHD FWD, Vehicles Without: Remote Keyless Entry
(RKE) ........................................................................\
....................................................... .
501-14-19
Power Door Locks — 2.5L Duratec (147kW/200PS) - VI5, RHD 4WD, Vehicles With:
Remote Keyless Entry (RKE) ........................................................................\
...................
501-14-21
Power Door Locks — 2.5L Duratec (147kW/200PS) - VI5, RHD 4WD, Vehicles With:
Remote Keyless Entry (RKE) ........................................................................\
...................
501-14-23
Power Door Locks — 2.0L Duratorq-TDCi (100kW/136PS) - DW, RHD 4WD/RHD FWD,
Vehicles With: Remote Keyless Entry (RKE) ....................................................................
501-14-25
Power Door Locks — 2.0L Duratorq-TDCi (100kW/136PS) - DW/2.0L Duratorq-TDCi
(103kW/140PS) - DW/2.0L Duratorq-TDCi (120kW/163PS) - DW, RHD 4WD/RHD FWD,
Emission Requirements: Stage V, Vehicles With: Remote Keyless Entry (RKE) .............
ELECTRICAL CONNECTORS 501-14-27
Driver Door Latch ........................................................................\
........................................
501-14-27
Front Door Latch Release Motor LH ........................................................................\
...........
501-14-27
Front Door Latch Release Motor RH ........................................................................\
..........
501-14-28
Front Door Lock Switch LH........................................................................\
.........................
501-14-28
Front Door Lock Switch RH ........................................................................\
........................
501-14-28
Front Door Unlock Switch LH........................................................................\
.....................
501-14-28
Front Door Unlock Switch RH........................................................................\
.....................
501-14-28
Fuel Filler Door Relay ........................................................................\
.................................
501-14-28
Keyless Vehicle Center Antenna ........................................................................\
................
501-14-29
Keyless Vehicle Front Antenna LH ........................................................................\
.............
501-14-29
Keyless Vehicle Front Antenna RH ........................................................................\
............
501-14-29
Keyless Vehicle Module (KVM) ........................................................................\
..................
501-14-1
Handles, Locks, Latches and Entry Systems
501-14- 1
.
BACK TO CHAPTER INDEX TO MODEL INDEX
PAGE 1 OF 2
FORD KUGA 2011.0MY WIRING DIAGRAMS

501-14-31
Keyless Vehicle Module (KVM) ........................................................................\
..................
501-14-31
Keyless Vehicle Module (KVM) ........................................................................\
..................
501-14-32
Keyless Vehicle Module (KVM) ........................................................................\
..................
501-14-32
Keyless Vehicle Module (KVM) ........................................................................\
..................
501-14-32
Keyless Vehicle Rear Antenna ........................................................................\
...................
501-14-33
Keyless Vehicle Rear Bumper Antenna ........................................................................\
......
501-14-33
Liftgate/Luggage Compartment Lid Latch ........................................................................\
..
501-14-33
Liftgate/Luggage Compartment Lid Release Switch ..........................................................
501-14-343
Passenger Door Latch ........................................................................\
................................
501-14-34
Radio Frequency (RF) Receiver ........................................................................\
.................
501-14-34
Rear Door Latch ........................................................................\
.........................................
501-14-34
Rear Door Latch Release Motor........................................................................\
.................
501-14-34
Rear Door Unlock Switch ........................................................................\
...........................
501-14-35
Upper Liftgate Ajar Switch ........................................................................\
..........................
501-14-35
Upper Liftgate Latch ........................................................................\
...................................
501-14-2
Handles, Locks, Latches and Entry Systems
501-14- 2
.
BACK TO CHAPTER INDEX TO MODEL INDEX
PAGE 2 OF 2
FORD KUGA 2011.0MY WIRING DIAGRAMS

Driver Door Latch (G1234758)
12345678910
3M5T-14A464-DKA
C148
TO DRIVER FRONT DOOR LATCH UNIT
HARNESS 14A584
PIN 5 => 32-AA59A WH-BK 0.75 WA
PIN 7 => 33-AA59A YE-BK 0.75 WA
PIN 6 => 33-AA60A YE 0.75 WA
PIN 10 => 91S-AA63A BK-OG 0.35 WA
PIN 9 => 91S-AA64A BK-GN 0.35 WA
PIN 2 => 91S-AA61A BK-BU 0.35 WA
PIN 3 => 91S-AA62A BK-WH 0.35 WA
PIN 4 => 31S-GL9A BK-YE 0.35 WA
PIN 1 => 31-AA58A BK 0.35 WA
PIN 8 => 31-AA58C BK 0.35 WA
91-AA58ABK-YEWA0.3591S-AA61BBKWA0.3591S-AA62BBKWA0.3531S-GL9BBKWA0.3533-AA59BBKWA0.7533-AA60BBKWA0.7532-AA59BBKWA0.7591-AA58BBKWA0.3591S-AA64BBKWA0.3591S-AA63BBKWA0.35
Front Door Latch Release Motor LH (G1234759)
1234
YF1T-14A464-CA
C213
TO FL DOOR LOCK/UNLOCK LATCH (KEYLESS VEHICLE)
HARNESS 14A584
PIN 4 => 91-AB14 BK-RD 0.35 WA
PIN 3 => 91S-AB14 BK-RD 0.35 WA
PIN 2 => 9-AB15 BN-WH 1.0 WA
PIN 1 => 7-AB15 YE-VT 1.0 WA
91S-AB14ABK-RDWA0.35
91-AB14ABK-RDWA0.35
9-AB15ABN-WHWA1.0
7-AB15AYE-VTWA1.0
Front Door Latch Release Motor RH (G1234760)
1234
YF1T-14A464-CA
C205
TO FR DOOR LOCK/UNLOCK LATCH (KEYLESS VEHICLE)
HARNESS 14K138 PIN 2 => 91-AB25 BK-RD 0.35 WA
PIN 4 => 7-AB26 YE-VT 1.0 WA
PIN 1 => 91S-AB25 BK-RD 0.35 WA
PIN 3 => 9-AB26 BN-WH 1.0 WA
7-AB26AYE-VTWA1.0
9-AB26ABN-WHWA1.0
91S-AB25ABK-RDWA0.35
91-AB25ABK-RDWA0.35
201

1.0 Kuga
501-14- 27
Handles, Locks, Latches and Entry Systems
501-14-27
.
BACK TO CHAPTER INDEX TO MODEL INDEXFORD KUGA 2011.0MY WIRING DIAGRAMS

Front Door Lock Switch RH (G1245487)
1
45
7
3
6
2
3M5T-14A624-RGA
C203
TO FR LOCK SWITCH / FR HANDEL ANTENNA (KV)
HARNESS 14K138
1-AB27WH-RDWA0.35
91-AB23BK-OGWA0.35
91S-AB23BK-OGWA0.35
2-AB27GY-RDWA0.35
Front Door Unlock Switch LH (G1234761)
1
45
2
7
3
6 3M5T-14A464-RGA
C212
TO FL UNLOCK SWITCH (KEYLESS VEHICLE)
HARNESS 14A584
91-AB13BK-GNWA0.35
91S-AB13BK-GNWA0.35
Front Door Lock Switch LH (G1245486)
1
45
7
3
6
2
3M5T-14A624-RGA
C211
TO FL LOCK SWITCH /FL HANDEL ANTENNA (KV)
HARNESS 14A584
1-AB16WH-RDWA0.35
91-AB12BK-OGWA0.35
91S-AB12BK-OGWA0.35
2-AB16GY-RDWA0.35
501-14- 28
Handles, Locks, Latches and Entry Systems
501-14-28
.
BACK TO CHAPTER INDEX TO MODEL INDEXFORD KUGA 2011.0MY WIRING DIAGRAMS

Keyless Vehicle Center Antenna (G1234764)
12
3M5T-14A464-ABA
C221
TO INTERIOR ANTENNA
HARNESS 15K857 PIN 1 => 1-AB36C WH-GN 0.35 WA
PIN 2 => 2-AB36C GY-OG 0.35 WA
1-AB36BWH-GNWA0.35
2-AB36BGY-OGWA0.35
Front Door Unlock Switch RH (G1234762)
1
45
2
7
3
6
3M5T-14A464-RGA
C204
TO FR UNLOCK SWITCH (KEYLESS VEHICLE)
HARNESS 14K138
91-AB24BK-GNWA0.35
91S-AB24BK-GNWA0.35
Fuel Filler Door Relay (G1234763)
21
97BG-14A464-VBB
C152
TO FUEL FLAP MOTOR
HARNESS 14014 32-AA43A WH-VT WA 1.5
33-AA43A YE-VT WA 1.5
501-14-
29
Handles, Locks, Latches and Entry Systems
501-14-29
.
BACK TO CHAPTER INDEX TO MODEL INDEXFORD KUGA 2011.0MY WIRING DIAGRAMS

Keyless Vehicle Module (KVM) (G1234767)
6
7
8
9
10
11
12
13
1415161718
1920212223
1
5
2
3
4
1S7T-14489-EC
C215
TO KEYLESS VEHICLE MODULE (KVM)
HARNESS 14014
PIN 3 => 2-AB27A GY-RD 0.35 WA
PIN 10 => 1-AB27A WH-RD 0.35 WA
PIN 8 => 1-AB16A WH-RD 0.35 WA
PIN 1 => 2-AB16A GY-RD 0.35 WA
PIN 2 => 2-AB36F GY-OG 0.35 WA
PIN 9 => 1-AB36F WH-GN 0.35 WA
PIN 2 => 2-AB36B GY-OG 0.35 WA
PIN 9 => 1-AB36B WH-GN 0.35 WA
2-AB10AGYWA0.35
1-AB27BWH-RDWA0.35
1-AB36DWH-GNWA0.35
1-AB16BWH-RDWA0.35
1-AB34AWH-RDWA0.35
2-AB34AGY-RDWA0.35
1-AB10AWHWA0.35
1-AB35AWH-BUWA0.35
1-AB35BWH-BUWA0.35
2-AB27BGY-RDWA0.35
2-AB35AGY-VTWA0.35
2-AB36DGY-OGWA0.35
2-AB16BGY-RDWA0.35
2-AB35BGY-VTWA0.35
Keyless Vehicle Front Antenna LH (G1234765)
12
3M5T-14A464-ABA
C226
TO INTERIOR ANTENNA CENTER LEFT
HARNESS 14014
1-AB35AWH-BUWA0.35
2-AB35AGY-VTWA0.35
Keyless Vehicle Front Antenna RH (G1234766)
12
3M5T-14A464-ABA
C225
TO INTERIOR ANTENNA CENTER RIGHT
HARNESS 14014
1-AB35BWH-BUWA0.35
2-AB35BGY-VTWA0.35
501-14- 30
Handles, Locks, Latches and Entry Systems
501-14-30
.
BACK TO CHAPTER INDEX TO MODEL INDEXFORD KUGA 2011.0MY WIRING DIAGRAMS
