2011 FORD KUGA component location

Inner Wheelhouse RH
G1222081
C624
C622C623
C150C209
C736
C739
C734C939
C730
C942
C124
C528
C45
C527
C54
C235
C234
C608
C435
C631
C602
C474C463C947
C811
C4MP22-AC4MP44-BC4MP22-C
C91
2011.0 Kuga 700-00-66
700-00-66
General Information
700-00- 66
COMPONENT LOCATION
BACK TO CHAPTER INDEX TO MODEL INDEXFORD KUGA 2011.0MY WIRING DIAGRAMS

Instrument Panel - LHD 4WD/LHD FWD
G1222082
C320
C200
C961
C809C694C457C382
C717
C381C695C481
C846
C619
C442
C851
C878C861
C380C370C539C540
C429C423
C931C930
C443C447C448
C95C98C96C99C100C102C103
C432C554
C780
2011.0 Kuga 700-00-67
700-00-67
General Information
700-00- 67
COMPONENT LOCATION
BACK TO CHAPTER INDEX TO MODEL INDEXFORD KUGA 2011.0MY WIRING DIAGRAMS

Instrument Panel - RHD 4WD/RHD FWD
G1222083
C382C381
C717C809
C694
C442
C457
C695
C481
C320
C200
C961
C851C861C878C429C423
C380C540C378C539
C931C930
C443C447C448
C619
C96C99C95C98C100C102C103
C432
C780
C554
2011.0 Kuga 700-00-68
700-00-68
General Information
700-00- 68
COMPONENT LOCATION
BACK TO CHAPTER INDEX TO MODEL INDEXFORD KUGA 2011.0MY WIRING DIAGRAMS

Liftgate Exterior View
G1236031
C950
C425
C492C803C491
C426
C951
C108
C4MP19
2011.0 Kuga 700-00-69
700-00-69
General Information
700-00- 69
COMPONENT LOCATION
BACK TO CHAPTER INDEX TO MODEL INDEXFORD KUGA 2011.0MY WIRING DIAGRAMS

Liftgate Interior View
G1236032
C425
C971C798
C426
2011.0 Kuga 700-00-70
700-00-70
General Information
700-00- 70
COMPONENT LOCATION
BACK TO CHAPTER INDEX TO MODEL INDEXFORD KUGA 2011.0MY WIRING DIAGRAMS

Rear Bumper
G1222084
C604C227
C605C606
C607
2011.0 Kuga 700-00-71
700-00-71
General Information
700-00- 71
COMPONENT LOCATION
BACK TO CHAPTER INDEX TO MODEL INDEXFORD KUGA 2011.0MY WIRING DIAGRAMS

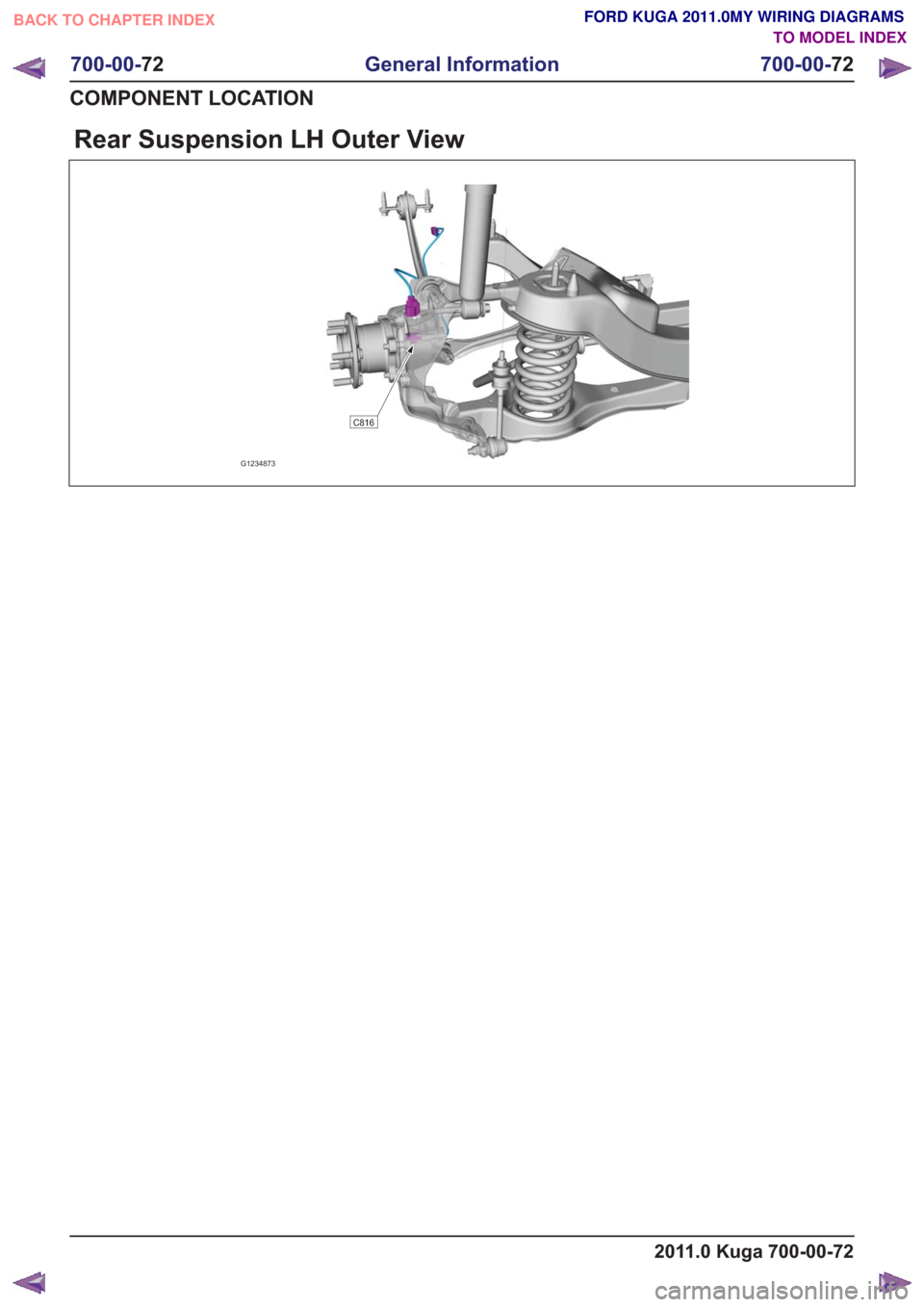

Rear Suspension LH Outer View
G1234873
C816
2011.0 Kuga 700-00-72
700-00-72
General Information
700-00- 72
COMPONENT LOCATION
BACK TO CHAPTER INDEX TO MODEL INDEXFORD KUGA 2011.0MY WIRING DIAGRAMS

Rear Suspension RH Outer View
G1234874
C817
2011.0 Kuga 700-00-73
700-00-73
General Information
700-00- 73
COMPONENT LOCATION
BACK TO CHAPTER INDEX TO MODEL INDEXFORD KUGA 2011.0MY WIRING DIAGRAMS
