2011 FORD FLEX tow

WARNING:Reclining the seatback can cause an occupant to
slide under the seat’s safety belt, resulting in severe personal
injuries in the event of a collision.
WARNING:Sitting improperly out of position or with the seat
back reclined too far can take off weight from the seat cushion
and affect the decision of the passenger sensing system, resulting in
serious injury or death in a crash. Always sit upright against your
seatback, with your feet on the floor.
WARNING:To reduce the risk of possible serious injury: Do not
hang objects off seat back or stow objects in the seatback map
pocket (if equipped) when a child is in the front passenger seat. Do
not place objects underneath the front passenger seat or between the
seat and the center console (if equipped). Check the “passenger airbag
off” or “pass airbag off” indicator lamp for proper airbag status. Refer
toFront passenger sensing systemin theAirbag supplemental
restraint system (SRS)section for additional details. Failure to follow
these instructions may interfere with the front passenger seat sensing
system.
Move the front of the control up or
down to tilt the seat cushion.
Move the rear of the control up or
down to raise or lower the seat
cushion.
Seating and Safety Restraints
148
2011 Flex(471)
Owners Guide, 1st Printing
USA(fus)

Note:You may have to move the front row seat forward to allow the 2nd
row seat to be fully tumbled. Stow the head restraint by pressing the
head restraint release button while sliding the head restraint fully down.
1. Lift the handle located on the
side of the seat.
The seatback will fold flat.
2. Lift the handle all the way up
until the seat releases from the
floor. Rotate the seat forward to
allow access to the third row.
Seating and Safety Restraints
155
2011 Flex(471)
Owners Guide, 1st Printing
USA(fus)

3. To return the seatback to the
floor from tumbled position, rotate
the seat down until you hear it
latching to the floor.
4. To return the seatback to the
upright position
•Lift the seatback toward the rear
of the vehicle, and
•Rotate the seatback until you
hear a click, locking it in the
upright position.
Note:The seatback will not raise if
the rear latch hooks are not
properly engaged to the floor
striker. If the seatback does not raise, then repeat steps 3 and 4.
5. Pull the head restraint back up to its normal adjusted position.
WARNING:Before returning the seatback to its original
position, make sure that cargo or any objects are not trapped
behind the seatback. After returning the seatback to its original
position, pull on the seatback to ensure that it has fully latched. An
unlatched seat may become dangerous in the event of a sudden stop or
collision.
Seating and Safety Restraints
156
2011 Flex(471)
Owners Guide, 1st Printing
USA(fus)

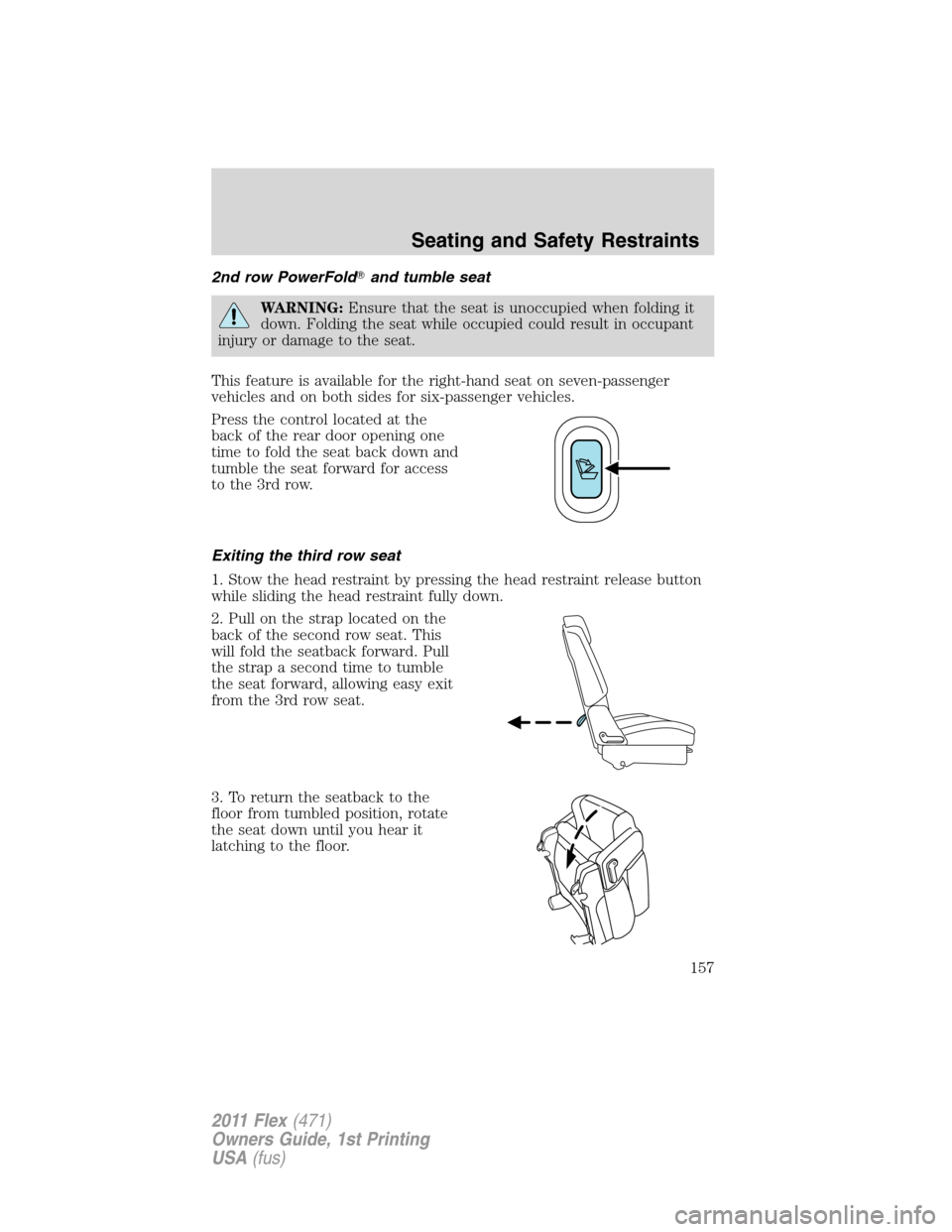

2nd row PowerFoldand tumble seat
WARNING:Ensure that the seat is unoccupied when folding it
down. Folding the seat while occupied could result in occupant
injury or damage to the seat.
This feature is available for the right-hand seat on seven-passenger
vehicles and on both sides for six-passenger vehicles.
Press the control located at the
back of the rear door opening one
time to fold the seat back down and
tumble the seat forward for access
to the 3rd row.
Exiting the third row seat
1. Stow the head restraint by pressing the head restraint release button
while sliding the head restraint fully down.
2. Pull on the strap located on the
back of the second row seat. This
will fold the seatback forward. Pull
the strap a second time to tumble
the seat forward, allowing easy exit
from the 3rd row seat.
3. To return the seatback to the
floor from tumbled position, rotate
the seat down until you hear it
latching to the floor.
Seating and Safety Restraints
157
2011 Flex(471)
Owners Guide, 1st Printing
USA(fus)

4. To return the seatback to the
upright position
•Lift the seatback toward the rear
of the vehicle, and
•Rotate the seatback until you
hear a click, locking it in the
upright position.
Note:The seatback will not raise if
the rear latch hooks are not
properly engaged to the floor
striker. If the seatback does not raise, then repeat steps 3 and 4.
5. Pull the head restraint back up to its normal adjusted position.
WARNING:Before returning the seatback to its original
position, make sure that cargo or any objects are not trapped
behind the seatback. After returning the seatback to its original
position, pull on the seatback to ensure that it has fully latched. An
unlatched seat may become dangerous in the event of a sudden stop or
collision.
Ensure that the rear latch hooks are
properly engaged with the floor
striker.
Note: Ensure that the seat and
seatback are latched securely in
position. Keep floor area free of
objects that would prevent proper
seat engagement.
Seating and Safety Restraints
158
2011 Flex(471)
Owners Guide, 1st Printing
USA(fus)

Stowing the third row seat
1. Remove all objects from the seat
and stowage tub.
2. Stow the head restraints by
pressing the head restraint release
button while sliding the head
restraints fully down.
3. From the rear of the vehicle, fold seatback by pulling and holding the
number 1 strap while pushing the seatback forward. Release strap once
seatback starts rotating forward.
4. Release the cushion latches by pulling the number 2 strap while
pulling on the strap located at the top of the seatback to tumble the seat
all the way into the tub in the floor.
Note:Do not use the seat anchors as cargo tie downs.
Seating and Safety Restraints
160
2011 Flex(471)
Owners Guide, 1st Printing
USA(fus)

Note:Do not use the third row
seatback as a load floor when the
seatback is folded.
Note:In order to allow the seat to latch in the stowed position, do not
stow objects under the seat before stowing.
Unstowing the third row seat
Note:Ensure that there are no objects such as books, purses or brief
cases on the load floor before unstowing the seat. Failure to remove all
objects from the top of the load floor prior to unstowing it may cause
damage to the seat.
Note:Ensure the area under the load floor is free of objects before
unstowing it.
1. Unlatch and lift the seat out of the tub in the floor by squeezing and
pulling up on the handle. Once the seat is at a vertical position, push the
seat over, letting it fall onto the latches.
Seating and Safety Restraints
161
2011 Flex(471)
Owners Guide, 1st Printing
USA(fus)

2. To return the seatback to upright
position, pull the number 1 strap,
then while holding the number 1
strap, pull the long strap located on
the seatback to raise the seatback.
3. Pull the head restraints up to
their normal adjusted positions.
WARNING:Ensure seat is latched to vehicle floor by
pushing/pulling on seat. If not latched, the seat may cause injury
during a sudden stop.
WARNING:Before returning the seatback to its original
position, make sure that cargo or any objects are not trapped
behind the seatback. After returning the seatback to its original
position, pull on the seatback to ensure that it has fully latched. An
unlatched seat may become dangerous in the event of a sudden stop or
collision.
Third-row seat tailgate mode
1. Remove all objects from the seat and stowage tub.
2. Stow the head restraints by
pressing the head restraint release
button while sliding the head
restraints fully down.
Seating and Safety Restraints
162
2011 Flex(471)
Owners Guide, 1st Printing
USA(fus)
