2011 FORD F550 navigation system

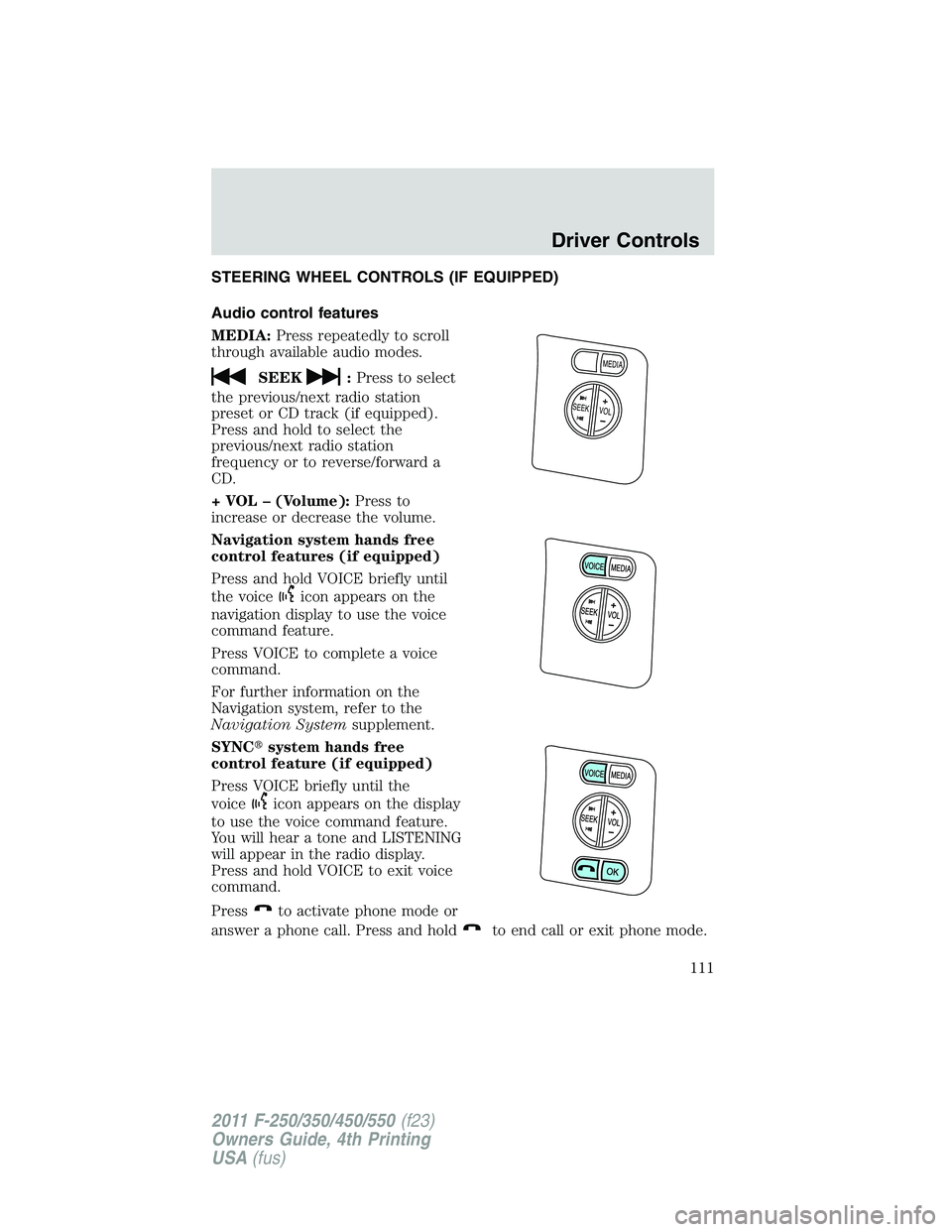

STEERING WHEEL CONTROLS (IF EQUIPPED)
Audio control features
MEDIA: Press repeatedly to scroll
through available audio modes.
SEEK : Press to select
the previous/next radio station
preset or CD track (if equipped).
Press and hold to select the
previous/next radio station
frequency or to reverse/forward a
CD.
+ VOL – (Volume): Press to
increase or decrease the volume.
Navigation system hands free
control features (if equipped)
Press and hold VOICE briefly until
the voice icon appears on the
navigation display to use the voice
command feature.
Press VOICE to complete a voice
command.
For further information on the
Navigation system, refer to the
Navigation System supplement.
SYNC  system hands free
control feature (if equipped)
Press VOICE briefly until the
voice icon appears on the display
to use the voice command feature.
You will hear a tone and LISTENING
will appear in the radio display.
Press and hold VOICE to exit voice
command.
Press to activate phone mode or
answer a phone call. Press and hold to end call or exit phone mode. V O
LS EEK M E D IA
+
Driver Controls
111
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

Press to scroll through various menus and selections. Press
OK to confirm your selection.
For further information on the SYNC  system, refer to the SYNC
supplement.
Navigation system/SYNC  hands
free control features (if
equipped)
Press VOICE briefly until the
voice
icon appears on the
navigation display to use the voice
command feature.
Press to activate phone mode or
answer a phone call. Press and
hold to exit phone mode or end
call.
For further information on the Navigation system/SYNC  system, refer to
the Navigation System and SYNC  supplements.
UPFITTER CONTROLS (IF EQUIPPED)
Your vehicle may be equipped with
the Upfitter option package which
will provide four switches, mounted
in the center of the instrument
panel, labeled AUX 1, AUX 2, AUX 3
and AUX 4. These switches will only
operate while the ignition is in the
on position, whether the engine is
running or not. It is, however, recommended that the engine remain
running to maintain battery charge when using the Upfitter switches for
extended duration or higher current draws. (This is even more important
for vehicles with diesel engines since the glow plugs are also draining
battery power when the ignition key is in the on position.)
When switched on by the operator they provide 8 amps, 12 amps or
20 amps of electrical battery power for a variety of personal or
commercial uses.
If your vehicle is equipped with this option, there will also be a relay box
located on the driver side end of the instrument panel. See your
authorized dealer for service.Driver Controls
112
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

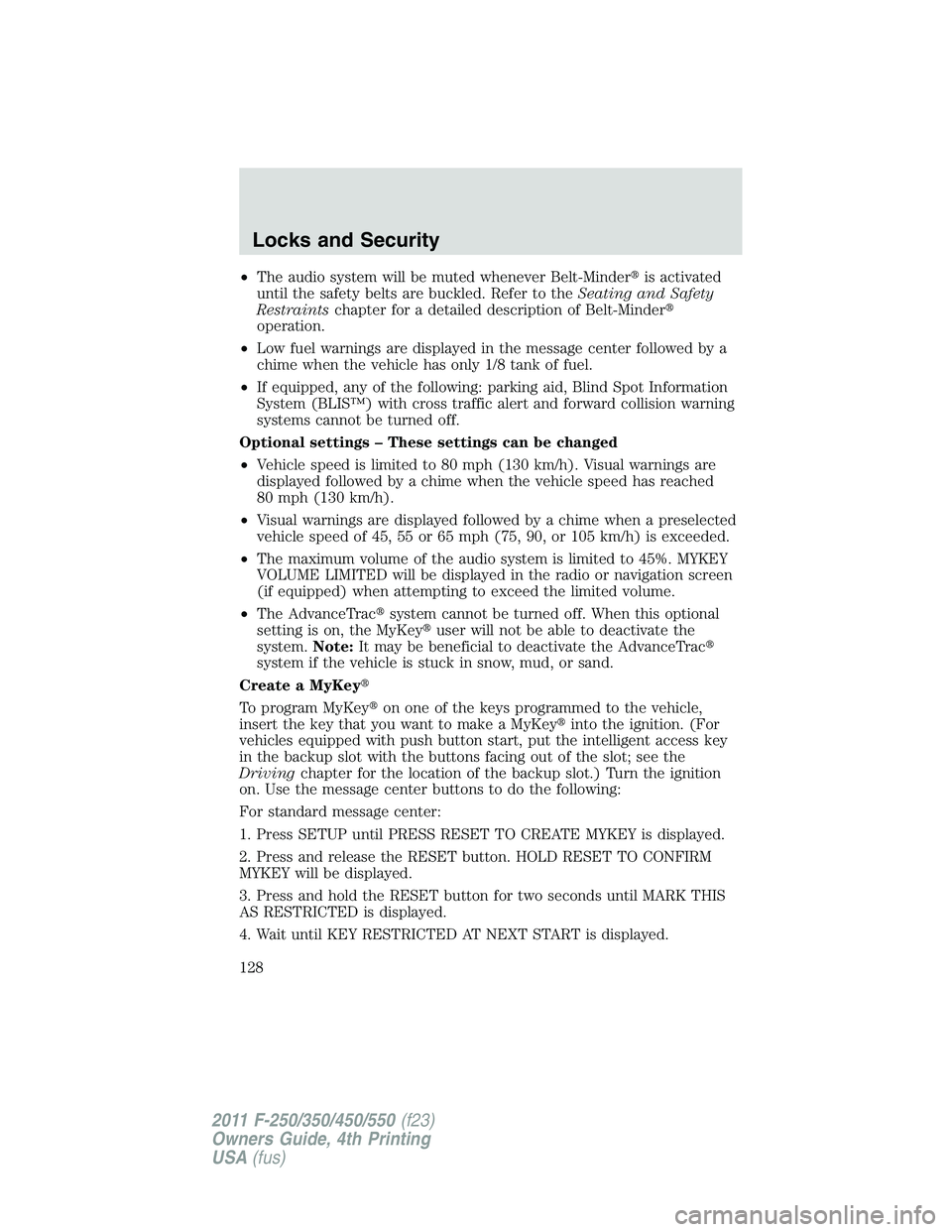

• The audio system will be muted whenever Belt-Minder  is activated
until the safety belts are buckled. Refer to the Seating and Safety
Restraints chapter for a detailed description of Belt-Minder
operation.
• Low fuel warnings are displayed in the message center followed by a
chime when the vehicle has only 1/8 tank of fuel.
• If equipped, any of the following: parking aid, Blind Spot Information
System (BLIS™) with cross traffic alert and forward collision warning
systems cannot be turned off.
Optional settings – These settings can be changed
• Vehicle speed is limited to 80 mph (130 km/h). Visual warnings are
displayed followed by a chime when the vehicle speed has reached
80 mph (130 km/h).
• Visual warnings are displayed followed by a chime when a preselected
vehicle speed of 45, 55 or 65 mph (75, 90, or 105 km/h) is exceeded.
• The maximum volume of the audio system is limited to 45%. MYKEY
VOLUME LIMITED will be displayed in the radio or navigation screen
(if equipped) when attempting to exceed the limited volume.
• The AdvanceTrac  system cannot be turned off. When this optional
setting is on, the MyKey  user will not be able to deactivate the
system. Note: It may be beneficial to deactivate the AdvanceTrac
system if the vehicle is stuck in snow, mud, or sand.
Create a MyKey
To program MyKey  on one of the keys programmed to the vehicle,
insert the key that you want to make a MyKey  into the ignition. (For
vehicles equipped with push button start, put the intelligent access key
in the backup slot with the buttons facing out of the slot; see the
Driving chapter for the location of the backup slot.) Turn the ignition
on. Use the message center buttons to do the following:
For standard message center:
1. Press SETUP until PRESS RESET TO CREATE MYKEY is displayed.
2. Press and release the RESET button. HOLD RESET TO CONFIRM
MYKEY will be displayed.
3. Press and hold the RESET button for two seconds until MARK THIS
AS RESTRICTED is displayed.
4. Wait until KEY RESTRICTED AT NEXT START is displayed.Locks and Security
128
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

sensors with sharp objects). If the sensors are covered, it will
affect the accuracy of the RSS.
If your vehicle sustains damage to the rear bumper/fascia, leaving
it misaligned or bent, the sensing zone may be altered causing
inaccurate measurement of obstacles or false alarms.
REARVIEW CAMERA SYSTEM (IF EQUIPPED)
The rearview camera system,
located on the tailgate, provides a
video image, which appears in the
rearview mirror or on the navigation
screen (if equipped), of the area
behind the vehicle. It adds
assistance to the driver while
reversing or reverse parking the
vehicle.
To use the camera system, place the transmission in R (Reverse); an
image will display on the left portion of the rearview mirror or on the
navigation screen (if equipped). The area displayed on the screen may
vary according to the vehicle orientation and/or road condition.Driving
294
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

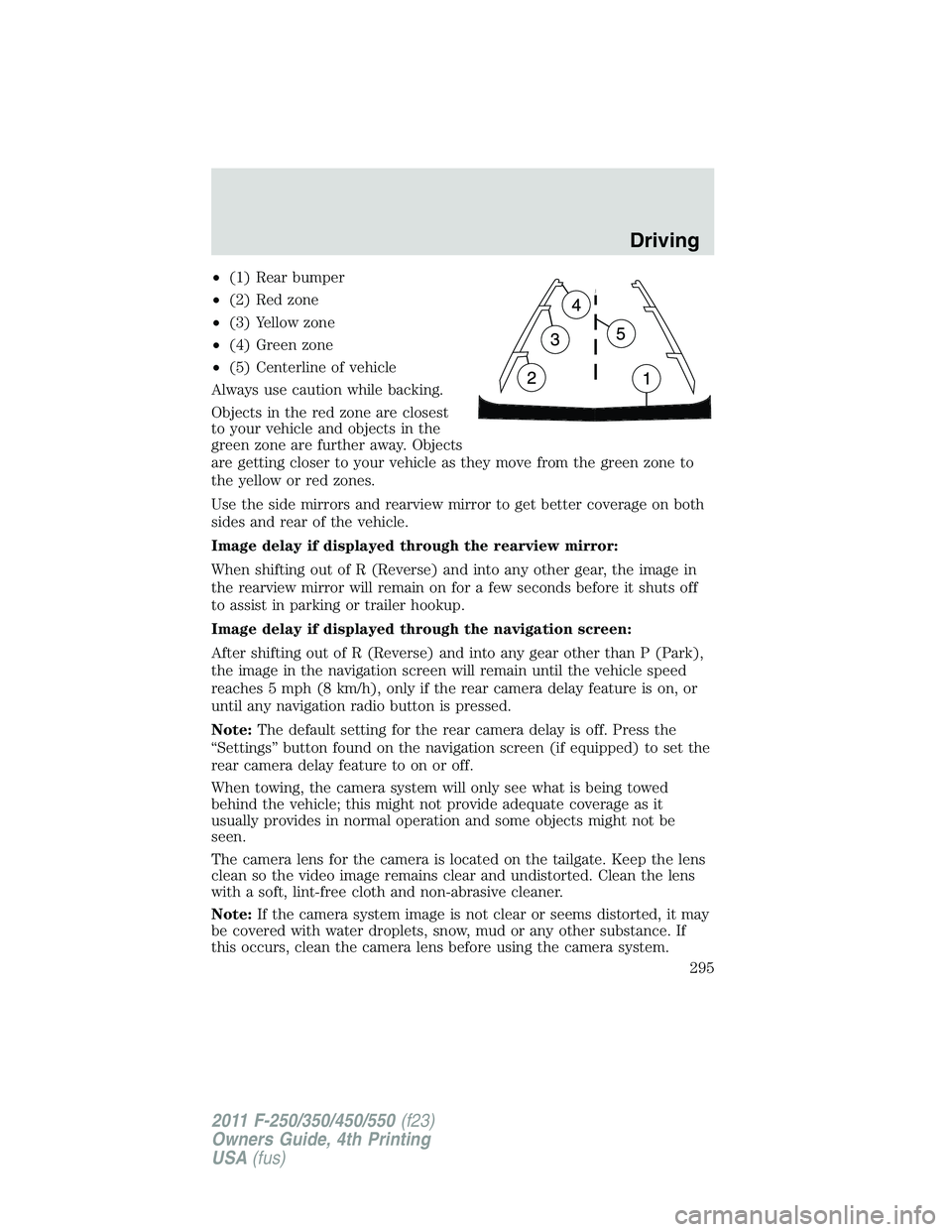

• (1) Rear bumper
• (2) Red zone
• (3) Yellow zone
• (4) Green zone
• (5) Centerline of vehicle
Always use caution while backing.
Objects in the red zone are closest
to your vehicle and objects in the
green zone are further away. Objects
are getting closer to your vehicle as they move from the green zone to
the yellow or red zones.
Use the side mirrors and rearview mirror to get better coverage on both
sides and rear of the vehicle.
Image delay if displayed through the rearview mirror:
When shifting out of R (Reverse) and into any other gear, the image in
the rearview mirror will remain on for a few seconds before it shuts off
to assist in parking or trailer hookup.
Image delay if displayed through the navigation screen:
After shifting out of R (Reverse) and into any gear other than P (Park),
the image in the navigation screen will remain until the vehicle speed
reaches 5 mph (8 km/h), only if the rear camera delay feature is on, or
until any navigation radio button is pressed.
Note: The default setting for the rear camera delay is off. Press the
“Settings” button found on the navigation screen (if equipped) to set the
rear camera delay feature to on or off.
When towing, the camera system will only see what is being towed
behind the vehicle; this might not provide adequate coverage as it
usually provides in normal operation and some objects might not be
seen.
The camera lens for the camera is located on the tailgate. Keep the lens
clean so the video image remains clear and undistorted. Clean the lens
with a soft, lint-free cloth and non-abrasive cleaner.
Note: If the camera system image is not clear or seems distorted, it may
be covered with water droplets, snow, mud or any other substance. If
this occurs, clean the camera lens before using the camera system. Driving
295
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

Lifestyle
• Ash cup / smoker’s package • Racks and carriers*
• Bedliners and bedmats • Truck bed camping tent*
• Subwoofer* • Sportliner cargo liner*
• Towing mirrors • Trailer hitch balls*
• Navigation* • Rear seat entertainment*
• Tonneau covers*
• Trailer hitches, wiring harnesses and accessories
Peace of mind
• Keyless entry keypad • Back up camera*
• Remote start • Back up alarm*
• Vehicle security systems • Cable lock*
• Wheel locks • Bed hooks*
• Vehicle tracking and recovery* • Tool/Cargo boxes*
• Protective seat covers*
• Bumper and hitch mounted parking sensors*
Not all accessories are available for all models.
*Ford Licensed Accessories (FLA) are warranted by the accessory
manufacturer’s warranty. Ford Licensed Accessories are fully designed
and developed by the accessory manufacturer and have not been
designed or tested to Ford Motor Company engineering requirements.
Contact your Ford dealer for details regarding the manufacturer’s limited
warranty and/or a copy of the FLA product limited warranty offered by
the accessory manufacturer.
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
• When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification Label). Consult your authorized dealer for
specific weight information.Accessories
416
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)

Infant seats
(see Safety seats) .....................197
Inspection/maintenance (I/M)
testing ........................................394
Instrument panel
cleaning ...........................361–362
cluster ........................................14
lighting up panel and
interior .......................................88
J
Jack ............................................326
positioning ...............................326
storage .....................................326
Jump-starting your vehicle ......343
K
Keyless entry system
autolock ...................................136
keypad .....................................146
locking and unlocking doors ..147
programming entry code .......146
Keys ...................................127, 148
positions of the ignition .........262
L
Lamps
autolamp system .......................86
daytime running light ...............88
fog lamps ...................................87
headlamps .................................86
headlamps, flash to pass ..........87
instrument panel, dimming .....88
interior lamps ...........................90
replacing bulbs ...................93–96
LATCH anchors .........................204
Lights, warning and indicator ....14 anti-lock brakes (ABS) ..........269
Loading instructions .................249
Load limits .................................242
Locks
autolock ...................................136
childproof ................................139
doors ........................................135
Lug nuts ....................................342
Lumbar support, seats .............158
M
Manual transmission
fluid capacities ........................407
Message center ...............22–23, 39
english/metric button ...............27
system check button ................27
warning messages ...............29, 47
Mirrors ...............................103–104
automatic dimming rearview
mirror ......................................104
fold away .........................105, 107
heated ........................................80
programmable memory ..........142
side view mirrors (power) .....104
signal .......................................108
Moon roof ..................................113
Motorcraft  parts ......................406
MyKey ........................................127
N
Navigation system .......................76
O
Octane rating ....................386–387
Oil (see Engine oil) ..................371Index
446
2011 F-250/350/450/550 (f23)
Owners Guide, 4th Printing
USA (fus)
