Your vehicle may be equipped with a
USB port inside your center console.
This feature allows you to plug in
media playing devices, memory
sticks, and also to charge devices if
they support this feature. For
further information on this feature,
refer toAccessing and using your
USB portin theSYNCsupplement
orNavigation Systemsupplement.
Rear seat controls (if equipped)
Your vehicle is equipped with rear seat radio controls. This feature allows
front and middle seat passengers to listen to different media sources
(radio, CD, SYNC or DVD) simultaneously; however, the front and
middle-seat passengers cannot listen to two different radio stations at
the same time.
1.MEDIA:Push repeatedly to cycle
through available playing medias such
as AM, FM1, FM2, CD, SAT1, SAT2,
SAT3 (satellite radio if equipped),
DVD (if equipped) and SYNC(if
equipped). If in Dual Play mode,
SHARED illuminates in the radio
display when the front and rear
modes are set to the same media.
Note:After pressing the media
button to select SYNC mode,
press + or – to scroll through the different SYNCoptions: (SYNC
USB, SYNC BTST and SYNC LINE). For more information on SYNC
operation, see yourSYNCsupplement.
Entertainment Systems
49
2011 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)

2.VOLUME:Pressto increase orto decrease the volume level
in the headphones.
From the rear seat controls, volume control can be set no higher than
the current radio setting unless the speakers are turned off.
3.
: In radio mode, press and release to scroll through memory
presets. Press and hold to seek to the next station.
In CD mode, press and release to advance to the next track. Press and
hold to fast forward within that track.
In SYNC modes, press and release to advance to the next track. Press
and hold to fast forward within that track.
4.Wired headphone jacks
5.
: In radio mode, press and release to scroll through memory
presets. Press and hold to seek to the next station.
In CD mode, press and release to advance to the next track. Press and
hold for a fast reverse within that track.
In SYNC modes, press and release to advance to the next track. Press
and hold for a fast reverse within that track.
6.Auxiliary audio input jack:Use to plug in and play auxiliary audio
sources.
7.-: In CD mode, press to access the previous CD.
8.+: In CD mode, press to access the next CD.
9.
/: Press to turn the rear speakers on (Single Play mode) or off
(Dual Play mode).
Parental control
The multimedia system allows for
three varying levels of parental
control over rear-seat controls. By
simultaneously pressing the 3 and 5 buttons, the rear passengers may be
allowed to access FULL or LOCAL control or be LOCKED out of rear
seat controls altogether.
After the ignition has been turned on, the rear seat passengers have
FULL control over the audio system. This means that while in single play
mode, the rear seat passengers can fully control the audio system from
the rear controls (including volume, media selection and seek
adjustments).
Entertainment Systems
50
2011 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)

Simultaneously press 3 and 5 to restrict the rear passengers control to
LOCAL media. While in dual play mode, this means that only media
which is played through the auxiliary input jacks, or media which has
been selected at the radio by the driver can be accessed by the rear
passengers. Press 3 and 5 a second time to LOCK the rear passenger
controls completely; all media access is removed from the rear
passengers. Press 3 and5athirdtimetocomplete the cycle and allow
full control to the rear passenger again.
To activate the rear seat radio controls:
•After the ignition has been turned
on, FULL rear controls are active
and the system is in single play
mode.
•Press the memory preset controls 3 and 5 at the same time. The word
LOCAL will illuminate in the radio display and on the rear display,
indicating that only LOCAL rear control is available.Note:While in
single play mode, LOCAL is the same as LOCKED. In dual play mode,
LOCAL allows control of media which the driver has selected at the
radio, or over media played through the rear auxiliary input jacks.)
•Press the 3 and 5 buttons a second time and the rear control will be
LOCKD (locked). In this state, the rear passenger is restricted from
control over media of any kind, the rear controls are disabled.Note:If
in dual play mode, the headphone icon normally illuminated in the
radio display when in dual play, will turn off in the radio display.
•Press the 3 and 5 buttons a third time and full control will be restored
to the rear seat controls. Turning the ignition off and then on again
will have the same effect.
To activate dual play mode(rear seat passengers listen to a different
playing media than the front seat passengers):
•Press the speaker/headphone control. A head phone icon (
) will
illuminate in the radio display and in the rear display, indicating the
rear seat speakers have been disabled and headphones are now active.
This is dual play mode.
•Press the MEDIA Control to change audio sources (for headphone
mode only)
•Use the other controls to make adjustments to the playing media.
Entertainment Systems
51
2011 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)

•Dual Play mode may also be
activated by simultaneously
pressing memory presets 2 and 4
located on the radio.
The rear speakers are muted and rear seat passengers can listen to the
selected media through their headphones.
To deactivate dual play mode:
•Press the 2 and 4 buttons simultaneously again.
•Press the headphone/speaker button again
•Press the 3 and 5 buttons simultaneously until the rear seat controls
are LOCKED.
Using any of these methods, the headphone icon will turn off in both
displays (front and rear), the rear speaker sound will be restored and the
headphone jacks will be disabled.
Using headphones/dual play mode
WARNING:Do not leave children unattended in the vehicle and
do not let children operate the system while unsupervised. If
wired headphones or auxiliary systems are used, children may become
entangled in the cords and seriously injure themselves.
Plug a 3.5 mm headphone (not included) into the
jack. Press the
speaker button, or the 2/4 preset buttons simultaneously on the radio to
activate the headphones. The words DUAL PLAY will illuminate on the
radio display, sound will no longer be heard from the rear speakers and
the fade control will be disabled, signaling that Dual Play has been
activated.
The front speakers remain playing for the front passengers. Press the
speaker button, or the 2/4 preset buttons simultaneously on the radio
again to deactivate the headphones and dual play mode. The words
SINGLE PLAY will illuminate on the radio display and fade control and
sound from rear speakers will be restored, signaling that dual play mode
has been deactivated.
To use any rear controls, whether in single or dual play mode, the rear
seat controls must be active. To enable dual play, the rear seat controls
must be active and
illuminated in the radio display. SeeTo activate
the rear seat radio controlspreviously.
123456
Entertainment Systems
52
2011 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)

Do not clean the housing or glass of any mirror with harsh
abrasives, fuel or other petroleum-based cleaning products.
Note:If equipped with a rearview camera system, a video image will
display in the mirror or the navigation system display (if equipped) when
the vehicle is put in R (Reverse). As you shift into any other gear from R
(Reverse), the image will remain for a few seconds and then turn off.
Refer toRearview camera systemin theDrivingchapter.
EXTERIOR MIRRORS
Power side view mirrors
WARNING:Do not adjust the mirror while the vehicle is in
motion.
To adjust your mirrors:
1. Rotate the control clockwise to
adjust the right mirror and rotate
the control counterclockwise to
adjust the left mirror.
2. Move the control in the direction
you wish to tilt the mirror.
3. Return to the center position to
lock mirrors in place.
Memory feature (if equipped)
The power side view mirror positions are saved when doing a memory
set function and can be recalled along with the vehicle personality
features when a memory position is selected through the remote entry
transmitter, keyless entry keypad or memory switch on the driver’s door.
Refer toSeatingin theSeating and Safety Restraintschapter.
Automatic dimming feature (if equipped)
The driver’s side view mirror has an auto-dimming function. For more
information, refer toAutomatic dimming interior rear view mirrorin
this chapter.
Driver Controls
92
2011 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)

Car finder
Press
twice within three seconds. The horn will chirp and the turn
lamps will flash. It is recommended that this method be used to locate
your vehicle, rather than using the panic alarm.
Sounding a panic alarm
Press
to activate the alarm. The horn will sound and the turn lamps
will flash for a maximum of three minutes. Press again or turn the
ignition to the on position to deactivate, or wait for the alarm to time out
in three minutes.
Note:The panic alarm will only operate when the ignition is in the off
position.
Memory feature (seat, mirrors and adjustable pedals)
The integrated keyhead transmitter (IKT) allows you to recall the
memory seat/power mirrors/adjustable pedals feature.
Press
to automatically move the driver seat, power mirrors and
adjustable pedals to the desired memory position. The mirrors will move
to the programmed position and the seat will move to the easy entry
position. The seat will move to the final position when the key is in the
ignition (if easy entry feature is enabled).
Programming memory feature to the transmitter
To activate this feature:
1. Move the driver seat, power mirrors, and adjustable pedals to the
desired positions using the associated controls.
2. Press and hold button 1 for five
seconds. A tone will be heard after
two seconds confirming memory
position has been set. Continue to
hold until a second tone is heard
after five seconds.
3. Within three seconds press the
.
4. A tone will be heard when the transmitter programming is complete.
5. Press the
.
6. Repeat this procedure for memory 2 and another transmitter if
desired.
Locks and Security
127
2011 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)

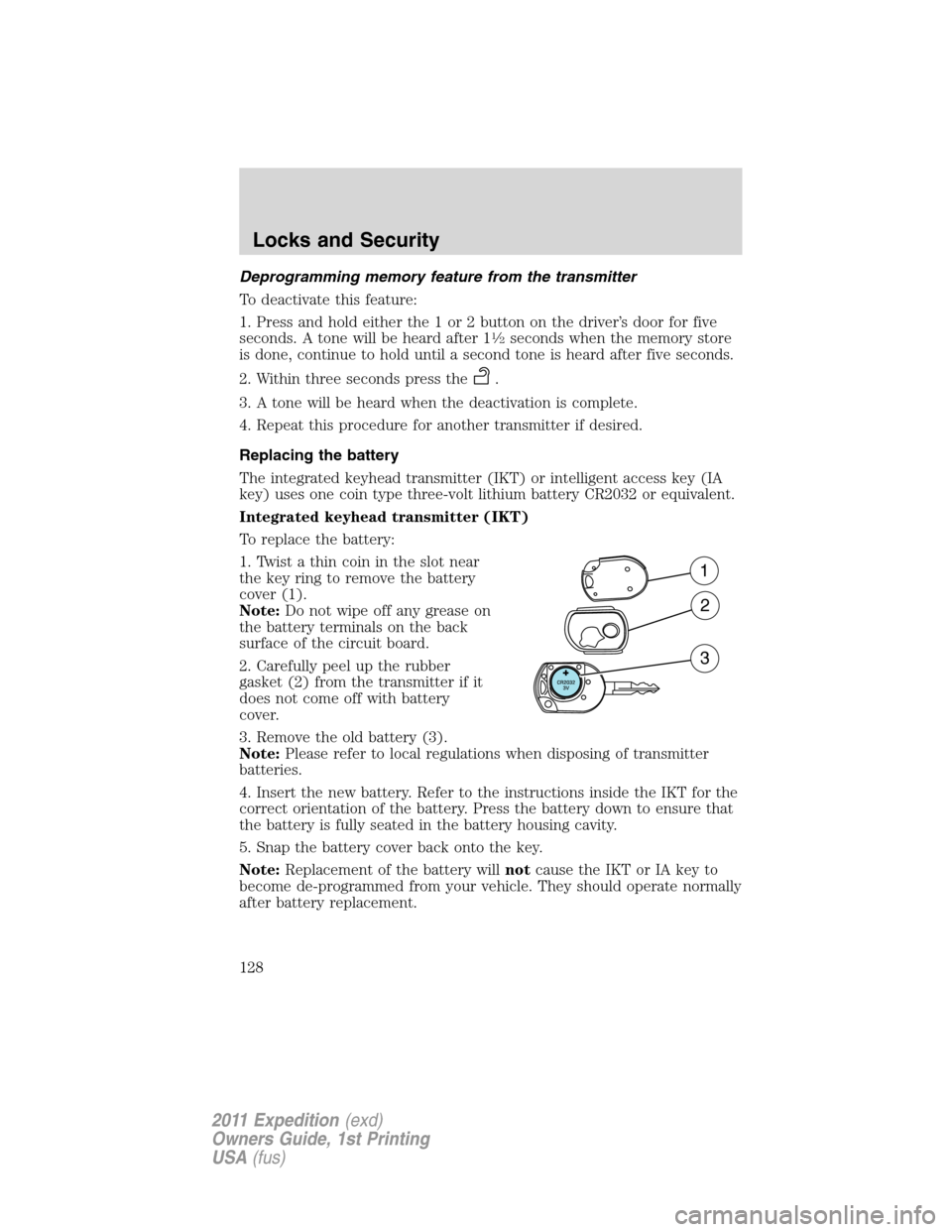

Deprogramming memory feature from the transmitter
To deactivate this feature:
1. Press and hold either the 1 or 2 button on the driver’s door for five
seconds. A tone will be heard after 1
12seconds when the memory store
is done, continue to hold until a second tone is heard after five seconds.
2. Within three seconds press the
.
3. A tone will be heard when the deactivation is complete.
4. Repeat this procedure for another transmitter if desired.
Replacing the battery
The integrated keyhead transmitter (IKT) or intelligent access key (IA
key) uses one coin type three-volt lithium battery CR2032 or equivalent.
Integrated keyhead transmitter (IKT)
To replace the battery:
1. Twist a thin coin in the slot near
the key ring to remove the battery
cover (1).
Note:Do not wipe off any grease on
the battery terminals on the back
surface of the circuit board.
2. Carefully peel up the rubber
gasket (2) from the transmitter if it
does not come off with battery
cover.
3. Remove the old battery (3).
Note:Please refer to local regulations when disposing of transmitter
batteries.
4. Insert the new battery. Refer to the instructions inside the IKT for the
correct orientation of the battery. Press the battery down to ensure that
the battery is fully seated in the battery housing cavity.
5. Snap the battery cover back onto the key.
Note:Replacement of the battery willnotcause the IKT or IA key to
become de-programmed from your vehicle. They should operate normally
after battery replacement.
1
2
3
Locks and Security
128
2011 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)

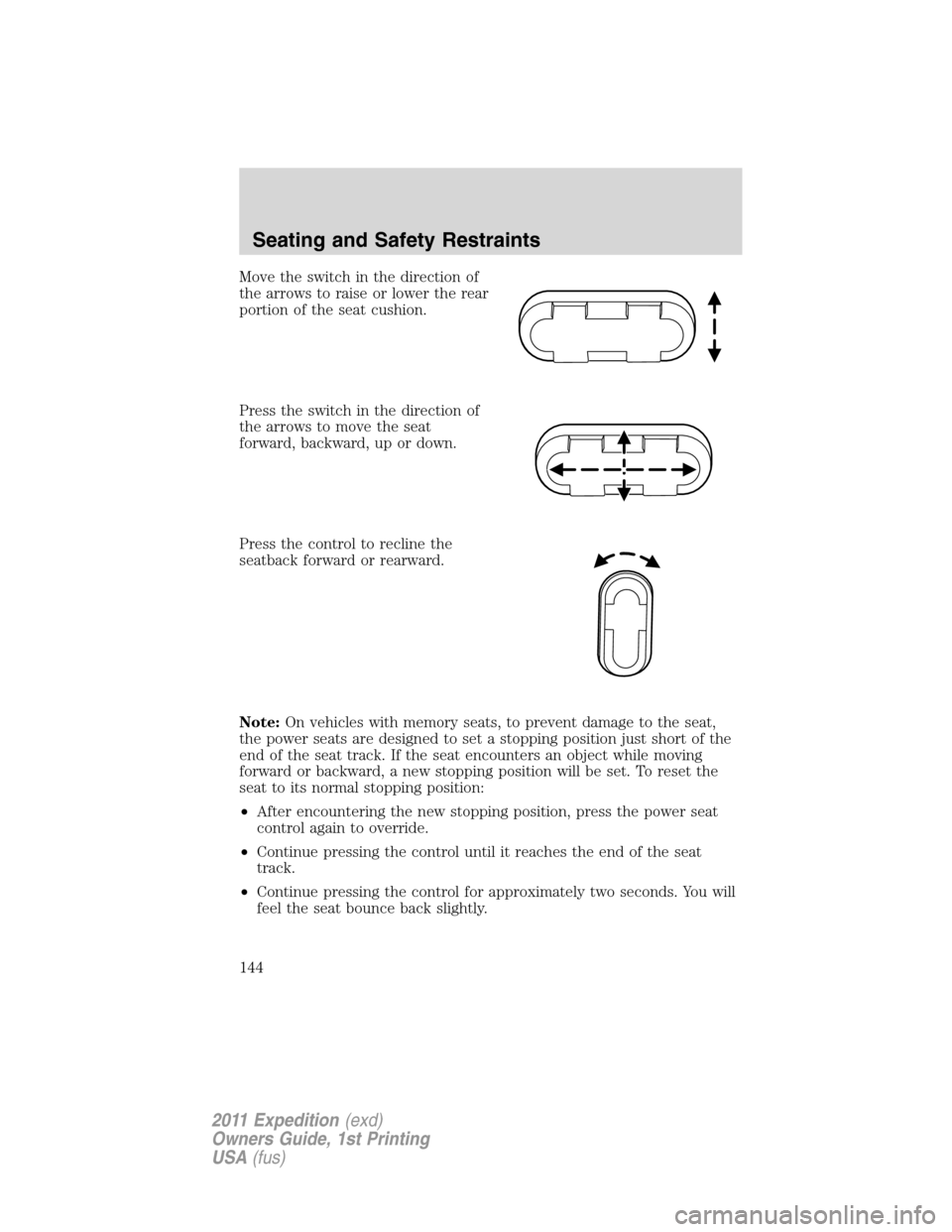

Move the switch in the direction of
the arrows to raise or lower the rear
portion of the seat cushion.
Press the switch in the direction of
the arrows to move the seat
forward, backward, up or down.
Press the control to recline the
seatback forward or rearward.
Note:On vehicles with memory seats, to prevent damage to the seat,
the power seats are designed to set a stopping position just short of the
end of the seat track. If the seat encounters an object while moving
forward or backward, a new stopping position will be set. To reset the
seat to its normal stopping position:
•After encountering the new stopping position, press the power seat
control again to override.
•Continue pressing the control until it reaches the end of the seat
track.
•Continue pressing the control for approximately two seconds. You will
feel the seat bounce back slightly.
Seating and Safety Restraints
144
2011 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)
