2011 FORD ESCAPE HYBRID relay

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
7 15A* Liftgate latch
8 5A* Traction battery control module
9 50A** Brake control module
10 30A** Front wipers
11 — Not used
12 40A** Blower motor
13 — Not used
14 10A* Heater/Coolant pump
15 50A** Traction battery control module (TBCM)
16 40A** Cooling fan 1
17 40A** Cooling fan 2
18 50A** Brake control module solenoid
19 30A** Power seats
20 — Not used
21A — Rear defroster relay
21B — Ignition relay
21C — Blower relay
21D — PCM relay
22 15A* Ignition coils
23 15A* Fuel injectors
24 10A* Transmission control module
25 5A* TBCM
26 20A* Fuel pump, TBCM
27 10A* PCM (general powertrain components
malfunction indicator lamp), Heater
pump relay, Motor electronics coolant
pump relay, Electronic A/C compressor
28 15A* Universal exhaust gas oxygen (UEGO)
sensor, PCM – emission related
powertrain components malfunction
indicator lamp
29 15A* PCM power
Roadside Emergencies
255
2011 Escape Hybrid(ehv)
Owners Guide, 2nd Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
30A — Cooling fan 1 relay
30B — Electric vacuum pump mechanical relay
30C — Cooling fan main relay
30D — Cooling fan 2 relay
31A — Reverse lamp relay
31B — Not used
31C — Heater pump relay
31D — Coolant pump relay
31E — Not used
31F — Liftgate latch relay
32 — Not used
33 — PCM diode
34 — Not used
35 10A* Run/start, Reverse lamps, Rear defrost
relay
36 — Not used
* Mini fuse ** Cartridge fuse
Roadside Emergencies
256
2011 Escape Hybrid(ehv)
Owners Guide, 2nd Printing
USA(fus)

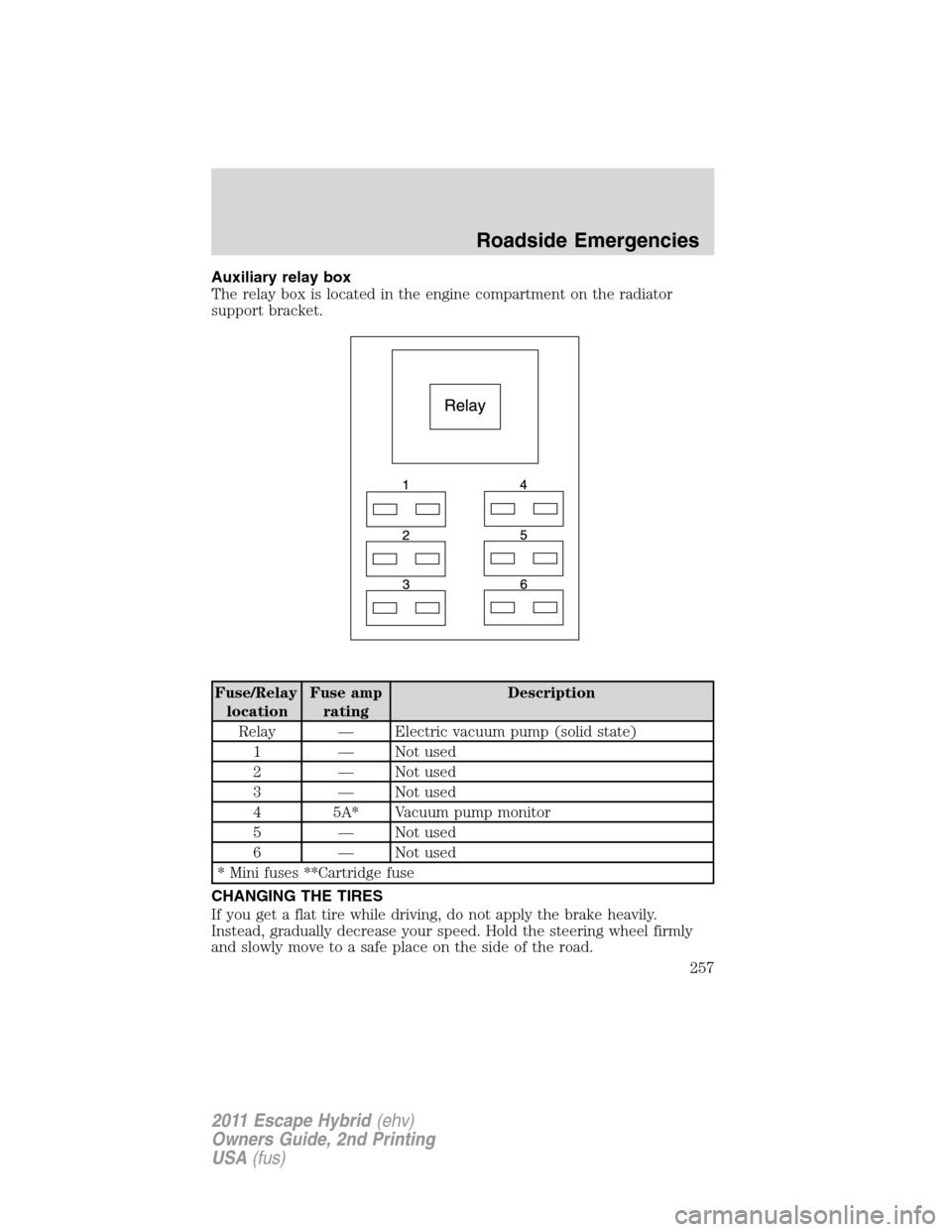

Auxiliary relay box
The relay box is located in the engine compartment on the radiator
support bracket.
Fuse/Relay
locationFuse amp
ratingDescription
Relay — Electric vacuum pump (solid state)
1 — Not used
2 — Not used
3 — Not used
4 5A* Vacuum pump monitor
5 — Not used
6 — Not used
* Mini fuses **Cartridge fuse
