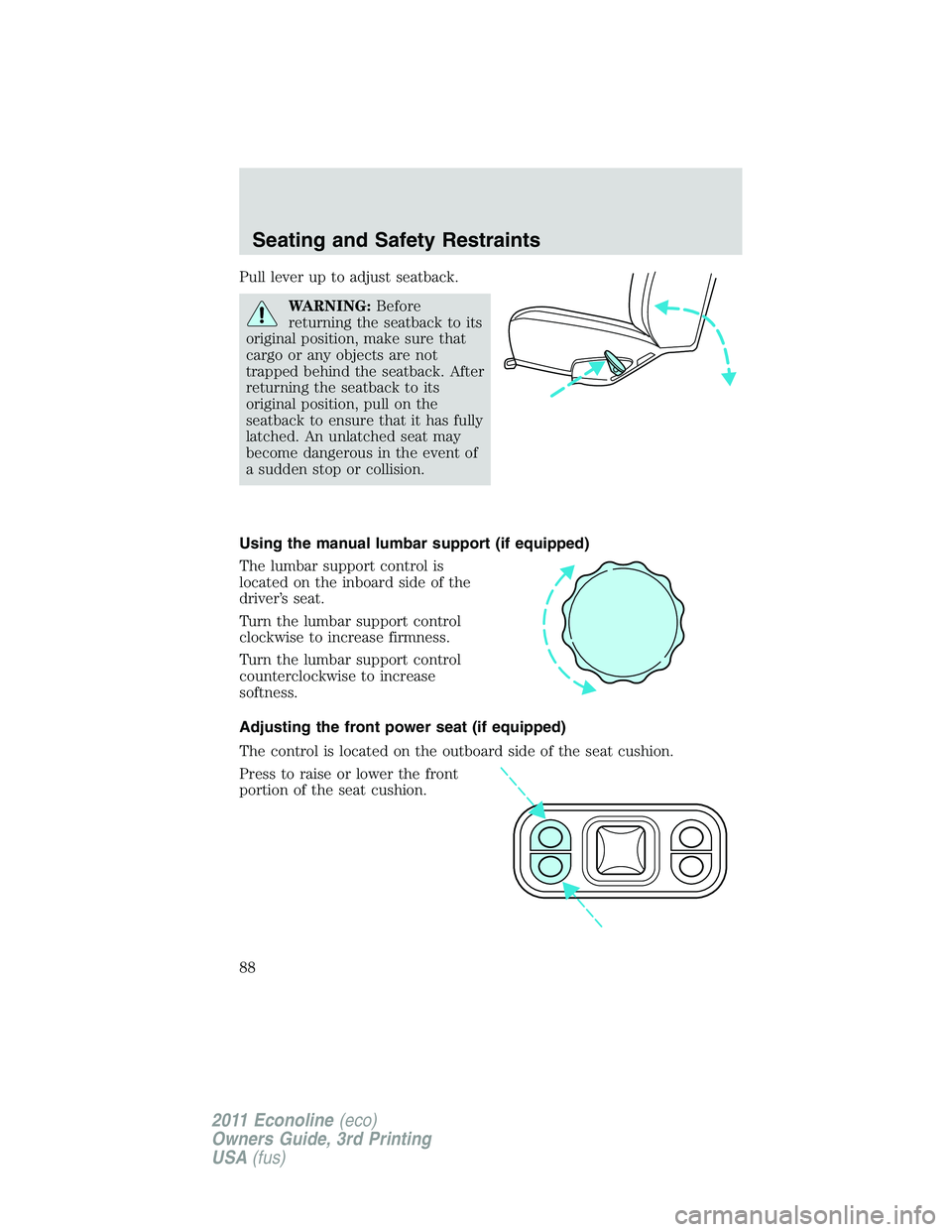

Pull lever up to adjust seatback.
WARNING:Before
returning the seatback to its
original position, make sure that
cargo or any objects are not
trapped behind the seatback. After
returning the seatback to its
original position, pull on the
seatback to ensure that it has fully
latched. An unlatched seat may
become dangerous in the event of
a sudden stop or collision.
Using the manual lumbar support (if equipped)
The lumbar support control is
located on the inboard side of the
driver’s seat.
Turn the lumbar support control
clockwise to increase firmness.
Turn the lumbar support control
counterclockwise to increase
softness.
Adjusting the front power seat (if equipped)
The control is located on the outboard side of the seat cushion.
Press to raise or lower the front
portion of the seat cushion.
Seating and Safety Restraints
88
2011 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)
positions of the ignition .........186
L
Lamps
bulb replacement
specifications chart ..................57
daytime running light ...............52
headlamps .................................51
headlamps, flash to pass ..........51
instrument panel, dimming .....52
interior lamps ...........................56
replacing bulbs .........................58
LATCH anchors .........................122
Lights, warning and indicator ....14
anti-lock brakes (ABS) ..........192
Loading instructions .................171
Load limits .................................164
Locks
autolock .....................................73
doors ..........................................73
Lubricant specifications ...........299
Lug nuts ....................................235
Lumbar support, seats ...............88
M
Message center ...........................21
english/metric button ...............26
warning messages .....................26
Mirrors ...................................66–67
automatic dimming rearview
mirror ........................................66
fold away ...................................68
side view mirrors (power) .......67
Motorcraftparts ..............258, 298
N
Navigation system .......................47O
Octane rating ............................279
Oil (see Engine oil) ..................263
P
Parking brake ............................192
Parts
(see Motorcraftparts) ...........298
Power distribution box
(see Fuses) ...............................222
Power door locks ........................73
Power mirrors .............................67
Power point .................................64
Power steering ..........................198
fluid, checking and adding ....286
fluid, refill capacity ................299
fluid, specifications .................299
Power Windows ...........................65
Preparing to drive your
vehicle ........................................199
R
Radio ......................................29, 31
Rear-view camera system .........211
Recommendations for
attaching safety restraints for
children ......................................116
Relays ........................................218
Remote entry system .................78
illuminated entry ......................82
locking/unlocking
doors ..............................73, 79–80
panic alarm ...............................80
replacement/additional
transmitters ...............................81
Index
337
2011 Econoline(eco)
Owners Guide, 3rd Printing
USA(fus)
