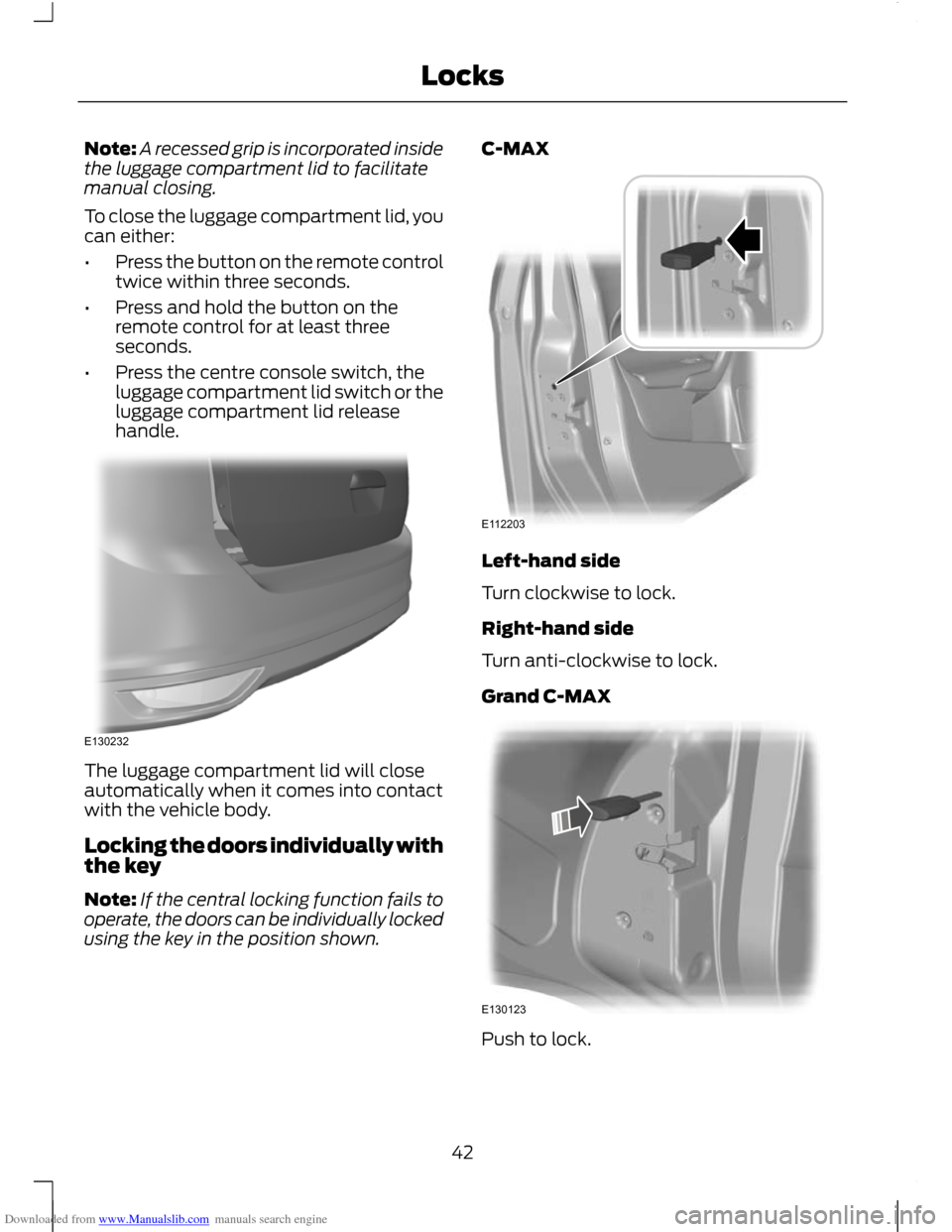

A recessed grip is incorporated inside
the luggage compartment lid to facilitate
manual closing.
To close the luggage compartment lid, you
can either:
• Press the button on the remote control
twice within three seconds.
• Press and hold the button on the
remote control for at least three
seconds.
• Press the centre console switch, the
luggage compartment lid switch or the
luggage compartment lid release
handle. The luggage compartment lid will close
automatically when it comes into contact
with the vehicle body.
Locking the doors individually with
the key
Note:
If the central locking function fails to
operate, the doors can be individually locked
using the key in the position shown. C-MAX
Left-hand side
Turn clockwise to lock.
Right-hand side
Turn anti-clockwise to lock.
Grand C-MAX
Push to lock.
42
LocksE130232 E112203 E130123

Downloaded from www.Manualslib.com manuals search engine CAUTIONS
Do not touch the glass of the bulb.
Only fit bulbs of the correct
specification. See Bulb
Specification Chart (page 69).
Note:
The following instructions describe
how to remove the bulbs. Fit replacements
in the reverse order unless otherwise stated.
Headlamp
Note: Remove the covers to gain access to
the bulbs. Direction indicator
A
Headlamp main beam
B
Headlamp dipped beam
C
Direction indicator
1. Remove the headlamp. See Removing a Headlamp (page 62). 2. Turn the bulb holder anti-clockwise
and remove it.
3. Gently press the bulb into the bulb holder, turn it anti-clockwise and
remove it.
Headlamp main beam CAUTION
Do not touch the glass of the bulb.
1. Remove the headlamp. See
Removing a Headlamp (page 62). 63
LightingABCE130173 E13017423 E13017542

Downloaded from www.Manualslib.com manuals search engine 2. Remove the cover.
3. Disconnect the electrical connector.
4. Release the clip and remove the bulb.
Headlamp dipped beam
CAUTION
Do not touch the glass of the bulb.
1. Remove the headlamp. See
Removing a Headlamp (page 62). 2. Remove the cover.
3. Turn the bulb holder anti-clockwise
and remove it.
4. Remove the bulb.
Cornering lamp
1. Remove the headlamp. See Removing a Headlamp (page 62). 2. Remove the cover.
3. Disconnect the electrical connector.
4. Release the clip and remove the bulb.
Side lamp
1. Remove the headlamp. See
Removing a Headlamp (page 62). 2. Remove the cover.
3. Remove the bulb holder.
4. Remove the bulb.
64
LightingE130176342 E13017724 E130181234

Downloaded from www.Manualslib.com manuals search engine Front fog lamps
Note:
You cannot separate the fog lamp
bulb from the bulb holder.
1. Using a suitable implement, remove the cover.
2. Remove the screws.
3. Remove the lamp. 4. Disconnect the electrical connector. 5. Turn the bulb holder anti-clockwise
and remove it.
Rear lamps
Direction indicator, tail and brake lamp 1. Remove the trim panel.
2. Disconnect the electrical connector.
3. Remove the wing nut.
4. Remove the lamp.
66
Lighting123E99405 4E994065 E130196 E13019723

Downloaded from www.Manualslib.com manuals search engine 5. Remove the bulb holder.
6. Gently press the bulb into the bulb
holder, turn it anti-clockwise and
remove it.
A. Tail and brake lamp
B. Direction indicator
Reversing lamp, tail lamp and fog lamp 1. Remove the trim panel. 2. Remove the wing nut.
3. Remove the lamp.
4. Disconnect the electrical connector.
5. Remove the bulb holder.
6. Gently press the bulb into the bulb
holder, turn it anti-clockwise and
remove it.
A. Reversing lamp
B. Tail and fog lamp
67
LightingE130198AB E130199 E1302002 E130201245AB

Downloaded from www.Manualslib.com manuals search engine Number plate lamp
1. Carefully release the spring clip.
2. Remove the lamp.
3. Turn the bulb anti-clockwise and
remove it.
Interior lamps
Vehicles with LED lamps
Note: The LED board is not a serviceable
item, please consult your dealer if this fails. Luggage compartment lamp,
footwell lamp and tailgate lamp
1. Carefully prise out the lamp.
2. Remove the bulb.
BULB SPECIFICATION CHART Power (watt)
Specification
Lamp
21
PY21W
Front direction indicator
55
H1
Headlamp main beam
69
Lighting321E72789 E125092 E72784

Downloaded from www.Manualslib.com manuals search engine All vehicles
Menu structure - information and
entertainment display
You can access the menu using the
Information and entertainment display
control. For item location: See At a
Glance (page 10).
86
