Repeat this procedure to program up to eight keys. If you
do not have a programmed Sentry Key, contact your
authorized dealer for details.
NOTE:
If a programmed key is lost, see your authorized
dealer to have all remaining keys erased from the sys-
tem’s memory. This will prevent the lost key from starting
your vehicle. The remaining keys must then be repro-
grammed. All vehicle keys must be taken to an authorized
dealer at the time of service to be reprogrammed.
General Information
The Sentry Key system complies with FCC rules Part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
•This device may not cause harmful interference.
•This device must accept any interference that may be
received, including interference that may cause unde-
sired operation.
VEHICLE SECURITY ALARM — IF EQUIPPED
The Vehicle Security Alarm monitors the vehicle doors,
liftgate, and ignition for unauthorized operation. When
the Vehicle Security Alarm is activated, interior switches
for door locks are disabled. The alarm provides both
audible and visual signals, the horn will sound repeat-
edly for three minutes, while the headlights, park lamps
and/or turn signals will flash for an additional 15 min-
utes.
NOTE: The Panic and Security alarms are quite differ-
ent. Please take a moment to activate the Panic and
Security modes to hear the differences in the horn. In case
one should go off in the future, you will need to know
which mode has been activated in order to deactivate it.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17

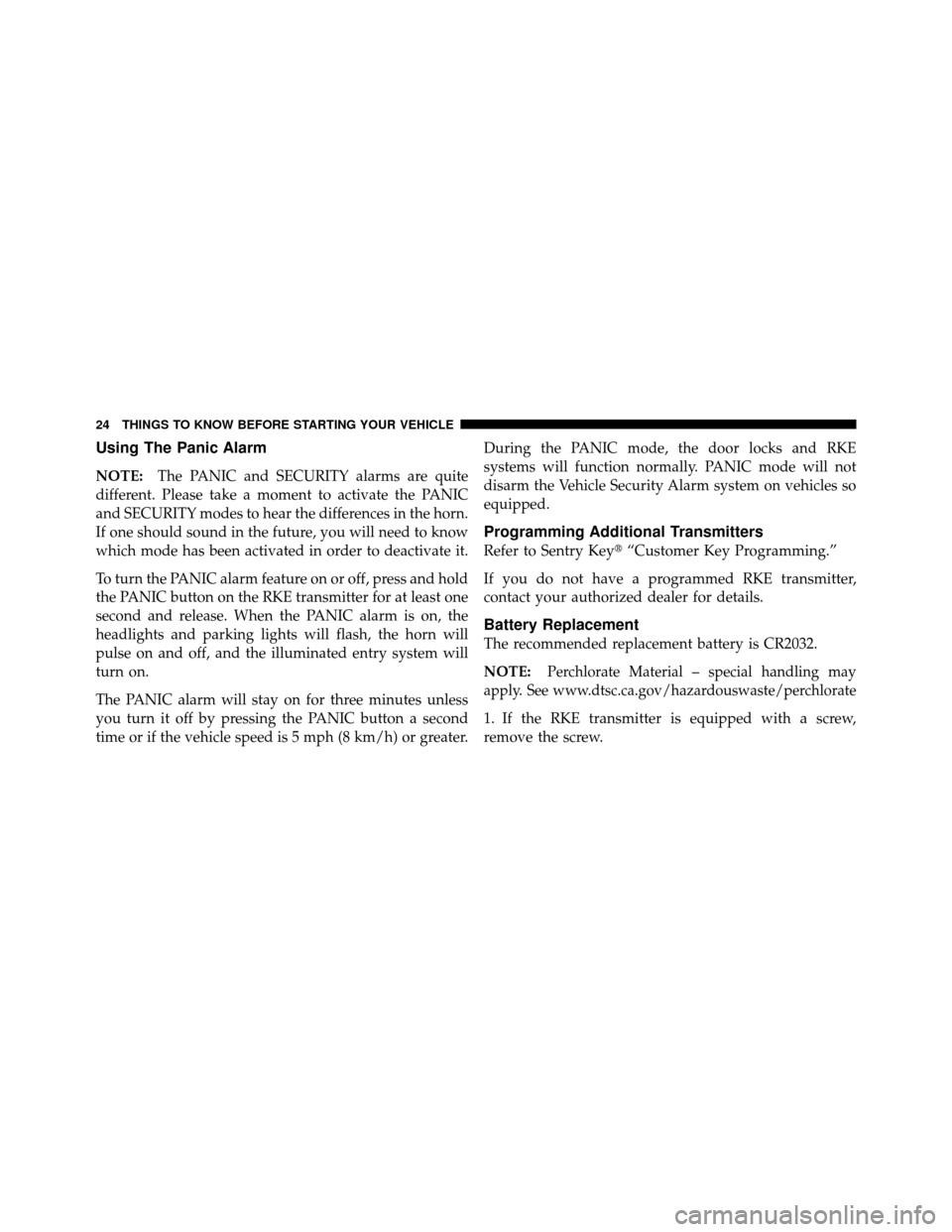

Using The Panic Alarm
NOTE:The PANIC and SECURITY alarms are quite
different. Please take a moment to activate the PANIC
and SECURITY modes to hear the differences in the horn.
If one should sound in the future, you will need to know
which mode has been activated in order to deactivate it.
To turn the PANIC alarm feature on or off, press and hold
the PANIC button on the RKE transmitter for at least one
second and release. When the PANIC alarm is on, the
headlights and parking lights will flash, the horn will
pulse on and off, and the illuminated entry system will
turn on.
The PANIC alarm will stay on for three minutes unless
you turn it off by pressing the PANIC button a second
time or if the vehicle speed is 5 mph (8 km/h) or greater. During the PANIC mode, the door locks and RKE
systems will function normally. PANIC mode will not
disarm the Vehicle Security Alarm system on vehicles so
equipped.
Programming Additional Transmitters
Refer to Sentry Key
“Customer Key Programming.”
If you do not have a programmed RKE transmitter,
contact your authorized dealer for details.
Battery Replacement
The recommended replacement battery is CR2032.
NOTE:
Perchlorate Material – special handling may
apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate
1. If the RKE transmitter is equipped with a screw,
remove the screw.
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

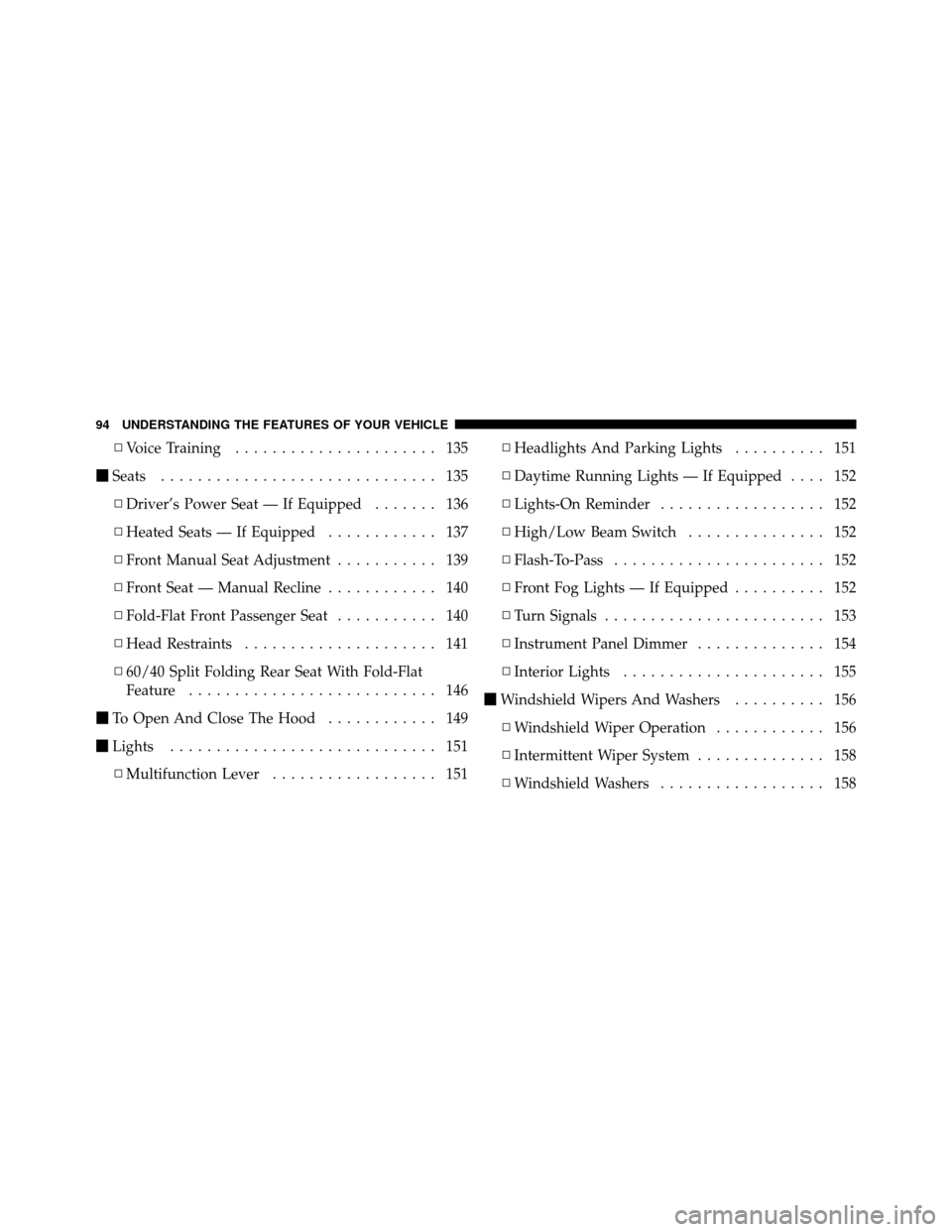

▫Voice Training ...................... 135
 Seats .............................. 135
▫ Driver’s Power Seat — If Equipped ....... 136
▫ Heated Seats — If Equipped ............ 137
▫ Front Manual Seat Adjustment ........... 139
▫ Front Seat — Manual Recline ............ 140
▫ Fold-Flat Front Passenger Seat ........... 140
▫ Head Restraints ..................... 141
▫ 60/40 Split Folding Rear Seat With Fold-Flat
Feature ........................... 146
 To Open And Close The Hood ............ 149
 Lights ............................. 151
▫ Multifunction Lever .................. 151 ▫
Headlights And Parking Lights .......... 151
▫ Daytime Running Lights — If Equipped .... 152
▫ Lights-On Reminder .................. 152
▫ High/Low Beam Switch ............... 152
▫ Flash-To-Pass ....................... 152
▫ Front Fog Lights — If Equipped .......... 152
▫ Turn Signals ........................ 153
▫ Instrument Panel Dimmer .............. 154
▫ Interior Lights ...................... 155
 Windshield Wipers And Washers .......... 156
▫ Windshield Wiper Operation ............ 156
▫ Intermittent Wiper System .............. 158
▫ Windshield Washers .................. 158
94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

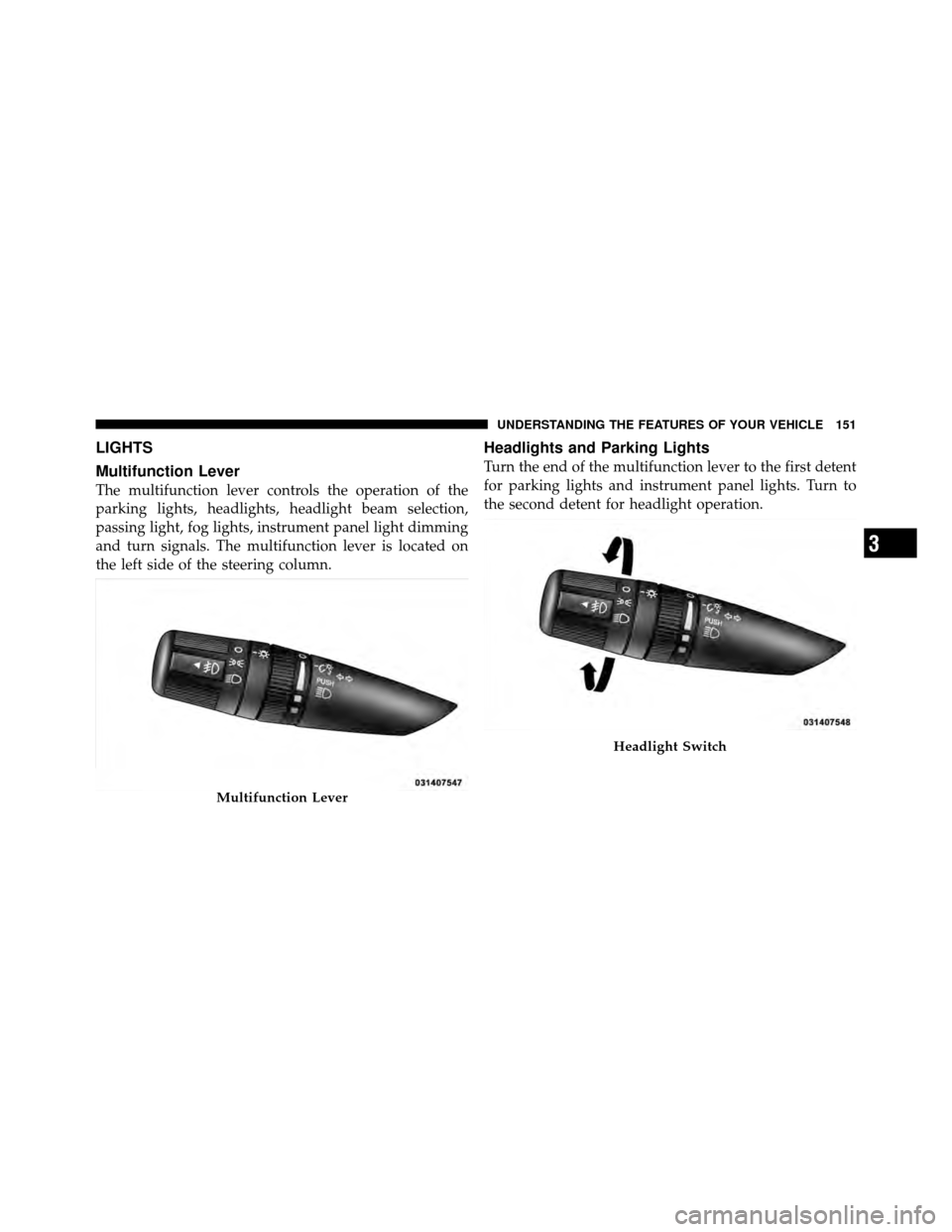

LIGHTS
Multifunction Lever
The multifunction lever controls the operation of the
parking lights, headlights, headlight beam selection,
passing light, fog lights, instrument panel light dimming
and turn signals. The multifunction lever is located on
the left side of the steering column.
Headlights and Parking Lights
Turn the end of the multifunction lever to the first detent
for parking lights and instrument panel lights. Turn to
the second detent for headlight operation.
Multifunction Lever
Headlight Switch
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 151

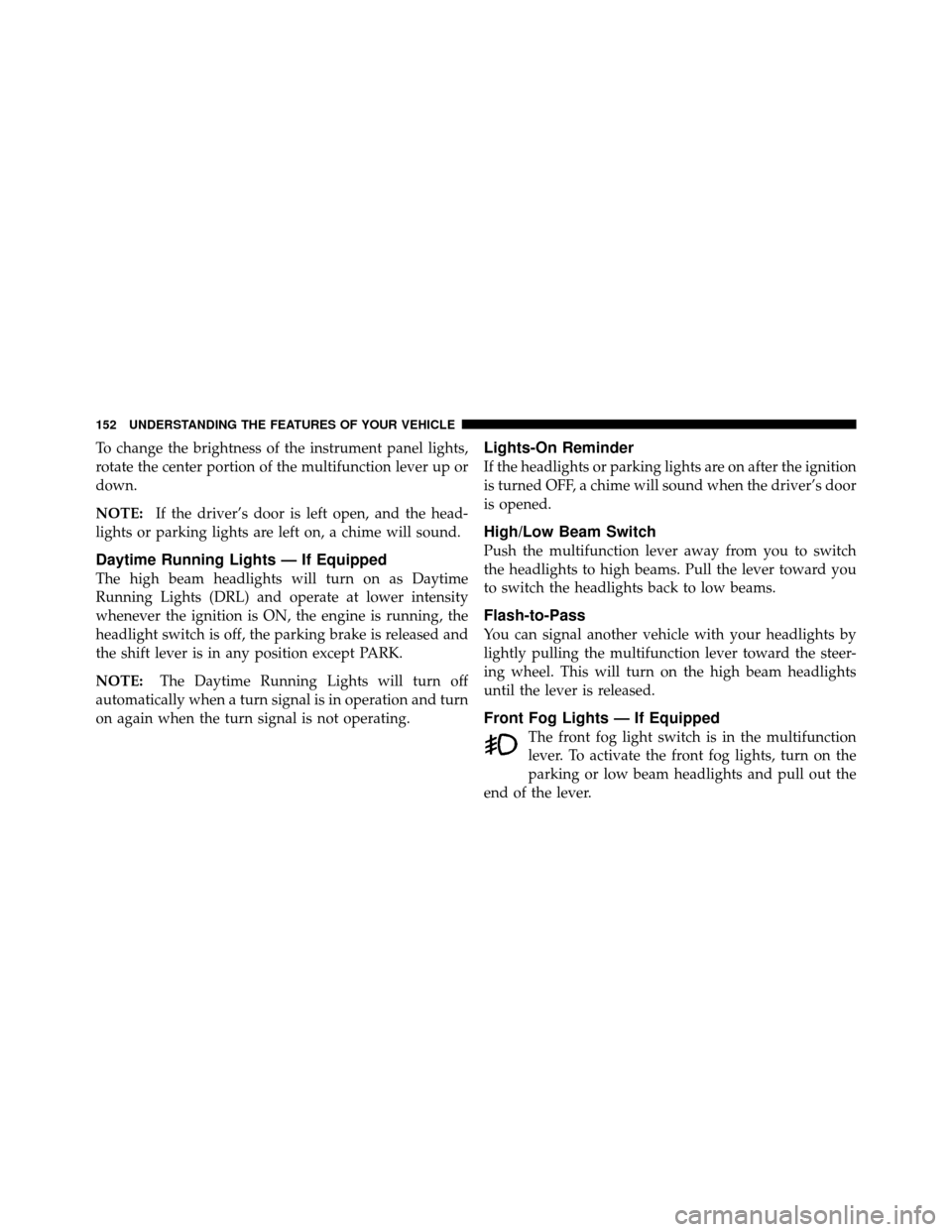

To change the brightness of the instrument panel lights,
rotate the center portion of the multifunction lever up or
down.
NOTE:If the driver’s door is left open, and the head-
lights or parking lights are left on, a chime will sound.
Daytime Running Lights — If Equipped
The high beam headlights will turn on as Daytime
Running Lights (DRL) and operate at lower intensity
whenever the ignition is ON, the engine is running, the
headlight switch is off, the parking brake is released and
the shift lever is in any position except PARK.
NOTE: The Daytime Running Lights will turn off
automatically when a turn signal is in operation and turn
on again when the turn signal is not operating.
Lights-On Reminder
If the headlights or parking lights are on after the ignition
is turned OFF, a chime will sound when the driver’s door
is opened.
High/Low Beam Switch
Push the multifunction lever away from you to switch
the headlights to high beams. Pull the lever toward you
to switch the headlights back to low beams.
Flash-to-Pass
You can signal another vehicle with your headlights by
lightly pulling the multifunction lever toward the steer-
ing wheel. This will turn on the high beam headlights
until the lever is released.
Front Fog Lights — If Equipped
The front fog light switch is in the multifunction
lever. To activate the front fog lights, turn on the
parking or low beam headlights and pull out the
end of the lever.
152 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

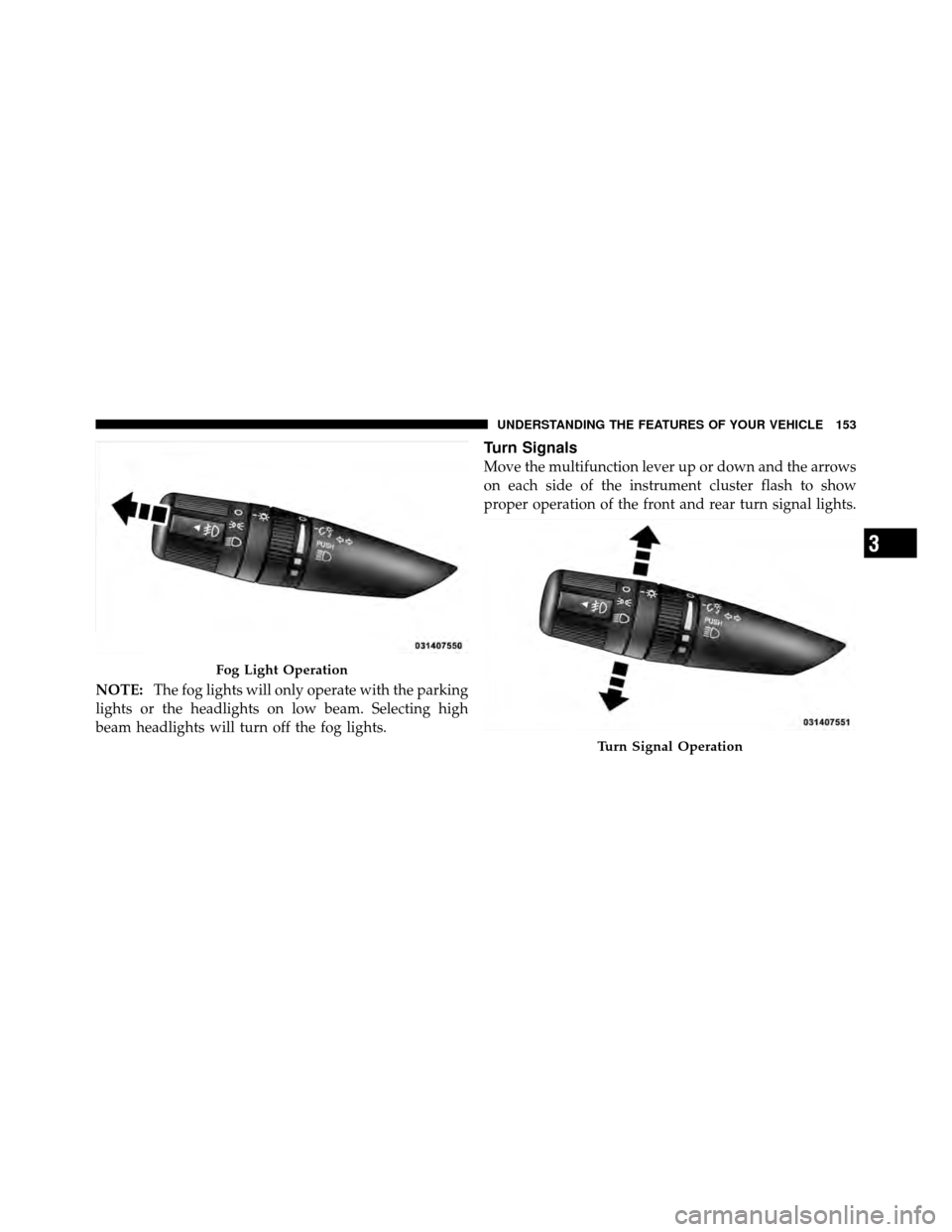

NOTE:The fog lights will only operate with the parking
lights or the headlights on low beam. Selecting high
beam headlights will turn off the fog lights.
Turn Signals
Move the multifunction lever up or down and the arrows
on each side of the instrument cluster flash to show
proper operation of the front and rear turn signal lights.
Fog Light Operation
Turn Signal Operation
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 153

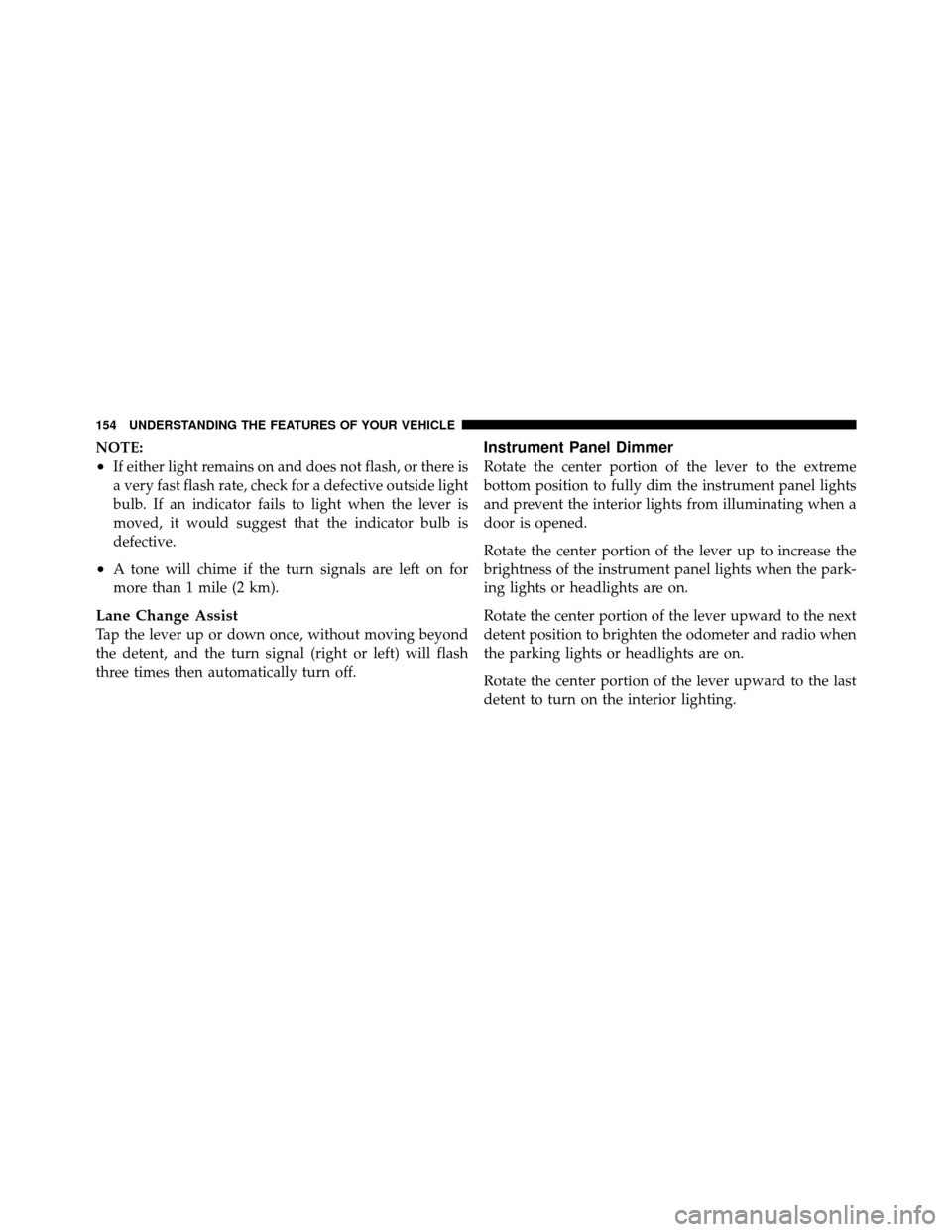

NOTE:
•If either light remains on and does not flash, or there is
a very fast flash rate, check for a defective outside light
bulb. If an indicator fails to light when the lever is
moved, it would suggest that the indicator bulb is
defective.
•A tone will chime if the turn signals are left on for
more than 1 mile (2 km).
Lane Change Assist
Tap the lever up or down once, without moving beyond
the detent, and the turn signal (right or left) will flash
three times then automatically turn off.
Instrument Panel Dimmer
Rotate the center portion of the lever to the extreme
bottom position to fully dim the instrument panel lights
and prevent the interior lights from illuminating when a
door is opened.
Rotate the center portion of the lever up to increase the
brightness of the instrument panel lights when the park-
ing lights or headlights are on.
Rotate the center portion of the lever upward to the next
detent position to brighten the odometer and radio when
the parking lights or headlights are on.
Rotate the center portion of the lever upward to the last
detent to turn on the interior lighting.
154 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Interior Lights
The overhead light comes on when a door is opened. It
may also be turned on by rotating the control for the
dimmer switch on the multifunction lever fully upward.
The overhead light will automatically turn off in approxi-
mately 10 minutes if a door is left open or the dimmer
control is left in the dome light position and the key is not
in the ignition. Turn the ignition switch ON to restore the
overhead light operation.
Daytime Brightness Feature
Certain instrument panel components (odometer, radio
display) can be illuminated at full brightness during the
daytime. This can be helpful when driving with your
headlights on during the daytime, such as in a parade or
a funeral procession. To activate this feature, rotate the
left stalk one detent lower than the dome light.
Dimmer Control
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 155
