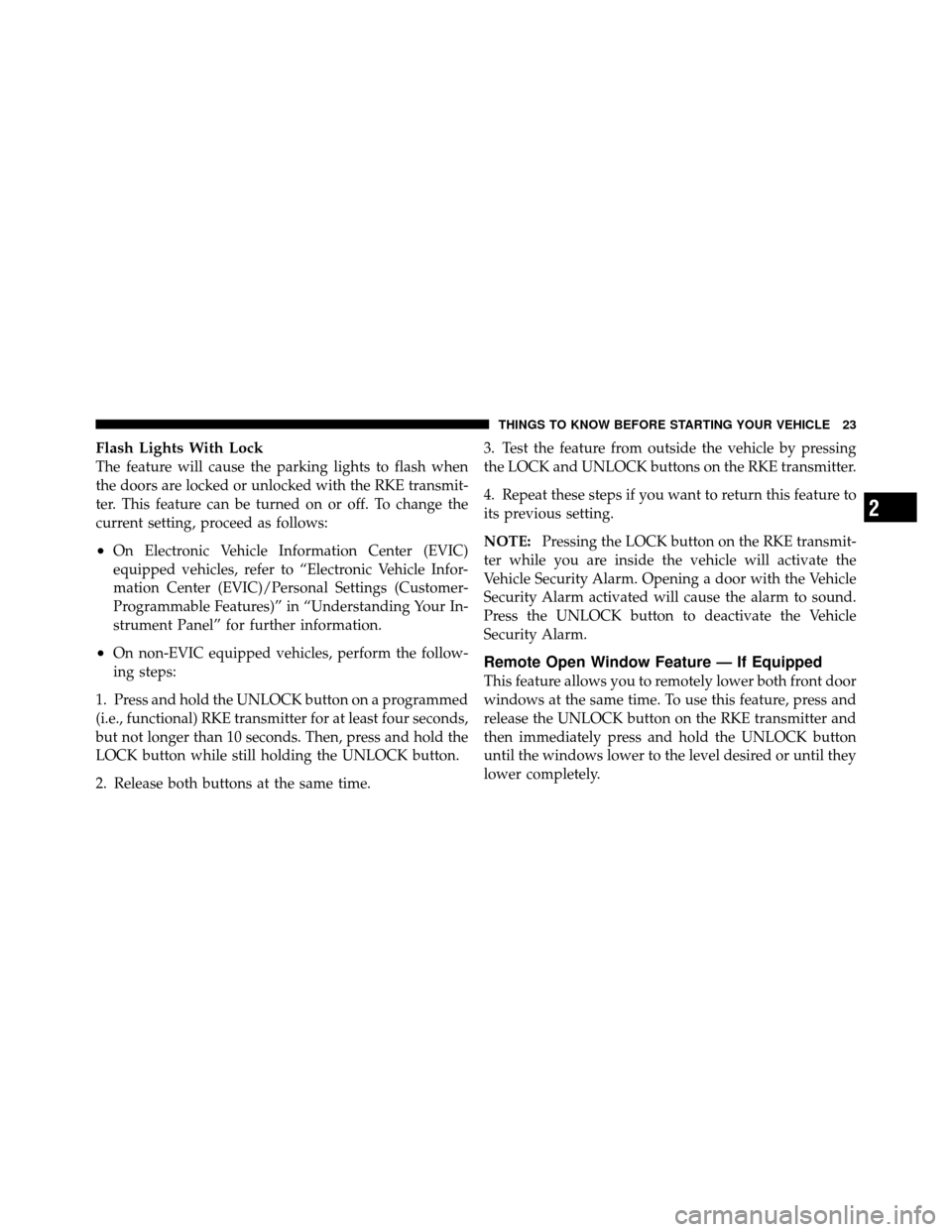

Flash Lights With Lock
The feature will cause the parking lights to flash when
the doors are locked or unlocked with the RKE transmit-
ter. This feature can be turned on or off. To change the
current setting, proceed as follows:
•On Electronic Vehicle Information Center (EVIC)
equipped vehicles, refer to “Electronic Vehicle Infor-
mation Center (EVIC)/Personal Settings (Customer-
Programmable Features)” in “Understanding Your In-
strument Panel” for further information.
•On non-EVIC equipped vehicles, perform the follow-
ing steps:
1. Press and hold the UNLOCK button on a programmed
(i.e., functional) RKE transmitter for at least four seconds,
but not longer than 10 seconds. Then, press and hold the
LOCK button while still holding the UNLOCK button.
2. Release both buttons at the same time. 3. Test the feature from outside the vehicle by pressing
the LOCK and UNLOCK buttons on the RKE transmitter.
4. Repeat these steps if you want to return this feature to
its previous setting.
NOTE:
Pressing the LOCK button on the RKE transmit-
ter while you are inside the vehicle will activate the
Vehicle Security Alarm. Opening a door with the Vehicle
Security Alarm activated will cause the alarm to sound.
Press the UNLOCK button to deactivate the Vehicle
Security Alarm.Remote Open Window Feature — If Equipped
This feature allows you to remotely lower both front door
windows at the same time. To use this feature, press and
release the UNLOCK button on the RKE transmitter and
then immediately press and hold the UNLOCK button
until the windows lower to the level desired or until they
lower completely.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23

NOTE:Changes or modifications not expressly ap-
proved by the party responsible for compliance could
void the user’s authority to operate the equipment.
If your RKE transmitter fails to operate from a normal
distance, check for these two conditions:
1. Weak battery in RKE transmitter. The expected life of
the battery is from one to two years.
2. Closeness to a radio transmitter such as a radio station
tower, airport transmitter, and some mobile or CB radios.
REMOTE STARTING SYSTEM — IF EQUIPPED
This system uses the Remote Keyless Entry
(RKE) transmitter to start the engine conve-
niently from outside the vehicle while still
maintaining security. The system has a range of
approximately 300 ft (91 m).
NOTE: The vehicle must be equipped with an auto-
matic transmission to be equipped with Remote Start.
How To Use Remote Start
All of the following conditions must be met before the
engine will remote start:
•Shift lever in PARK
•Doors closed
•Hood closed
•Hazard switch off
•Brake switch inactive (brake pedal not pressed)
•Ignition key removed from ignition switch
•Battery at an acceptable charge level
•RKE PANIC button not pressed
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!
•Do not start or run an engine in a closed garage or
confined area. Exhaust gas contains Carbon Mon-
oxide (CO) which is odorless and colorless. Car-
bon Monoxide is poisonous and can cause serious
injury or death when inhaled.
•Keep Remote Keyless Entry (RKE) transmitters
away from children. Operation of the Remote Start
System, windows, door locks or other controls
could cause serious injury or death.
To Enter Remote Start
Press and release the REMOTE START button
on the RKE transmitter twice within five sec-
onds. The parking lights will flash and the horn
will chirp twice (if programmed). Then, the
engine will start and the vehicle will remain in the
Remote Start mode for a 15-minute cycle. NOTE:
•The park lamps will turn on and remain on during
Remote Start mode.
•For security, power window and power sunroof op-
eration (if equipped) are disabled when the vehicle is
in the Remote Start mode.
•The engine can be started two consecutive times (two
15-minute cycles) with the RKE transmitter. However,
the ignition switch must be cycled to the ON/RUN
position before you can repeat the start sequence for a
third cycle.
Remote start will also cancel if any of the following occur:
•The engine stalls or RPM exceeds 2500
•Any engine warning lamps come on
•The hood is opened
•The hazard switch is pressed
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27

•The transmission is moved out of PARK
•The brake pedal is pressed
To Exit Remote Start Mode Without Driving The
Vehicle
Press and release the REMOTE START button one time,
or allow the engine to run for the entire 15-minute cycle.
NOTE:To avoid unintentional shut downs, the system
will disable the one time press of the REMOTE START
button for two seconds after receiving a valid Remote
Start request.
To Exit Remote Start Mode And Drive The Vehicle
Before the end of the 15-minute cycle, press and release
the UNLOCK button on the RKE transmitter to unlock
the doors and disarm the Vehicle Security Alarm (if
equipped). Then, prior to the end of the 15-minute cycle,
insert the key into the ignition switch and turn the switch
to the ON/RUN position.
NOTE: The ignition switch must be in the ON/RUN
position in order to drive the vehicle.
DOOR LOCKS
Manual Door Locks
Use the manual door lock knob to lock the doors from
inside the vehicle. If the lock knob is down when the door
is closed, the door will lock. Make sure the keys are not
inside the vehicle before closing the door.
28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

6. The doors were not previously locked using the power
door lock switch or Remote Keyless Entry (RKE)
transmitter
Automatic Door Locks Programming —
If Equipped
The Automatic Door Locks feature can be enabled or
disabled as follows:
•For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), refer to “Electronic Vehicle
Information Center (EVIC) — If Equipped/Personal
Settings (Customer-Programmable Features)” in “Un-
derstanding Your Instrument Panel” for further infor-
mation.
•For vehicles not equipped with the EVIC, perform the
following procedure:
1. Close all doors and place the key in the ignition
switch. 2. Within 15 seconds, cycle the ignition switch between
LOCK and ON/RUN and then back to LOCK four times
ending up in the LOCK position (do not start the engine).
3. Within 30 seconds, press the power door LOCK switch
to lock the doors.
4. A single chime will indicate the completion of the
programming.
5. Repeat these steps if you want to return this feature to
its previous setting.
NOTE:
•If you do not hear the chime it means that the system
did not enter the programming mode and you will
need to repeat the procedure.
•Use the Automatic Door Locks feature in accordance
with local laws.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31

•Angle – Repeatedly pressing SELECT will change
the viewing angle if supported by the DVD disc (if
equipped).
NOTE:
•The available selections for each of the above entries
varies depending upon the disc.
•These selections can only be made while playing a
DVD.
•VES™ Power - Allows you to turn VES™ ON and
OFF (if equipped).
•VES™ Lock - Locks out rear VES™ remote controls (if
equipped).
•VES™ CH1/CH2 - Allows the user to change the
mode of either the IR1 or IR2 wireless headphones by
pressing the AUDIO/SELECT button (if equipped).
•Set Home Clock - Pressing the SELECT button allows
you to set the clock. Turn the TUNE/SCROLL control
knob to adjust the hours and then press and turn the
TUNE/SCROLL control knob to adjust the minutes.
Press the TUNE/SCROLL control knob again to save
changes.
•Player Defaults - Selecting this item will allow the
user to scroll through the following items and set
defaults according to customer preference.
Menu Language — If Equipped
Selecting this item will allow the user to choose the
default startup DVD menu language (effective only if
language supported by disc). If you want to select a
language not listed, then scroll down and select other.
Enter the four-digit country code using the TUNE/
SCROLL control knob to scroll up and down to select the
number and then push to select.4
UNDERSTANDING YOUR INSTRUMENT PANEL 233

Remote Sound System (Radio) Controls........ 271
Remote Starting System .................... 26
Replacement Keys ........................ 15
Replacement Parts ....................... 405
Replacement Tires ....................... 337
Reporting Safety Defects ................... 468
Restraints, Child ......................... 76
Restraints, Occupant ...................... 39
Roll Over Warning ........................ 4
Roof Type Carrier ....................... 190
Rotation, Tires .......................... 340
Safety Checks Inside Vehicle ................. 89
Safety Checks Outside Vehicle ............... 91
Safety Defects, Reporting .................. 468
Safety Information, Tire ................... 320
Safety Tips ............................. 87
Safety, Exhaust Gas ....................... 88
Satellite Radio Antenna .................243,268Schedule, Maintenance
.................... 448
Seat Belt Reminder ....................... 55
Seat Belts ............................ 43,89
Adjustable Upper Shoulder Anchorage ...... 48
And Pregnant Women .................. 57
Child Restraint ..................... 76,84
Extender ........................... 57
Front Seat .......................... 43
Inspection .......................... 89
Maintenance ........................ 432
Shoulder Belt Anchorage ................ 48
Seats ................................. 135
Adjustment ......................... 139
Heated ............................ 137
Rear Folding ........................ 146
Reclining .......................... 140
Security Alarm (Theft Alarm) ................ 17
Selection of Coolant (Antifreeze) ............. 444
Selection of Oil ......................... 408
486 INDEX

Sentry Key (Immobilizer)................... 14
Sentry Key Programming ................... 16
Sentry Key Replacement ................... 15
Service Assistance ....................... 465
Service Contract ......................... 467
Service Engine Soon Light
(Malfunction Indicator) .................... 210
Service Manuals ........................ 469
Setting the Clock .................. 229,248,257
Settings, Personal ........................ 224
Shift Lever Override ...................... 393
Shifting Automatic Transmission .............295,300
Shoulder Belts ........................... 43
Side Window Demisters (Defrosters) .......... 284
Signals, Turn .............. 91,153,201,439,440,441
Snow Chains (Tire Chains) ................. 338
Spare Tire ....................... 333,334,382Specifications
Fuel (Gasoline) ...................... 351
Oil ............................... 408
Speed Control (Cruise Control) .............. 160
Speedometer ........................... 200
Starting ............................... 291
Cold Weather ....................... 291
Engine Block Heater .................. 293
Engine Fails to Start .................. 292
Remote ............................ 26
Steering Power .......................... 307,308
Tilt Column ........................ 159
Wheel, Tilt ......................... 159
Steering Wheel Audio Controls .............. 271
Steering Wheel Mounted Sound
System Controls ......................... 271
Storage ............................... 183
Storage Bin ............................ 183
10
INDEX 487
