2011 DODGE NITRO clock

By pressing the SEEK button when the Music Type icon is
displayed, the radio will be tuned to the next frequency
station with the same selected Music Type name. The
Music Type function only operates when in the FM mode.
If a preset button is activated while in the Music Type
(Program Type) mode, the Music Type mode will be
exited and the radio will tune to the preset station.
SETUP Button
Pressing the SETUP button allows you to select between
the following items:
•Set Clock— Pressing the SELECT button will allow
you to set the clock. Adjust the hours by turning the
TUNE/SCROLL control knob. After adjusting the
hours, press the TUNE/SCROLL control knob to set
the minutes. The minutes will begin to blink. Adjust
the minutes using the right side TUNE/SCROLL
control knob. Press the TUNE/SCROLL control knob
to save time change.
AM/FM Button
Press the button to select either AM or FM mode.
SET/RND Button — To Set the Pushbutton Memory
When you are receiving a station that you wish to
commit to pushbutton memory, press the SET/RND
button. The symbol SET 1 will now show in the display
window. Select the button (1–6) you wish to lock onto this
station and press and release that button. If a button is
not selected within five seconds after pressing the SET/
RND button, the station will continue to play but will not
be stored into pushbutton memory.
You may add a second station to each pushbutton by
repeating the above procedure with this exception: Press
the SET/RND button twice and SET 2 will show in the
display window. Each button can be set for SET 1 and
SET 2 in both AM and FM. This allows a total of 12 AM
and 12 FM stations to be stored into pushbutton memory.
The stations stored in SET 2 memory can be selected by
pressing the pushbutton twice.
260 UNDERSTANDING YOUR INSTRUMENT PANEL

SEEK Buttons
Press and release the SEEK buttons to search for the next
channel in Satellite mode. Press the right switch to seek
up and the left switch to seek down. The radio will
remain tuned to the new channel until you make another
selection. Holding either button will bypass channels
without stopping until you release it.
SCAN Button
Pressing the SCAN button causes the tuner to search for
the next channel, pausing for eight seconds before con-
tinuing to the next. To stop the search, press the SCAN
button a second time.
INFO Button
Pressing the INFO button will cycle the display informa-
tion between Artist, Song Title, and Composer (if avail-
able). Also, pressing and holding the INFO button for anadditional three seconds will make the radio display the
Song Title all of the time (press and hold again to return
to normal display).
RW/FF
Pressing the RW (Rewind) or FF (Fast Forward) buttons
causes the tuner to search for the next channel in the
direction of the arrows.
TUNE Control (Rotary)
Turn the rotary TUNE/SCROLL control knob clockwise
to increase or counterclockwise to decrease the channel.
MUSIC TYPE Button
Pressing this button once will turn on the Music Type
mode for five seconds. Pressing the MUSIC TYPE button
or turning the TUNE/SCROLL control knob within five
seconds will allow the program format type to be se-
lected.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 269

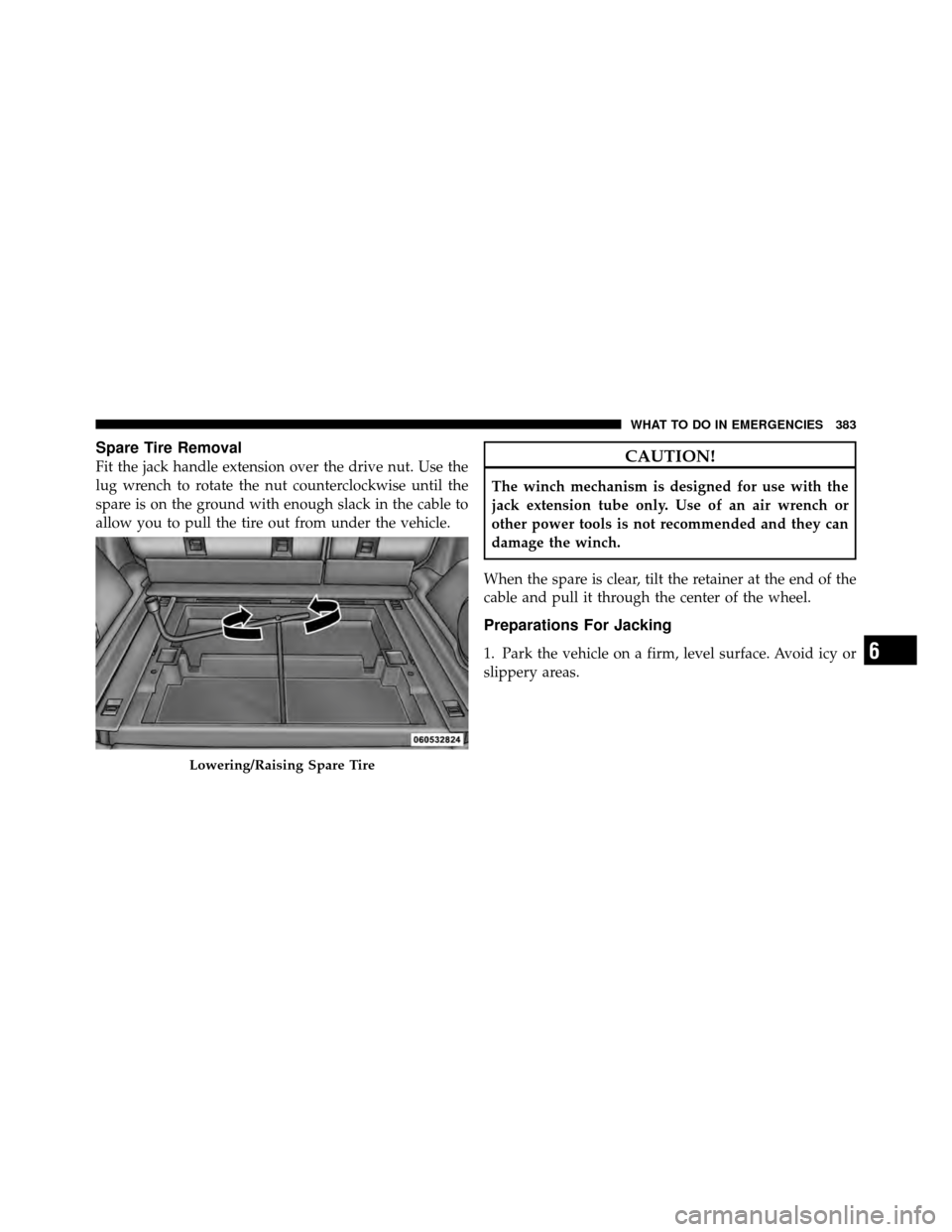

Spare Tire Removal
Fit the jack handle extension over the drive nut. Use the
lug wrench to rotate the nut counterclockwise until the
spare is on the ground with enough slack in the cable to
allow you to pull the tire out from under the vehicle.CAUTION!
The winch mechanism is designed for use with the
jack extension tube only. Use of an air wrench or
other power tools is not recommended and they can
damage the winch.
When the spare is clear, tilt the retainer at the end of the
cable and pull it through the center of the wheel.
Preparations For Jacking
1. Park the vehicle on a firm, level surface. Avoid icy or
slippery areas.
Lowering/Raising Spare Tire
6
WHAT TO DO IN EMERGENCIES 383

4. Rotate the lock ring on the back of the headlamp
housing counterclockwise to unlock it.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
5. Disconnect the electrical connector and replace the
bulb.
Left Front Turn Signal
1. Turn the steering wheel all the way to the right (full
right lock).
2. Remove the door in the left wheel liner by twisting
counter clockwise. Access to the bulb can be gained
through the wheel liner hole. 3. Disconnect the electrical connector.
4. Twist the bulb counter clockwise to remove.
Access Door
7
MAINTAINING YOUR VEHICLE 439

Right Front Turn Signal
1. Open the hood.
2. Reach behind the headlight unit in the engine com-
partment to access the turn signal bulb.
3. Twist the bulb counterclockwise to remove.
4. Disconnect the electrical connector and replace the
bulb.
Front Side Marker
1. Open the hood.
2. Remove the grille assembly as follows:a. Remove eight fasteners.
b. Remove two screws from each headlamp. c. Remove two rivets from the center of the grille.
d. Remove one push pin from the top of each fender.
e. Pull the grille assembly toward you to disconnect
the grille clips to the fender and the headlamp ball-
studs to the front end module.
3. Disconnect electrical connector.
4. Turn the bulb counterclockwise to remove.
Front Fog Lamp (Front Fascia Mounted)
1. Reach under the vehicle to access the back of the front
fog lamp.
2. Disconnect the electrical connector from the front fog
lamp housing.
440 MAINTAINING YOUR VEHICLE

Cargo Compartment...................... 185
Light ............................. 185
Cargo Light ............................ 185
Cargo Load Floor ........................ 187
Cargo Tie-Downs ........................ 185
Cellular Phone ....................... 100,273
Center High Mounted Stop Light ............ 442
Certification Label ....................... 358
Changing A Flat Tire ..................... 381
Chart, Tire Sizing ........................ 321
Check Engine Light
(Malfunction Indicator Light) .............210,404
Checking Your Vehicle For Safety ............. 87
Checks, Safety ........................... 87
Child Restraint .................... 76,77,82,84
Child Restraint Tether Anchors .............81,82
Child Safety Locks ........................ 33
Climate Control ......................... 273
Clock ........................... 229,248,257Coin Holder
........................... 184
Compact Disc (CD) Maintenance ............. 273
Compact Spare Tire ...................... 333
Compass ........................ 212,215,221
Compass Calibration .................. 215,222
Compass Variance .................... 214,223
Computer, Trip/Travel .................... 219
Console .............................. 184
Console, Floor .......................... 184
Contract, Service ........................ 467
Cooling System ......................... 417
Adding Coolant (Antifreeze) ............. 419
Coolant Capacity ..................... 443
Coolant Level ....................... 421
Disposal of Used Coolant ............... 420
Drain, Flush, and Refill ................ 418
Inspection .......................... 417
Points to Remember .................. 421
Pressure Cap ........................ 420
476 INDEX

Sentry Key (Immobilizer)................... 14
Sentry Key Programming ................... 16
Sentry Key Replacement ................... 15
Service Assistance ....................... 465
Service Contract ......................... 467
Service Engine Soon Light
(Malfunction Indicator) .................... 210
Service Manuals ........................ 469
Setting the Clock .................. 229,248,257
Settings, Personal ........................ 224
Shift Lever Override ...................... 393
Shifting Automatic Transmission .............295,300
Shoulder Belts ........................... 43
Side Window Demisters (Defrosters) .......... 284
Signals, Turn .............. 91,153,201,439,440,441
Snow Chains (Tire Chains) ................. 338
Spare Tire ....................... 333,334,382Specifications
Fuel (Gasoline) ...................... 351
Oil ............................... 408
Speed Control (Cruise Control) .............. 160
Speedometer ........................... 200
Starting ............................... 291
Cold Weather ....................... 291
Engine Block Heater .................. 293
Engine Fails to Start .................. 292
Remote ............................ 26
Steering Power .......................... 307,308
Tilt Column ........................ 159
Wheel, Tilt ......................... 159
Steering Wheel Audio Controls .............. 271
Steering Wheel Mounted Sound
System Controls ......................... 271
Storage ............................... 183
Storage Bin ............................ 183
10
INDEX 487
