2011 DODGE GRAND CARAVAN headlights

•Headlight Beams Low/High
•Flash-To-Pass (Optical Horn)
•Front and Rear Wipers — Washer Functions
Turn Signals
Move the multifunction lever up or down and the arrows
on each side of the instrument cluster flash to show
proper operation of the front and rear turn signal lights.
NOTE:If either light remains on and does not flash, or
there is a very fast flash rate, check for a defective outside
light bulb. If an indicator fails to light when the lever is
moved, it would suggest that the indicator bulb is
defective.
Turn Signal Warning
If the vehicle electronics sense that the vehicle has
traveled at over 18 mph (29 km/h) for about 1 mile
(1.6 km) with the turn signals on, a chime will sound to
alert the driver.
Lane Change Assist
Tap the lever up or down once, without moving beyond
the detent, and the turn signal (right or left) will flash
three times then automatically turn off.
High/Low Beam Switch
When the headlights are turned on, pushing the multi-
function lever toward the instrument panel will switch
from low beams to high beams. Pulling back to the
neutral position returns the headlights to the low beam
operation.
Flash-To-Pass
You can signal another vehicle with your headlights by
lightly pulling the multifunction lever toward you. This
will cause the headlights to turn on at high beam and
remain on until the lever is released.
170 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Battery Protection
This feature provides battery protection to avoid wearing
down the battery if the headlights, parking lights, or
front fog lights are left on for extended periods of time
when the ignition switch is in the LOCK position. After
eight minutes of the ignition switch being in the LOCK
position and the headlight switch in any position other
than OFF or AUTO, the lights will turn off automatically
until the next cycle of the ignition switch or headlight
switch.
The battery protection feature will be disabled if the
ignition switch is turned to any other position other than
LOCK during the eight minute delay.
WINDSHIELD WIPER AND WASHERS
The wipers and washers are operated by a switch within
the multifunction lever. Rotate the end of the multifunc-
tion lever to select the desired wiper speed.NOTE:
Always remove any buildup of snow that pre-
vents the windshield wiper blades from returning to the
off position. If the windshield wiper switch is turned off
and the blades cannot return to the off position, damage
to the wiper motor may occur.
Washer And Wiper Controls
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 171

INSTRUMENT CLUSTER DESCRIPTIONS
1. Tachometer
The red segments indicate the maximum permissible
engine revolutions per minute (RPM x 1000) for each gear
range. Before reaching the red area, ease up on the
accelerator.
2. Front Fog Light Indicator — If EquippedThis indicator will illuminate when the front fog
lights are on.
3. Park/Headlight ON Indicator — If Equipped This indicator will illuminate when the park
lights or headlights are turned on.
4. Turn Signal Indicators The arrow will flash with the exterior turn signal
when the turn signal lever is operated. If the vehicle is driven 1 mile (1.6 km) with either turn
signal on, a continuous chime will sound to alert you to
turn the signal off. If either indicator flashes at a rapid
rate, check for a defective outside light bulb.
5. High Beam Indicator
This indicator shows that the high beam head-
lights are on. Push the multifunction lever forward
to switch the headlights to high beam, and pull toward
yourself (normal position) to return to low beam.
6. Compass Mini-Trip Computer (CMTC) or Electronic
Vehicle Information Center (EVIC) Display — If
Equipped
Odometer
The odometer display shows the total distance the ve-
hicle has been driven.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 249

system has been activated or the check-mark is removed
showing the system has been deactivated.
Headlamp Off Delay
When this feature is selected, the driver can choose to
have the headlights remain on for 0, 30, 60, or 90 seconds
when exiting the vehicle. To make your selection, scroll
up or down until the preferred setting is highlighted,
then press and release the SELECT button until a check-
mark appears next to the setting, showing that the setting
has been selected.
Headlamps with Wipers (Available with Auto
Headlights Only)
When ON is selected, and the headlight switch is in the
AUTO position, the headlights will turn on approxi-
mately 10 seconds after the wipers are turned on. The
headlights will also turn off when the wipers are turned
off if they were turned on by this feature. To make yourselection, press and release the SELECT button until a
check-mark appears next to the setting, showing that the
setting has been selected.
NOTE:
Turning the headlights on during the daytime
causes the instrument panel lights to dim. To increase the
brightness, refer to “Lights” in “Understanding The
Features Of Your Vehicle.”
Intermittent Wiper Options — If Equipped
When ON is selected, the system will automatically
activate the windshield wipers if it senses moisture on
the windshield. To make your selection, press and release
the SELECT button until a check-mark appears next to
the feature showing the system has been activated or the
check-mark is removed showing the system has been
deactivated. When the system is deactivated, the system
reverts to the standard intermittent wiper operation.
282 UNDERSTANDING YOUR INSTRUMENT PANEL

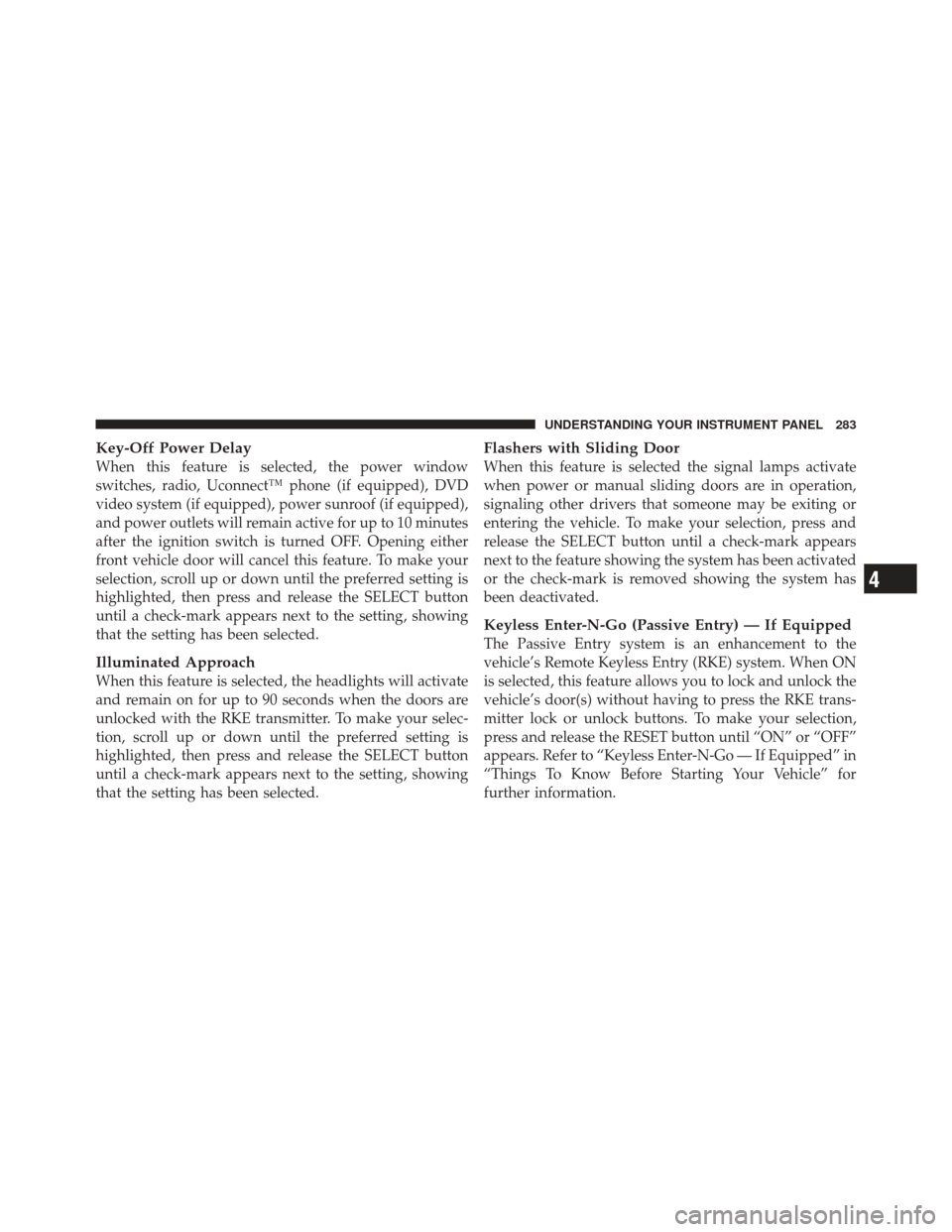

Key-Off Power Delay
When this feature is selected, the power window
switches, radio, Uconnect™ phone (if equipped), DVD
video system (if equipped), power sunroof (if equipped),
and power outlets will remain active for up to 10 minutes
after the ignition switch is turned OFF. Opening either
front vehicle door will cancel this feature. To make your
selection, scroll up or down until the preferred setting is
highlighted, then press and release the SELECT button
until a check-mark appears next to the setting, showing
that the setting has been selected.
Illuminated Approach
When this feature is selected, the headlights will activate
and remain on for up to 90 seconds when the doors are
unlocked with the RKE transmitter. To make your selec-
tion, scroll up or down until the preferred setting is
highlighted, then press and release the SELECT button
until a check-mark appears next to the setting, showing
that the setting has been selected.
Flashers with Sliding Door
When this feature is selected the signal lamps activate
when power or manual sliding doors are in operation,
signaling other drivers that someone may be exiting or
entering the vehicle. To make your selection, press and
release the SELECT button until a check-mark appears
next to the feature showing the system has been activated
or the check-mark is removed showing the system has
been deactivated.
Keyless Enter-N-Go (Passive Entry) — If Equipped
The Passive Entry system is an enhancement to the
vehicle’s Remote Keyless Entry (RKE) system. When ON
is selected, this feature allows you to lock and unlock the
vehicle’s door(s) without having to press the RKE trans-
mitter lock or unlock buttons. To make your selection,
press and release the RESET button until “ON” or “OFF”
appears. Refer to “Keyless Enter-N-Go — If Equipped” in
“Things To Know Before Starting Your Vehicle” for
further information.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 283

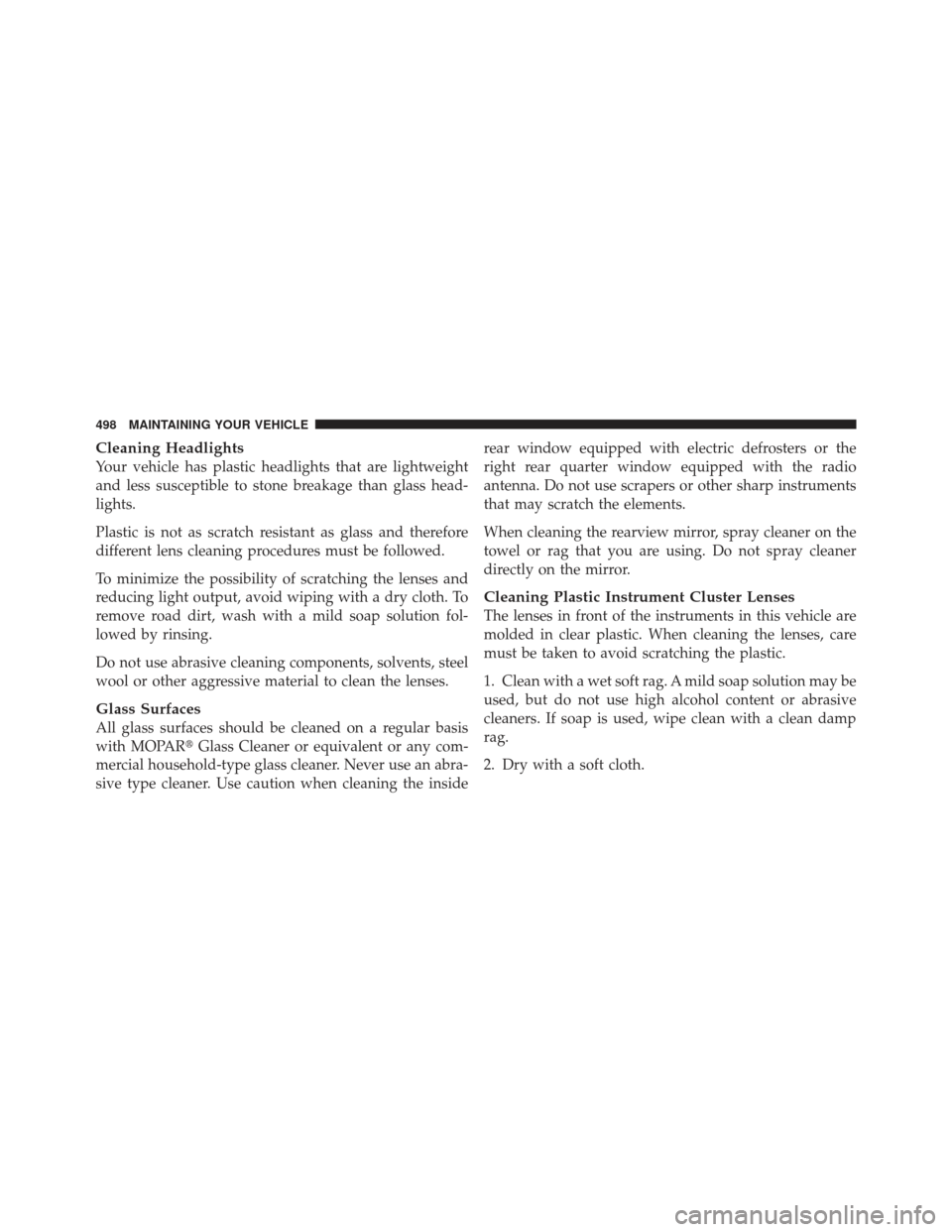

Cleaning Headlights
Your vehicle has plastic headlights that are lightweight
and less susceptible to stone breakage than glass head-
lights.
Plastic is not as scratch resistant as glass and therefore
different lens cleaning procedures must be followed.
To minimize the possibility of scratching the lenses and
reducing light output, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild soap solution fol-
lowed by rinsing.
Do not use abrasive cleaning components, solvents, steel
wool or other aggressive material to clean the lenses.
Glass Surfaces
All glass surfaces should be cleaned on a regular basis
with MOPARGlass Cleaner or equivalent or any com-
mercial household-type glass cleaner. Never use an abra-
sive type cleaner. Use caution when cleaning the inside rear window equipped with electric defrosters or the
right rear quarter window equipped with the radio
antenna. Do not use scrapers or other sharp instruments
that may scratch the elements.
When cleaning the rearview mirror, spray cleaner on the
towel or rag that you are using. Do not spray cleaner
directly on the mirror.
Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
1. Clean with a wet soft rag. A mild soap solution may be
used, but do not use high alcohol content or abrasive
cleaners. If soap is used, wipe clean with a clean damp
rag.
2. Dry with a soft cloth.
498 MAINTAINING YOUR VEHICLE

Adding Engine Coolant (Antifreeze).......... 486
Adding Fuel ........................... 416
Adding Washer Fluid ..................... 483
Additives, Fuel ......................... 410
Adjustable Pedals ....................... 177
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . 475
Air Conditioner Maintenance ............... 479
Air Conditioning ........................ 321
Air Conditioning Controls ................. 321
Air Conditioning Filter .................345,480
Air Conditioning Refrigerant ............... 479
Air Conditioning System .............321,333,479
Air Conditioning System, Zone Control ........ 325
Air Conditioning, Operating Tips ............ 344
Air Conditioning, Rear Zone .............330,340
Air Pressure, Tires ....................... 387
Airbag .............................. 72,81
Airbag Deployment ....................... 83
Airbag Light .................... 79,85,102,257Airbag Maintenance
....................... 84
Airbag, Side ........................ 76,78,81
Airbag, Window (Side Curtain) ...........77,78,81
Alarm (Security Alarm) .................... 17
Alarm Light ........................... 257
Alterations/Modifications, Vehicle ............. 7
Antenna, Satellite Radio ................... 307
Anti-Lock Warning Light .................. 252
Anti-Theft System ........................ 17
Antifreeze (Engine Coolant) ..............485,511
Disposal ........................... 488
Appearance Care ........................ 494
Ashtray ............................... 217
Auto Down Power Windows ................ 40
Auto Up Power Windows .................. 40
Automatic Dimming Mirror ................ 114
Automatic Door Locks ..................... 35
Automatic Headlights .................... 165
Automatic Temperature Control (ATC) ......... 333
540 INDEX

Garage Door Opener (HomeLink®)........... 197
Gas Cap (Fuel Filler Cap) ............416,418,468
Gasoline (Fuel) ......................... 408
Conserving ......................... 274
Gasoline, Clean Air ...................... 408
Gasoline, Reformulated ................... 408
Gauges Coolant Temperature .................. 259
Fuel .............................. 256
Speedometer ........................ 256
Tachometer ......................... 249
Gear Select Lever Override ................. 461
Gearshift .............................. 358
General Information .................. 17,28,407
Glass Cleaning .......................... 498
Gross Axle Weight Rating ...............419,422
Gross Vehicle Weight Rating .............419,422
Hands-Free Phone (Uconnect™) ............. 127Hazard
Driving Through Flowing, Rising, or Shallow
Standing Water ...................... 363
Hazard Warning Flasher ................... 438
Head Restraints ......................... 135
Headlights Bulb Replacement .................... 507
Cleaning ........................... 498
Lights On Reminder .................. 166
Passing ............................ 170
Replacing .......................... 507
Time Delay ......................... 166
Washers ........................... 166
Heated Mirrors ......................... 116
Heated Seats ........................... 130
Heater ............................... 321
Heater, Engine Block ..................... 353
High Beam/Low Beam Select (Dimmer) Switch . . 170
10
INDEX 547
