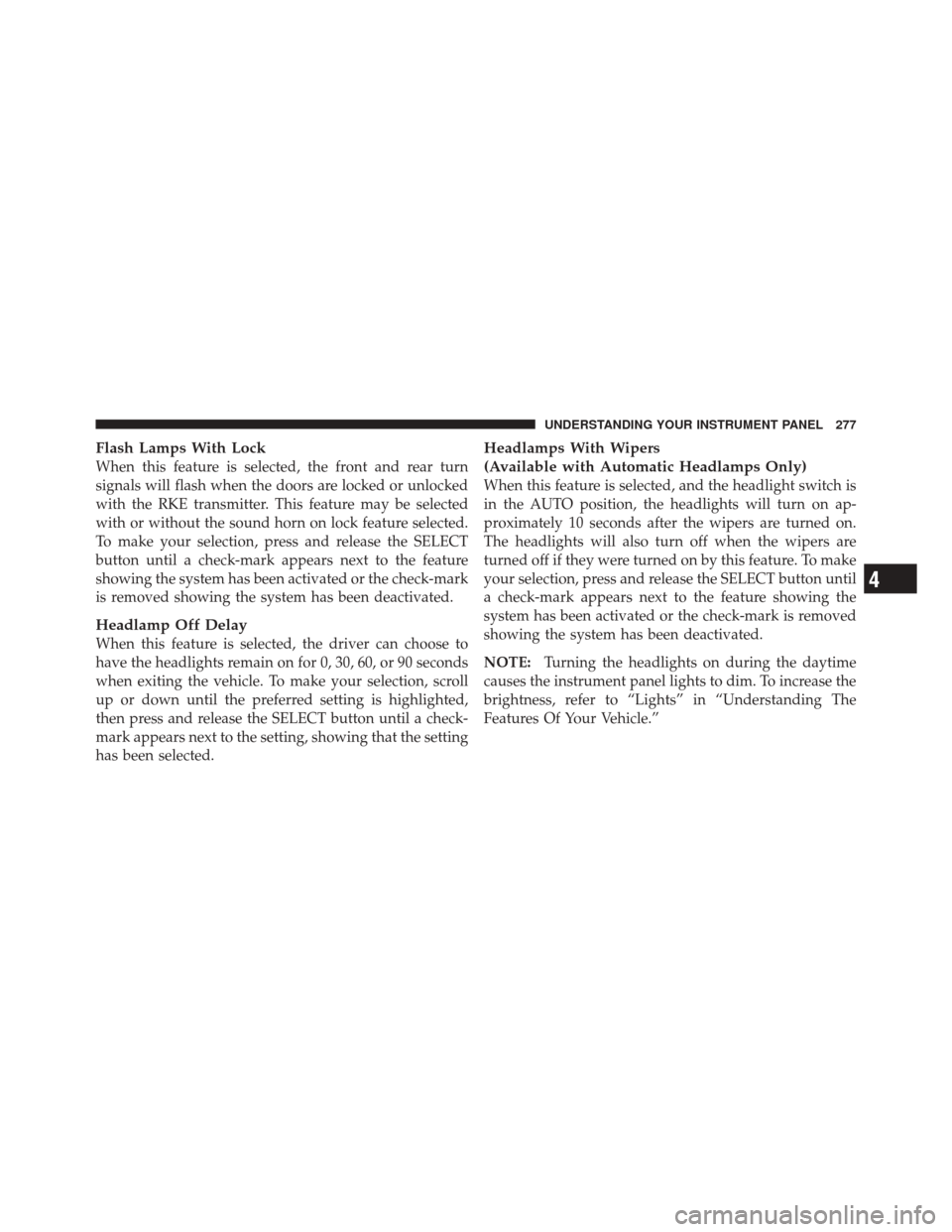

Flash Lamps With Lock
When this feature is selected, the front and rear turn
signals will flash when the doors are locked or unlocked
with the RKE transmitter. This feature may be selected
with or without the sound horn on lock feature selected.
To make your selection, press and release the SELECT
button until a check-mark appears next to the feature
showing the system has been activated or the check-mark
is removed showing the system has been deactivated.
Headlamp Off Delay
When this feature is selected, the driver can choose to
have the headlights remain on for 0, 30, 60, or 90 seconds
when exiting the vehicle. To make your selection, scroll
up or down until the preferred setting is highlighted,
then press and release the SELECT button until a check-
mark appears next to the setting, showing that the setting
has been selected.
Headlamps With Wipers
(Available with Automatic Headlamps Only)
When this feature is selected, and the headlight switch is
in the AUTO position, the headlights will turn on ap-
proximately 10 seconds after the wipers are turned on.
The headlights will also turn off when the wipers are
turned off if they were turned on by this feature. To make
your selection, press and release the SELECT button until
a check-mark appears next to the feature showing the
system has been activated or the check-mark is removed
showing the system has been deactivated.
NOTE:Turning the headlights on during the daytime
causes the instrument panel lights to dim. To increase the
brightness, refer to “Lights” in “Understanding The
Features Of Your Vehicle.”
4
UNDERSTANDING YOUR INSTRUMENT PANEL 277

1. Press the fuel filler door release switch (located under
the headlamp switch).2. Open the fuel filler door, and remove the fuel filler
cap.
Fuel Filler Door Release SwitchFuel Filler Cap
5
STARTING AND OPERATING 419

▫Brake System ....................... 499
▫ Front/Rear Axle Fluid ................. 501
▫ Transfer Case ....................... 502
▫ Automatic Transmission ............... 503
▫ Appearance Care And Protection From
Corrosion .......................... 506
 Fuses .............................. 511
▫ Totally Integrated Power Module ......... 511
 Vehicle Storage ....................... 517
 Replacement Bulbs .................... 517
 Bulb Replacement ..................... 518
▫ High Intensity Discharge Headlamps (HID) –
If Equipped ........................ 518 ▫
Halogen Headlamps – If Equipped ........ 519
▫ Front Turn Signal .................... 519
▫ Front Fog Lamps .................... 520
▫ Rear Tail, Stop, Turn Signal, And Backup
Lamps ............................ 521
▫ Rear Liftgate Mounted Tail Lamp ......... 522
▫ Center High-Mounted Stop Lamp
(CHMSL) .......................... 523
▫ Rear License Lamp ................... 523
 Fluid Capacities ...................... 524
 Fluids, Lubricants, And Genuine Parts ....... 525
▫ Engine ............................ 525
▫ Chassis ........................... 526
474 MAINTAINING YOUR VEHICLE

Cavity CartridgeFuseMini
Fuse Description
J08 40 Amp Green Power Seat
J09 30 Amp Pink E-Brake
J10 30 Amp Pink Headlamp Wash Re-
lay Contact
J11 30 Amp Pink Drive Train Control
Module
J12 30 Amp Pink Rear Defroster
J13 60 Amp Yellow Main Ignition Off
Draw (IOD)
J14 20 Amp Blue Trailer Tow Lamps/
Park Lamps
J15 40 Amp Green Front Cabin Fan/
BlowerCavity Cartridge
FuseMini
Fuse Description
J17 40 Amp Green Starter Motor Sole-
noid
J18 20 Amp Blue Powertrain Control
Module/Powertrain
Control Module
Transmission Range
J19 60 Amp Yellow Radiator Fan Motor
HI/Radiator Fan Mo-
tor Low
J20 30 Amp Pink Front Wiper
J21 20 Amp Blue Front/Rear Washer
Control
J22 25 Amp Natural Sunroof Module
M1 15 Amp
Blue Stop Lamp
7
MAINTAINING YOUR VEHICLE 513

Exterior LightsBulb Type
Headlamp – High Intensity Discharge
(HID) ............ Ser vice at Authorized Dealer (**)
Headlamp (Low Beam) .................... H11
Headlamp (High Beam) ................... 9005
Front Park/Turn Lamp .................7444NA
Front Fog Lamps ..................... PSX24W
Front Side Marker ...................... W5W
Rear Turn/Stop/Tail Lamps ................3057
Liftgate Tail Lamps ....................... 194
Backup Lamps .................... 921 (W16W)
Rear License Lamps ..................... W5W
Center High-Mounted Stop Lamp
(CHMSL) ........................... LED(*)
* CHMSL is not serviceable. It is a LED lamp. To replace
the LED, the entire CHMSL assembly must be replaced.
** The headlamps are a type of high-voltage discharge
tube. High voltage can maintain in the circuit even with
the headlamp switch off and the key fob removed.
Because of this, you should not attempt to service a headlamp bulb yourself. If a headlamp bulb fails, take
your vehicle to an authorized dealer for service.
NOTE:
Numbers refer to commercial bulb types that
can be purchased from your authorized dealer.
If a bulb needs to be replaced, visit your authorized
dealer or refer to the applicable Service Manual.
BULB REPLACEMENT
High Intensity Discharge Headlamps (HID) –
If Equipped
The headlamps are a type of high voltage discharge tube.
High voltage can remain in the circuit even with the
headlamp switch off and the key removed. Because of
this, you should not attempt to service a headlamp bulb
yourself. If a headlamp bulb fails, take your vehicle to
an authorized dealer for service.
518 MAINTAINING YOUR VEHICLE

WARNING!
A transient high tension occurs at the bulb sockets of
High Intensity Discharge (HID) headlamps when the
headlamp switch is turned ON. It may cause serious
electrical shock or electrocution if not serviced prop-
erly. See your authorized dealer for service.
NOTE: On vehicles equipped with High Intensity Dis-
charge (HID) headlamps, when the headlamps are
turned on, there is a blue hue to the lamps. This dimin-
ishes and becomes more white after approximately
10 seconds, as the system charges.
Halogen Headlamps – If Equipped
1. Open the hood.
2. Turn the low or high beam bulb one–quarter turn
counterclockwise to remove from housing. 3. Disconnect the electrical connector and replace the
bulb.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
Front Turn Signal
1. Open the hood.
2. Turn the turn signal bulb one–quarter turn counter-
clockwise to remove from housing.
3. Disconnect the electrical connector and replace the
bulb.
7
