2011 DODGE DURANGO remote start

button a check-mark appears next to the feature showing
the system has been activated or the check-mark is
removed showing the system has been deactivated. Refer
to “Driver Memory Seat” in “Understanding The Fea-
tures Of Your Vehicle.”
Remote Start Comfort Sys.
When this feature is selected and the remote start is
activated, the heated steering wheel and driver heated
seat features will automatically turn on in cold weather.
In warm weather, the driver vented seat feature will
automatically turn on when the remote start is activated.
These features will stay on through the duration of
remote start or until the key is turned to RUN. To make
your selection, press and release the SELECT button until
a check-mark appears next to the feature showing the
system has been activated or the check-mark is removed
showing the system has been deactivated.
Horn With Remote Lock
When this feature is selected, a short horn sound will
occur when the RKE transmitter LOCK button is pressed.
This feature may be selected with or without the “Flash
Lamps with Lock” feature. To make your selection, press
and release the SELECT button until a check-mark ap-
pears next to the feature showing the system has been
activated or the check-mark is removed showing the
system has been deactivated.
Horn With Remote Start
When this feature is selected, a short horn sound will
occur when the RKE transmitter REMOTE START button
is pressed. To make your selection, press and release the
SELECT button until a check-mark appears next to the
feature showing the system has been activated or the
check-mark is removed showing the system has been
deactivated.
276 UNDERSTANDING YOUR INSTRUMENT PANEL

Do notpress the accelerator. Use the Fob with Integrated
Key to briefly turn the ignition switch to the START
position and release it as soon as the starter engages. The
starter motor will continue to run, and it will disengage
automatically when the engine is running. If the engine
fails to start, the starter will disengage automatically in
10 seconds. If this occurs, turn the ignition switch to the
LOCK position, wait 10 to 15 seconds, then repeat the
“Normal Starting” procedure.
Keyless Enter-N-Go – If Equipped
This feature allows the driver to oper-
ate the ignition switch with the push
of a button, as long as the ENGINE
START/STOP button is installed and
the Remote Keyless Entry (RKE) trans-
mitter is in the passenger compart-
ment.
Installing And Removing The ENGINE
START/STOP Button
Installing The Button
1. Remove the key fob from the ignition switch.
2. Insert the ENGINE START/STOP button into the
ignition switch with the lettering facing up and readable.
3. Press firmly on the center of the button to secure it into
position.
Removing The Button
1. The ENGINE START/STOP button can be removed
from the ignition switch for key fob use.
2. Insert the metal part of the emergency key under the
chrome bezel at the 6 o’clock position and gently pry the
button loose.
5
STARTING AND OPERATING 337

CAUTION!
Do not use a portable battery booster pack or any
other booster source with a system voltage greater
than 12 Volts or damage to the battery, starter motor,
alternator or electrical system may occur.
WARNING!
Do not attempt jump-starting if the battery is frozen.
It could rupture or explode and cause personal injury.
Preparations For Jump-Start
The battery in your vehicle is located under the passen-
ger’s front seat. There are remote locations located under
the hood to assist in jump-starting.
Remote Battery Posts
1 — Remote Positive(+) Post (covered with protective cap)
2 — Remote Negative (-) Post
464 WHAT TO DO IN EMERGENCIES

WARNING!
•Take care to avoid the radiator cooling fan when-
ever the hood is raised. It can start anytime the
ignition switch is on. You can be injured by
moving fan blades.
•Remove any metal jewelry such as watch bands or
bracelets that might make an inadvertent electrical
contact. You could be seriously injured.
•Batteries contain sulfuric acid that can burn your
skin or eyes and generate hydrogen gas which is
flammable and explosive. Keep open flames or
sparks away from the battery.
1. Set the parking brake, shift the automatic transmission
into PARK and turn the ignition to LOCK.
2. Turn off the heater, radio, and all unnecessary electri-
cal accessories. 3. Remove the protective cover over the remote positive
(+)
battery post. Pull upward on the cover to remove it.
4. If using another vehicle to jump-start the battery, park
the vehicle within the jumper cables reach, set the
parking brake and make sure the ignition is OFF.
WARNING!
Do not allow vehicles to touch each other as this
could establish a ground connection and personal
injury could result.
Jump-Starting Procedure
WARNING!
Failure to follow this procedure could result in per-
sonal injury or property damage due to battery ex-
plosion.
6
WHAT TO DO IN EMERGENCIES 465

CAUTION!
Failure to follow these procedures could result in
damage to the charging system of the booster vehicle
or the discharged vehicle.
1. Connect the positive (+)end of the jumper cable to the
remote positive (+)post of the discharged vehicle.
2. Connect the opposite end of the positive (+)jumper
cable to the positive (+)post of the booster battery.
3. Connect the negative end (-)of the jumper cable to the
negative (-)post of the booster battery.
4. Connect the opposite end of the negative (-)jumper
cable to the remote negative (-)post of the vehicle with
the discharged battery.
WARNING!
Do not connect the cable to the negative post (-) of the
discharged battery. The resulting electrical spark
could cause the battery to explode and could result in
personal injury.
5. Start the engine in the vehicle that has the booster
battery, let the engine idle a few minutes, and then start
the engine in the vehicle with the discharged battery.
Once the engine is started, remove the jumper cables in
the reverse sequence:
6. Disconnect the negative (-)jumper cable from the
remote negative (-)post of the discharged vehicle.
7. Disconnect the negative end (-)of the jumper cable
from the negative (-)post of the booster battery.
466 WHAT TO DO IN EMERGENCIES

8. Disconnect the opposite end of the positive(+)jumper
cable from the positive (+)post of the booster battery.
9. Disconnect the positive (+)end of the jumper cable
from the remote positive (+)post of the discharged
vehicle.
10. Reinstall the protective cover over the remote posi-
tive (+)battery post of the discharged vehicle.
If frequent jump-starting is required to start your vehicle
you should have the battery and charging system in-
spected at your authorized dealer.CAUTION!
Accessories that can be plugged into the vehicle
power outlets draw power from the vehicle’s battery,
even when not in use (i.e., cellular phones, etc.).
Eventually, if plugged in long enough, the vehicle’s
battery will discharge sufficiently to degrade battery
life and/or prevent the engine from starting.
EMERGENCY TOW HOOKS — IF EQUIPPED
If your vehicle is equipped with tow hooks, there will be
one in the rear and two mounted on the front of the
vehicle. The rear hook will be located on the driver’s side
of the vehicle.
NOTE: For off-road recovery, it is recommended to use
both of the front tow hooks to minimize the risk of
damage to the vehicle.6
WHAT TO DO IN EMERGENCIES 467

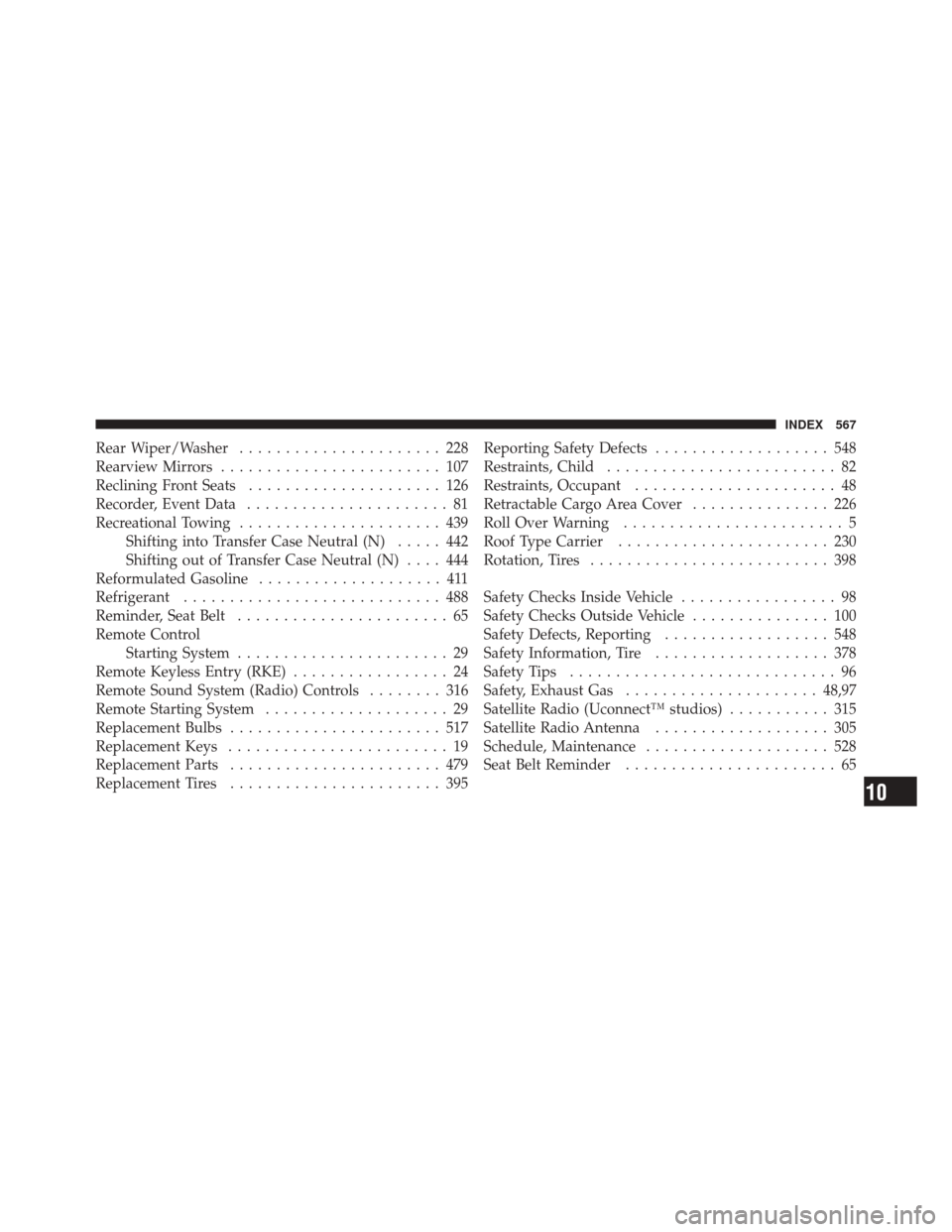

Rear Wiper/Washer...................... 228
Rearview Mirrors ........................ 107
Reclining Front Seats ..................... 126
Recorder, Event Data ...................... 81
Recreational Towing ...................... 439
Shifting into Transfer Case Neutral (N) ..... 442
Shifting out of Transfer Case Neutral (N) .... 444
Reformulated Gasoline .................... 411
Refrigerant ............................ 488
Reminder, Seat Belt ....................... 65
Remote Control Starting System ....................... 29
Remote Keyless Entry (RKE) ................. 24
Remote Sound System (Radio) Controls ........ 316
Remote Starting System .................... 29
Replacement Bulbs ....................... 517
Replacement Keys ........................ 19
Replacement Parts ....................... 479
Replacement Tires ....................... 395 Reporting Safety Defects
................... 548
Restraints, Child ......................... 82
Restraints, Occupant ...................... 48
Retractable Cargo Area Cover ............... 226
Roll Over Warning ........................ 5
Roof Type Carrier ....................... 230
Rotation, Tires .......................... 398
Safety Checks Inside Vehicle ................. 98
Safety Checks Outside Vehicle ............... 100
Safety Defects, Reporting .................. 548
Safety Information, Tire ................... 378
Safety Tips ............................. 96
Safety, Exhaust Gas ..................... 48,97
Satellite Radio (Uconnect™ studios) ........... 315
Satellite Radio Antenna ................... 305
Schedule, Maintenance .................... 528
Seat Belt Reminder ....................... 65
10
INDEX 567

Transfer Case, Shifting out of
Transfer Case Neutral (N).............. 444
Shoulder Belts ........................... 52
Side Airbag ............................. 76
Signals, Turn ................... 100,248,519,521
Sirius Backseat TV™ (Uconnect™ studios) ...... 315
SmartBeams ........................... 148
Snow Chains (Tire Chains) ................. 397
Snow Plow ............................ 438
Snow Tires ............................ 398
Spare Tire ....................... 391,393,451
Specifications Fuel (Gasoline) ...................... 410
Oil ............................... 482
Speed Control (Cruise Control) ...........163,166
Speedometer ........................... 249
Starting ............................. 29,336
Automatic Transmission ................ 336
Cold Weather .................... 339,341Engine Block Heater
.................. 341
Engine Fails to Start .................. 340
Remote ............................ 29
Starting and Operating .................... 336
Starting Procedures ...................... 336
Steering Power .......................... 362,364
Tilt Column ........................ 160
Wheel, Heated ...................... 162
Wheel, Tilt ......................... 160
Steering Wheel Audio Controls .............. 316
Steering Wheel Mounted Sound System
Controls .............................. 316
Storage ............................... 517
Storage, Vehicle ...................... 329,517
Storing Your Vehicle ...................... 517
Sun Roof .............................. 212
Sun Visor Extension ...................... 111
Sunglasses Storage ....................... 205
10
INDEX 569
