2011 DODGE CHALLENGER remote control

NOTE:
•The front courtesy overhead console and door cour-
tesy lights do not turn on if the dimmer control is in
theDome ON position (extreme top position).
•The Illuminated Entry system will not operate if the
dimmer control is in the “Dome defeat” position
(extreme bottom position).
REMOTE KEYLESS ENTRY (RKE)
The RKE system allows you to lock or unlock the doors,
open the trunk, or activate the Panic Alarm from dis-
tances up to approximately 66 ft (20 m) using a hand-held
Key Fob with RKE transmitter. The RKE transmitter does
not need to be pointed at the vehicle to activate the
system. NOTE:
Inserting the Key Fob with RKE transmitter into
the ignition switch disables the system from responding
to any button presses from that RKE transmitter. Driving
at speeds 5 mph (8 km/h) and above disables the system
from responding to all RKE transmitter buttons for all
RKE transmitters.
Key Fob With RKE Transmitter
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21

WARNING!
•Do not start or run an engine in a closed garage or
confined area. Exhaust gas contains Carbon Mon-
oxide (CO) which is odorless and colorless. Car-
bon Monoxide is poisonous and can cause serious
injury or death when inhaled.
•Keep Remote Keyless Entry (RKE) transmitters
away from children. Operation of the Remote Start
System, windows, door locks or other controls
could cause serious injury or death.
To Enter Remote Start Mode
Press and release the REMOTE START button
on the RKE transmitter twice within five sec-
onds. The vehicle doors will lock, the parking
lights will flash and horn will chirp twice (ifprogrammed). Then, the engine will start and the vehicle
will remain in the Remote Start mode for a 15-minute
cycle.
NOTE:
•If an engine fault is present the vehicle will start and
then shut down 10 seconds later.
•The park lamps will turn on and remain on during
Remote Start mode.
•For security, power window and power sunroof op-
eration (if equipped) are disabled when the vehicle is
in the Remote Start mode.
•The engine can be started two consecutive times with
the RKE transmitter. However, the ignition must be
cycled by pushing the START/STOP button twice (or
the ignition switch must be cycled to the ON/RUN
position) before you can repeat the start sequence for a
third cycle.
28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

High/Low Beam Switch
Push the multifunction lever away from you to switch
the headlights to high beam. Pull the multifunction lever
toward you to switch the headlights back to low beam.
Flash-To-Pass
You can signal another vehicle with your headlights by
lightly pulling the multifunction lever toward you. This
will turn on the high beam headlights until the lever is
released.
Map/Reading Lights
These lights are mounted between the sun visors on the
overhead console. Each light is turned on by pressing the
lens. Press the lens a second time to turn off the light.
These lights also turn on when a door is opened, or when
the UNLOCK button on the Remote Keyless Entry (RKE)transmitter is pressed, or when the dimmer control is
turned fully upward, past the second detent.

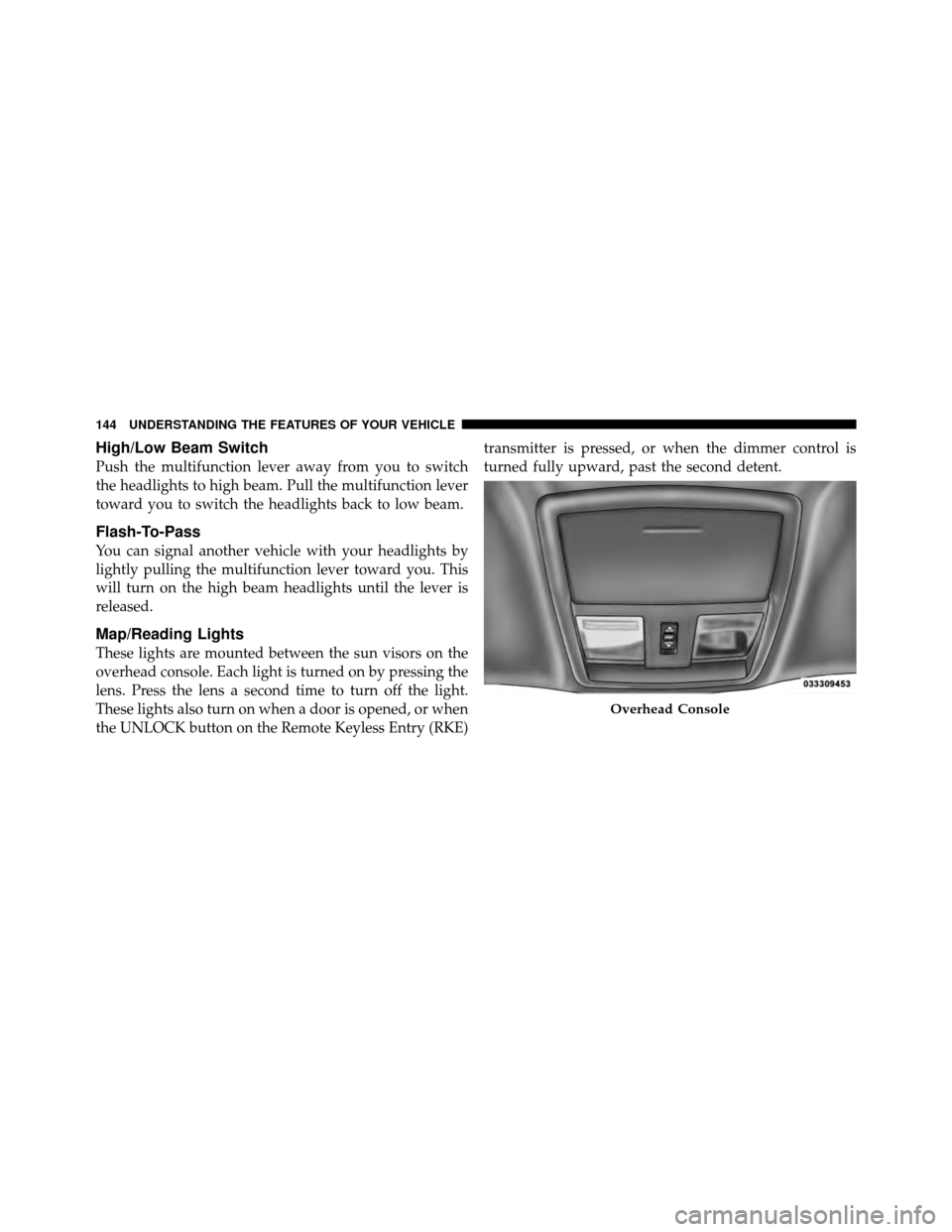

Overhead Console
144 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

These lights also turn on when a door is opened, when
the UNLOCK button on the Remote Keyless Entry (RKE)
transmitter is pressed, or when the dimmer control is
turned fully upward, past the second detent.
Sunglasses Storage
At the rear of the console, a compartment is provided for
the storage of a pair of sunglasses.
The storage compartment access is apush/pushdesign.
Push on the raised bar on the compartment door to open.
Push on the raised bar to close.
GARAGE DOOR OPENER — IF EQUIPPED
HomeLink replaces up to three remote controls (hand-
held transmitters) that operate devices such as garage
door openers, motorized gates, lighting or home security
systems. The HomeLink unit operates off your vehicle’s
battery. The HomeLink
buttons are located in the overhead
console designating the different HomeLink channels.
NOTE: HomeLink is disabled when the Vehicle Secu-
rity Alarm is active.
HomeLink Buttons
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 153

Hill Start Assist (HSA) — If Equipped
When on is selected, the HSA system is active. Refer to
“Electronic Brake Control System” in “Starting And
Operating” for system function and operating informa-
tion. To make your selection, press and release the
SELECT button until “ON” or “OFF” appears.
Turn Headlights On with Remote Key Unlock
When this feature is selected, the headlights will activate
and remain on for up to 90 seconds when the doors are
unlocked with the RKE transmitter. To make your selec-
tion, press and release the SELECT button until “OFF,”
“30 sec.,” “60 sec.,” or “90 sec.” appears.
Delay Power Off to Accessories Until Exit
When this feature is selected, the power window
switches, radio, Uconnect™ phone (if equipped), power
sunroof (if equipped), and ignition-powered power out-
lets will remain active for up to 60 minutes after theignition switch is turned OFF. Opening either front
vehicle door will cancel this feature. To make your
selection, press and release the SELECT button until
“Off,” “45 sec.,” “5 min.,” “10 min.,” “30 min.,” or “60
min.” appears.
Turn-by-Turn Navigation — If Equipped
When ON is selected, the Turn-by-Turn directions will
appear in the display as the vehicle approaches a desig-
nated turn within a programmed route. To make your
selection, press and release the SELECT button until
“ON” or “OFF” appears.
Display ECO — If Equipped
The “ECO” message is located in the Compass/
Temperature display; this message can be turned on or
off. To make your selection, press and release the SELECT
button until “ON” or “OFF” appears.
202 UNDERSTANDING YOUR INSTRUMENT PANEL

STEERING WHEEL AUDIO CONTROLS —
IF EQUIPPED
The remote sound system controls are located on the rear
surface of the steering wheel. Reach behind the wheel to
access the switches.The right-hand control is a rocker-type switch with a
pushbutton in the center and controls the volume and
mode of the sound system. Pressing the top of the rocker
switch will increase the volume, and pressing the bottom
of the rocker switch will decrease the volume.
Pressing the center button will make the radio switch
between the various modes available (AM/FM/SAT/
CD/HDD/AUX/VES, etc.).
The left-hand control is a rocker-type switch with a
pushbutton in the center. The function of the left-hand
control is different depending on which mode you are in.
The following describes the left-hand control operation in
each mode.
Radio Operation
Pressing the top of the switch will “Seek” up for the next
listenable station and pressing the bottom of the switch
will “Seek” down for the next listenable station.
Remote Sound System Controls
236 UNDERSTANDING YOUR INSTRUMENT PANEL

DipsticksOil (Engine) ........................ 390
Disabled Vehicle Towing ................... 376
Disposal Antifreeze (Engine Coolant) ............. 405
Engine Oil ......................... 393
Door Locks ............................. 30
Door Locks, Automatic .................... 32
Door Opener, Garage ..................... 153
Driving On Slippery Surfaces .................. 273
Through Flowing, Rising, or Shallow
Standing Water ...................... 274
Driving to Achieve Maximum Fuel Economy .... 193
E-85 Fuel ............................. 326
Electric Remote Mirrors .................... 91
Electrical Power Outlets ................... 162
Electronic Brake Control System ............. 284Electronic Power Distribution Center (Fuses)
.... 421
Electronic Speed Control (Cruise Control) ...... 149
Electronic Stability Program (ESP) ............ 287
Electronic Throttle Control Warning Light ...... 177
Electronic Vehicle Information Center (EVIC) .... 188
Emergency Deck Lid Release ................ 41
Emergency Trunk Release ................... 41
Emergency, In Case of Freeing Vehicle When Stuck ............. 374
Hazard Warning Flasher ............... 349
Jacking ............................ 360
Jump Starting ....................... 370
Overheating ........................ 349
Towing ............................ 376
Emission Control System Maintenance ......... 387
Engine ............................... 385
Air Cleaner ......................... 393
Block Heater ........................ 259
Break-In Recommendations .............. 79
470 INDEX

Overheating, Engine................... 178,349
Owner’s Manual (Operator Manual) .........4,461
Paint Care ............................. 412
Panic Alarm ............................ 25
Parking Brake .......................... 278
Passing Light ........................... 144
Personal Settings ........................ 199
Pets .................................. 79
Phone, Cellular .......................... 94
Phone, Hands-Free (Uconnect™) .............. 94
Placard, Tire and Loading Information ......... 296
Power Brakes ............................ 281
Deck Lid Release ..................... 40
Distribution Center (Fuses) .............. 421
Door Locks ......................... 31
Mirrors ............................ 91
Outlet (Auxiliary Electrical Outlet) ........ 162Seats
............................. 128
Steering ........................... 277
Sunroof ........................... 159
Windows ........................... 38
Power Steering Fluid ..................... 435
Pregnant Women and Seat Belts .............. 55
Preparation for Jacking .................... 363
Pretensioners Seat Belts ........................... 53
Programmable Electronic Features ............ 199
Programming Transmitters
(Remote Keyless Entry) .................... 21
Radial Ply Tires ......................... 303
Radiator Cap (Coolant Pressure Cap) .......... 405
Radio Operation ........................ 238
Radio Remote Controls .................... 236
Rear Cupholder ......................... 167
Rear Seat, Folding ....................... 136
10
INDEX 479
