2011 DODGE CALIBER remote start

when exiting the vehicle. Press and hold the EVIC button
when in this display until 0, 30, 60, or 90 appears to make
your selection.
Delay Power Off to Accessories Until Exit
When this feature is selected, the power window
switches, radio, Uconnect™ phone, power sunroof, and
power outlets will remain active for up to 10 minutes
after the ignition switch has been turned off. Opening
either front vehicle door will cancel this feature. Press
and hold the EVIC button when in this display until
“OFF”, “45 sec.”, “5 min.”, or “10 min.” appears to make
your selection.
Turn Headlights on with Remote Key Unlock
When this feature is selected, the headlights will activate
and remain on for up to 90 seconds when the doors are
unlocked using the RKE transmitter. Press and hold the
EVIC button when in this display until “OFF”, “30 sec.”,
“60 sec.”, or “90 sec.” appears to make your selection.
Confirmation of Voice Commands — If Equipped
When ON is selected all voice commands from the
Uconnect™ system are confirmed. Press and hold the
EVIC button when in this display until “ON” or “OFF”
appears to make your selection.
Illuminated Approach
When this feature is selected the headlights will activate
and remain on for up to 90 seconds when the doors are
unlocked using the RKE transmitter. Press and hold the
EVIC button when in this display until “OFF”, “30 sec.”,
“60 sec.”, or “90 sec.” appears to make your selection.
Hill Start Assist (HSA) — If Equipped
When on is selected, the HSA system is active. Refer to
“Electronic Brake Control System” in “Starting And
Operating” for system function and operating informa-
tion. To make your selection, press and release the EVIC
button until “On” or “Off” appears.
212 UNDERSTANDING YOUR INSTRUMENT PANEL

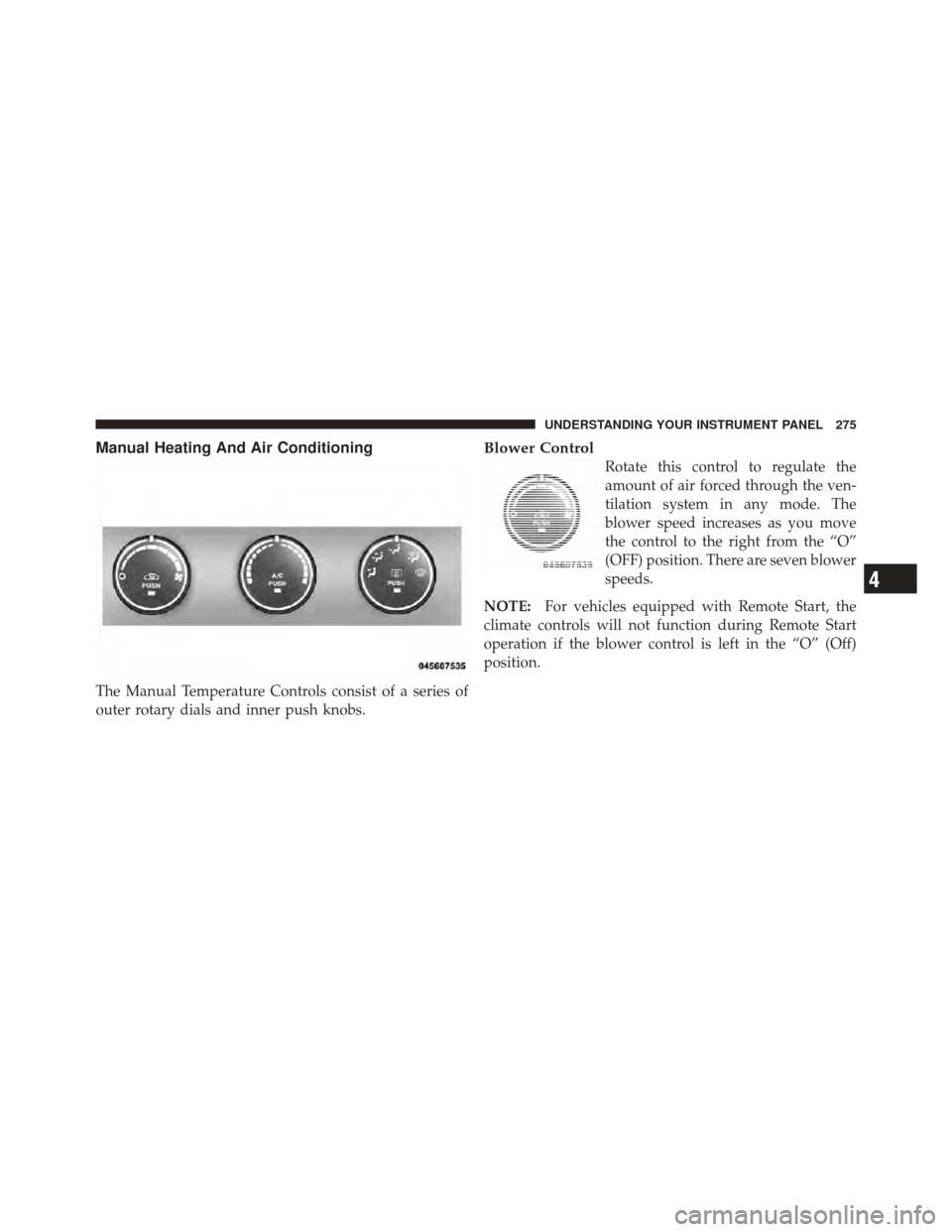

Manual Heating And Air Conditioning
The Manual Temperature Controls consist of a series of
outer rotary dials and inner push knobs.
Blower Control
Rotate this control to regulate the
amount of air forced through the ven-
tilation system in any mode. The
blower speed increases as you move
the control to the right from the “O”
(OFF) position. There are seven blower
speeds.
NOTE: For vehicles equipped with Remote Start, the
climate controls will not function during Remote Start
operation if the blower control is left in the “O” (Off)
position.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 275

Steering........................ 307,308
Sunroof ........................... 165
Windows ........................... 33
Power Steering Fluid ..................... 437
Pregnant Women and Seat Belts .............. 59
Preparation for Jacking .................... 375
Pretensioners Seat Belts ........................... 52
Programmable Electronic Features ............ 210
Radial Ply Tires ......................... 333
Radio Operation ........................ 274
Rear Fog Lights ......................... 431
Rear Liftgate (Sedan) ...................... 35
Rear Seat, Folding ....................... 142
Rear Window Defroster ................... 181
Rear Window Features .................... 180
Rear Wiper/Washer ...................... 180
Recorder, Event Data ...................... 73 Recreational Towing
...................... 370
Reformulated Gasoline .................... 350
Refrigerant ............................ 405
Reminder, Seat Belt ....................... 57
Remote Control Door Locks ......................... 18
Security Alarm ....................... 17
Remote Keyless Entry (Sedan) ............... 18
Remote Sound System (Radio) Controls ........ 272
Remote Starting System .................... 24
Replacement Bulbs ....................... 429
Replacement Keys ........................ 15
Replacement Parts ....................... 397
Replacement Tires ....................... 338
Reporting Safety Defects ................... 460
Resetting Oil Change Indicator .............. 197
Restraints, Child ....................... 74,79
Restraints, Infant ......................... 75
Retractable Cargo Area Cover ............... 176
10
INDEX 477

Service Engine Soon Light
(Malfunction Indicator).................... 202
Service Manuals ........................ 461
Setting the Clock .................. 218,237,246
Settings, Personal ........................ 210
Shift Lever Override ...................... 387
Shift Speeds, Manual Transaxle .............. 297
Shoulder Belts ........................... 41
Side Airbag ............................. 69
Side Window Demisters (Defrosters) .......... 286
Signals, Turn ...................... 88,199,431
Slippery Surfaces, Driving On ............... 303
Snow Chains (Tire Chains) ................. 339
Snow Tires ............................ 339
Spare Tire ....................... 334,335,375
Specifications Oil ............................... 400
Speed Control (Cruise Control) ...........155,198
Speedometer ........................... 192 Speedometer and Odometer
................ 189
Starting ............................... 293
Automatic Transmission ................ 293
Engine Fails to Start .................. 294
Manual Transmission .................. 293
Remote ............................ 24
Starting Procedures ...................... 293
Steering Power .......................... 307,308
Tilt Column ........................ 154
Steering Wheel Audio Controls .............. 272
Steering Wheel Mounted Sound
System Controls ......................... 272
Storage ............................... 428
Storage, Vehicle ......................... 285
Stuck, Freeing .......................... 386
Sun Roof .............................. 165
Sun Visor Extension ....................... 97
Supplemental Restraint System - Airbag ........ 59
10
INDEX 479

Synthetic Engine Oil...................... 401
System, Remote Starting .................... 24
Tachometer ............................ 195
Taillights .............................. 431
Temperature Control, Automatic (ATC) ........ 279
Temperature Gauge, Engine Coolant .......191,373
Tether Anchor, Child Restraint ............... 78
Theft Alarm (Security Alarm) ................ 17
Theft System (Security Alarm) ............... 17
Tie Down Hooks, Cargo ................... 179
Tilt Steering Column ..................... 154
Tire and Loading Information Placard ......... 326
Tire Identification Number (TIN) ............. 324
Tire Markings .......................... 320
Tire Safety Information .................... 320
Tires ............................ 88,330,463
Aging (Life of Tires) .................. 337
Air Pressure ........................ 330 Chains
............................ 339
Changing .......................... 374
Compact Spare ...................... 334
General Information .................. 330
High Speed ......................... 333
Inflation Pressures .................... 331
Jacking ............................ 374
Life of Tires ........................ 337
Load Capacity .................... 326,327
Pressure Monitor System (TPMS) ......... 341
Pressure Warning Light ................ 201
Quality Grading ..................... 463
Radial ............................ 333
Replacement ........................ 338
Rotation ........................... 340
Safety .......................... 320,330
Sizes ............................. 322
Snow Tires ......................... 339
Spare Tire .......................... 375
480 INDEX
