Instrument Panel Features ............... 188
 Instrument Cluster — Base ............... 189
 Instrument Cluster — Premium ........... 190
 Instrument Cluster Descriptions ........... 191
 Electronic Vehicle Information Center (EVIC) —
If Equipped .......................... 205
▫ Oil Change Required — If Equipped ...... 207
▫ EVIC Functions ..................... 208
▫ Compass/Temperature/Audio ........... 209▫
Average Fuel Economy ................ 209
▫ Distance To Empty (DTE) .............. 209
▫ Elapsed Time ....................... 210
▫ Tire Pressure Monitor (TPM) ............ 210
▫ Personal Settings
(Customer-Programmable Features) ....... 210
 Media Center 230 (REQ) — AM/FM Stereo
Radio And 6–Disc CD/DVD Changer
(MP3/WMA AUX Jack) .................. 216
▫ Operating Instructions - Radio Mode ...... 216
4

▫Operation Instructions - (Disc Mode For CD
And MP3/WMA Audio Play, DVD-Video) . . . 224
▫ Notes On Playing MP3/WMA Files ....... 226
▫ List Button
(Disc Mode For MP3/WMA Play) ......... 229
▫ Info Button (Disc Mode For MP3/WMA
Play) ............................. 229
▫ Uconnect™ Multimedia (Satellite Radio) —
If Equipped ........................ 231
 Media Center 730N/430/430N (RHR/RER/
RBZ/RHB) CD/DVD/HDD/NAV —
If Equipped .......................... 235
▫ Operating Instructions
(Voice Command System) — If Equipped . . . 235
▫ Operating Instructions
(Uconnect™ Phone) — If Equipped ....... 235
Media Center 130 (Sales Code RES) ......... 236
▫ Operating Instructions — Radio Mode ..... 236
▫ Operation Instructions — CD Mode For CD
And MP3 Audio Play ................. 239
▫ Notes On Playing MP3 Files ............ 241
▫ Operation Instructions - Auxiliary Mode .... 244
 Media Center 130 With Satellite Radio
(Sales Code RES+RSC) ................... 244
▫ Operating Instructions — Radio Mode ..... 245
▫ Operation Instructions — CD Mode For CD
And MP3 Audio Play ................. 250
▫ Notes On Playing MP3 Files ............ 252
▫ List Button (CD Mode For MP3 Play) ...... 255
▫ Info Button (CD Mode For MP3 Play) ...... 255
186 UNDERSTANDING YOUR INSTRUMENT PANEL

▫Uconnect™ Multimedia (Satellite Radio) —
If Equipped ........................ 256
 iPod Control — If Equipped ............. 260
▫ Connecting The iPod ................. 261
▫ Using This Feature ................... 261
▫ Controlling The iPod Using Radio
Buttons ........................... 262
▫ Play Mode ......................... 262
▫ List Or Browse Mode ................. 263
 iPod/USB/MP3 Control — If Equipped ..... 265
▫ Connecting The iPod Or External USB
Device ............................ 266
▫ Using This Feature ................... 267
▫ Controlling The iPod Or External USB
Device Using Radio Buttons ............. 267▫
Play Mode ......................... 267
▫ List Or Browse Mode ................. 269
▫ Bluetooth Streaming Audio (BTSA) ........ 271
 Steering Wheel Audio Controls —
If Equipped .......................... 272
▫ Radio Operation ..................... 273
▫ CD Player ......................... 273
 CD/DVD Disc Maintenance .............. 273
 Radio Operation And Mobile Phones ....... 274
 Climate Controls ...................... 274
▫ Manual Heating And Air Conditioning ..... 275
▫ Automatic Temperature Control (ATC) —
If Equipped ........................ 279
▫ Operating Tips ...................... 285
4
UNDERSTANDING YOUR INSTRUMENT PANEL 187

The EVIC consists of the following:
•System Status
•Vehicle Information Warning Message Displays
•Personal Settings (Customer-Programmable Features)
•Compass Heading
•Outside Temperature Display
•Trip Computer Functions
•Uconnect™ phone Displays — If equipped
•Audio Mode Display
•Tire Pressure Monitor (TPM)
When the appropriate conditions exist, the EVIC displays
the following messages:
•Turn Signal On (with a continuous warning chime
after 1 mile (1.6 km) of distance travelled)
•Left Front Turn Signal Light Out (with a single chime)
•Left Rear Turn Signal Light Out (with a single chime)
•Right Front Turn Signal Light Out (with a single
chime)
•Right Rear Turn Signal Light Out (with a single chime)
•RKE Battery Low (with a single chime)
•Personal Settings Not Available – vehicle not in park
(automatic transmission) or vehicle is in motion
(manual transmission).
•Left/Right Front Door Ajar (one or more doors open,
with a single chime if speed is above 1 mph/1 km/h)
•Left/Right Rear Door Ajar (one or more doors open,
with a single chime if speed is above 1 mph/1 km/h)
•Door(s) Ajar (with a single chime if vehicle is in
motion)
206 UNDERSTANDING YOUR INSTRUMENT PANEL

EVIC FunctionsPress the EVIC button until one of the following func-
tions are displayed on the EVIC:
•Compass/Temperature/Audio
•Average Fuel Economy
•Distance To Empty (DTE)
•Elapsed Time
•Tire Pressure Monitor (TPM)
•Personal Settings
To Reset The Display
Pressing and holding the EVIC button once will clear the
function currently being displayed. Reset will only occur
if a resettable function is currently being displayed. To
reset all resettable functions, press and release the EVIC
button a second time within three seconds of resetting the
currently displayed function (reset ALL will be displayed
during this three-second window).EVIC Button
208 UNDERSTANDING YOUR INSTRUMENT PANEL

Compass/Temperature/Audio
Press and release the EVIC button to display one of eight
compass headings to indicate the direction the vehicle is
facing, the outside temperature, and the current radio
station.
For additional information regarding the compass, refer
to “Personal Settings (Customer-Programmable
Features)”.
Average Fuel Economy
Shows the average fuel economy since the last reset.
When the fuel economy is reset, the display will read
“RESET” or show dashes for two seconds. Then, the
history information will be erased, and the averaging will
continue from the last fuel reading before the reset.
Distance To Empty (DTE)
Shows the estimated distance that can be travelled with
the fuel remaining in the tank. This estimated distance is
determined by a weighted average of the instantaneous
and average fuel economy, according to the current fuel
tank level. This is not resettable.
NOTE:Significant changes in driving style or vehicle
loading will greatly affect the actual drivable distance of
the vehicle, regardless of the DTE displayed value.
When the DTE value is less than 30 miles (48 km)
estimated driving distance, the DTE display will change
to a text display of LOW FUEL. This display will
continue until the vehicle runs out of fuel. Adding a
significant amount of fuel to the vehicle will turn off the
LOW FUEL text and a new DTE value will be dis-
played, based on the current values in the DTE calcula-
tion and the current fuel tank level.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 209

MEDIA CENTER 230 (REQ) — AM/FM STEREO
RADIO AND 6–DISC CD/DVD CHANGER
(MP3/WMA AUX JACK)
NOTE:The radio sales code is located on the lower right
side of the radio faceplate.
Operating Instructions - Radio Mode
NOTE: The ignition switch must be in the ON or ACC
position to operate the radio.
Power Switch/Volume Control (Rotary)
Push the ON/VOLUME control knob to turn on the
radio. Press the ON/VOLUME control knob a second
time to turn off the radio.
Electronic Volume Control
The electronic volume control turns continuously (360
degrees) in either direction without stopping. Turning the
ON/VOLUME control knob to the right increases the
volume and to the left decreases it.
When the audio system is turned ON, the sound will be
set at the same volume level as last played.
Media Center 230 (REQ)
216 UNDERSTANDING YOUR INSTRUMENT PANEL

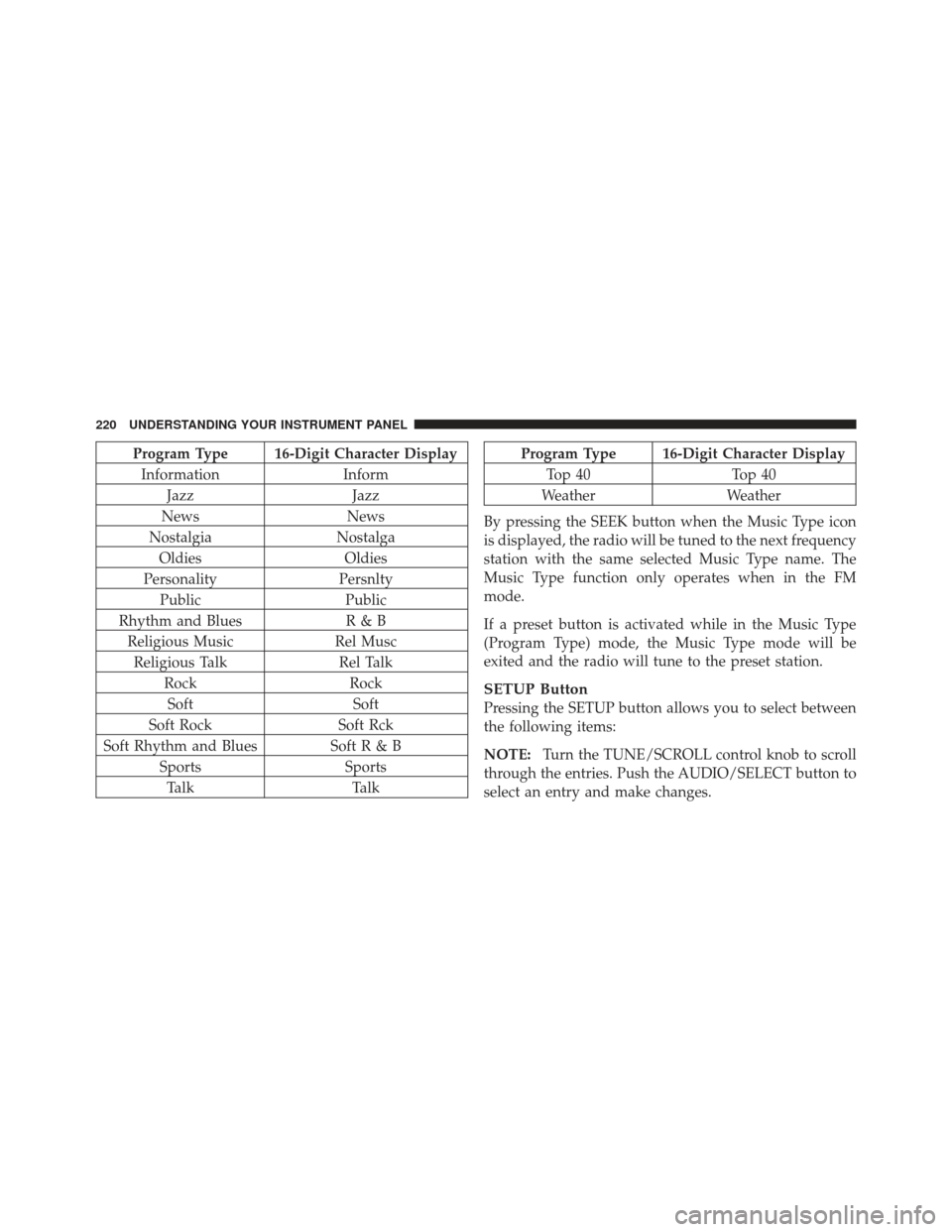

Program Type 16-Digit Character DisplayInformation Inform
Jazz Jazz
News News
Nostalgia Nostalga
Oldies Oldies
Personality Persnlty
Public Public
Rhythm and Blues R & B
Religious Music Rel Musc
Religious Talk Rel Talk
Rock Rock
Soft Soft
Soft Rock Soft Rck
Soft Rhythm and Blues Soft R & B Sports Sports
Talk TalkProgram Type 16-Digit Character Display
Top 40 Top 40
Weather Weather
By pressing the SEEK button when the Music Type icon
is displayed, the radio will be tuned to the next frequency
station with the same selected Music Type name. The
Music Type function only operates when in the FM
mode.
If a preset button is activated while in the Music Type
(Program Type) mode, the Music Type mode will be
exited and the radio will tune to the preset station.
SETUP Button
Pressing the SETUP button allows you to select between
the following items:
NOTE: Turn the TUNE/SCROLL control knob to scroll
through the entries. Push the AUDIO/SELECT button to
select an entry and make changes.
220 UNDERSTANDING YOUR INSTRUMENT PANEL
