2011 DODGE CALIBER ignition

To minimize the possibility of catalytic converter dam-
age:
•Do not shut off the engine or interrupt the ignition,
when the transmission is in gear and the vehicle is in
motion.
•Do not try to start the engine by pushing or towing the
vehicle.
•Do not idle the engine with any spark plug wires
disconnected or removed, such as when diagnostic
testing, or for prolonged periods during very rough
idle or malfunctioning operating conditions.
Cooling System
WARNING!
•When working near the radiator cooling fan, dis-
connect the fan motor lead or turn the ignition
switch to the OFF position. The fan is temperature
controlled and can start at any time the ignition
switch is in the ON position.
•You or others can be badly burned by hot engine
coolant (antifreeze) or steam from your radiator. If
you see or hear steam coming from under the
hood, do not open the hood until the radiator has
had time to cool. Never try to open a cooling
system pressure cap when the radiator is hot.
7
MAINTAINING YOUR VEHICLE 409

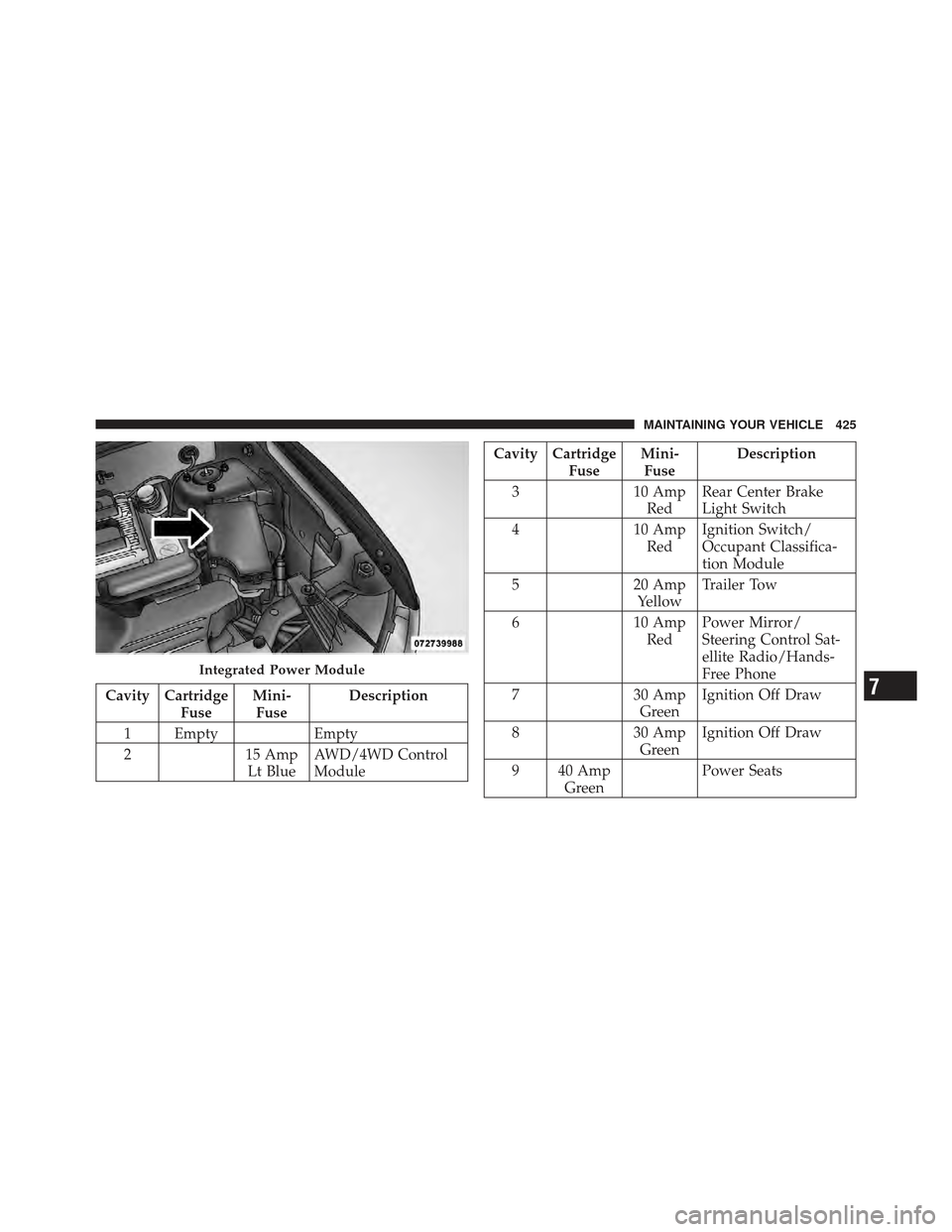

Cavity CartridgeFuseMini-
Fuse Description
1 Empty Empty
2 15 Amp
Lt Blue AWD/4WD Control
Module
Cavity Cartridge
FuseMini-
Fuse Description
3 10 Amp
Red Rear Center Brake
Light Switch
4 10 Amp
Red Ignition Switch/
Occupant Classifica-
tion Module
5 20 Amp
Yellow Trailer Tow
6 10 Amp
Red Power Mirror/
Steering Control Sat-
ellite Radio/Hands-
Free Phone
7 30 Amp
Green Ignition Off Draw
8 30 Amp
Green Ignition Off Draw
9 40 Amp Green Power Seats
Integrated Power Module
7
MAINTAINING YOUR VEHICLE 425

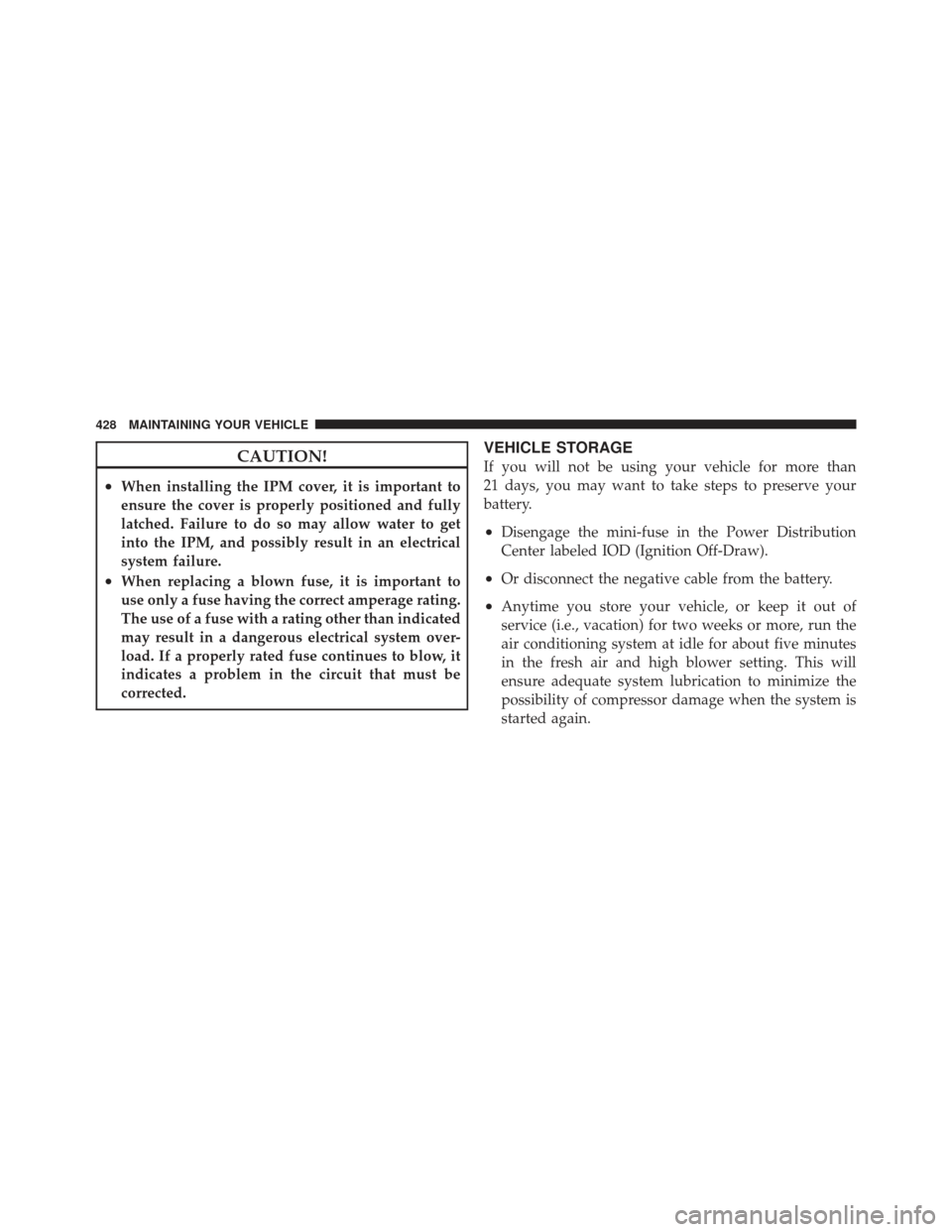

CAUTION!
•When installing the IPM cover, it is important to
ensure the cover is properly positioned and fully
latched. Failure to do so may allow water to get
into the IPM, and possibly result in an electrical
system failure.
•When replacing a blown fuse, it is important to
use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated
may result in a dangerous electrical system over-
load. If a properly rated fuse continues to blow, it
indicates a problem in the circuit that must be
corrected.
VEHICLE STORAGE
If you will not be using your vehicle for more than
21 days, you may want to take steps to preserve your
battery.
•Disengage the mini-fuse in the Power Distribution
Center labeled IOD (Ignition Off-Draw).
•Or disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
428 MAINTAINING YOUR VEHICLE

HitchesTrailer Towing ....................... 361
HomeLink® (Garage Door Opener) Transmitter . . 158
Hood Release .......................... 144
Ignition ............................... 12
Key ............................... 12
Ignition Key Removal ..................... 12
Immobilizer (Sentry Key) ................... 14
Infant Restraint .......................... 75
Information Center, Vehicle ................. 205
Inside Rearview Mirror .................... 93
Instrument Cluster .................... 189,191
Instrument Panel and Controls .............. 188
Instrument Panel Cover ................... 423
Instrument Panel Lens Cleaning ............. 424
Integrated Power Module (Fuses) ............ 424
Interior Appearance Care .................. 422
Intermittent Wipers (Delay Wipers) ........... 153Introduction
............................. 4
Jack Location ........................... 374
Jack Operation ....................... 374,376
Jacking Instructions ...................... 376
Jump Starting .......................... 381
Key-In Reminder ......................... 14
Key, Programming ........................ 16
Key, Replacement ........................ 15
Key, Sentry (Immobilizer) ................... 14
Keyless Entry System (Sedan) ................ 18
Keys ................................. 12
Lane Change and Turn Signals .............. 431
Lap/Shoulder Belts ....................... 41
Latches ................................ 88
Hood ............................. 144
Lead Free Gasoline ...................... 350
