▫Security ........................... 167
▫ Troubleshooting Tips .................. 167
▫ General Information .................. 168
 Power Sunroof — If Equipped ............ 168
▫ Opening Sunroof — Express ............ 169
▫ Opening Sunroof — Manual Mode ........ 169
▫ Closing Sunroof — Express ............. 170
▫ Closing Sunroof — Manual Mode ........ 170
▫ Pinch Protect Feature ................. 170
▫ Venting Sunroof — Express ............. 170
▫ Sunshade Operation .................. 170
▫ Wind Buffeting ...................... 171
▫ Sunroof Maintenance ................. 171 ▫
Ignition Off Operation ................. 171
 Electrical Power Outlets ................. 171
 Cigar Lighter And Ash Receiver —
If Equipped .......................... 175
 Cupholders .......................... 175
▫ Rear Seat Bottle Holder ................ 176
 Storage ............................. 176
▫ Glovebox Storage Compartment .......... 176
 Console Features ...................... 177
 Cargo Area Features ................... 179
▫ Ski Pass-Through .................... 180
 Rear Window Features .................. 181
▫ Rear Window Defroster ................ 181
92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Rear Seat Bottle Holder
There are built-in bottle holders located in both rear door
trim panels.WARNING!
If containers of hot liquid are placed in the bottle
holder, they can spill when the door is closed, burn-
ing the occupants. Be careful when closing the doors
to avoid injury.
STORAGE
Glovebox Storage Compartment
The glovebox storage compartment is located on the right
side of the instrument panel.
Rear Bottle Holder
176 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Pull on the handle to open the glovebox.CONSOLE FEATURES
The center console is located between the front driver
and passenger seats. The center console armrest slides
forward from design position to provide added user
comfort. The center console can be used for storage and
is also equipped with an electrical power outlet. Refer to
Glovebox Storage CompartmentOpened Glovebox
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 177

Refrigerant Recovery And Recycling
R-134a air conditioning refrigerant is a hydrofluoro-
carbon (HFC) that is endorsed by the Environmental
Protection Agency and is an ozone-saving product. How-
ever, the manufacturer recommends that air conditioning
service be performed by authorized dealers or other
service facilities using recovery and recycling equipment.
NOTE:Use only manufacturer approved A/C System
Sealers, Stop Leak Products, Seal Conditioners, Compres-
sor Oil, and Refrigerants.
A/C Air Filter – If Equipped
Refer to the “Maintenance Schedule” for the proper
maintenance intervals.
WARNING!
Do not remove the A/C Air Filter while the blower is
operating or personal injury may result. The A/C Air Filter is located in the fresh air inlet behind
the glove box. Perform the following procedure to re-
place the filter:
1. Open the glove box and remove all contents.
2. Push in on the sides of the glove box and lower the
door.
3. Disconnect the glove box door dampener from the slot
on the side of the box. This is done by grasping the
dampener connector (on the outside of the box) and the
end of the connector pin (on the inside of the box) with
your thumb and forefinger and pulling outward while
lightly lifting upward on the door with your other hand.
Once disconnected, the dampener will retract under-
neath the instrument panel if you release it.
4. Pivot the glove box downward.
5. Disengage the two retaining tabs that secure the filter
cover to the HVAC housing and remove the cover.
410 MAINTAINING YOUR VEHICLE

6. Remove the A/C Air Filter by pulling it straight out of
the housing.
7. Install the A/C Air Filter with the arrow on the filter
pointing toward the floor. When installing the filter
cover, make sure the retaining tabs fully engage the
cover.
CAUTION!
The A/C Air Filter is identified with an arrow to
indicate airflow direction through the filter. Failure
to install the filter properly will result in the need to
replace it more often.
8. Reinstall the glove box door dampener and glove box.
Body Lubrication
Locks and all body pivot points, including such items as
seat tracks, door hinge pivot points and rollers, liftgate,
tailgate, sliding doors and hood hinges, should be lubri-
cated periodically with a lithium based grease, such as
MOPAR Spray White Lube or equivalent, to assure
quiet, easy operation and to protect against rust and
wear. Prior to the application of any lubricant, the parts
concerned should be wiped clean to remove dust and
grit; after lubricating excess oil and grease should be
removed. Particular attention should also be given to

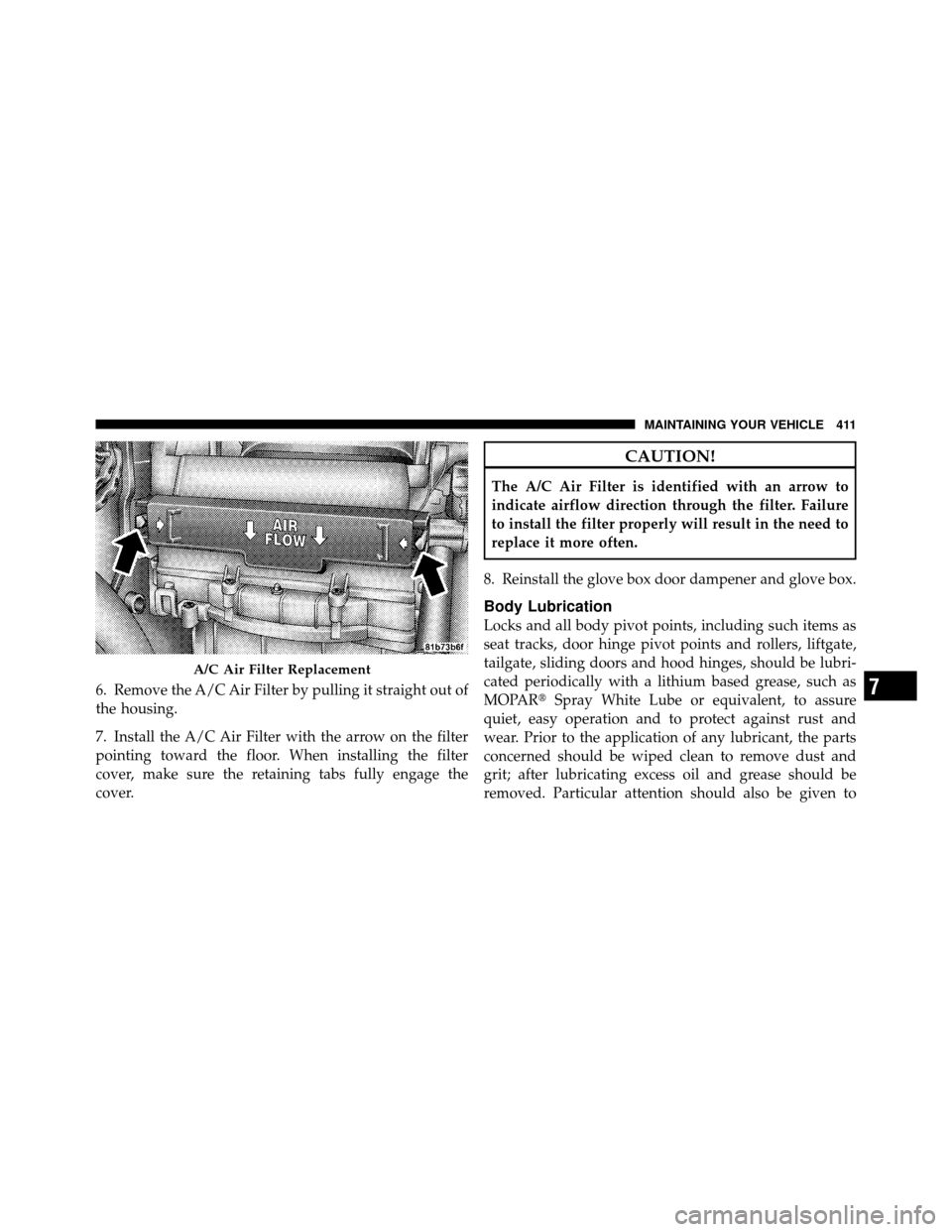

A/C Air Filter Replacement
7
MAINTAINING YOUR VEHICLE 411

REPLACEMENT BULBS
All the inside bulbs are brass or glass wedge base.
Aluminum base bulbs are not approved and should not
be used for replacement.
LIGHT BULBS – Interior Bulb No.
Front Courtesy/Reading Lamp..........578/W5W
Center Courtesy/Reading Lamp ..........578/W5W
Visor Vanity Lamp ...................... A6220
Glove Box Lamp ....................... A6220
Shift Indicator Lamp ................. IKLE14140
Rear Compartment (Trunk) Lamp ............. 579
NOTE: For lighted switches, see your authorized dealer
for replacement. LIGHT BULBS – Exterior Bulb No.
Low Beam Headlamp
..................... 9006
High Beam Headlamp .................... 9005
Front Park/Turn Signal/Side Marker Lamp ....3757A
Front Fog Lamp ......................... H11
Front Side Marker Lamp .................WY5W
Center High Mounted Stop (CHMSL) Lamp ..... LED
(Serviced at Authorized Dealer)
Rear Tail/Stop/Turn Signal Lamp ............ LED
(Serviced at Authorized Dealer)
Backup Lamp ........................... 921
License Lamp .......................... W5W
BULB REPLACEMENT
Headlamp
1. Raise the hood and locate the connector behind the
headlamp.
