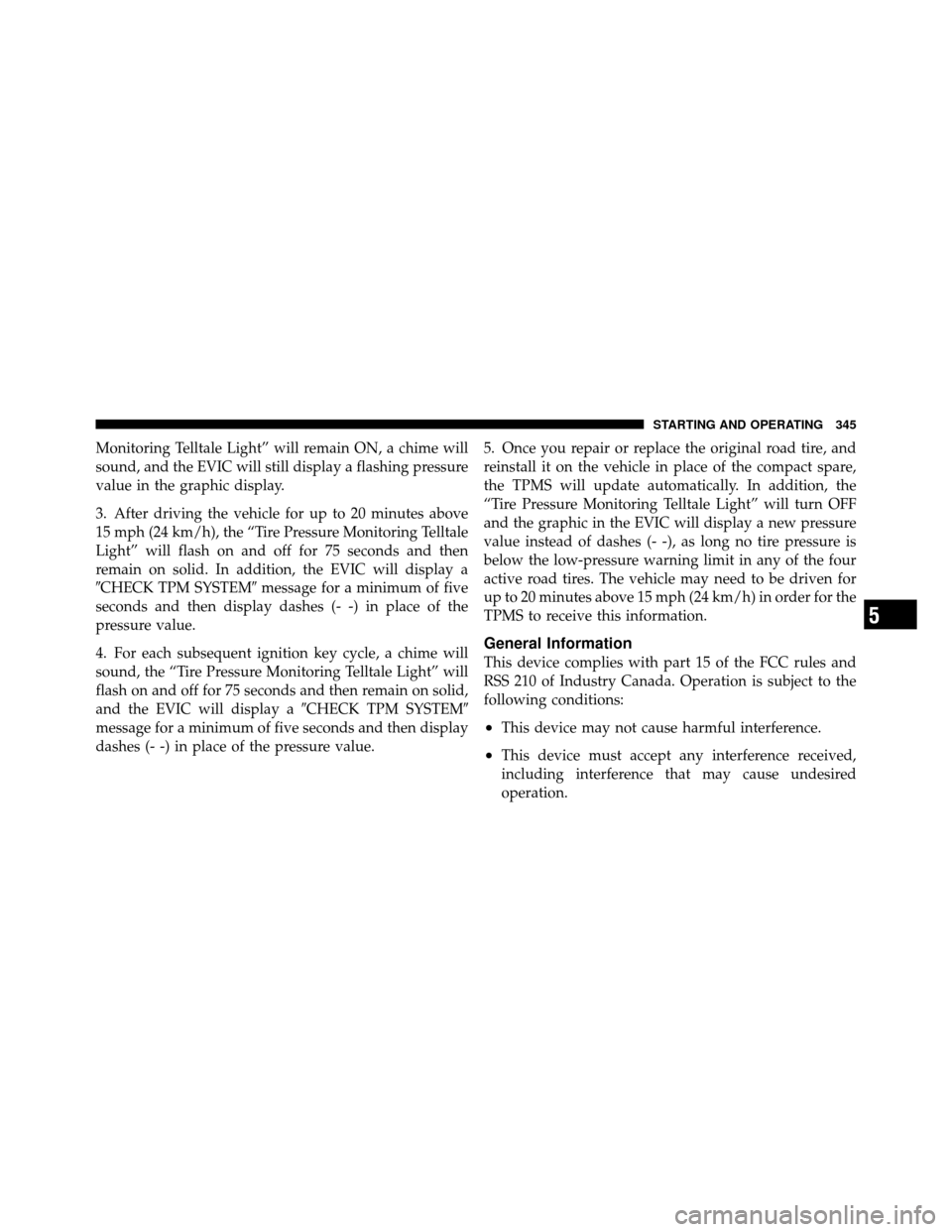

Monitoring Telltale Light” will remain ON, a chime will
sound, and the EVIC will still display a flashing pressure
value in the graphic display.
3. After driving the vehicle for up to 20 minutes above
15 mph (24 km/h), the “Tire Pressure Monitoring Telltale
Light” will flash on and off for 75 seconds and then
remain on solid. In addition, the EVIC will display a
CHECK TPM SYSTEMmessage for a minimum of five
seconds and then display dashes (- -) in place of the
pressure value.
4. For each subsequent ignition key cycle, a chime will
sound, the “Tire Pressure Monitoring Telltale Light” will
flash on and off for 75 seconds and then remain on solid,
and the EVIC will display a CHECK TPM SYSTEM
message for a minimum of five seconds and then display
dashes (- -) in place of the pressure value. 5. Once you repair or replace the original road tire, and
reinstall it on the vehicle in place of the compact spare,
the TPMS will update automatically. In addition, the
“Tire Pressure Monitoring Telltale Light” will turn OFF
and the graphic in the EVIC will display a new pressure
value instead of dashes (- -), as long no tire pressure is
below the low-pressure warning limit in any of the four
active road tires. The vehicle may need to be driven for
up to 20 minutes above 15 mph (24 km/h) in order for the
TPMS to receive this information.
General Information
This device complies with part 15 of the FCC rules and
RSS 210 of Industry Canada. Operation is subject to the
following conditions:
•This device may not cause harmful interference.
•This device must accept any interference received,
including interference that may cause undesired
operation.
5
STARTING AND OPERATING 345

WHAT TO DO IN EMERGENCIES
CONTENTS
Hazard Warning Flashers ................ 372
 If Your Engine Overheats ................ 372
▫ Engine Oil Overheating
(2.4L Engine Only) — If Equipped ........ 373
 Jacking And Tire Changing ............... 374
▫ Jack Location ....................... 374
▫ Spare Tire Stowage ................... 374
▫ Preparations For Jacking ............... 375
▫ Jacking Instructions ................... 376 ▫
Road Tire Installation ................. 382
 Jump-Starting ........................ 384
▫ Preparations For Jump-Start ............. 385
▫ Jump-Starting Procedure ............... 387
 Freeing A Stuck Vehicle ................. 389
 Shift Lever Override ................... 390
 Towing A Disabled Vehicle ............... 391
▫ Without The Ignition Key .............. 393
6

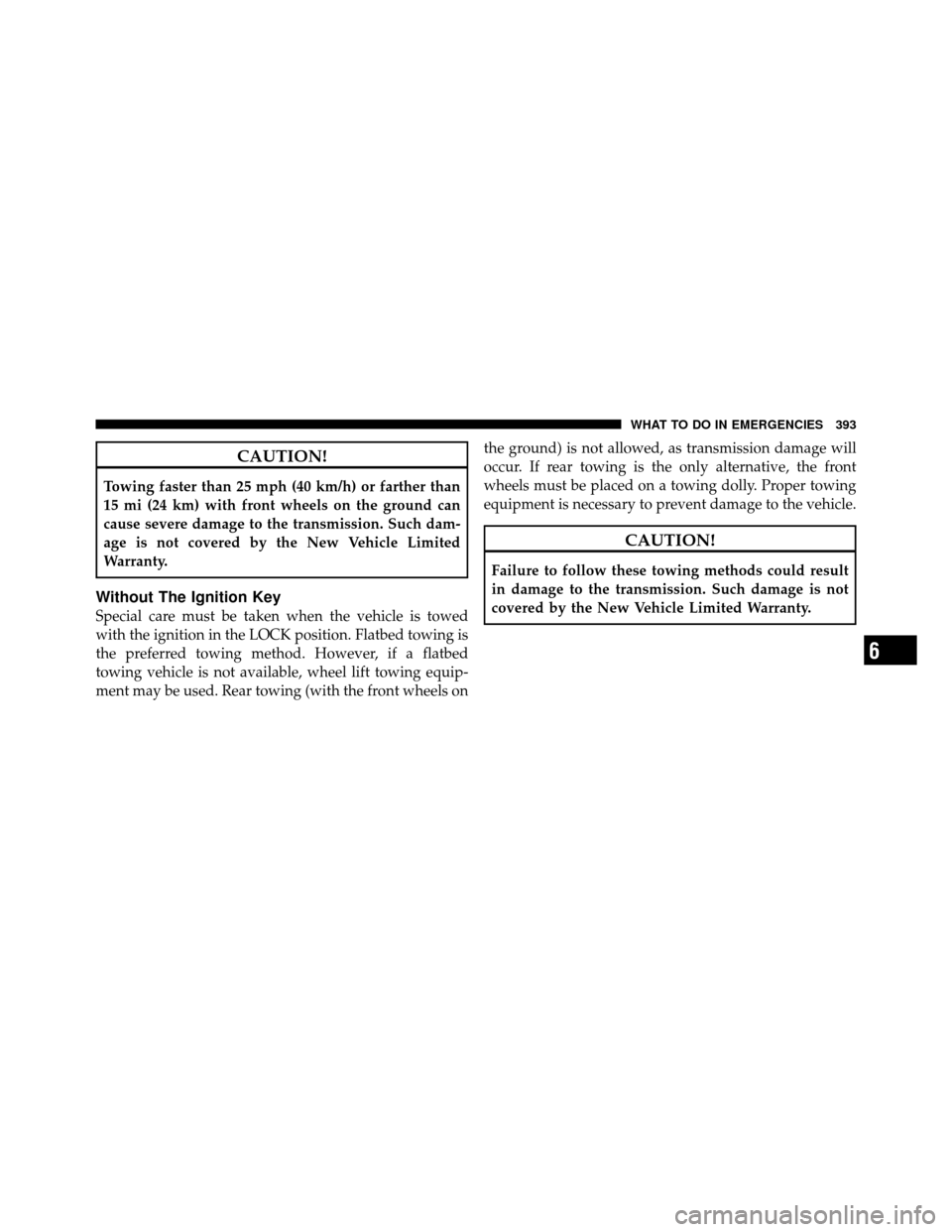

CAUTION!
Towing faster than 25 mph (40 km/h) or farther than
15 mi (24 km) with front wheels on the ground can
cause severe damage to the transmission. Such dam-
age is not covered by the New Vehicle Limited
Warranty.
Without The Ignition Key
Special care must be taken when the vehicle is towed
with the ignition in the LOCK position. Flatbed towing is
the preferred towing method. However, if a flatbed
towing vehicle is not available, wheel lift towing equip-
ment may be used. Rear towing (with the front wheels onthe ground) is not allowed, as transmission damage will
occur. If rear towing is the only alternative, the front
wheels must be placed on a towing dolly. Proper towing
equipment is necessary to prevent damage to the vehicle.
CAUTION!
Failure to follow these towing methods could result
in damage to the transmission. Such damage is not
covered by the New Vehicle Limited Warranty.
6
WHAT TO DO IN EMERGENCIES 393

persists, the message will appear the next time the
vehicle is started. This might indicate a damaged cap. If
the problem is detected twice in a row, the system will
turn on the “Malfunction Indicator Light (MIL).” Resolv-
ing the problem will turn the MIL light off.
EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS
In some localities, it may be a legal requirement to pass
an inspection of your vehicle’s emissions control system.
Failure to pass could prevent vehicle registration.For states that require an Inspection and Mainte-
nance (I/M), this check verifies the “Malfunction
Indicator Light (MIL)” is functioning and is not
on when the engine is running, and that the OBD II
system is ready for testing. Normally, the OBD II system will be ready. The OBD II
system may
notbe ready if your vehicle was recently
serviced, recently had a dead battery or a battery replace-
ment. If the OBD II system should be determined not
ready for the I/M test, your vehicle may fail the test.
Your vehicle has a simple ignition key-actuated test,
which you can use prior to going to the test station. To
check if your vehicle’s OBD II system is ready, you must
do the following:
1. Turn the ignition switch to the ON position, but do not
crank or start the engine.
2. If you crank or start the engine, you will have to start
this test over.
3. As soon as you turn the ignition switch to the ON
position, you will see the MIL symbol come on as part of
a normal bulb check.
400 MAINTAINING YOUR VEHICLE

Automatic Temperature Control (ATC)......... 273
Automatic Transaxle ..............12,288,292,423
Adding Fluid .................. 425,426,444
Filter ............................. 426
Fluid and Filter Changes ............... 426
Fluid Level Check ................. 425,426
Interlock System ..................... 293
Reset Mode ......................... 297
Selection Of Lubricant ................. 444
Shifting ........................... 294
Automatic Transmission Fluid Type ......................... 424
Special Additives ..................... 424
Autostick ............................. 298
B-Pillar Location ........................ 322
Battery ............................... 407
Jump Starting ........................ 30
Keyless Transmitter Replacement (RKE) ..... 26Location
........................... 407
Belts, Seat .............................. 86
Body Mechanism Lubrication ............... 411
Brake Assist System ...................... 309
Brake System ........................... 421
Anti-Lock (ABS) ..................... 306
Fluid Check ..................... 421,444
Master Cylinder ..................... 421
Parking ........................... 304
Warning Light ....................... 190
Brake, Parking .......................... 304
Brake/Transmission Interlock ............... 294
Brakes ............................... 421
Break-In Recommendations, New Vehicle ........ 83
Bulb Replacement ....................... 438
Bulbs, Light .......................... 88,438
Calibration, Compass ..................... 210
Capacities, Antifreeze (Engine Coolant) ......... 20
10
INDEX 473

GaugesCoolant Temperature .................. 188
Fuel .............................. 188
Odometer .......................... 192
Tachometer ......................... 192
Gear Select Lever Override ................. 390
Gearshift .............................. 294
General Information ................. 18,128,345
General Maintenance ..................... 402
Glass Cleaning .......................... 431
Gross Axle Weight Rating ...............357,359
Gross Vehicle Weight Rating .............357,359
GVWR ............................... 357
Hands-Free Phone (Uconnect™) .............. 97
Hazard Driving Through Flowing, Rising, or Shallow
Standing Water ...................... 301
Hazard Warning Flasher ................... 372 Head Restraints
......................... 141
Headlights ............................ 438
Bulb Replacement .................... 438
Cleaning ........................... 429
High Beam ...................... 151,201
High Beam/Low Beam Select Switch ...... 151
On With Wipers ..................... 157
Passing ............................ 151
Switch ............................ 149
Heated Seats ........................... 136
Heater ............................... 269
Heater, Engine Block ..................... 291
Hitches Trailer Towing ....................... 361
HomeLink® (Garage Door Opener) Transmitter . . 162
Hood Release .......................... 146
Ignition ............................... 12
Key ............................... 12
10
INDEX 479

Ignition Key Removal..................... 12
Illuminated Entry ........................ 20
Immobilizer (Sentry Key) ................... 15
Infant Restraint ...................... 72,73,74
Information Center, Vehicle ................. 203
Inside Rearview Mirror .................... 93
Instrument Cluster ....................... 188
Instrument Panel and Controls .............. 186
Instrument Panel Cover ................... 430
Instrument Panel Lens Cleaning ............. 431
Integrated Power Module (Fuses) ............ 432
Interior Appearance Care .................. 430
Interior Lights .......................... 153
Intermittent Wipers (Delay Wipers) ........... 155
Introduction ............................. 4
Jack Location ........................... 374
Jack Operation ....................... 374,376
Jacking Instructions ...................... 376 Jump Starting
.......................... 384
Key-In Reminder ......................... 14
Key, Programming ........................ 17
Key, Replacement ........................ 16
Key, Sentry (Immobilizer) ................... 15
Keyless Entry System ...................... 21
Keyless Entry System (Sedan) ................ 21
Keys ................................. 12
Knee Bolster ............................ 58
Lane Change and Turn Signals ...........196,441
Lane Change Assist ...................... 151
Lap/Shoulder Belts ....................... 44
LATCH
(Lower Anchors and Tether for CHildren) ....... 78
Latches ................................ 88
Hood ............................. 146
Lead Free Gasoline ...................... 346
480 INDEX

PowerDoor Locks ......................... 32
Mirrors ............................ 95
Outlet (Auxiliary Electrical Outlet) ........ 171
Seats ............................. 133
Steering ........................... 303
Sunroof ........................... 168
Windows ........................... 35
Pregnant Women and Seat Belts .............. 58
Preparation for Jacking .................... 375
Pretensioners Seat Belts ........................... 52
Programmable Electronic Features ............ 212
Programming Transmitters
(Remote Keyless Entry) .................... 26
Radial Ply Tires ......................... 329
Radiator Cap (Coolant Pressure Cap) .......... 418
Radio Operation ........................ 268 Radio Remote Controls
.................... 266
Rear Cupholder ......................... 176
Rear Seat, Folding .................... 145,146
Rear Window Defroster ................... 181
Rear Window Features .................... 181
Rearview Mirrors ........................ 93
Recorder, Event Data ...................... 71
Recreational Towing ...................... 369
Reformulated Gasoline .................... 346
Refrigerant ............................ 410
Reminder, Seat Belt ..................... 56,57
Remote Control Door Locks ......................... 21
Security Alarm ....................... 18
Remote Keyless Entry (RKE) ................. 21
Remote Keyless Entry (Sedan) ............... 21
Remote Sound System (Radio) Controls ........ 266
Remote Starting System .................... 27
Remote Trunk Release ..................... 39
