2011 DODGE AVENGER Owners Manual

•With either front door open, and the key in the
ignition, neither the power door locks nor Remote
Keyless Entry (RKE) transmitter will function.
Locking Doors With A Key
There is only one external door lock cylinder which is
located in the driver’s door.
You can insert the key with either side up. To lock the
door, turn the key rearward, to unlock the door, turn the
key forward. For door lock lubrication, refer to “Mainte-
nance Procedures” in “Maintaining Your Vehicle”.
SENTRY KEY
The Sentry KeyImmobilizer System prevents unauthor-
ized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses ignition keys, which have an embedded
electronic chip (transponder), to prevent unauthorized
vehicle operation. Therefore, only keys that are pro-
grammed to the vehicle can be used to start and operate
the vehicle. The system will shut the engine off in two
seconds if someone uses an invalid key to start the engine.
NOTE: A key, which has not been programmed, is also
considered an invalid key even if it is cut to fit the
ignition switch lock cylinder for that vehicle.
During normal operation, after turning the ignition
switch, the Vehicle Security Light will turn on for three
seconds for a bulb check. If the Vehicle Security Light
remains on after the bulb check, it indicates that there is
a problem with the electronics. In addition, if the Vehicle
Security Light begins to flash after the bulb check, it
indicates that someone used an invalid key to start the
engine. Either of these conditions will result in the engine
being shut off after two seconds.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15

If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10 sec-
onds), it indicates that there is a fault in the electronics.
Should this occur, have the vehicle serviced as soon as
possible by an authorized dealer.
CAUTION!
•Always remove the Sentry Keyfrom the vehicle
and lock all doors when leaving the vehicle unat-
tended.
•The Sentry Key Immobilizer system is not com-
patible with some after-market remote starting
systems. Use of these systems may result in ve-
hicle starting problems and loss of security
protection.
All of the keys provided with your new vehicle have
been programmed to the vehicle electronics.
Replacement Keys
NOTE: Only keys that have been programmed to the
vehicle electronics can be used to start the vehicle. Once
a Sentry Key has been programmed to a vehicle, it
cannot be programmed to any other vehicle.
At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
This PIN is required for authorized dealer replacement of
keys. Duplication of keys may be performed at an
authorized dealer or by using the Customer Key Pro-
gramming procedure. This procedure consists of pro-
gramming a blank key to the vehicle electronics. A blank
key is one which has never been programmed.
NOTE: When having the Sentry Key Immobilizer
System serviced, bring all vehicle keys with you to an
authorized dealer.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

Customer Key Programming
You can program new keys to the system if you have two
valid Sentry Keysby performing the following proce-
dure:
1. Cut the additional Sentry Key Transponder blank(s)
to match the ignition switch lock cylinder key code.
2. Insert the first valid key into the ignition switch. Turn
the ignition switch to the ON/RUN position for at least
three seconds, but no longer than 15 seconds. Then, turn
the ignition switch to the LOCK position and remove the
first key.
3. Insert the second valid key into the ignition switch.
Turn the ignition switch to the ON/RUN position within
15 seconds. After 10 seconds, a chime will sound. In
addition, the Vehicle Security Light will begin to flash.
Turn the ignition switch to the LOCK position and
remove the second key. 4. Insert a blank Sentry Key
into the ignition switch.
Turn the ignition switch to the ON/RUN position within
60 seconds. After 10 seconds, a single chime will sound.
In addition, the Vehicle Security Light will stop flashing.
To indicate that programming is complete, the Vehicle
Security Light will turn on again for three seconds and
then turn off.
The new Sentry Key is programmed.The Remote
Keyless Entry (RKE) transmitter will also be pro-
grammed during this procedure.
Repeat this procedure to program up to eight keys. If you
do not have a programmed Sentry Key, contact your
authorized dealer for details.
NOTE: If a programmed key is lost, see your authorized
dealer to have all remaining keys erased from the sys-
tems memory. This will prevent the lost key from starting
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17

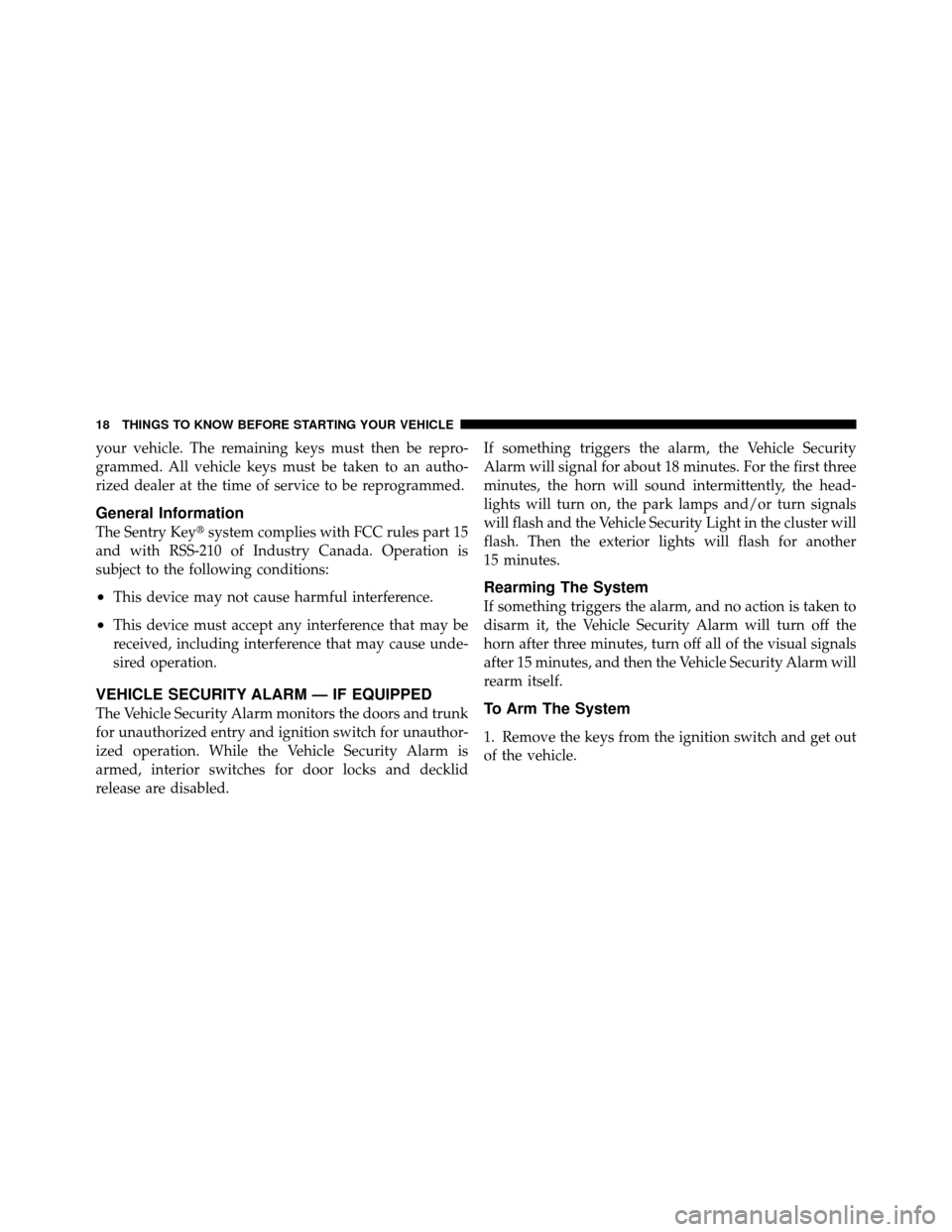

your vehicle. The remaining keys must then be repro-
grammed. All vehicle keys must be taken to an autho-
rized dealer at the time of service to be reprogrammed.
General Information
The Sentry Keysystem complies with FCC rules part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
•This device may not cause harmful interference.
•This device must accept any interference that may be
received, including interference that may cause unde-
sired operation.
VEHICLE SECURITY ALARM — IF EQUIPPED
The Vehicle Security Alarm monitors the doors and trunk
for unauthorized entry and ignition switch for unauthor-
ized operation. While the Vehicle Security Alarm is
armed, interior switches for door locks and decklid
release are disabled. If something triggers the alarm, the Vehicle Security
Alarm will signal for about 18 minutes. For the first three
minutes, the horn will sound intermittently, the head-
lights will turn on, the park lamps and/or turn signals
will flash and the Vehicle Security Light in the cluster will
flash. Then the exterior lights will flash for another
15 minutes.
Rearming The System
If something triggers the alarm, and no action is taken to
disarm it, the Vehicle Security Alarm will turn off the
horn after three minutes, turn off all of the visual signals
after 15 minutes, and then the Vehicle Security Alarm will
rearm itself.
To Arm The System
1. Remove the keys from the ignition switch and get out
of the vehicle.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

2. Lock the door using either the power door lock switch
(one door must be open) or the LOCK button on the
Remote Keyless Entry (RKE) transmitter (doors can be
open or closed), and close all doors.
NOTE:The Vehicle Security Alarm will not arm if you
lock the doors with the manual door lock plungers.
3. The Vehicle Security Light in the instrument cluster
will flash for 16 seconds. This shows that the Vehicle
Security Alarm is arming. During this period, if a door is
opened, the ignition switch is turned to ON/RUN, or the
power door locks are unlocked in any manner, the
Vehicle Security Alarm will automatically disarm.
NOTE:
•During the 16-second arming period, if a door is
opened or the ignition switch is turned to ON/RUN,
the Vehicle Security Alarm will automatically disarm.
•Once armed, the Vehicle Security Alarm disables the
unlock switch on the driver door trim panel and
passenger door trim panel, the trunk release button on
the instrument panel, and the HomeLink/Garage
Door Opener (if equipped).
To Disarm The System
Either press the UNLOCK button on the RKE transmitter
or insert a valid Sentry Key into the ignition lock
cylinder and turn the key to the ON/START position.
NOTE:
•The driver’s door key cylinder and the trunk button on
the RKE transmitter cannot arm or disarm the Vehicle
Security Alarm.
•The Vehicle Security Alarm remains armed during
trunk entry. Pressing the trunk button will not disarm
the Vehicle Security Alarm. If someone enters the
vehicle through the trunk and opens any door, the
alarm will sound.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19

The Vehicle Security Alarm is designed to protect your
vehicle; however, you can create conditions where the
Vehicle Security Alarm will give you a false alarm. If one
of the previously described arming sequences has oc-
curred, the Vehicle Security Alarm will arm regardless of
whether you are in the vehicle or not. If you remain in the
vehicle and open a door, the alarm will sound. If this
occurs, disarm the Vehicle Security Alarm.
If the Vehicle Security Alarm is armed and the battery
becomes disconnected the Vehicle Security Alarm will
remain armed when the battery is reconnected. The
exterior lights will flash, and the horn will sound. If this
occurs, disarm the Vehicle Security Alarm.
Tamper Alert
If the alarm was triggered, but the warning signals have
timed out, the park and taillights flash three times, and
the horn will chirp three times, when unlocking the
vehicle with a valid RKE transmitter to alert the driver.
ILLUMINATED ENTRY — IF EQUIPPED
The courtesy lights will turn on when you press the
unlock button on the Remote Keyless Entry (RKE) trans-
mitter or open any door.
This feature also turns on the approach lighting in the
outside mirrors (if equipped). Refer to “Mirrors” in
“Understanding The Features Of Your Vehicle” for fur-
ther information.
The interior lights will fade to off after approximately
30 seconds or they will immediately fade to off once the
ignition switch is turned to ON/RUN from the OFF
position..
NOTE:
•The front courtesy overhead console and door cour-
tesy lights do not turn on if the dimmer control is in
theDome ON position (extreme top position).
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

•The Illuminated Entry system will not operate if the
dimmer control is in the “Dome defeat” position
(extreme bottom position).
REMOTE KEYLESS ENTRY (RKE) — IF
EQUIPPED
This system allows you to lock or unlock the doors, open
the trunk, lower both front windows (if equipped), or
activate the Panic Alarm from distances approximately
66 ft (20 m) using a Remote Keyless Entry (RKE) trans-
mitter. The RKE transmitter does not need to be pointed
at the vehicle to activate the system.
NOTE:
•The line of transmission must not be blocked with
metal objects.
•Inserting the key into the ignition switch disables all
buttons on the RKE transmitter.
To Unlock The Doors
Press and release the UNLOCK button on the RKE
transmitter once to unlock the driver’s door, or twice to
unlock all doors. The turn signal lights will flash to
acknowledge the unlock signal. The Illuminated Entry
system (if equipped) will also turn on.
Vehicle Key
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21

Remote Key Unlock, Driver Door/All Doors First
Press
This feature lets you program the system to unlock either
the driver’s door or all doors on the first press of the
UNLOCK button on the RKE transmitter. To change the
current setting, proceed as follows:
•For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), refer to “Electronic Vehicle
Information Center (EVIC)/Personal Settings
(Customer-Programmable Features)” in “Understand-
ing Your Instrument Panel” for further information.
•For vehicles not equipped with the EVIC, perform the
following procedure:
1. Press and hold the LOCK button on a programmed
RKE transmitter for at least four seconds, but not longer
than 10 seconds. Then, press and hold the UNLOCK
button while still holding the LOCK button. 2. Release both buttons at the same time.
3. Test the feature while outside of the vehicle by press-
ing the LOCK/UNLOCK buttons on the RKE transmitter
with the ignition in the LOCK position and the key
removed.
4. Repeat these steps if you want to return this feature to
its previous setting.
NOTE:
If there is no key in the ignition switch, pressing
the LOCK button on the RKE transmitter while you are
inside the vehicle will activate the Vehicle Security Alarm
system. Opening a door with the system activated will
cause the alarm to sound. Press the UNLOCK button to
deactivate the Vehicle Security Alarm system.
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
