Page 68 of 268
66
Seats
- an active adjustment: manoeuvre the
handle upwards or downwards until the
desired position is reached.
Head restraint height adjustment
To raise or lower the restraint, pull it
forwards, then slide it. The adjustment is correct when the upper
edge of the head restraint is level with the
top of the head.
Never drive with the head restraints
removed; they must be in place and
correctly adjusted.
Front heated seat controls
Adjustable armrest
To place the armrest in its rest position:
- raise it until it is in the centreline of the
seat back.
4 - Driver's seat lumbar adjustment
Move the lever up or down to obtain the
required position. To remove it, set it in the high position, press
the tabs and pull upwards and forwards at
the same time.
To re-install, engage the head restraint rods
in the holes, making sure they are aligned
with the seat back.
To place the armrest in a position for use:
- fold it down fully,
- raise it slowly to the required position,
- if you pass the required position, raise it
fully then repeat the operations above.
Press the corresponding control,
located on the overhead storage
unit.
The temperature is controlled
automatically.
Pressing a second time stops operation.
Page 69 of 268
67
Seats
EASE OF USE and COMFOR
T
3
2-SEAT FRONT BENCH
If your vehicle is fitted with this bench seat,
it is fixed and has a 3rd seat belt.
Head restraint
Press the tab to adjust the height of the
head restraint.
To remove the head restraint, press the tabs
and raise the head restraint.
The adjustment is correct when the upper
edge of the head restraint is level with the
top of the head.
Never drive with the head restraints
removed; they must be in place and
adjusted correctly.
Seat back pockets
If your vehicle is fitted with these, they are
located on the backs of the front seats.
Page 70 of 268
68
Seats
Writing table
If fitted in your vehicle, the back of the
centre seat of the bench (Row 1) folds to
form a writing table with two cup holder
recesses.
Pull the handle located at the top of the seat
back cushion.
Page 71 of 268
69
Seats
EASE OF USE and COMFOR
T
3
REAR SEATS
Depending on the version and configuration
of your vehicle, you have different types of
rear seat.
The individual seat is always located
on the right-hand side and the bench on
the left-hand side (in the direction of travel).
Page 72 of 268
70
Seats
Type 2:
an individual seat the back of which
can be folded to the table position then
raised, facilitating access to the rear space.
Individual passenger seat
This seat and the 2-seat bench are
interdependent. Any handling operation
must begin with the individual seat.
Two models are offered:
Two-seat bench
Three models are offered:
Type 1:
an individual seat which can be
raised permitting access to the rear space.
Type 1:
a two-seat cushion with fixed seat
back.
Page 73 of 268
71
Seats
EASE OF USE and COMFOR
T
3
Type 2:
two seats with folding seat backs
and seat cushion which can be raised.
Type 3:
a two-seat cushion with individual
tilting seat backs which can be folded to the
table position and cushion which can be
raised.
Characteristics depending on the
type of seat
Seat fitted with this control: the seat back
can be tilted.
Seat fitted with this control: the seat back
can be tilted and raised. Seat fitted with this control: the seat back
can be folded and coupled with the raising
control.
"Comma" type head restraint.
Page 74 of 268
72
Seats

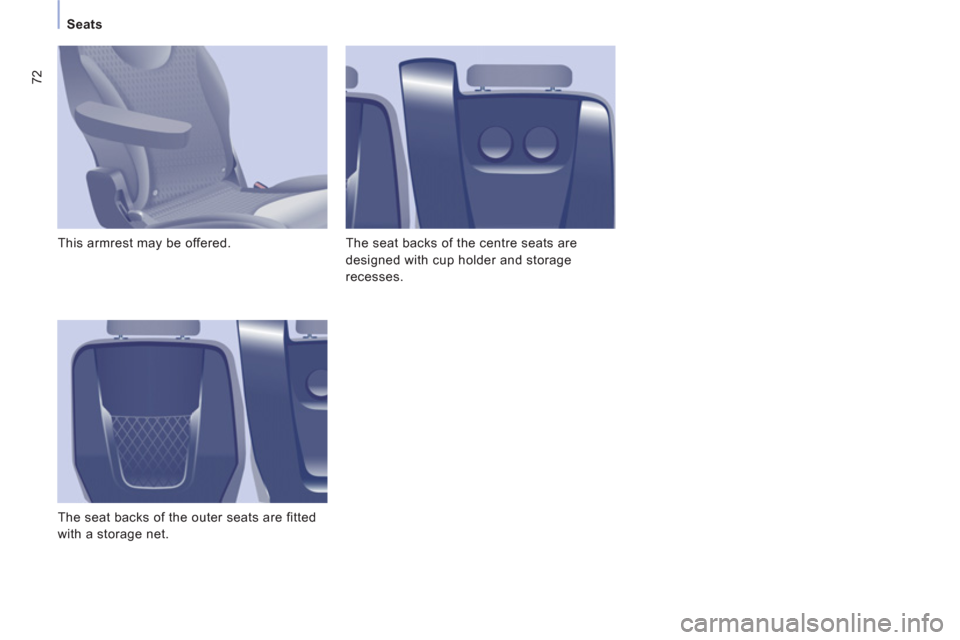

This armrest may be offered.
The seat backs of the outer seats are fitted
with a storage net. The seat backs of the centre seats are
designed with cup holder and storage
recesses.
Page 75 of 268
73
Seats
EASE OF USE and COMFOR
T
3
Handling
Folding the seat back to the table position
(centre seat example)
- Place the head restraints in the low
position.
- Raise this handle to unlock the seat
back (from the rear, lower the handle).
- Tilt the seat back onto the seat cushion.
Seat and bench of type 1:
- Raise the seat.
Seat and bench of type 2/type 3:
- Fold the seat back to the table position
using this handle.
- Raise the seat.
- Unlock the front feet using this handle.
- Disengage the seat from its anchorages.
- Remove the seat from the vehicle via
the side door in row 2 and via the rear in
row 3.
- Unlock the front feet using this handle.
- Disengage the seat from its anchorages.
- Remove the seat from the vehicle via
the side door in row 2 and via the rear in
row 3.
Enter, exit the vehicle: raise the seat
Always start with the individual seat located
on the right-hand side and place the head
restraint in the low position.
