2011 Citroen DS5 service indicator

Petrol-Diesel instrument panel
1.
Rev counter (x 1 000 rpm or tr/min),graduation according to engine (petrol or
Diesel).2.
Fuel gauge.3.Engine coolant temperature gauge. 4.
Speedometer (mph or km/h).5.
Cruise control or speed limiter settings.A
.Main lighting and controls dimmer.
B.- Successive shor t presses: under-inflation
detection, recall servicin
g information, alert log.
- Long press: set the function selected to
zero (service indicator or trip recorder). 6
. Gear shift indicator for a manual gearboxor gear lever position and gear for an
electronic gearbox system or automaticgearbox.
7.Instrument panel screen: trip recorder,
aler t messages or state of functions (e.g.: oil pressure, battery, door open, ...),
trip computer, media, satellite navigation.8. Digital speedometer (mph or km/h).

Dials and screens
Control buttons

When the engine is running or the vehicle is being driven, illumination of one of the following warning lamps indicates a fault which requires action on
the par t of the driver.
Any fault resulting in the illumination of a warning lamp must be investigated further by reading the associated message in the instrument panel screen.
If you encounter any problems, contact a CITROËN dealer or a qualified workshop.
Warning/indicator lampStateCauseAction/Observations



STOPfixed, associated with another warning lamp,accompanied by anaudible signal and amessage in the screen. It is associated with a punctured
wheel, the brakin
g system, the power steering, the engine oil pressure,
the engine coolant temperature or a major electrical fault.Stop as soon as it is safe to do so as the en
gine may cut out.
Park, switch off the ignition and call a CITROËN
dealer or a qualified workshop.



Serviceon temporarily. A minor fault has occurred for which
there is no specific warning lamp. Identify the fault by reading the message shown in the screen, such as, for example:
- the closing of the doors, boot or bonnet,
- the engine oil level,
- the screenwash level,
- the remote control battery,
- the tyre pressures,
- saturation of the par ticle emission filter (Diesel). - ...For any other faults, contact a CITROËN dealer or a
qualified workshop.
fixed. A major fault has occurred for which
there is no specific warning lamp. Identify the fault by reading the message shown
on the screen and contact a CITROËN dealer or a
qualified workshop.
(PEF: par ticle emissions filter,Diesel)
fixed, associated
temporarily with a message on the risk of
blockage of the PEF.Thi
s indicates the start of saturation
of the par ticle emissions filter. As soon as traffic conditions allow, regenerate the
filter by driving at a speed of at least 35 mph (60 km/h)
until the ser vice warning lamp goes off.
fixed.This indicates the low level in theDiesel additive reservoir. Have the level topped up by a CITROËN dealer or a
qualified workshop as soon as possible.

Monitoring
Service indicator
More than 1 800 miles (3 000 km)remain before the next service is due
When the ignition is switched on, no ser vice information appears in the screen. S
ystem which informs the driver when the next ser vice is due, in accordance with themanufacturer's servicing schedule.
The point at which the ser vice is due is calculated from the last indicator zero reset. Itis determined by two parameters:


- the distance travelled,

- the time elapsed since the last ser vice.
Between 600 miles (1 000 km) and 1 800 miles (3 000 km) remain before the next service is due
For 5 seconds after the ignition is switched on, the
spanner symbolising the ser vice operations comes
on. The distance recorder displa
y line indicates the
distance remaining before the next ser vice is due.
Example:
1 700 miles (2 800 km) remain before the next service is due.
For 5 seconds after the ignition is switched on,
the screen indicates:
5 seconds a
fter the ignition is switched on,the spanner goes off; the distance recorder fresumes its normal operation. The screen thenindicates the total and trip distances.
Less than 600 miles (1 000 km) remainbefore the next service is due
Example:
400 miles (900 km) remain before
the next service is due.
For 5 seconds after the ignition is switched on,
the screen indicates:
5 seconds after the i
gnition is switched on,
the distance recorder resumes its normal
operation. The spanner remains onto indicate
that a service must be carried out soon.


Illumination of the key is accompaniedby a message in the instrument panel screen.

Service overdue
For 5 seconds after the ignition is switched on, the
spanner flashesto indicate that the service must be carried out as soon as possible.Example:the ser vice is overdue by 300 miles(300 km).
For 5 seconds after the ignition is switched on,
the screen indicates:
The distance remaining may be weighted by the time factor, dependingon the driving conditions.
Therefore, the spanner may also comeon if you have exceeded the two year service interval.
Following this operation, if you wish to disconnect the battery, lock the vehicle and wait at least five minutes for the zero reset to be taken into account. 5 seconds a
fter the ignition is switched on,
the distance recorder resumes its normal
operation. The spanner remains on.
Service indicator zero reset

After each ser vice, the ser vice indicator mustbe reset to zero.
The procedure for resetting to zero is as follows: )
switch off the ignition,)
press and hold the trip distance recorder
zero reset button,) switch on the ignition; the distance recorder display begins a countdown, )
when the display indicates "=0", release
the button; the spanner disappears.
Retrieving the serviceinformation

You can access the service information at
any time. )Press the trip distance recorder zero reset button.
The ser vice information is displayed for a few seconds, then disappears.

Monitoring
Engine oil level indicator
Oil level incorrect
This is indicated by a message in the instrument panel screen.
If the low oil level is confirmed by a check using
the dipstick, the level must be topped up to avoid damage to the engine.

Oil level indicator fault

This is indicated by a message in the
instrument panel screen. Contact a CITROËN
dealer or a qualified workshop.


Dipstick

Refer to the "Checks" section to locate the
dipstick and the oil filler cap on your engine.
There are
2 marks on the dipstick:
System which informs the driver whether theengine oil level is correct or not.
This information is indicated for a few secondswhen the ignition is switched on, after theservice information.

The level read will only be correct if the vehicle is on level ground and the engine has been off for more than30 minutes.


-
A= max; never exceed this
level,

-
B= min; top up the level via
the oil filler cap, using the grade of oil suited to your engine.
Oil level correct
This is indicated by a message in the instrument panel screen.

55
Access

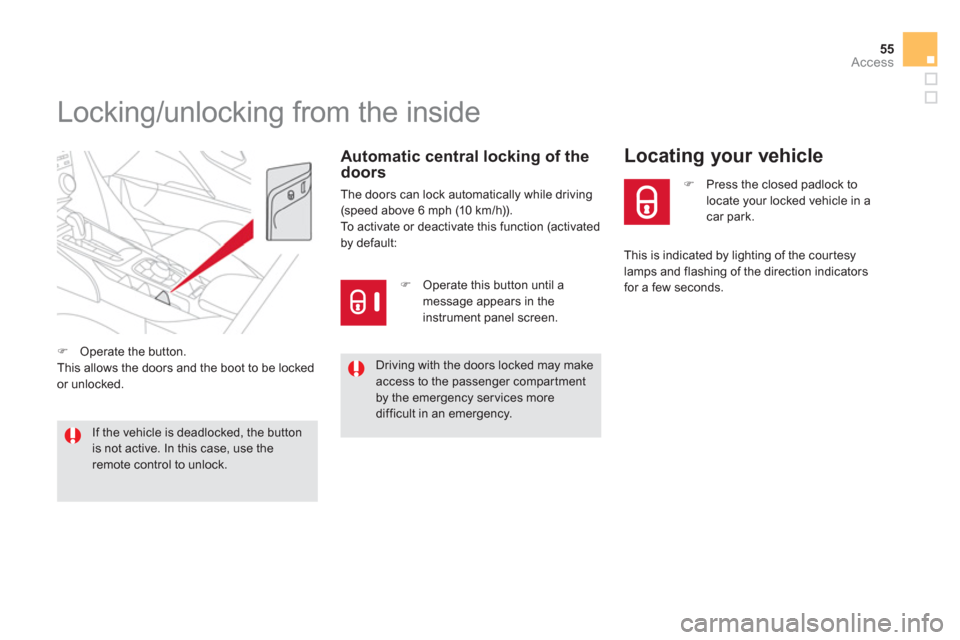

Locking/unlocking from the inside
Automatic central locking of the
doors
The doors can lock automatically while driving(speed above 6 mph (10 km/h)).
To activate or deactivate this function (activated
by default:
If the vehicle is deadlocked, the buttonis not active. In this case, use the remote control to unlock.
Driving with the doors locked may make access to the passenger compar tment by the emergency services more difficult in an emergency.
)Press the closed padlock tolocate your locked vehicle in a car park.
Locating your vehicle
)Operate the button.
This allows the doors and the boot to be locked or unlocked. This is indicated b
y lighting of the cour tesy
lamps and flashing of the direction indicatorsfor a few seconds.) Operate this button until amessage appears in theinstrument panel screen.

223Checks






































Checking levels Check all of these levels regularly and top them up if necessary, unless other wise indicated.
If a level drops significantly, have the corresponding system checked by a CITROËN dealer or a qualified workshop.


When working under the bonnet, take care, as cer tain areas of the engine may be extremely hot (risk of burns).
Oil level
The check is carried out either when
the ignition is switched on using theoil level indicator on the instrument panel, or using the dipstick.
This manual check will only be correct if the
vehicle is on level ground and the engine has
been off for more than 30 minutes.
After topping up the oil, the check when
switching on the ignition with the oil level
indicator in the instrument panel will only be
valid 30 minutes after topping up.

Engine oil change

Refer to the ser vicing booklet for details of the
interval for this operation.
In order to maintain the reliabilit
y of the engine
and emission control system, the use of
additives in the engine oil is prohibited.

Oil specifi cation

The oil must be the correct grade for your engine and conform to the manufacturer's
recommendations.
It is normal to top up the oil level between services. CITROËN recommends that you check the oil level and top up if necessary every 3 000 miles (5 000 kilometres).

337
