2011 Citroen C6 RHD spare wheel

6
B
A
IN BRIE
F
1. Lift the boot fl oor using the strapB.2. Anchor the strap on the roof of
the boot.3. To remove the spare wheel,
detach the belt then push the
wheel forwards so as to be ableto lift it.
SPARE WHEEL
Note: The tools are to be found in a protective holder inside thespare wheel.
141
OPENING
This can be unlocked, vehiclestopped:With either the remote controlor the key.Using the interior central
unlocking button, or simply by
openin
g a door.
From the outside, press on lever A.
•
•
BOOT
To close, lower the boot using the
gripping handle located on the inte-
rior boot trim.
Press fi rmly shut.
84
GLASS SUN ROOF
The sun roof is operated by theelectrical controlA.
An action to the fi rst notch of thecontrol starts a movement whichstops as soon as you release thecontrol.
An action to the second notch of
the control opens or closes the sunroof fully. A further action stops themovement.
118

22
Limit the causes of excess
consumption
Spread loads throughout the
vehicle; place the heaviest items
in the bottom of the boot, as close
as possible to the rear seats.
Limit the loads carried in the vehi-
cle and reduce wind resistance
(roof bars, roof rack, bicycle car-
rier, trailer...). Use a roof box in
preference. Remove roof bars
and roof racks after use.
At the end of winter, remove
snow tyres and refi t your summer
tyres.
Observe the recommendations
on maintenance
when cold, referring to the label in the door aperture, driver's side.
Carry out this check in particular:-before a long journey,-at each change of season,-after a long period out of use.
Don't forget the spare wheel and
the tyres on any trailer or caravan.
Have your vehicle serviced regu-
larly (engine oil, oil fi lter, air fi lter...)
and observe the schedule of oper-
ations recommended by the manu-
facturer.When refuelling, do not continue
after the 3rd cut-off of the nozzle
to avoid any overfl ow.
At the wheel of your new vehicle,
it is only after the fi rst 1 800 miles
(3 000 kilometres) that you will
see the fuel consumption settle
down to a consistent average.

48
II
TRIP COMPUTER
Tyre defl ation alert
TheSERVICEwarning lamp comes on and a vehicle outline is displayed.
The location of the wheel(s) concerned is clear from the vehicle outline, on which the affected wheel(s) will befl ashing. Check the tyre pressures as soon as possible.
Colour screen C NaviDrive colour display
Tyre very defl ated
Tyre defl ated
Stop immediately, avoiding any sudden actions with the steering wheel or the brakes.
Chan
ge the wheel with the affected tyre (whether punctured or very defl ated), then have the tyre repaired and
all the pressures checked at the earliest opportunity.
The wheel with a damaged tyre (either in the boot or under repair) can no longer be detected (informationgiven by the vehicle outline or by a message) nor is the spare wheel able to be detected.
Puncture
The"STOP"and tyre(s) punctured warning lamps light up, and a vehicle outline is displayed. The location of the
wheel(s) concerned is clear from the vehicle outline, on which the affected wheel(s) will be fl ashing.
Colour screen CNaviDrive colour display

49
II
TRIP COMPUTER
Wheel not detected
TheSERVICEwarning lamp comes on and a vehicle outline is displayed.
The wheel(s) concerned can be identifi ed from the vehicle outline, on which it (they) will be missing. If you have notchanged a wheel, such information indicates that the system is malfunctioning.
Contact a CITROËN dealer or a qualifi ed workshop for the replacement of the faulty sensor(s).
Colour screen CNaviDrive colour display
The defl ation detection system is a driving aid, but which does not absolve the driver from the need to be vigilant andresponsible.
This system does not remove the need to check the tyres on a regular basis (see "Vehicle identifi cation"), to makesure that the vehicle is behaving correctly and to avoid premature tyre wear arising from driving too fast etc.
Do not forget to check the pressure in the spare wheel.
All repairs or replacement of tyres on wheels fi tted with sensors must be done by a CITROËN dealer or a qualifi ed workshop.
The system may suffer from temporary interference caused by radio transmissions on neighbouringfrequencies.

117
III
5
4
4
1
3
2
6
1Pull strap (spare wheel stowage).
2Boot lamp.
To change the bulb, detach the cover and use a W 5 W bulb.
3 Elastic straps.
4 12 V accessories socket (functions with the ignition switched on).
5 B
oot lateral net.
6 Changer for 6 CDs.
BOOT

135
V
A
B
holders and change the bulbs.Note: The tool for undoing thescrews is to be found in the toolbox in the spare wheel. See "Changing a wheel".
REAR CENTRAL LENSAReversing lampBFoglamp
The bulbs for lam
ps Aand Bhavea common bulb-holder. Contact
a CITROËN dealer or a qualifi ed
wor
kshop.
THIRD STOPLAMP
Contact a CITROËN dealer or aqualifi ed workshop.To
gain access to the bulb-holders, open the boot and undo the four
screws on the bodywork. Then lower the boot lid in order to be
able to pull out the two rear lamp
units, without pulling on the electric cables.
NUMBER PLATE
Detach the transparent shield, then pull out the bulb. Bulb: W 5 W.
After each operation,check that the lampswork.
CHANGING BULBS

14 0
V

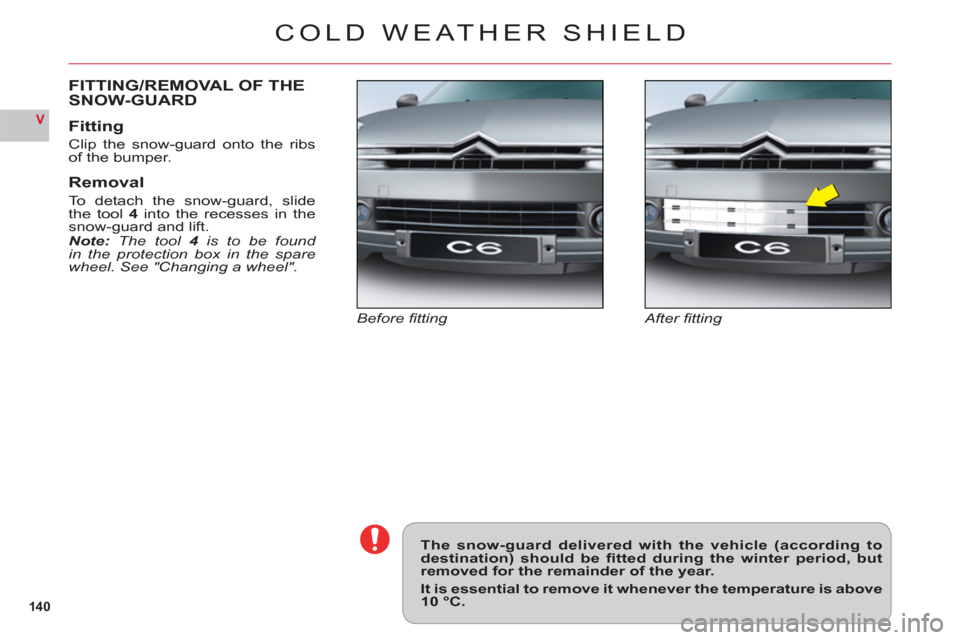

COLD WEATHER SHIELD
After fi tting Before fi tting
FITTING/REMOVAL OF THE
SNOW-GUARD
Fitting
Clip the snow-guard onto the ribs
of the bumper.
Removal
To detach the snow-guard, slide
the tool4 into the recesses in thesnow-guard and lift.Note:The tool 4 is to be found 4in the protection box in the sparewheel. See "Changing a wheel".
The snow-guard delivered with the vehicle (according todestination) should be fi tted during the winter period, butremoved for the remainder of the year.
It is essential to remove it whenever the temperature is above10 °C.

141
V
4
3
8
9
61
2
5
7
CHANGING A WHEEL
ACCESS TO THE SPARE WHEEL
To access the spare wheel1.Lift the boot fl oor by means of the strap.2.Anchor the strap on the roof of the boot.3.To remove the spare wheel, detach the belt then push the wheel forwards so as to be able to lift it.
TO REPOSITION THE SPARE WHEEL
To put the spare wheel back in the boot1.Position the spare wheel fl at in the boot, then pull it towards you.2.Next place the toolbox inside the wheel, then secure the assembly with
the belt.3.Release the strap to return the boot fl oor to its initial position.
Tyre pressures
Tyre pressures are indicated on the label which is positioned low down on
the front pillar. See "Vehicle identifi cation" and "User Precautions". (On this label you will see a pressure for normal speeds and a pressure for high speeds).
1.Handle2.Jack3.Tool for removing/refi tting the
wheel bolts4.Tool for removing the anti-theft
bolt protector
5.Centring guide6.Tool for removing foglamps
and reversing lamps
7.Handle extension8.Towing eye9.Movable chock
TOOLS
The tools are to be found in a pro-
tective holder inside the spare
wheel. Pull back the retaining strap
t
o have access.
