2011 Citroen C6 display

38
II
CB
DG
FE
A
i
HEAD-UP DISPLAY
CONTENT OF THE HEAD-UPDISPLAYA"Fuel low" alertB"STOP" warning lampC "ESP" warning lampDNavigation instructionsE "SERVICE" warning lampFMain beams warning lampG Vehicle speed
To be aware of the signifi cance of
the information projected on thescreen, see "Warning lamps".
Note: when navigation is in opera-
tion, direction arrows will
fl ash. See
the NaviDrive chapter.
To suspend display of a certain type of information:Press button 4.
Rotate the control1 to select
the type of information you
wish to suspend.
Press button 1.
The information fl ashes; it will no longer be displayed.
To
quit the selection mode, press button4.Note: The vehicle speed informa-tion, the "STOP" warning lamp and the "ESP" warning lamp can-not be suspended.
To restore display of a type of information:Press button 4.
Rotate the control to select theinformation you wish to restore,
which fl ashes.
Press button 1.
The information stops fl ashing: it
will be displayed.
To quit the selection mode, press
button4.
•
•
•
•
•
•
ADVICE
The windscreen of the vehicle guarantees that the Head-up
display operates correctly. It is recommended that it be changed by a CITROËN dealer
or a qualifi ed workshop.
No ob
ject must ever be placed
in or over the cavity situated on
top of the dashboard between
th
e windscreen and the rear of
the dashboard.To clean the glass, use anon-abrasivecloth.
•
•
•
Note: All the adjustments and selections you made before stop-ping the engine are retained whenyou restart. If there is a change of
driver, check whether these adjust-ments are suitable, alter them if necessary.
You are advised to adjustthese controls only whenthe vehicle is stationary.

39
II
1432
MULTIFUNCTION DISPLAYS
COLOUR SCREEN C
1-Outside temperature
2 -Display zone
3 -Date
4-Time
When the outside temperature is
between +3 °C and -3 °C, the tem-perature display fl ashes (risk of
ice).Note:The outside temperature
displayed may be higher than the
actual temperature i
f the vehicle is stationary in bright sunlight.
The driver is advised not to oper-
ate the controls described below
while the vehicle is moving.
CONTROLSA Access to the "Main menu" of
the display.B Scroll through display menus.C Selection in the menus of the
function chosen or value tomodify.DCancellation of the operation or
return to the previous display.
Main Menu
Press on buttonAto bring up the "Main menu" of the multifunc-
tion display. This menu gives you
access to the following functions:
Radio mono CD
See chapter "RDS AudioCompact Disc system".
Trip computer
For:Entering the distance
to the destination.
Access to the log of alerts(recall of the alerts signalled
previously).
Access to the status of func-
tions, for example automaticlighting of headlamps, ESP,
windscreen wipe.
•
•
•
Personalisation/Confi guration
For:Activating/deactivating:
Automatic lighting of head-lamps.Automatic guide-me-home
lighting, with choice of dura-
tion.Daytime-running lamps.
The Xenon dual-function
directional headlamps.The welcome function.And choosing:
The brightness and the col-
our of the display, time, dateand units.The display language.
•
-
-
--
-•
-
-
Air conditioning
For:Deactivating the air conditioning.
Deactivating/activating the
differential adjustment of the
air conditioning on the driver's side/passenger's side.
•
•
Bluetooth®
hands-free kit
See chapter "RDS Audio Compact Disc system".

40
II
MULTIFUNCTION DISPLAYS
COLOUR SCREEN C
TRIP COMPUTER
To enter the distance tobe travelled on the tripcomputer:1.Press on A.2.UseB to select the icon
"Trip computer", then confi rm
with a press onC.3.Select entry of distance
usingB. Confi rm your choice
with a press onC.4.To choose the distance, select
the fi gure you wish to modifyby using B, then confi rm with apress on C.5.UseB to adjust the value, then
validate by pressing C.6.Validate"OK" on the screen.
To access the trip computer's log of alerts:1. Press onA.2. Use Bto select the icon "Trip computer", then confi rm
with a press on C.3. Select the log of alerts.4. When the list displays, useBto scroll through it.5. Press D to return to the perma-
nent display.
To access the status of functions:proceed in a similar manner.
PERSONALISATION/
CONFIGURATION
To activate/deactivate the
automatic guide-me-home
lighting:1. Press on A.2. UseB to select the icon "Per-sonalisation-Confi guration"
then confi rm your choice bypressing C.3. Then select the sub-menu for
the vehicle parameters. Con-
fi rm your choice with a press onC.4. Using B, select lighting andsignalling. Confi rm your choice
with a press onC.5. Press on C to select/deselect
the guide-me-home lighting.
After activation, choose the dura-
tion: press Cthen use B to select
the duration, then press C.
To activate/deactivate the automatic lighting of
headlamps:
Repeat stages 1 to 4 describedabove.
5. Press on C to select/deselect
the automatic lighting of head-
lamps.Note: Activation of this functionis immediate while deactivationrequires the ignition to be switched off.

41
II
MULTIFUNCTION DISPLAYS
COLOUR SCREEN C
To activate/deactivate thedaytime-running lamps:
Repeat stages 1 to 4 describedabove.
5. Press on C to select/deselect
daytime-running lamps.
If you activate the daytime-runninglamps, they come on provided thesignalling control stalk is in posi-
tion 0and the headlamps are off.
I
f the daytime-running lamps are
active, the sidelamps will also be
on
(depending on country specifi -cation).
To activate/deactivate theXenon dual-function direc-
tional headlamps:
Repeat stages 1 to 3 describedabove.4.PressB to select the driv-ing assistance. Confi rm your choice with a press on C.5. Press on C to select/deselect
the Xenon dual-function direc-
tional headlamps.
To activer/deactivate the
welcome function
Repeat stages 1 to 3 describedabove.4. PressB to select the driv-ing assistance. Confi rm your choice with a press on C.5. Press on C to select/deselect
welcome function.
To adjust the display brightness:1. Press on A.2. Use Bto select the icon "Per-sonalisation-Confi guration"
then confi rm your choice bypressingC.3. Select the display confi gura-
tion with a press on B. Confi rm your choice with a press onC.4. Select the brightness adjust-
ment. Confi rm your choice with a press onC.5. Select with a press onB, then
validate by pressingC, the
normal or alternative displaymode.To adjust the brightness, select
the symbols"+" or "–" and confi rm your adjustment by
pressingC.
6. Validate "OK"on the screen.
To choose the display colour:proceed in a similar manner.
To adjust the date and the
time:1. Press on A.2. UseB to select the icon "Per-sonalisation-Confi guration"
then confi rm your choice bypressing C.3. Select the display confi gura-
tion with a press onB. Confi rmyour choice with a press on C.4. Select the adustment for the
date and the time, by press-
ing B, then confi rm with a press on C.5. PressBto select the values you wish to modify. Confi rmyour choice with a press on C.6. Do your adjustments with B,
then validate each adjustmentchoice with a press on C.7. Validate"OK" on the screen.

42
II
MULTIFUNCTION DISPLAYS
COLOUR SCREEN C
To choose units(for temperature, fuelconsumption etc.):1.Press on A.2.UseB to select the icon "Per-sonalisation-Confi guration"
then confi rm your choice by pressing C.3.Select the display confi gura-
tion with a press onB. Confi rmyour choice with a press on C.4.Then select the sub-menu for Units. Confi rm your choice with a press onC.5.UseB to select the unit you
wish to modify, then validate
with a press onC.6.Validate"OK" on the screen.
To choose the language:1. Press onA.2. Use Bto select the icon "Per-sonalisation-Confi guration"
then confi rm your choice bypressingC.3. Select your choice of lan-guage, viaB.4. Use Bto select the desired language and validate your choice by pressingC.5. Validate "OK"on the screen.
AIR CONDITIONING
To activate/deactivate the air conditioning:1. Press on A.2. PressBto select the air condi-
tioning icon, then confi rm your choice by pressing C.3. UseB to select the modifi ca-
tion you wish to make to the air conditioning and validate your choice by pressing C.
To activate/deactivate
the left/right differential
adjustment of the air conditioning:1. Press on A.2. PressBto select the air condi-
tioning icon, then confi rm your choice by pressing C.3. UseB to select the modifi ca-
tion you wish to make to the
differential adjustment and vali-
date your choice with a pressonC.

43
II
124 35
MULTIFUNCTION DISPLAYS
NAVIDRIVE COLOUR DISPLAY
1Outside temperature.2Folder.3Date.4Telephone.5Time.
When the outside temperature is
between +3 °C and -3 °C, the tem-perature display fl ashes (risk of
ice).
Note:The outside temperature
displayed may be higher than the
actual temperature if the vehicle is stationary in bright sunlight.
The driver is advised not to oper-
ate the controls described below
while the vehicle is moving.
CONTROLSA Access to the "Main menu" of
the display.BScroll through display menus.CSelection in the menus of the function chosen or value to
modify.Scroll through display menus.
DCancellation of the operation or return to the previous display.
Air conditioning
Refer to the explanations given in the section "Auto-
matic air conditioning".
Traffi c information
See chapter "NaviDrive".
Navigation - Traffi c
information
See chapter "NaviDrive".
Audio
See chapter "NaviDrive".
Main Menu
Press on buttonAto bring up the "Main menu" of the multifunc-
tion display. This menu gives you
access to the following functions:
Telephone andtelematic services
See chapter "NaviDrive".
Confi guration, to activate/deactivate the guide-me-home lighting, automatic lighting of headlamps etc. as well as to adjust the
various parameters (time, date etc.). See chapter "NaviDrive".
Map
See chapter "NaviDrive".
Video
See chapter "NaviDrive".
Vehicle diagnosis
See chapter "NaviDrive".

44
II

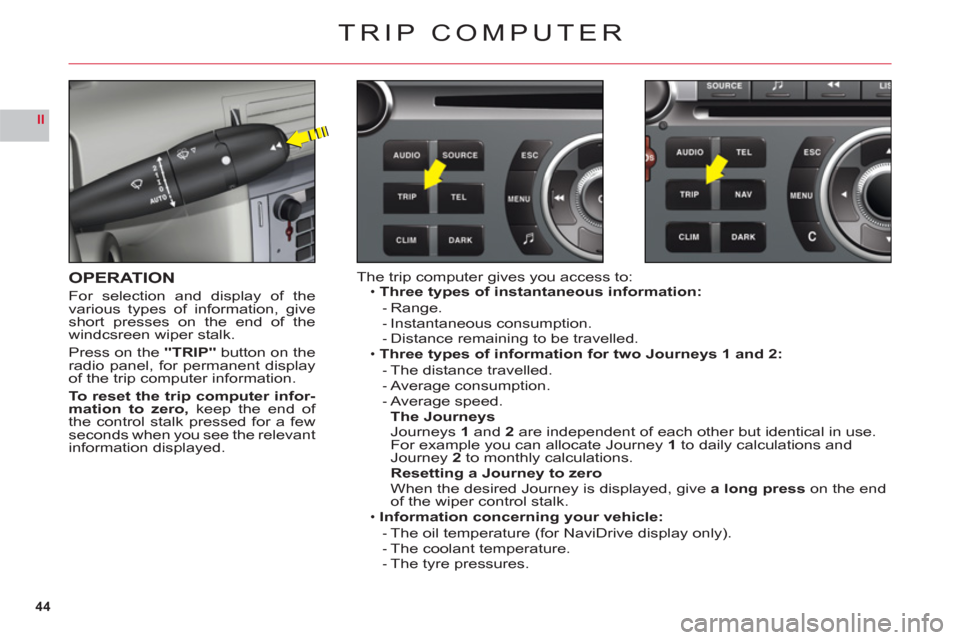

TRIP COMPUTER
OPERATION
For selection and display of the
various types of information, giveshort presses on the end of the
windcsreen wiper stalk.
Pr
ess on the"TRIP" button on theradio panel, for permanent displayof the trip computer information.
To reset the trip computer infor-mation to zero,keep the end of
the control stalk pressed for a fewseconds when you see the relevant
information displayed.
The trip computer gives you access to:Three types of instantaneous information:
Range.
Instantaneous consumption.Distance remaining to be travelled.Three types of information for two Journeys 1 and 2:The distance travelled.Average consumption.Average speed.The JourneysJourneys1and2are independent of each other but identical in use. For example you can allocate Journey1to daily calculations and Journey 2 to monthly calculations.Resetting a Journey to zeroWhen the desired Journey is displayed, givea long presson the endof the wiper control stalk.
Information concerning your vehicle:
The oil temperature (for NaviDrive display only).The coolant temperature.The tyre pressures.
•
--
-
•---
•
---

45
II
TRIP COMPUTER
Colour screen CNaviDrive colour display
Range
This is the distance that can still be travelled on the
amount of fuel remaining in the tank. When the dis-
tance that can still be travelled is less than around 30 km (or 18 miles), only four dashes are displayed.
Instantaneous consumption
This is the result from the consumption recorded within
the last 2 seconds. This function will only display
above 30 km/h (18 mph).
Distance to be travelled
To enter it, see "Multifunction displays".
Distance travelled
This is the distance that has been travelled since the
last reset to zero of the Journey selected.
Average consumption
This is the relationship between the fuel consumed and the distance travelled since the last reset to zero of the trip computer.
Average speed
This is obtained, from the last reset to zero of the trip computer, by dividing the distance travelled by the time
taken (with ignition switched on).
