2011 CITROEN C4 PICASSO check engine

Downloaded from www.Manualslib.com manuals search engine VI
108
FITTINGS
MATS
Removable carpet protection com-
ponent.

Fitting

When fi tting the mat for the fi rst time,
on the driver's side, use only the fi x-
ings provided in the wallet attached.
The other mats are simply placed on
the carpet.


Removal

To remove the mat on the driver's side:


)
move the seat as far back as
possible,

)
unclip the fi xings,

)
remove the mat.



Refitting

To refi t the mat on the driver's side:


)
position the mat correctly,

)
refi t the fi xings by pressing,

)
check that the mat is secured
correctly. To avoid any risk of jamming of the
pedals:


- only use mats which are suited
to the fi xings already present in
the vehicle; their use is essen-
tial,

- never fi t one mat on top of
another.



Front door

The front door pockets can hold ob-
jects equivalent in volume to a 1.5 litre
bottle.
They may have their own lighting,
which comes on automatically when
your hand approaches.
This lighting goes out automatical-
ly after a few moments when your
hand is taken away.


Rear door

The rear door pockets can hold
objects equivalent in volume to a
0.5 litre bottle.
USB BOX


This connection box, consisting of an
auxiliary JACK socket and a USB port,
is located on the centre console.
It permits the connection of portable
equipment, such as a digital audio
player of the iPod
® or USB memory
stick type.
It reads the audio fi le formats which are
transmitted to your audio equipment
and played via the vehicle's speakers.
You can manage these fi les using the
steering mounted controls or the audio
equipment control panel and display
them on the multifunction screen.

When it is in use, the portable equip-
ment charges automatically.

For more information on the use of
this equipment, refer to the "Audio
and Telematics" section.

Downloaded from www.Manualslib.com manuals search engine VII
120
CHILD SAFETY

*
Applies only to the CITROËN Grand C4 Picasso.
LOCATIONS FOR CHILD SEATS SECURED WITH THE VEHICLE SEAT BELT

In conformity with European law, this table tells you to what extent each of the seat positions in your vehicle may take a
child seat that is secured with the vehicle seat belt and approved as Universal (a), according to the weight of the child and
the position in the vehicle.
(a) Universal child seat: child seat which can be installed in all vehicles by means of the seat belt.
(b) Group 0: from birth to 10 kg. Shell seats and "car cots" cannot be installed on the front passenger seat.
(c) Consult the legislation in force in your country before installing your child on this seat.

U
: seat position suitable for the installation (in conjunction with the vehicle seat belt) of a universal rearwards-facing and/or
forwards-facing child seat.

For seats in groups 1, 2 and 3, check that the child seat is correctly secured on the backrest of the vehicle seat. If
necessary, remove and stow the head restraint.
To install a voluminous child seat in the 2nd or 3rd row, move the rear seat fully back so as to avoid interference with the
front seat.



Seat position



Weight groups established by legislation




< 10 kg and < 13 kg

(groups 0 (b) and 0+)

9 – 18 kg

(group 1)

15 – 25 kg

(group 2)

22 – 36 kg

(group 3)


1st
row


Front passenger
(c)

U



U



U



U




2nd row

Outer


U



U



U



U



Centre


U



U



U



U




3rd row
*


Outer


U



U



U



U

Downloaded from www.Manualslib.com manuals search engine VII
121
CHILD SAFETY

*
According to country and current
local legislation.

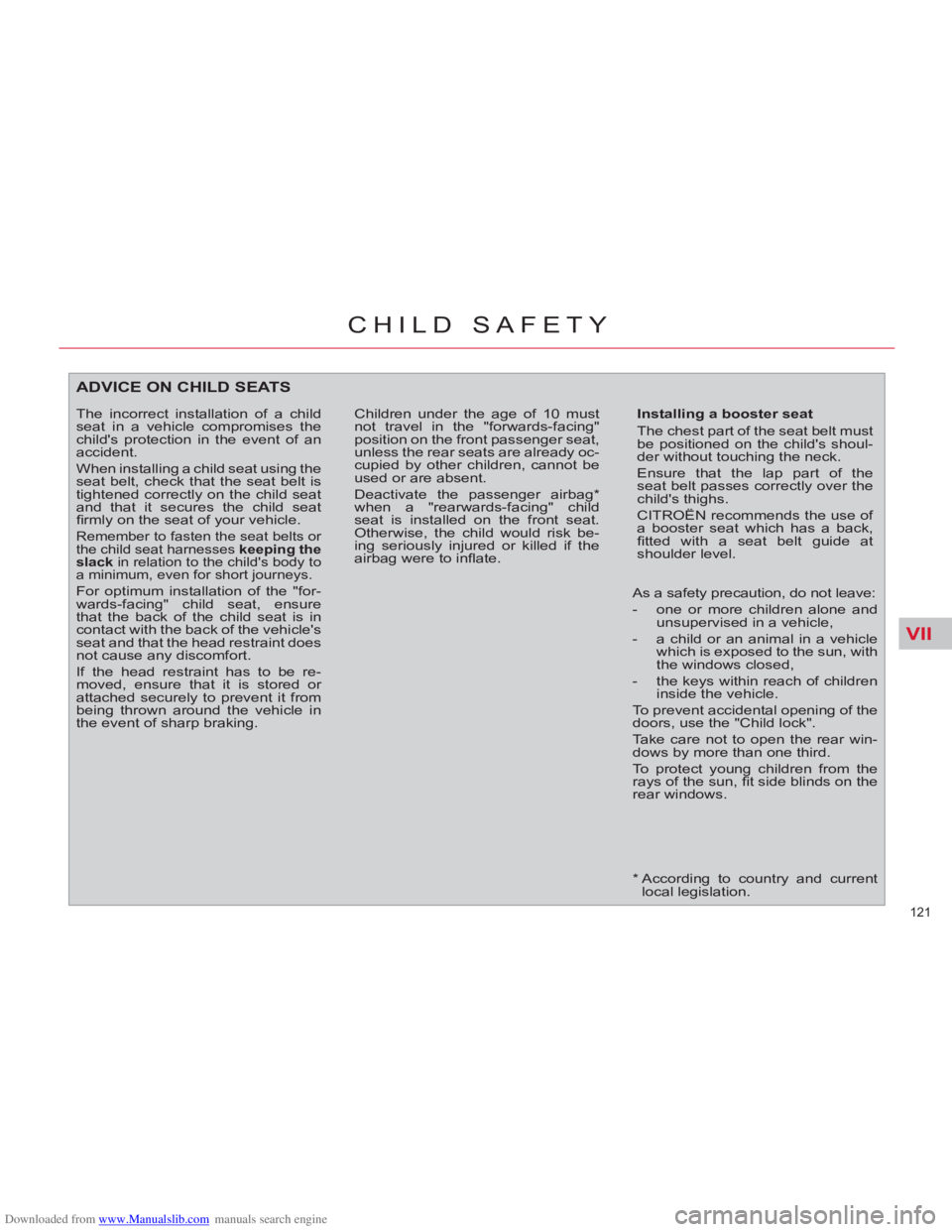

ADVICE ON CHILD SEATS


Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoul-
der without touching the neck.
Ensure that the lap part of the
seat belt passes correctly over the
child's thighs.
CITROËN recommends the use of
a booster seat which has a back,
fi tted with a seat belt guide at
shoulder level.
As a safety precaution, do not leave:


- one or more children alone and
unsupervised in a vehicle,

- a child or an animal in a vehicle
which is exposed to the sun, with
the windows closed,

- the keys within reach of children
inside the vehicle.
To prevent accidental opening of the
doors, use the "Child lock".
Take care not to open the rear win-
dows by more than one third.
To protect young children from the
rays of the sun, fi t side blinds on the
rear windows.
The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an
accident.
When installing a child seat using the
seat belt, check that the seat belt is
tightened correctly on the child seat
and that it secures the child seat
fi rmly on the seat of your vehicle.

Remember to fasten the seat belts or
the child seat harnesses keeping the
slack
in relation to the child's body to
a minimum, even for short journeys.
For optimum installation of the "for-
wards-facing" child seat, ensure
that the back of the child seat is in
contact with the back of the vehicle's
seat and that the head restraint does
not cause any discomfort.
If the head restraint has to be re-
moved, ensure that it is stored or
attached securely to prevent it from
being thrown around the vehicle in
the event of sharp braking. Children under the age of 10 must
not travel in the "forwards-facing"
position on the front passenger seat,
unless the rear seats are already oc-
cupied by other children, cannot be
used or are absent.
Deactivate the passenger airbag *
when a "rearwards-facing" child
seat is installed on the front seat.
Otherwise, the child would risk be-
ing seriously injured or killed if the
airbag were to infl ate.

Downloaded from www.Manualslib.com manuals search engine VII
125
CHILD SAFETY
MANUAL CHILD LOCK

Locking


)
Using the ignition key, turn the
red control one eighth of a turn,
following the instructions on the
label.


Unlocking


)
Using the ignition key, turn the
red control one eighth of a turn
to return to the original position.


ELECTRIC CHILD LOCK

Mechanical system to prevent open-
ing of the rear door using its interior
control.
The control is located on the edge of
each rear door. Remote control system to prevent
opening of the rear doors using their
interior controls and use of the rear
electric windows.

Activation


)
Press button A
.
Deactivation


)
Press button A
again.
This system is independent of and
in no circumstances takes the place of the central locking system.
Check the status of the child
lock each time you switch on the
ignition.
Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of a serious impact,
the electric child lock is deactivated automatically to permit the exit of
the rear passengers.

This warning lamp comes
on temporarily on the instru-
ment panel when the child
lock is activated.
It also comes on when the ignition is
switched on, then goes off approxi-
mately ten seconds after the engine
is started. The control is located on the driver's
door, with the electric window controls.

Downloaded from www.Manualslib.com manuals search engine VIII
127
SAFETY

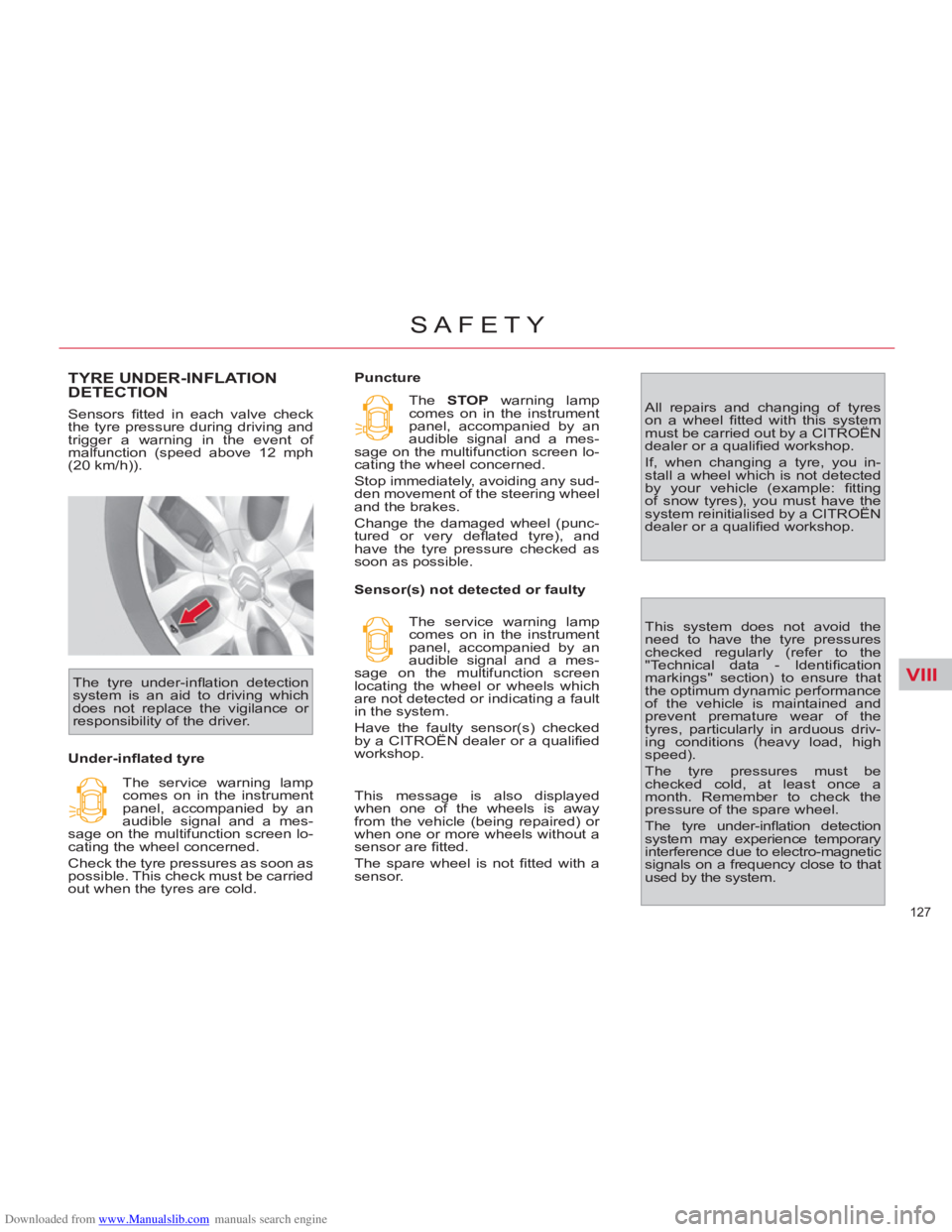

TYRE UNDER-INFLATION DETECTION
Sensors fi tted in each valve check
the tyre pressure during driving and
trigger a warning in the event of
malfunction (speed above 12 mph
(20 km/h)).

Under-infl ated tyre The tyre under-infl ation detection
system is an aid to driving which
does not replace the vigilance or
responsibility of the driver.
Puncture
The service warning lamp
comes on in the instrument
panel, accompanied by an
audible signal and a mes-
sage on the multifunction screen lo-
cating the wheel concerned.
Check the tyre pressures as soon as
possible. This check must be carried
out when the tyres are cold. The STOP
warning lamp
comes on in the instrument
panel, accompanied by an
audible signal and a mes-
sage on the multifunction screen lo-
cating the wheel concerned.
Stop immediately, avoiding any sud-
den movement of the steering wheel
and the brakes.
Change the damaged wheel (punc-
tured or very defl ated tyre), and
have the tyre pressure checked as
soon as possible.

Sensor(s) not detected or faulty
The service warning lamp
comes on in the instrument
panel, accompanied by an
audible signal and a mes-
sage on the multifunction screen
locating the wheel or wheels which
are not detected or indicating a fault
in the system.
Have the faulty sensor(s) checked
by a CITROËN dealer or a qualifi ed
workshop. All repairs and changing of tyres
on a wheel fi tted with this system
must be carried out by a CITROËN
dealer or a qualifi ed workshop.
If, when changing a tyre, you in-
stall a wheel which is not detected
by your vehicle (example: fi tting
of snow tyres), you must have the
system reinitialised by a CITROËN
dealer or a qualifi ed workshop.
This system does not avoid the
need to have the tyre pressures
checked regularly (refer to the
"Technical data - Identifi cation
markings" section) to ensure that
the optimum dynamic performance
of the vehicle is maintained and
prevent premature wear of the
tyres, particularly in arduous driv-
ing conditions (heavy load, high
speed).
The tyre pressures must be
checked cold, at least once a
month. Remember to check the
pressure of the spare wheel.
The tyre under-infl ation detection
system may experience temporary
interference due to electro-magnetic
signals on a frequency close to that
used by the system.
This message is also displayed
when one of the wheels is away
from the vehicle (being repaired) or
when one or more wheels without a
sensor are fi tted.
The spare wheel is not fi tted with a
sensor.

Downloaded from www.Manualslib.com manuals search engine VIII
129
SAFETY
TRAJECTORY CONTROL
SYSTEMS

Anti-slip regulation (ASR)
and electronic stability
programme (ESP)

The anti-slip regulation (also known
as Traction Control) optimises trac-
tion to prevent skidding of the wheels,
by acting on the brakes of the driving
wheels and on the engine.
The electronic stability programme acts
on the brake of one or more wheels
and on the engine to keep the vehicle
on the trajectory required by the driver,
within the limits of the laws of physics.

Deactivation
In exceptional conditions (starting a
vehicle which is bogged down, stuck
in snow, on soft ground...), it may be
advisable to deactivate the ASR and
ESP systems, so that the wheels
can move freely and regain grip.


)
Press the "ESP OFF"
button, lo-
cated in the centre of the dash-
board.
If this warning lamp comes
on in the instrument panel
and the indicator lamp on the
button comes on, this indi-
cates that the ASR and ESP
systems are deactivated. This is indicated by fl ashing
of this warning lamp in the
instrument panel.

Activation
These systems are activated auto-
matically each time the vehicle is
started.
They come into operation in the event
of a grip or trajectory problem.

Intelligent Traction Control
system *

Your vehicle has a system to help
driving on snow.
This automatic system continuously
checks for situations of diffi cult sur-
face adhesion that could make it dif-
fi cult to move off or make progress
on deep fresh snow or compacted
snow.
In these situations, the system takes
over from the ASR
system by opti-
mising the amount of wheel slip to
provide the best traction and trajec-
tory control, even without snow tyres
and with or without chains.
In extremely severe conditions (snow
on top of ice, sand, deep mud…), it
can be useful to deactivate the ESP/
ASR
systems to allow a degree of
wheel spin and so recover grip.

*
Depending on engine type.

Downloaded from www.Manualslib.com manuals search engine VIII
130
SAFETY

Reactivation
These systems are reactivated au-
tomatically each time the ignition is
switched back on or from 30 mph
(50 km/h).


)
Press the "ESP OFF"
button again
to reactivate them manually.


Operating fault
If this warning lamp comes
on, accompanied by an au-
dible signal and a message
in the multifunction screen,
this indicates a malfunction of these
systems.
Have it checked by a CITROËN
dealer or a qualifi ed workshop. The ESP/ASR systems offer ex-
ceptional safety in normal driving,
but this should not encourage the
driver to take extra risks or drive at
high speed.
The correct operation of these sys-
tems depends on observation of
the manufacturer's recommenda-
tions regarding wheels (tyres and
rims), braking components, elec-
tronic components and assembly
and repair procedures.
After an impact, have these systems
checked by a CITROËN dealer or a
qualifi ed workshop.
EMERGENCY OR
ASSISTANCE CALL
This system allows you to make an
emergency or assistance call to the
emergency services or to the dedi-
cated CITROËN service.
For more information on the use of
this function, refer to the "Audio and
telematics" section.

Downloaded from www.Manualslib.com manuals search engine VIII
131
SAFETY
SEAT BELTS

Front seat belts

The front seat belts are fi tted with a
pretensioning system and force limiter.
This system improves safety in the front
seats in the event of a front impact.
Depending on the seriousness of the
impact, the pretensioning system in-
stantly tightens the seat belt against
the body of the occupant.
Fastening


)
Pull the belt down in front of you
in a steady movement, making
sure that it does not become
twisted.

)

Press the fastening into its buckle.

)
Check that it is properly secured
and that the automatic locking
mechanism operates correctly
by pulling sharply on the belt
strap.

)
The lap strap should be posi-
tioned as low down as possible in
the lap and as tight as possible.

)
The diagonal strap should be
positioned across the chest and
away from the neck.
Each belt has a reel that adjusts its
length automatically to the girth of
the seat occupant.

Height adjustment
The pretensioning seat belts are
active when the ignition is on.
The force limiter reduces the pres-
sure of the seat belt against the
chest of the occupant, so increasing
his protection.

When correctly adjusted, the seat
belt shoulder strap falls over the
middle of the shoulder.


)
To adjust the belt, squeeze the
control and slide it in the direc-
tion required.



Unfastening


)
To unfasten the belt, press on
the red button in the buckle.
The belt retracts automatically when
not in use.
