50
MULTIFUNCTION SCREENS
MyWay MULTIFUNCTION
SCREEN
This screen can display the following
information:


- time,

- date,

- ambient temperature
When the ambient temperature
is between +3 °C and -3 °C,
the display fl ashes (risk of ice).
The temperature displayed may
be higher that the actual tem-
perature if the vehicle has been
parked in the sun.

- warning and vehicle function status
messages, displayed temporarily,

- audio functions,

- trip computer (see the end of the
section),

- result of the parking space mea-
surement,

- visual parking sensor information,

- satellite navigation system infor-
mation.


Controls

Displays in the screen

For safety reasons, confi guration
of the multifunction screen by the
driver must only be done when
stationary. You can press:


A.
Opens a contextual menu.

B.
Navigation through the screen
menus.

C.

Confi rmation of the selection made
in a menu or a modifi ed value.

D.
Abandon the current operation.

E.
Selection of main display (date,
radio-CD/audio, telephone, map,
navigation and trip computer).

B
or F.
In the menus, navigation, se-
lect activation/deactivation of
functions and select settings. To select one of the applications:


)
press the dedicated "RADIO"
,
"MUSIC"
, "NAV"
, "TRAFFIC"
,
"SETUP"
or "PHONE"
button to
open the corresponding menu,
For more information on these ap-
plications, refer to the "Audio and
Telematics" section.


Menus in the control panel

Downloaded from www.Manualslib.com manuals search engine II
52
MULTIFUNCTION SCREENS
NAVIDRIVE MULTIFUNCTION
SCREEN

Displays in the screen

The screen can display the following
information:


- time

- date

- ambient temperature
When the ambient temperature
is between +3 °C and -3 °C, the
temperature display fl ashes (risk
of ice). The ambient temperature
displayed may be higher than
the actual temperature if the ve-
hicle is parked in the sun.

- alert messages and state of ve-
hicle systems, displayed tempo-
rarily.
For safety reasons, confi guration
of the multifunction screen by the
driver must only be done when
stationary.

Controls



A.
Access to the "Main Menu".

B.
Navigation in the screen menus.

C.
Selection and confi rmation in the
menus of the function chosen or
the value modifi ed.

D.
Cancellation of the current op-
eration or return to the previous
display.

E.
Selection of the principal dis-
play (date, radio-CD/audio, tele-
phone, map, navigation and trip
computer).

B
or F.
In the menus, navigation,
choice of activation/deactiva-
tion of functions and choice
of setting.
- audio functions,

- trip computer (see end of the
section),

- results of the parking space
measurement,

- visual parking sensors,

- satellite navigation system infor-
mation.

Downloaded from www.Manualslib.com manuals search engine III
57
COMFORT

Air conditioning

To ensure that your system operates
correctly, it is recommended that you
have it checked regularly.
Water arising from condensation
in the air conditioning drains away
through a hole provided for this pur-
pose. A pool of water may thus form
under the vehicle when stationary.
To preserve the sealing of the air
conditioning compressor, operate
the air conditioning at least once a
month.
Regardless of the season, the air
conditioning is useful, since it re-
moves humidity and condensation.
To be effective, the air conditioning
should only be used with the win-
dows closed.
If after a lengthy stop in bright sunlight
the interior temperature is excessive,
air the passenger compartment by
opening the windows for a few mo-
ments, then close them again.
The air conditioning operates by
using power from the engine. This
results in a slight increase in fuel
consumption.


Dust filter/Odour filter (active
carbon)
There is a fi lter for excluding odours
and dust.
This fi lter has to be changed in ac-
cordance with the vehicle's servicing
schedule (see the servicing booklet).


Air circulation

Air vents on the fl oor underneath the
front seats provide enhanced heat-
ing for the rear seat positions; take
care not to obstruct them.


Air vents

The air vents to the face have grilles
and thumb wheels to adjust the air
fl ow and direction (up-down, right-
left).
The automatic regulation of the air
conditioning in the passenger com-
partment uses a number of sensors
(sunshine sensor, ambient tempera-
ture sensor...) that relieve you of the
need to make frequent adjustments to
the displayed temperature.
Take care not to obstruct the sun-
shine sensor, located on the dash-
board behind the instrument panel.


Sensors

Downloaded from www.Manualslib.com manuals search engine III
77
COMFORT





Rear view mirror

Adjustable mirror providing a central
rearward view.
Equipped with an anti-dazzle sys-
tem, which darkens the mirror glass:
this reduces the nuisance to the
driver caused by the headlamps
from following vehicles, low sun...


Manual day/night model

Adjustment


)
Adjust the mirror so that the
glass is directed correctly in the
"day" position.


Day/night position


)
Pull the lever to change to the
"night" anti-dazzle position.

)
Push the lever to change to the
normal "day" position.

By means of a sensor, which mea-
sures the light from the rear of the
vehicle, this system automatically
and progressively changes between
the day and night uses.
STEERING WHEEL ADJUSTMENT
The height and reach of the steer-
ing wheel can be adjusted to adapt
the driving position to the size of the
driver.

Adjustment



)
First, adjust the driver's seat to
the most suitable position.

)


When stationary
, pull the control
lever to unlock the steering wheel
adjustment.

)
Adjust for height and reach.

)
Push the control lever to lock the
steering wheel adjustment.
After locking, if you press fi rmly on
the steering wheel, a slight click may
be heard.

As a safety measure, the mirrors
should be adjusted to reduce the
"blind spot".







Automatic day/night model
As a safety precaution, these
operations must only be carried out
while the vehicle is stationary.
In order to ensure optimum visibility
during your manoeuvres, the mirror
lightens automatically when reverse
gear is engaged.

Downloaded from www.Manualslib.com manuals search engine V
95
VISIBILITY

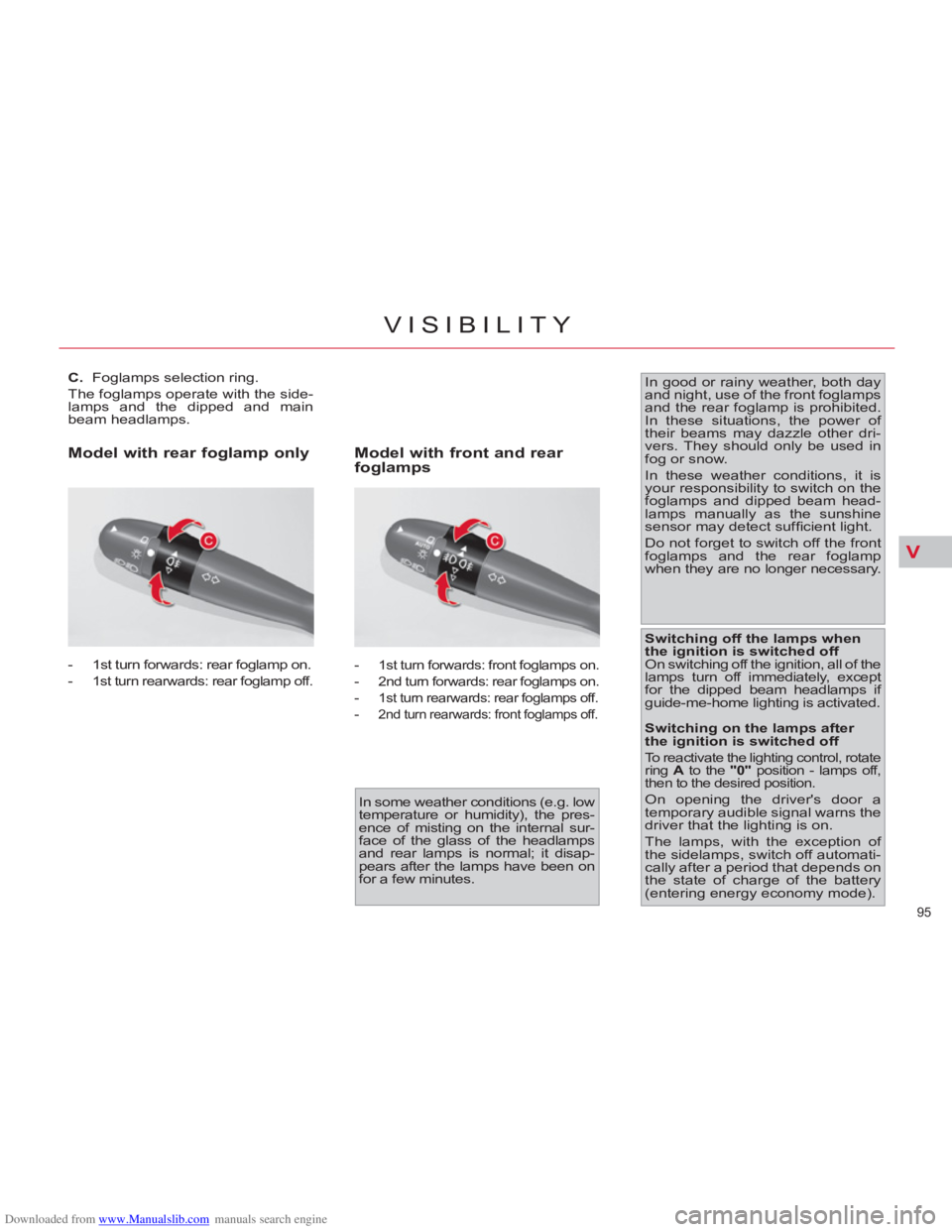

C.
Foglamps selection ring.
The foglamps operate with the side-
lamps and the dipped and main
beam headlamps.


- 1
st turn forwards: rear foglamp on.

-
1
st turn rearwards: rear foglamp off.




- 1 st turn forwards: front foglamps on.


- 2 nd turn forwards: rear foglamps on.


- 1 st turn rearwards: rear foglamps off.


- 2 nd turn rearwards: front foglamps off.



Model with rear foglamp only

Model with front and rear
foglamps





In good or rainy weather, both day
and night, use of the front foglamps
and the rear foglamp is prohibited.
In these situations, the power of
their beams may dazzle other dri-
vers. They should only be used in
fog or snow.
In these weather conditions, it is
your responsibility to switch on the
foglamps and dipped beam head-
lamps manually as the sunshine
sensor may detect suffi cient light.
Do not forget to switch off the front
foglamps and the rear foglamp
when they are no longer necessary.

Switching off the lamps when
the ignition is switched off
On switching off the ignition, all of the
lamps turn off immediately, except
for the dipped beam headlamps if
guide-me-home lighting is activated.
In some weather conditions (e.g. low
temperature or humidity), the pres-
ence of misting on the internal sur-
face of the glass of the headlamps
and rear lamps is normal; it disap-
pears after the lamps have been on
for a few minutes.

Switching on the lamps after
the ignition is switched off
To reactivate the lighting control, rotate
ring A
to the "0"
position - lamps off,
then to the desired position.
On opening the driver's door a
temporary audible signal warns the
driver that the lighting is on.
The lamps, with the exception of
the sidelamps, switch off automati-
cally after a period that depends on
the state of charge of the battery
(entering energy economy mode).

Downloaded from www.Manualslib.com manuals search engine V
97
VISIBILITY









Automatic illumination of
headlamps
When a low level of ambient light
is detected by a sunshine sensor,
the number plate lamps, sidelamps
and dipped beam headlamps are
switched on automatically, without
any action on the part of the driver.
They can also come on if rain is de-
tected, at the same time as auto-
matic operation of the windscreen
wipers.
As soon as the brightness returns
to a suffi cient level or after the wind-
screen wipers are switched off, the
lamps are switched off automatically.
Activation


)
Turn ring A
to the "AUTO"
posi-
tion. The activation of the function
is accompanied by a message in
the screen.


Deactivation


)
Turn ring A
to a position other
than "AUTO"
. Deactivation of
the function is accompanied by a
message in the screen.


Operating fault
In the event of a malfunction of the
sunshine sensor, the lamps comes
on, a message appears in the
screen, accompanied by an audible
signal.
Contact a CITROËN dealer or a
qualifi ed workshop.


Automatic "guide-me-home"
lighting
When the automatic illumination of
headlamps function is activated,
under low ambient light the dipped
beams headlamps come on au-
tomatically when the ignition is
switched off.
In fog or snow, the sunshine sensor
may detect suffi cient light. Therefore,
the lighting will not come on auto-
matically.
Do not cover the sunshine sen-
sor, linked with the rain sensor and
located in the centre of the wind-
screen behind the rear view mirror;
the associated functions would no
longer be controlled.

Programming
The activation and the duration of
the guide-me-home lighting can
be set in the vehicle confi guration
menu.
For a vehicle fi tted with the mono-
chrome screen A, the duration is fi xed.

Downloaded from www.Manualslib.com manuals search engine V
101
VISIBILITY

Reverse gear
When reverse gear is engaged, the
rear wiper will come into operation if
the windscreen wipers are operating.

Programming
The function is activated
or deactivated via the
vehicle confi guration
menu.
This function is activated
by default.











Windscreen and headlamp
wash


)
Pull the windscreen wiper stalk
towards you. The windscreen
wash then the windscreen wip-
ers operate for a fi xed period.
The headlamp washers only operate
when the dipped beam headlamps
are on
.













Automatic rain sensitive
windscreen wipers
The windscreen wipers operate au-
tomatically, without any action on the
part of the driver, if rain is detected
(sensor behind the rear view mirror),
adapting their speed to the intensity
of the rainfall.
This is controlled manually by the
driver by pushing the stalk down-
wards to the "AUTO"
position.
It is accompanied by a message in
the screen. The automatic rain sensitive wipers
must be reactivated if the ignition has
been off for more than one minute,
by pushing the stalk downwards.

Operating fault
If an automatic wiping malfunction
occurs, the wipers will operate in in-
termittent mode.
Have it checked by a CITROËN dealer
or a qualifi ed workshop.
Do not cover the rain sensor, linked
with the sunshine sensor and locat-
ed in the centre of the windscreen
behind the rear view mirror.
Switch off the automatic rain sen-
sitive wipers when using an auto-
matic car wash.
In winter, to avoid damaging the
wiper blades, it is advisable to wait
until the windscreen is completely
clear of ice before activating the
automatic rain sensitive wipers.

Activation

Switching off
This is controlled manually by the
driver by moving the stalk upwards
then returning it to position "0"
.
It is accompanied by a message in
the screen.

Downloaded from www.Manualslib.com manuals search engine VIII
127
SAFETY
TYRE UNDER-INFLATION DETECTION
Sensors fi tted in each valve check
the tyre pressure during driving and
trigger a warning in the event of
malfunction (speed above 12 mph
(20 km/h)).

Under-infl ated tyre The tyre under-infl ation detection
system is an aid to driving which
does not replace the vigilance or
responsibility of the driver.
Puncture
The service warning lamp
comes on in the instrument
panel, accompanied by an
audible signal and a mes-
sage on the multifunction screen lo-
cating the wheel concerned.
Check the tyre pressures as soon as
possible. This check must be carried
out when the tyres are cold. The STOP
warning lamp
comes on in the instrument
panel, accompanied by an
audible signal and a mes-
sage on the multifunction screen lo-
cating the wheel concerned.
Stop immediately, avoiding any sud-
den movement of the steering wheel
and the brakes.
Change the damaged wheel (punc-
tured or very defl ated tyre), and
have the tyre pressure checked as
soon as possible.

Sensor(s) not detected or faulty
The service warning lamp
comes on in the instrument
panel, accompanied by an
audible signal and a mes-
sage on the multifunction screen
locating the wheel or wheels which
are not detected or indicating a fault
in the system.
Have the faulty sensor(s) checked
by a CITROËN dealer or a qualifi ed
workshop. All repairs and changing of tyres
on a wheel fi tted with this system
must be carried out by a CITROËN
dealer or a qualifi ed workshop.
If, when changing a tyre, you in-
stall a wheel which is not detected
by your vehicle (example: fi tting
of snow tyres), you must have the
system reinitialised by a CITROËN
dealer or a qualifi ed workshop.
This system does not avoid the
need to have the tyre pressures
checked regularly (refer to the
"Technical data - Identifi cation
markings" section) to ensure that
the optimum dynamic performance
of the vehicle is maintained and
prevent premature wear of the
tyres, particularly in arduous driv-
ing conditions (heavy load, high
speed).
The tyre pressures must be
checked cold, at least once a
month. Remember to check the
pressure of the spare wheel.
The tyre under-infl ation detection
system may experience temporary
interference due to electro-magnetic
signals on a frequency close to that
used by the system.
This message is also displayed
when one of the wheels is away
from the vehicle (being repaired) or
when one or more wheels without a
sensor are fi tted.
The spare wheel is not fi tted with a
sensor.
