COMFORT
64
MANUAL AIR CONDITIONING











The air conditioning system operates
with the engine running.


)
Turn the dial to select a
position between blue
(cold) and red (hot) so as
to adjust the temperature
to your requirements.

1. Temperature adjustment This dial is used to increase or
decrease the speed of the air
booster fan.
2. Air fl ow adjustment
3. Air distribution adjustment
Windscreen and side windows.

)
If you place the air fl ow con-
trol in position 0
, the system
is deactivated. However, a
slight fl ow of air, due to the
movement of the vehicle,
can still be felt.
Windscreen, side windows and
footwells.
Footwells.
Central and side vents.
The air distribution can be
adapted by placing the dial in
an intermediate position.

)
Turn the dial from position 1
to po-
sition 5
to obtain a comfortable air
fl ow. This dial is used to arrange the distri-
bution of air in the passenger compart-
ment by combining several air outlets.

3
COMFORT
66
DUAL-ZONE DIGITAL AIR CONDITIONING

Automatic o
peration

We recommend the use of one
of the three AUTO modes avail-
able: they provide optimised
regulation of the temperature
in the passenger compartment
according to the comfort value that you
have chosen.
These three modes automatically adjust
the air fl ow, according to the desired set-
ting, while also maintaining the desired
comfort value.

)
Press the "AUTO"
button repeat-
edly:


- a fi rst indicator lamp comes on; the
"light" setting mode is selected,

- a second indicator lamp comes
on; the "medium" setting mode is
selected,

- a third indicator lamp comes on; the
"intense" mode setting is selected.
The air conditioning system operates when the engine is running. When the engine is cold, the air
fl ow will reach its optimum level
progressively, taking account
of the weather and the desired
comfort level so as to avoid too
great a distribution of cold air.
On entering the vehicle, if the in-
terior temperature is much colder
or warmer than the comfort val-
ue, there is no need to change
the value displayed in order to
obtain the comfort required. The
system corrects the difference in
temperature automatically and
as quickly as possible.

1. Automatic comfort programme
This system is designed to operate ef-
fectively in all seasons, with the windows
closed.

3
COMFORT
68
Switching the system off
Avoid prolonged operation in in-
terior air recirculation mode or
driving for long periods with the
system off (risk of condensation
and deterioration of air quality).
9. "REST" function: ventilation with
the engine off

On switching on the engine



- The control screens come on: the
function is available.

- Pressing the REST
button activates
the ventilation for a few minutes.
Activation of the function is con-
fi rmed by the display of two dashes
in the control screens and four air
fl ow level indicator lamps.

- The function can be deactivated and
reactivated if the control screens
are on.

- The screens go off at the end of this
period.
On stopping the engine



- While the control screens remain
on: the function is available.

- Pressing the REST
button activates
the ventilation for a few minutes.
Activation of the function is con-
fi rmed by the display of two dashes
in the control screens and four air
fl ow level indicator lamps.
Locking the vehicle has no effect on
this function.

- The control screens go off at the
end of this period.
Pressing again before the end of
the period interrupts off the ventila-
tion defi nitively: the control screens
go off and the function is no longer
available. )
Turn the air fl ow control to
the left until all of the indi-
cator lamps go off.
This action switches off the air condi-
tioning and the ventilation.
Temperature related comfort is no lon-
ger assured but a slight fl ow of air, due
to the movement of the vehicle, can still
be felt.


)
Modify the settings (temperature,
air fl ow or air distribution) or press
the "AUTO"
button to reactivate the
system with the values set before it
was switched off.
This switch does not operate the
air conditioning, only the air fan.
When the "REST" function is ac-
tivated, you cannot modify the
temperature, air fl ow and distri-
bution settings: these are con-
trolled automatically according
to the ambient temperature.
This function is not available in
the STOP mode of Stop & Start.
Even with the engine is off,
you can operate the ventila-
tion for a few minutes.
For example, while you are
away from the vehicle, the pas-
sengers can still enjoy some air circula-
tion without having the engine running.
This function is available after switching
on the ignition, as well as after stopping
the engine.
The period that the function is available
depends on the state of charge of the
battery.
You can activate the "REST" func-
tion while the air conditioning control
screens are on.

3
COMFORT
69
FRONT DEMIST - DEFROST


These markings on the control
panel indicate the control po-
sitions for rapid demisting or
defrosting of the windscreen
and side windows.


With manual air conditioning



)
Put the temperature, air fl ow and
distribution controls to the dedicated
marked position.

)
Put the air intake control to the
"Exterior air intake" position
(indicator lamp on the control off).

)
Switch on the air conditioning by
pressing the "A/C"
button; the warn-
ing lamp in the button comes on.

REAR SCREEN DEMIST - DEFROST

The control button is located
on the air conditioning system
control panel.
Switching on
The rear screen demisting/defrosting
can only operate when the engine is
running.


)
Press this button to demist/defrost
the rear screen and (depending on
version) the door mirrors. The indi-
cator lamp associated with the but-
ton comes on.

Switching off

The demisting/defrosting switches off
automatically to prevent an excessive
consumption of current.


)
It is possible to stop the demisting/de-
frosting operation before it is switched
off automatically by pressing the button
again. The indicator lamp associated
with the button goes off.


)
Switch off the demisting/de-
frosting of the rear screen
and door mirrors as soon as
appropriate, as lower current
consumption results in re-
duced fuel consumption.

conditioning


Automatic visibility programme


)
Select this programme to demist
or defrost the windscreen and side
windows as quickly as possible.
The system automatically manages
the air conditioning, air fl ow and air
intake, and provides optimum distribu-
tion towards the windscreen and side
windows.


)
To stop the programme, press ei-
ther the "visibility"
button again or
"AUTO"
, the warning lamp on the
button goes off and the warning lamp
on the "AUTO"
button comes on.
The system starts again with the values
in use before it was overridden by the
visibility programme.







With Stop & Start, when dem-
isting has been activated, the
STOP mode is not available.
With Stop & Start, when the
demisting, air conditioning and
air fl ow functions are activated,
STOP mode is not available.

3
COMFORT
72

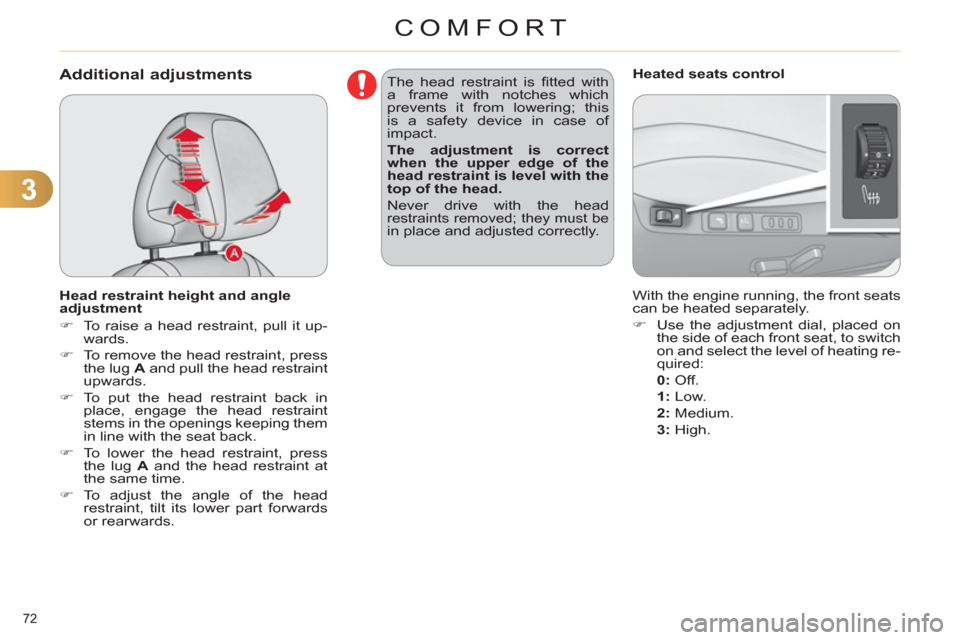

Additional adjustments

Head restraint height and angle
adjustment


)
To raise a head restraint, pull it up-
wards.

)
To remove the head restraint, press
the lug A
and pull the head restraint
upwards.

)
To put the head restraint back in
place, engage the head restraint
stems in the openings keeping them
in line with the seat back.

)
To lower the head restraint, press
the lug A
and the head restraint at
the same time.

)
To adjust the angle of the head
restraint, tilt its lower part forwards
or rearwards. The head restraint is fi tted with
a frame with notches which
prevents it from lowering; this
is a safety device in case of
impact.

The adjustment is correct
when the upper edge of the
head restraint is level with the
top of the head.

Never drive with the head
restraints removed; they must be in place and adjusted correctly.

With the engine running, the front seats
can be heated separately.


)
Use the adjustment dial, placed on
the side of each front seat, to switch
on and select the level of heating re-
quired:

0:


Off.

1

:
Low.

2

:
Medium.

3

:
High.










Heated seats control

3
COMFORT
73


)
Turn the knob to obtain the desired
level of lumbar support.

This function provides a back massage;
it only operates when the engine is run-
ning.


)
Press the switch to activate the
function.
The warning lamp on the switch comes
on and the massage function is activated
for a period of 60 minutes. During this
time, massage is performed in 6 cycles
of 10 minutes each cycle (6 minutes of
massage followed by 4 minutes break).
After an hour, the function is automati-
cally deactivated. The warning lamp in
the switch goes off.

Deactivation
You can deactivate the massage func-
tion at any time by pressing the switch.
The movement in progress continues
until the initial non-massage position is
reached.


Manual lumbar adjustment
Massage function


Electric lumbar adjustment


)

Press the front or rear of the control
to obtain the desired lumbar support.

3
COMFORT
74
Storing driving positions
System which registers the electrical
settings of the driver's seat and door
mirrors. It enables you to store and re-
call two positions using the buttons on
the side of the driver's seat.
Storing a position

Using buttons M/1/2


)
Switch on the ignition.

)
Adjust your seat and the door mir-
rors.

)
Press button M
, then press button 1

or 2
within four seconds.
An audible signal indicates that the
position has been stored.
Recalling a stored position

Ignition on or engine running


)
Press button 1
or 2
to recall the cor-
responding position.
An audible signal indicates the end of
the adjustment.
You can interrupt the current
movement by pressing button M
,
1
or 2
or by using one of the seat
controls.
A stored position cannot be re-
called while driving.
Recalling stored positions is
deactivated 45 seconds after
switching off the ignition.
Storing a new position cancels
the previous position.

3
COMFORT
76
MIRRORS

Door mirrors

Each fi tted with an adjustable mirror
glass permitting the lateral rearward
vision necessary for overtaking or
parking. They can also be folded for
parking in confi ned spaces.

Demisting - Defrosting

)
Move control A
to the right or to
the left to select the corresponding
mirror.

)
Move control B
in all four directions
to adjust.

)
Return control A
to the central
position.
Adjustment
If the mirrors are folded using
control A
, they will not unfold
when the vehicle is unlocked.
Pull again on control A
.

The objects observed are, in reali ty,
closer than they appear.
Take this into account in order to
correctly judge the distance of ve-
hicles approaching from behind.




Folding


)
From outside: lock the vehicle using
the remote control or the key.

)
From inside: with the ignition on,
pull control A
rearwards.
The folding and unfolding of the
door mirrors using the remote
control can be deactivated by a
CITROËN dealer.
Unfolding


)
From outside: unlock the vehicle us-
ing the remote control or the key.

)
From inside: with the ignition on,
pull control A
rearwards.
Never fold or unfold the electric
folding mirrors manually.

If your vehicle is fi tted with heated
mirrors, the demisting-defrosting
operates with the engine run-
ning, by switching on the heated
rear screen (refer to the "Rear
screen demist-defrost" page).
