12
TECHNICAL DATA
218
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.
WEIGHTS AND TOWED LOADS (in kg) - C4 ENTERPRISE VERSIONS (2-seat)
Diesel
engines
HDi 90 P
EF
HDi 110 PEF
Gearboxes
Manual
Manual
Model codes:
NC...
9HP0
9HR8
- Unladen weight
1 200
1 270
- Gross vehicle weight (GVW)
1 745
1 810
- Payload (including the driver)
545
540
- Gross train weight (GTW)
on a 12 % gradient
2 845
3 110
- Braked trailer (within the GTW limit)
on a 12 % gradient
1 100
1 300
- Unbraked trailer
635
670
- Recommended nose weight
75
75
12
TECHNICAL DATA
220
*
Exceeding the maximum rear axle weight when the vehicle is towing imposes a speed limit of 50 mph (80 km/h), as defi ned
by point 2.7 of the European Directive.
**
Exceeding the gross vehicle weight when the vehicle is towing imposes a speed limit of 50 mph (80 km/h), as defi ned by
point 2.7 of the European Directive.
***
Maximum braked trailer within the GTW limit. Warning: towing using a lightly loaded towing vehicle may have an adverse
effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

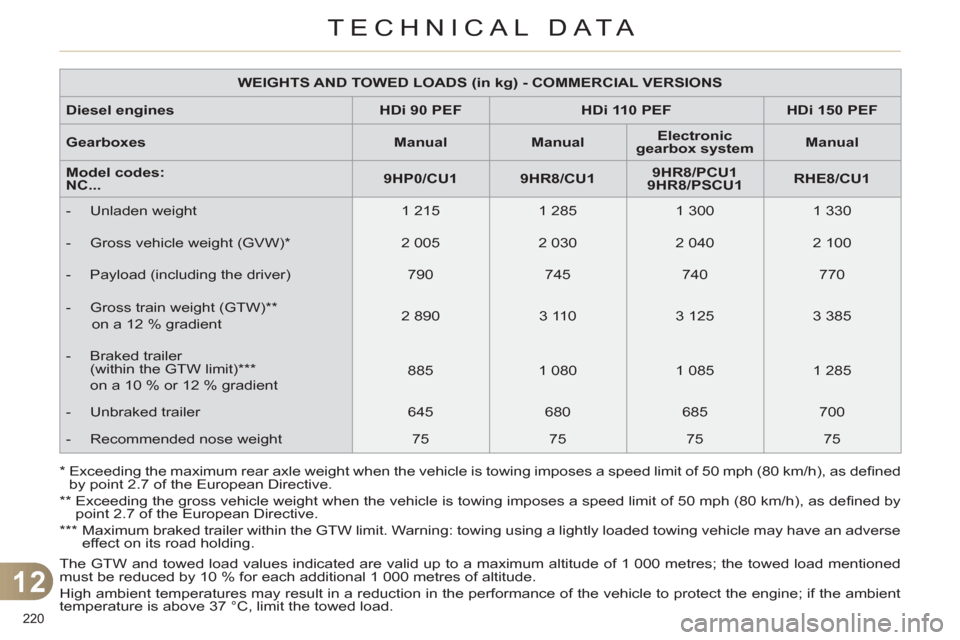

WEIGHTS AND TOWED LOADS (in kg) - COMMERCIAL VERSIONS
Diesel engines
HDi 90
PEF
HDi 110 PEF
HDi 150 PEF
Gearboxes
Manual
Manual
Electronic
gearbox system
Manual
Model codes:
NC...
9HP0/CU1
9HR8/CU1
9HR8/PCU1
9HR8/PSCU1
RHE8/CU1
- Unladen weight
1 215
1 285
1 300
1 330
- Gross vehicle weight (GVW) *
2 005
2 030
2 040
2 100
- Payload (including the driver)
790
745
740
770
- Gross train weight (GTW) **
on a 12 % gradient
2 890
3 110
3 125
3 385
- Braked trailer
(within the GTW limit) ***
on a 10 % or 12 % gradient
885
1 080
1 085
1 285
- Unbraked trailer
645
680
685
700
- Recommended nose weight
75
75
75
75
12
TECHNICAL DATA
222
IDENTIFICATION MARKINGS
Various visible markings for the identifi -
cation of your vehicle.
A. Vehicle identifi cation number
(VIN) under the bonnet.
This number is engraved on the body-
work near the engine mounting.
B. Vehicle identifi cation number on
the dashboard.
This number is indicated on a self-ad-
hesive label which is visible through the
windscreen.
D. Tyre/paint label.
This label is affi xed to the driver's front
pillar.
The tyre pressures must be
checked when the tyres are cold,
at least once a month.
Low tyre pressures increase fuel
consumption.
C. Manufacturer's label.
The VIN is indicated on a self-destroy-
ing label affi xed to the driver's centre
pillar. It bears the following information:
- the tyre pressures, for unladen and
laden conditions,
- the wheel rim and tyre sizes,
- the brands of tyre recommended by
the manufacturer,
- the spare tyre infl ation pressure,
- the paint colour code.
Wheels which are fi tted with
225/40 R18 tyres cannot be fi t-
ted with snow chains. For more
information, contact a CITROËN
dealer or a qualifi ed workshop.
314
VISUAL SEARCH
TECHNICAL DATA - MAINTENANCE
Running out of Diesel fuel ............. 176
Checking levels ...................... 179-180
- oil
- brake fl uid
- coolant
- power steering fl uid
- screenwash/headlamp wash fl uid
- additive (Diesel with particle
emissions fi lter)
Changing bulbs....................... 192-197
- front
- rear
Petrol engines......................... 212-215
Diesel engines ........................ 216-218
Petrol/Diesel weights,
commercial versions ............... 219-220
Dimensions .................................... 221
Identifi cation markings ................... 222
Bonnet ........................................... 175
Petrol underbonnet ........................ 177
Diesel underbonnet ....................... 178
Checking components ............ 181-182
- battery
- air fi lter/passenger compartment
fi lter
- oil fi lter
- particle emissions fi lter (Diesel)
- brake pads/discs
Battery .................................... 202-204
Energy economy mode.................. 204
Engine compartment fuses .... 198, 201
318
ALPHABETICAL INDEX
S Stability control (ESP) ................133
Starting the vehicle .......82, 151, 154
Status indicator lamps .............32-42
Steering mounted
controls .............................228, 279
Stopping the vehicle .....82, 151, 154
Stop Start ..................61, 67, 69, 94,
158, 175, 181, 202, 303
Storage .........109, 110, 112-114, 118
Storage compartments ............... 112
Storage drawer ........................... 116
Storage net ................................. 118
Storing the driving positions .........74
Stowing rings .............................. 118
Sun visor .................................... 110
Synchronising the remote
control ..................................82, 83
Synthesiser, voice ......................242
Systems, ASR and ESP .............133
T Table of weights .................214, 217
Tables of engines ................212-222
Tables of fuses ...........................198
Tank, fuel ......................................95
Technical data .....................212-222
Telephone ...........................248, 291
Temperature control for heated
seats ...........................................72
Temporary tyre repair kit ............183
Ticket holder ...............................109
Time .............................47, 267, 302
TMC (Traffi c info) .......................245
Tools ...........................................188
Torch ..........................................120
Total distance recorder .................47
Towbar ........................................208
Towed loads .......................214, 217T Towing another vehicle ...............206
Traction control (ASR) ................133
Traffi c information
(TA) ..........................246, 259, 282
Traffi c information (TMC) ...245, 246
Trip computer ..........................58-61
Trip distance recorder ..................47
Tyre pressures ...........................222
Tyre under-infl ation
detection .............................46, 131
U Under-infl ation (detection) ....46, 131
Under fl oor storage ....................120
Unlocking from the inside .............85
Unlocking the boot ...........79, 80, 90
Unlocking the doors ...............79, 80
USB Box ............................ 111 , 287
USB port ............................. 111, 287
V Ventilation ................................62-64
W Weights ..............................214, 217
Welcome lighting ................100, 108
Window controls ...........................91
Wipers ................................103, 104
X Xenon headlamps ......................192
