2011 CITROEN C3 PICASSO sat nav

2
37
MULTIFUNCTION SCREENS
MONOCHROME SCREEN A ASSOCIATED
WITH THE MYWAY SATELLITE
NAVIGATION COLOUR SCREEN

Main menu


Displays in screen A

This displays the following information:


- ambient temperature (this fl ashes if
there is a risk of ice),

- trip computer (refer to the end of the
section).
Warning messages or information mes-
sages may appear temporarily. These
can be cleared by pressing the "ESC"

button.
Controls
There are three display control buttons:


- "ESC"
to abandon the operation in
progress,

- "MENU"
to scroll through the men-
us or sub-menus,

- "OK"
to select the menu or sub-
menu required.


)
Press the "MENU"
button to scroll
through the various menus of the
main menu
:


- vehicle confi guration,

- options,

- language,

- units.

)
Press the "OK"
button to select the
menu required.


Vehicle confi guration
Once the "Vehicle confi guration" menu
has been selected, you can activate or
deactivate the following systems:


- wiper linked with reverse gear (refer
to the "Visibility" section),

- "guide-me-home" lighting (refer to
the "Visibility" section).

2
38
MULTIFUNCTION SCREENS

Options
Once the "Options" menu has been se-
lected, you can start diagnostics of the
status of the equipment (active, not ac-
tive, faulty).

Language
Once the "Language" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-
Brasil, Deutsch, English, Espanol).

Units
Once the "Units" menu has been se-
lected, you can change the units of the
following parameters:


- temperature (°C or °F),

- fuel consumption (l/100 km, mpg or
km/l). navigation colour screen
"SETUP" menu
Date and time
This menu allows you to adjust the date
and time, and their format (refer to the
"Audio and telematics section").

Displa
y

This menu allows you to adjust the
brightness of the display, the display
contrast and the colour of the map (day/
night and auto mode).

S
ystem parameters
This menu allows you to restore the
factory settings, to display the software
version and to activate scrolling text. This displays the following information:


- time,

- date,

- audio functions,

- navigation system information. The chosen language will also
be used in the MyWay satellite
navigation colour screen.
Once the fuel consumption unit
has been changed to l/100 km
or km/l, the information relat-
ing to speed and distance also
changes to kilometres.
For safety reasons, confi gura-
tion of the multifunction screen
by the driver must only be done
when stationary.
For safety reasons, confi gura-
tion of the multifunction screen
by the driver must only be done
when stationary.

Press the SETUP button to access the
"SETUP"
menu. It gives you access to
the following functions:


- Date and time,

- Display,

- System parameters.

175
The MyWay is protected in such a way that it will onlyoperate in your vehicle. If it is to be installed in another vehicle, contact a CITROËN dealer for confi guration of py
the system.
Certain functions described in this handbook will
become available during the year.
MyWay

For safety reasons, the driver must carry out operations which require prolonged attention while the vehicle is stationary.
When the en
gine is switched off and to prevent
discharging of the battery, the MyWay switches off
following the activation of the Energy Economy mode.


MULTIMEDIA AUDIO SYSTEM/BLUETOOTH TELEPHONE
SATELLITE NAVIGATION SYSTEM FOR EUROPE BY SD CARD


01 First steps
CONTENTS

02 Steering mounted controls

03 General operation

04 Navigation - Guidance

05 Traffic information

06 Radio

07 Music media players

08 Bluetooth telephone

09 Configuration

10 Screen menu map p.
p.
p.
p.
p.
p.
p.
p.
p.
p.

Frequently asked questions p. 176
177
178
181
189
191
192
195
198
199
203

176
01 FIRST STEPS


MyWay CONTROL PANEL
Engine not running:
-
Short press: on/off.
- Long press: pause with
CD play, mute for radio.
Engine running:
- Short
press: pause with CD play, mute for radio.
-
Long press: reinitialise thesystem.
Access to theRadio Menu.Display the list of stations.
Access to theMusic Menu. Display tracks. Lon
g press: audio settings: front/rear fader, left/right balance, bass/treble,
musical ambience, loudness, automatic
volume, reinitialise settings.
Selection dial for the
screen display and according to the menu.
Short press: contextual
menu or confi rm.
Long press: contextual
menu specifi c to the list
displayed.
A
ccess to the"SETUP" menu.
Lon
g press: GPS coverage anddemonstration
mode.
Access to the PhoneMenu. Display the list of calls.

E
ject CD.

Select previous/next radio station.
Select previous CD or MP3
track.
Select previous/next line in a list.

Select
previous/next radio station in the list.
Select previous/next MP3
folder.
Select previous/next page in a list.

E
SC: abandon current operation.
Access to theTraffi c Menu. Display the current
traffi c alerts. R
eader for navigation SDcard only.
A
ccess to theNavigation Menu. Displayrecent destinations.
A
ccess to the "MODE" menu.
Select successive display of:
Radio, Map, NAV (if navigation in progress),
Telephone (if conversation in progress), Tripcomputer.
Long press: Black screen (DARK). Buttons 1 to
6:
Select a pre-set radiostation.
Long press: pre-set the current station.
Ad
just volume (each source
is independent, including
navigation messages andalerts).

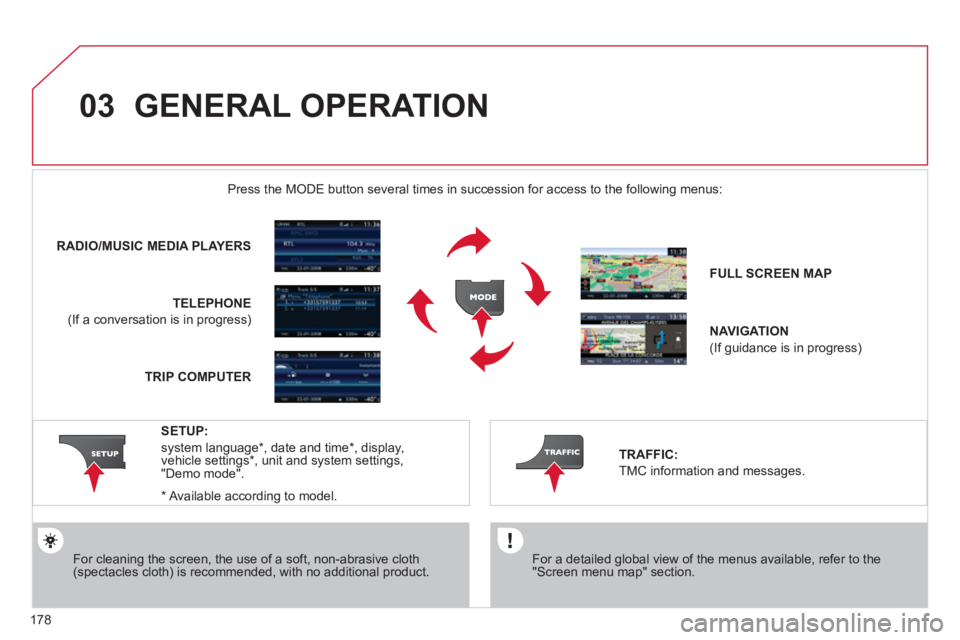

178
03 GENERAL OPERATION


For a detailed global view of the menus available, refer to the"Screen menu map" section.
Press the M
ODE button several times in succession for access to the following menus:


For cleaning the screen, the use of a soft, non-abrasive cloth (spectacles cloth) is recommended, with no additional product. RADIO / MU
SIC MEDIA PLAYERS


TELEPHONE
(If a conversation is in progress)
FULL SCREEN MA
P
NAVIGATION
(If guidance is in progress)
SETUP:
system language *
, date and time *
, display,
vehicle settings * , unit and system settings,
"Demo mode".
TRAFFIC:
TMC information and messages.

* Available accordin
g to model. TRIP COMPUTE
R

179
03GENERAL OPERATION
A press on the OK dial gives access to short-cut menus according to the displayon the screen.







DISPLAY ACCORDING TO THE CONTEXT
NAVIGATION (IF GUIDANCE IS IN PROGRESS):
TRIP COMPUTER:
Abort guidance
Repeat advice
Block road
Route info
Show destination
Trip info
Route t
ype

Avoid

SatellitesZ
oom/Scroll
Voice advice
Route options
Alert log
Status of functions
1
2
3
3
2
1
1
1
3
1
1
1
1
2
TELEPHONE:
End call
Hold call
Dial
DTMF-Tones
Private mod
e
Micro off
1
1
1
1
1
1

205
QUESTIONANSWER SOLUTION
TA is selected. However, certain traffi c jams
along the route are not
indicated in real time.
On starting, it is several minutes before the system begins to receive the
traffi c information. Wait until the traffi c information is being received correctly (displaying of the traffi c information symbols on the map).
In certain countries, onl
y major routes (motorways...) are listed for the
traffi c information. This phenomenon is normal. The system is
dependent on the traffi c information available.
I receive a speed camera
alert for a camera which
is not on my route.The s
ystem announces all speed cameras located in a conical zoneforward of the vehicle. It may detect speed cameras on nearby or parallel roads. Zoom the map to view the exact position o
f thespeed camera.

The audible speedcamera alert is not
working.
Audible alerts are not active. Activate audible alerts in Navigation Menu, Settings, Set parameters for risk areas.
Th
e alert volume level is set to minimum. Increase the speed camera alert volume.

The altitude is not displayed. On starting, the initialisation of the GPS may take up to 3 minutes toreceive more than 3 satellites correctly. Wait until the system has started up completely. Check that there is a GPS coverage of at least
3 satellites (long press on the SETUP button, then select GPS coverage).
Dependin
g on the geographical environment (tunnel...) or the weather,
the conditions of reception of the GPS signal may vary. This phenomenon is normal. The system is
dependent on the conditions of reception of the
GPS si
gnal.
Th
e route is notcalculated successfully.The exclusion criteria may confl ict with the current location (exclusion of
toll roads on a motorway with tolls). Check the exclusion criteria.
