ACCESS
Emergency control
System which locks or unlocks the
doors mechanically in the event of a
malfunction of the battery or of the cen-
tral locking.
)
Insert the key in the lock, located
on the edge of the door, then turn it
one eighth of a turn
.
Opening
)
After unlocking the vehicle using the
remote control or the key, pull the
handle and raise the tailgate.
BOOT
- when the engine is running
,
this warning lamp comes on,
accompanied by a message
on the multifunction screen for
a few seconds,
- when the vehicle is moving
(speed
above 6 mph (10 km/h)), this warn-
ing lamp comes on, accompanied
by an audible signal and a message
on the multifunction screen for a
few seconds.
Tailgate release
System for mechanical unlocking of the
boot in the event of a battery or central
locking malfunction.
Unlocking
)
Fold back the rear benchseat to
gain access to the lock from inside
the boot.
)
Insert a small screwdriver into hole A
of the lock to unlock the tailgate.
Locking the driver’s door
)
Insert the key in the lock, then turn it
to the left.
Unlocking the driver’s door
)
Insert the key in the lock, then turn it
to the right.
Locking the front and rear
passenger doors
Unlocking the front and rear
passenger doors
)
Pull the interior door opening control.
Closing
)
Lower the tailgate using the interior
grab handle. If the tailgate is not closed correctly:
In the event of a failure with
the central locking system, you
should disconnect the battery to
lock the boot and so ensure the
complete locking of the vehicle.
Page 81 of 244
5
79
VISIBILITY
The lighting time varies accord-
ing to the circumstances:
- when the ignition is off, ap-
proximately ten minutes,
- in energy economy mode, ap-
proximately thirty seconds,
- when the engine is running,
no limit. This comes on automatically when the
boot is opened and switches off auto-
matically when the boot is closed.
Torch
This is a removable lamp, fi tted in the
side of the boot, which can be used to
illuminate the boot or as a torch.
BOOT LAMP
Use
)
Extract the torch from its location by
pulling it from the front.
)
Press the switch, located on the
back, to switch the torch on or off.
)
Unfold the support, located on the
back, to set down and raise the
torch; for example, when changing
a wheel.
Storing
)
Put the torch back in place in its lo-
cation starting with the rear.
If you have forgotten to switch off
the torch, this switches it off auto-
matically.
It the torch is not engaged correctly, it
may not charge and may not come on
when the boot is opened.
Operation
This torch operates with NiMH type re-
chargeable batteries.
It has a battery life of approximately
45 minutes and charges while you are
driving.
Observe the polarities when fi t-
ting the batteries.
Never replace the rechargeable
batteries with single-use batteries.
Page 88 of 244
6
86
FITTINGS
Opening
)
Lower the storage shelf.
)
Press the fl ap opening control.
)
Lower the fl ap.
)
Check that the adjustable boot fl oor
is in the high position.
)
Load the objects from inside the
boot.
Device for storing and transporting long
objects.
When unfolded, this provides a storage
area split into 2 sections, completing
the storage spaces available at the rear
of the vehicle.
Storage tray
Page 89 of 244
6
FITTINGS
Boot fittings
1.
Storage net on right-hand boot trim.
2.
Open storage compartments.
3.
Torch.
4.
Adjustable boot fl oor.
5.
Carrier bag hook.
6.
Securing rings.
7.
Storage area under boot carpet
8.
Rear parcel shelf.
Page 90 of 244
6
88
FITTINGS

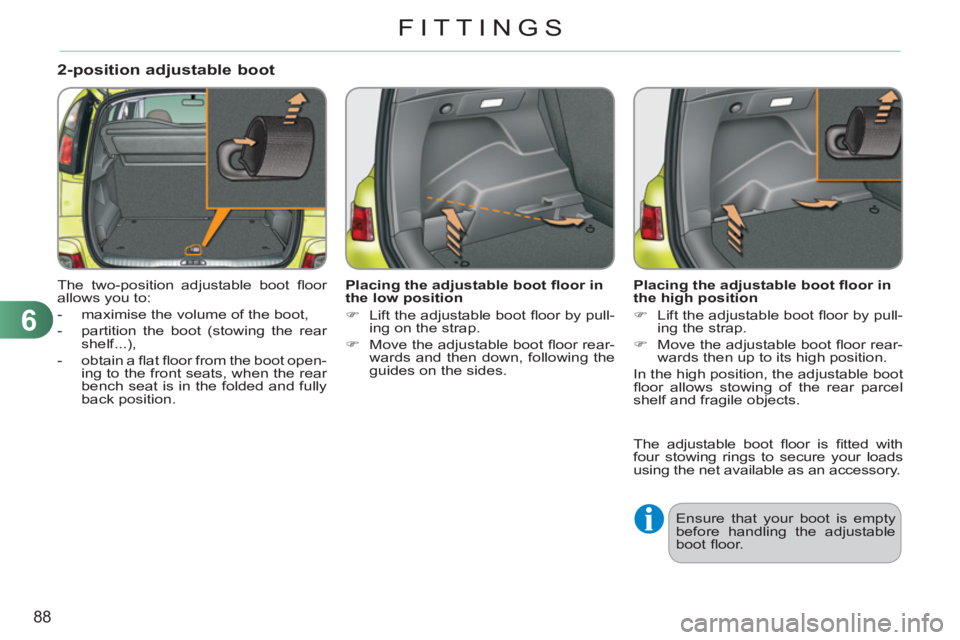

2-position adjustable boot
The two-position adjustable boot fl oor
allows you to:
- maximise the volume of the boot,
- partition the boot (stowing the rear
shelf...),
- obtain a fl at fl oor from the boot open-
ing to the front seats, when the rear
bench seat is in the folded and fully
back position.
Placing the adjustable boot fl oor in
the low position
)
Lift the adjustable boot fl oor by pull-
ing on the strap.
)
Move the adjustable boot fl oor rear-
wards and then down, following the
guides on the sides.
Placing the adjustable boot fl oor in
the high position
)
Lift the adjustable boot fl oor by pull-
ing the strap.
)
Move the adjustable boot fl oor rear-
wards then up to its high position.
In the high position, the adjustable boot
fl oor allows stowing of the rear parcel
shelf and fragile objects.
The adjustable boot fl oor is fi tted with
four stowing rings to secure your loads
using the net available as an accessory.
Ensure that your boot is empty
before handling the adjustable
boot fl oor.
Page 91 of 244
6
89
FITTINGS

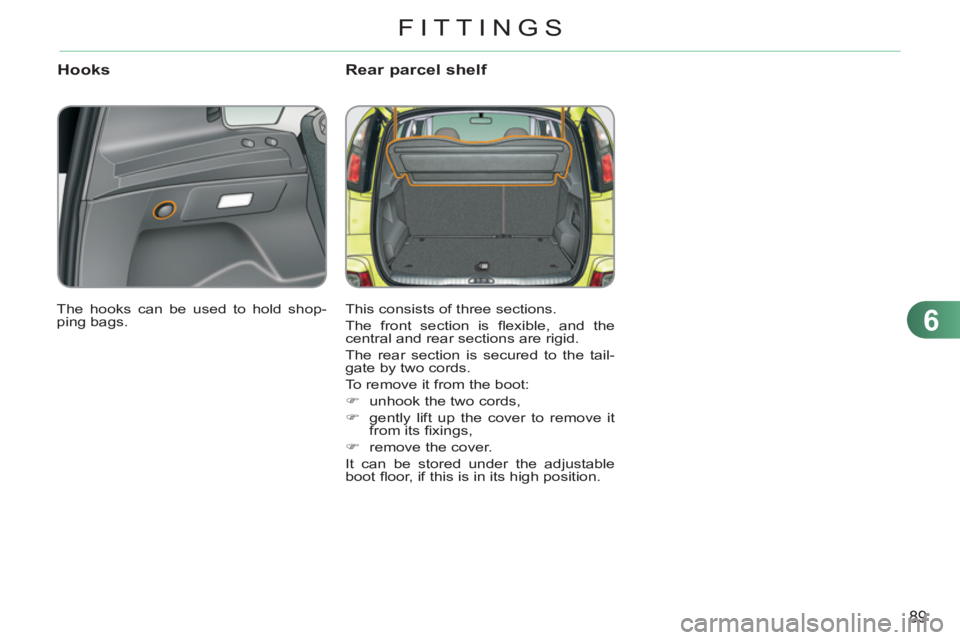

Hooks Rear parcel shelf
This consists of three sections.
The front section is fl exible, and the
central and rear sections are rigid.
The rear section is secured to the tail-
gate by two cords.
To remove it from the boot:
)
unhook the two cords,
)
gently lift up the cover to remove it
from its fi xings,
)
remove the cover.
It can be stored under the adjustable
boot fl oor, if this is in its high position. The hooks can be used to hold shop-
ping bags.
