2011 CITROEN C3 PICASSO USB

210
03 MAIN MENU
AUDIO FUNCTIONS
:radio, CD, USB, options.








> MONOCHROME SCREEN C
For a detailed
global view of the
menus available, refer to the
"Screen menu ma
p" section.

TELEPHONE
:
Bluetooth hands-free,
pairing, managementof a call.
PERSONALISATION-
CONFIGURATION:
vehicle parameters,
display, languages.
TRIP COMPUTER: entering of distances,alerts, status of functions.
> MONOCHROME
SCREEN A

214
05
1
1
2
3
USB BOX


The system puts together playlists (temporary memory) createdover a period which depends on the capacity of the USB device.
The other sources are available durin
g this time.
The pla
ylists are updated each time the ignition is switched off or each time a USB memory stick is connected.
When connectin
g for the fi rst time, the classifi cation suggested
is by folder. When you reconnect, the classifi cation selected
previously is retained.
Connect the memory stick to the port, directly or using a lead. If the audio equipment is switched
on, the USB source is detected as soon as it
is connected. Pla
y begins automatically after a
delay which depends on the capacity of the USB memory stick.
The
fi le formats supported are .mp3 (mpeg1 layer 3 only), .wma (standard 9 only,
128 kbits/sec compression), .wav and .ogg.

Certain playlist formats are supported (m3u, ...)
On reconnection of the previous memory stickused, play is resumed automatically with the last
track played.
This unit consists o
f a USB port and an auxiliaryJack socket * . The audio fi les are transmitted
from a portable device - digital player or a USBmemory stick - to your Audio system and heard
via the vehicle’s speakers.

USB memor
y stick (1.1, 1.2 and 2.0) or Apple®
player of generation 5 or later:


- U
SB memory sticks should be formatted FAT
or FAT 32 (NTFS not supported),

- the Apple ®player lead is essential,

- navi
gation through the fi le database is also
possible by means of the steering mountedcontrols.
The list of compatible equipment and the compression rates supported are available from CITROËN dealers. pqp





















USING THE USB BOX

CONNECTING A USB MEMORY STICK

Other Apple®
players of earlier generations and®
players using the MTP protocol * :


- pla
y via Jack-Jack lead only (not supplied),

- navi
gation through the fi le database is from
the portable device.

* Accordin
g to vehicle.

215
3
4
05
2
1
LISTREFRESH
LISTREFRESH

USING THE USB BOX


Press LIST briefl y to display thepreviously selected classifi cation.
Navi
gate through the list using the left/right and up/down buttons.

Confi rm the selection by pressing OK. The lists available are Artist, Genre and Pla
ylist (as defi ned in
the Apple® player).®
Selection and Navigation are described in steps 1 to 4 above.

Do not connect a hard disk or
USB connection device other
than audio equipment to the USB port. This could damage your
installation.

CONNECTING AN APPLE®PLAYER VIA THE USB PORT®

Press one of these buttons to gain
access to the previous/next track on
the classifi cation list currently beingplayed.
Pr
ess and hold one of the buttons for fast forward or backward play.

Press one of these buttons to
gain
access to the previous/next Genre,
Folder, Artist or Playlist on theclassifi cation list currently being played.
Press and hold LI
ST to displaythe different classifi cations.
Select b
y Folder/Artist/Genre/Playlist, press OK to select the classifi cation required, then press OK again to confi rm.


- b
y Folder: all folders containing audio fi les recognised on the peripheraldevice.

- by Artist: all o
f the artist names
defi ned in the ID3 Tags, classifi ed in alphabetical order.

- b
y Genre: all of the genres defi ned in
the ID3 Tags.

- b
y Playlist: in accordance with the
playlists recorded on the USB device.

USB BOX

216
05
1
21
2
SOURCE
First adjust the volume of your portable device.
Then ad
just the volume of your audio system.



















USING THE AUXILIARY INPUT (AUX)

ADJUSTING THE VOLUME OF
THE AUXILIARY SOURCE

JACK socket or USB port (according to vehicle)

Do not connect a device to both the
JACK socket and the USB port at the same time.

Connect the portable device(MP3 player…) to the JACK socket or to
the USB port, using a suitable cable(not supplied).

Pr
ess the SOURCE button several
times in succession and select AUX.
The auxiliar
y input, JACK or USB, allows the connection of a portable device (MP3 player...).
USB BOX

224

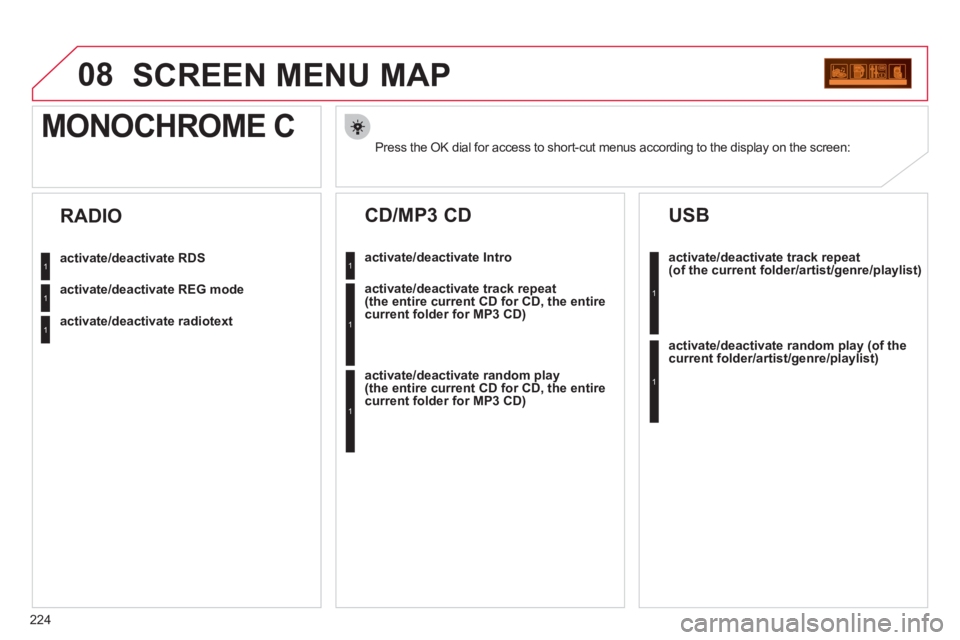

08SCREEN MENU MAP
Press the OK dial for access to short-cut menus according to the display on the screen: MONOCHROME C
activate/deactivate RDS
activate/deactivate REG mode
activate/deactivate radiotext

RADIO
activate/deactivate Intro


CD/MP3 CD
activate/deactivate track repeat(the entire current CD for CD, the entire current folder for MP3 CD)
activate/deactivate random play(the entire current CD for CD, the entire current folder for MP3 CD)
activate/deactivate track repeat (of the current folder/artist/genre/playlist)


USB
activate/deactivate random play(of thecurrent folder/artist/genre/playlist)
1
1
1
1
1
1
1
1

227
FREQUENTLY ASKED QUESTIONS
QUESTION ANSWERSOLUTION

There is a difference in sound quality betweenthe different audiosources (radio, CD...).
For optimum sound quality, the audio settings (Volume, Bass, Treble, Ambience, Loudness) can be adapted to the different sound sources,which may result in audible differences when changing source (radio, CD...).

Check that the audio settings (Volume, Bass, Treble, Ambience, Loudness) are adapted to the sources listened to. It is advisable to set the AUDIOfunctions (Bass, Treble, Front-Rear Balance, Left-Right Balance) to the middle position, select themusical ambience "None" and set the loudness correction to the "Active" position in CD mode or tothe "Inactive" position in radio mode.

The CD is ejected automatically or is not played by the player.
The CD is inserted upside down, is unplayable, does not contain any audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not recognised by the audio equipment.


- Check that the CD is inserted in the player the right way up.


- Check the condition of the CD: the CD cannot be played if it is too damaged.


- Check the content in the case of a recordedCD: consult the advice in the "Audio" section.


- The audio equipment's CD player does notplay DVDs.


- Due to their quality level, certain writeableCDs will not be played by the audio system.

The message "USB peripheral error" isdisplayed on the screen.

The Bluetooth connectionis cut.
The battery of the peripheral may not be suffi ciently charged.
Recharge the battery of the peripheral device.
The USB memory stick is not recognised.
The memory stick may be corrupt.

Reformat the memory stick.

The CD player sound ispoor.The CD used is scratched or of poor quality.
Insert good quality CDs and store them in suitable conditions.
The audio equipment settings (bass, treble, ambiences) are unsuitable. Set the treble or bass level to 0, without selectingan ambience.

231
ALPHABETICAL INDEX
P Paint colour code .......................171
Panoramic glass sunroof ..............67
Parking brake ..................... 110, 132
Parking sensors, rear .................123
Particle emission fi lter ........131, 132
Passenger compartment
fi lter ..........................................131
Player, CD MP3 ..................193, 213
Port, USB .....................80, 214, 216
Priming the fuel system ..............127
Protecting
children ................. 90-98, 105, 107
Puncture .....................................133
R Radio .................................. 191, 211
Reading lamps, rear .....................78
Rear foglamp ..............................145
Rear parcel shelf ....................87, 89
Rear screen (demisting) ...............47
Recharging the battery ...............156
Reduction of electrical load ........156
Reinitialising the electric
windows .....................................63
Reinitialising the remote
control ........................................60
Remote control .......................58, 61
Removing a wheel ......................140
Removing the mat ........................83
Repair kit, puncture ....................133
Replacing bulbs ..........................142
Replacing fuses ..........................148
Replacing the air fi lter ................131
Replacing the oil fi lter .................131
Replacing the particle
emission fi lter ...........................132R Replacing the passenger
compartment fi lter ....................131
Replacing wiper blades ........77, 157
Resetting the service indicator .....32
Resetting the trip recorder ............34
Rev counter ..................................22
Reversing lamp ..........................145
Risk areas (update) ....................188
Roof bars ....................................161
Roof blind .....................................67
Routine checks ...................131, 132
Running out of fuel (Diesel) ........127
S Safety for children .... 90-98, 105, 107
Scented air freshener ...................51
Screen, colour 16/9 ............178, 199
Screen,
monochrome ............210, 222, 224
Screen, multifunction (with audio
equipment) .....................35, 37, 39
Screen-wash reservoir ...............130
Screen menu map ......199, 222, 224
Screenwash .................................76
Screenwash fl uid level ...............130
Seat, rear bench ...........................54
Seat adjustment .....................52, 54
Seat back storage pockets ...........84
Seat belts ............................102-105
Serial number, vehicle ................171
Service indicator ...........................31
Servicing ......................................20
Setting the clock ...36, 198, 220, 221
Short-cut menus .................179, 180
Sidelamps ....................71, 143, 145
Side repeater ..............................143 L Localised emergency call ...........174
Locating your vehicle ...................59
Locking from the inside ................65
Long objects, transporting ............86
Low fuel level ...............................68
M Main beam ...........................71, 143
Maintenance .................................20
Map reading lamps ...............78, 147
Markings, identifi cation ...............171
Mat ...............................................83
Menu, main ................................210
Mirror, rear view ...........................57
Mirrors, door .................................56
Misfuel prevention ........................70
Motorway function
(direction indicators) ...................99
Mountings
for ISOFIX seats .........................95
MP3 CD ..............................193, 213
Music media players ..........192, 213
MyWay ................................175-206
N Navigation ..................................181
Number plate lamps ...................145
O Oil fi lter .......................................131
Oil level ................................33, 130
Opening the bonnet ....................126
Opening the boot ....................58, 66
Opening the doors ..................58, 64
Opening the fuel fi ller fl ap ............68
Operation indicator lamps .......23-30

232
ALPHABETICAL INDEX
S Ski fl ap .........................................86
Spare wheel ...............................138
Speed limiter .............................. 119
Speedometer ................................22
Stability control (ESP) ................101
Starting the vehicle ............... 59, 112
Steering mounted controls,
audio ................................177, 209
Stopping the vehicle ............. 59, 112
Stop & Start ............. 44, 49, 68, 116,
126, 131, 155
Storage ...................................80, 87
Storage box ..................................80
Storage boxes ..............................84
Storage drawer .............................82
Storage wells ................................87
Stowing rings ................................87
Sun visor ......................................81
Synchronising the remote
control ........................................60
System, navigation .....................181
Systems, ASR and ESP .............101
T Table of weights.........165, 167, 169 Table position...............................54Tables, aircraft..............................85Tables of engines.......164, 166,168 Tables of fuses...........................148Tank, fuel ................................68,70Technical data ............164, 166,168 Telephone ...........................195, 217
Temporary tyre repair kit ..........133
Ticket holder .................................83
TMC (Traffi c info) .......................189
Tools ...........................................138
T Torch ..............................79, 87, 147
Total distance recorder .................34
Towbar ........................................160
T
owed loads ...............165, 167, 169
Towing another vehicle ...............158
Traction control (ASR) ................101
Traffi c information
(TA) ..........................190, 191, 212
Traffi c information (TMC) ...189, 190
Trip computer ....................39, 42-44
Trip distance recorder ..................34
Tyre pressures ...........................171
Tyres ............................................20
U Unlocking .....................................58
Unlocking from the inside .............65
Update risk areas .......................188
Updating the date .........36, 220, 221
Updating the time .........36, 220, 221
USB Reader ...............................214
V Vehicle identifi cation ...................171
Ventilation ................................45-47
W Warning lamps ........................23-30
Wash-wipe, rear ...........................76
Wei
ghts ......................165, 167, 169
Window controls ...........................62
Wiper, rear ....................................76
Wiper control stalk ...................75-77
Wipers .....................................75-77
