B
A
3 7
II
W I P E R S
Check that the windscreen and rear wipers can operate freely when f o r e x a m p l e a b i c y c l e - c a r r i e r i s fi t t e d , o r i n f r e e z i n g c o n d i t i o n s .
Remove any accumulation of snow at the base of the windsc reen.
Changing the wiper blades
If you have to replace them, the wiper blades have to be parked in the maintenance position. For this, switch off the ignition and then within one minute move the wiper control stalk. The wipers stand up in a vertical position.
After replacement, switch on the ignition and move the wiper control stalk so that the wipers resume their normal position.
A. Windscreen wash
To operate the windscreen wash, pull the wiper stalk towards you.
The screen wash is accompanied by a timed wipe of the windscreen, the headlamp wash also activates if the dipped beams are on.
B. Rear screen wipe
First notch
Off.
Second notch
Intermittent rear wipe.
Third notch
T i m e d r e a r w a s h / w i p e .
Automatic wipe
When the windscreen wipers are operational and reverse gear is engaged.
A c t i v a t i o n / d e a c t i v a t i o n o f t h i s function is possible in the menu " P e r s o n a l i s a t i o n / C o n fi g u r a t i o n " i n the "Main menu".
Deactivation may be necessary when a bicycle-carrier is installed on the tailgate.
Page 43 of 102
4 3
II
ABS system
The ABS system enhances your safety by preventing the wheels from locking in the event of sudden braking or in conditions of poor road adherence. It enables you to retain control of the steering.
The functioning capability of all the electrical components essential to the ABS is monitored electronically before and during your journey. The ABS warning lamp lights up when you switch on the ignition: it should go out after a few seconds.
If the monitoring warning lamp does not go out, that means that the ABS has disconnected because there is a fault. Also, the fact that the monitoring warning lamp comes on durin g the journey shows that the ABS system is inactive. I n b o t h c a s e s , t h e n o r m a l b r a k i n g s y s t e m r e m a i n s e f fi c i e n t , e x a c t l y a s o n a v e h i c l e w i t h o u t A B S . H o w e v e r , i n o r d e r for the security associated with the correct functioning of the ABS to be restored, the vehicle should be examined as soon as possible by a CITROËN dealer.for the security associated with the correct associated with the
On roads with poor adherence (chippings, snow, ice etc.), it is always imperative to drive with prudence.
System of emergency braking assistance
(For vehicles with the ABS system)
The emergency braking assistance system helps you to attain the requ ired braking pressure more rapidly, thus to reduce the stopping distance. It operates as a function of the speed of action on the brake pedal, decreasing the resistance to this action. To prolong this action of the emerg ency braking assistance system, simply keep your foot on the brake pedal.
Emergency braking or sudden deceleration automatically operates th e hazard warning lamps. They will cease to operate automatically, or manually if you press the hazard lamps button on the dashboard.
W h e n b r a k i n g i n a n e m e r g e n c y , p r e s s d o w n fi r m l y o n t h e b r a k e p e d a l a n d d o n o t r e l e a s e a n y f o r c e .
B R A K E S
Page 45 of 102
A
B
45
III
Locking from the inside
A press on the control A operates the electric central locking and unlocking, provided all the doors are closed.
It is still possible to open the doors from the inside.
If one of the doors or the tailgate is open or not properly closed, the central locking does not operate.
The warning lamp associated with the control A signals 3 statuses: l t fl a s h e s w h e n t h e i g n i t i o n k e y i s i n t h e s t o p p o s i t i o n o r w h e n t h e k e y i s not detected and the doors are locked.
It lights up when the ignition key is in the "accessories" posit ion or "ignition + engine running" or starter position and if the doors are locked.
It goes out when the doors are not locked.Note: Control A is inactive if the vehicle has been locked using the remote control or the key.
Anti-theft
In all cases, as soon as the vehicle is moving (above a speed of 10 km/h), the tailgate locks automatically. The tailgate unlocks when a door is opened or when the interior locking/unlocking control is actioned.
Anti-theft protection
On starting the vehicle, the system automatically locks the doors a s soon as you reach approximately 10 km/h.Note: If a door has been opened, this will lock again automatically when the vehicle reaches approx. 10.
Activation/Deactivation of the function
After switching on the ignition, give a long press on the ce ntral unlocking button until a message is displayed.
Page 58 of 102
122
57
III
I N T E R I O R L I G H T I N G
1. Interior lamps
Move the control 1 to the 3 following positions.
Automatic lighting of the interior lampsOn entering the vehicle:
They come on as soon as the vehicle is unlocked or a door is opened.
They go out 30 seconds after the doors are closed or when ignition is switched on.On vacating the vehicle:
They come on as soon as the ignition key is removed (timed for 30 seconds), or when a door is opened.
They go out 30 seconds after all the doors have been closed or immediately after the vehicle has been locked.
2. Spotlamps
A press on one of the buttons 2 switches the corresponding spotlamp on or off.
These do not work if the ignition is off or in economy mode.
Page 95 of 102
97
0 2 S T E E R I N G M O U N T E D C O N T R O L S
RADIO: selection of the next stored station. Selection of the next item on a menu.
RADIO: selection of the previous stored station. Selection of the previous item on a menu.
R A D I O : a u t o m a t i c s e a r c h f o r a h i g h e r frequency. C D / M P 3 : s e l e c t i o n o f t h e n e x t t r a c k . CD : continuous press: fast forward play. Selection of the previous item.
RADIO: automatic search for a lower frequency. C D / M P 3 : s e l e c t i o n o f t h e p r e v i o u s t r a c k . C D : c o n t i n u o u s p r e s s : b a c k w a r d p l a y . Selection of the next item.
Volume increase.
Volume decrease.
M u t e : b y p r e s s i n g the volume increase and decrease buttons simultaneously.
Restore the sound by p r e s s i n g o n e o f t h e two volume buttons.
- C h a n g e o f s o u n d s o u r c e . - C o n fi r m a t i o n o f a s e l e c t i o n . - P i c k u p / H a n g u p t h e telephone. - Press for more than 2 seconds: access to the telephone menu.
Page 96 of 102
98
2 2
3 3
4 4
1
2 2
4 4
3 3
1 1
0 3 A U D I O
Press the SOURCE button several times in succession and select the radio.
Press the BAND AST button to select a waveband: FM1, FM2, FMast, AM.
B r i e fl y p r e s s o n e o f t h e b u t t o n s t o carry out an automatic search of the radio stations.
Press one of the buttons to carry out a manual search of the radio stations.
P r e s s t h e L I S T R E F R E S H b u t t o n t o display the list of stations received locally (30 stations maximum). To update this list, press for more than two seconds.
Select ACTIVATE FREQUENCY FOLLOWING (RDS) then press OK. RDS appears on the display.
Select the FM WAVEBAND PREFERENCES function then press OK.
Select AUDIO FUNCTIONS then press OK.
Press the MENU button.
T h e e x t e r n a l e n v i r o n m e n t ( h i l l s , b u i l d i n g s , t u n n e l s , b a s e m e n t c a r p a r k s ) m a y b l o c k r e c e p t i o n , i n c l u d i n g in RDS mode. This is a normal effect of the way in which radio waves are transmitted and does not indicate any failure of the audio equipment.
R D S
T h e R D S , i f d i s p l a y e d , e n a b l e s y o u t o c o n t i n u e l i s t e n i n g t o t h e s a m e s t a t i o n b y a u t o m a t i c r e t u n i n g t o a l t e r n a t i v e f r e q u e n c i e s . H o w e v e r , i n c e r t a i n c o n d i t i o n s , c o v e r a g e o f a n R D S s t a t i o n m a y n o t b e a s s u r e d t h r o u g h o u t t h e c o u n t r y a s r a d i o s t a t i o n s d o n o t c o v e r 1 0 0 % o f t h e t e r r i t o r y . T h i s e x p l a i n s t h e l o s s o f r e c e p t i o n o f t h e s t a t i o n d u r i n g a journey.
R A D I O
S E L E C T I N G A S T A T I O N
Page 101 of 102
103
There is a difference in sound quality between the different audio sources (radio, CD...).
C h e c k t h a t t h e a u d i o s e t t i n g s ( V o l u m e , B a s s , Treble, Ambience, Loudness) are adapted to the sources listened to. It is advisable to set the AUDIO functions (Bass, Treble, Front-Rear B a l a n c e , L e f t - R i g h t B a l a n c e ) t o t h e m i d d l e p o s i t i o n , s e l e c t t h e m u s i c a l a m b i e n c e " N o n e " a n d s e t t h e l o u d n e s s c o r r e c t i o n t o t h e " A c t i v e " p o s i t i o n i n C D m o d e o r t o t h e " I n a c t i v e " p o s i t i o n in radio mode.
F o r o p t i m u m s o u n d q u a l i t y , t h e a u d i o s e t t i n g s ( V o l u m e , B a s s , T r e b l e , Ambience, Loudness) can be adapted to the different sound sources, w h i c h m a y r e s u l t i n a u d i b l e d i f f e r e n c e s w h e n c h a n g i n g s o u r c e ( r a d i o , CD...).
The CD is ejected automatically or is not played by the player.
- C h e c k t h a t t h e C D i s i n s e r t e d i n t h e p l a y e r t h e r i g h t w a y u p . - C h e c k t h e c o n d i t i o n o f t h e C D : t h e C D c a n n o t b e p l a y e d i f i t i s t o o d a m a g e d . - C h e c k t h e c o n t e n t i n t h e c a s e o f a r e c o r d e d C D : c o n s u l t t h e a d v i c e i n t h e " A u d i o " s e c t i o n . - The audio equipment's CD player does not play DVDs. - Due to their quality level, certain writeable CDs will not be played by the audio system.
The CD is inserted upside down, is unplayable, doe s not contain any audio data or contains an audio format which the player cannot play.
T h e C D i s p r o t e c t e d b y a n a n t i - p i r a t i n g p r o t e c t i o n s y s t e m w h i c h i s n o t r e c o g n i s e d b y t h e a u d i o e q u i p m e n t .

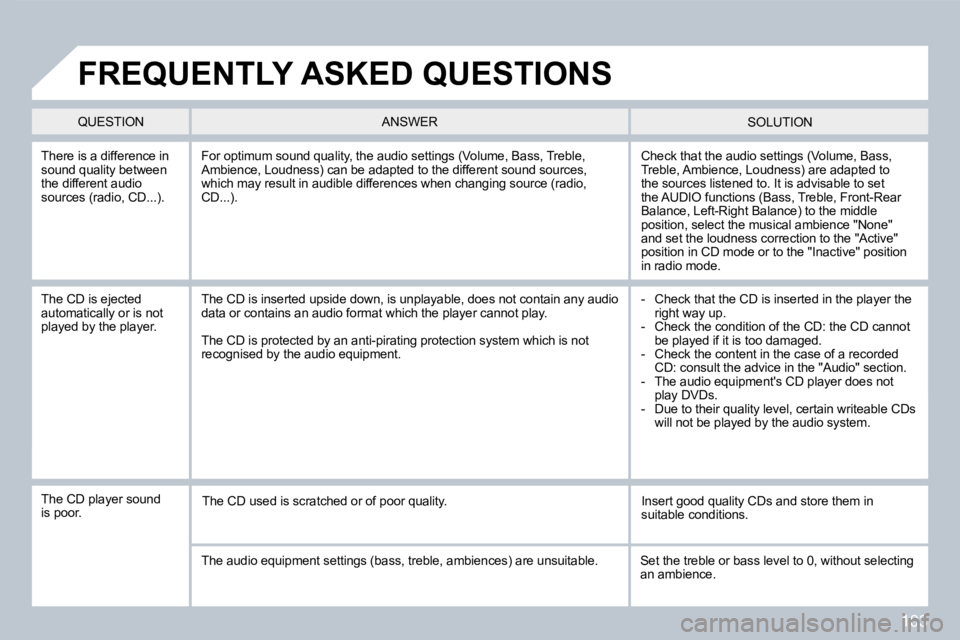

QUESTION SOLUTION ANSWER
F R E Q U E N T L Y A S K E D Q U E S T I O N S
The CD player sound is poor. The CD used is scratched or of poor quality. I n s e r t g o o d q u a l i t y C D s a n d s t o r e t h e m i n suitable conditions.
T h e a u d i o e q u i p m e n t s e t t i n g s ( b a s s , t r e b l e , a m b i e n c e s ) a r e u n s u i t a b l e . S e t t h e t r e b l e o r b a s s l e v e l t o 0 , w i t h o u t s e l e c t i n g an ambience.
