Practical information
83
As a safety measure, the motor will
not star t when the charging cable is
connected to the vehicle's socket.
Also, any attempt to star t the motor
interrupts the charging procedure. It
will then be necessary to disconnect
and reconnect the charging cable plug
to continue charging.
After charging, close the charging
socket cover and flap.
Take care to avoid the ingress of water
or dust to the socket and its cover
or the charging plug. Risk of fire or
electrocution.
After charging, do not leave the cable
connected to the electric power
point. There is a risk of shor t circuit
or electrocution if it is contacted or
immersed in water.
To optimise the ser vice life of the
main batter y, charge it completely
ever y 15 days.
For a complete charge, follow the
normal charging procedure (domestic
power point) without interruption, until it
stops automatically (charging warning
lamp off in the instrument panel).
)
The charging warning lamp in the
instrument panel goes off when charging
has finished.
)
Press the button to remove the charging
plug.
)
Refit the protective cover to the charging
cable.
)
Close the charging socket cover, then the
flap.
)
Disconnect the charging cable from the
power point.
)
Stow the charging cable in the bag
provided.
Vehicle out of use for a long
period
When your vehicle is going to be out of
use for a long period, charge the main
battery completely every three months
(following the normal charging
procedure).
Before charging, check that the
ancillaries battery is not disconnected
or discharged. If this is the case, refer
to the "ancillaries battery" section for
reconnecting or charging the battery.
Page 95 of 164
8
!
i
Practical information
93
2. Infl ation
)
Check that the compressor switch A
is in
the " OFF
" position.
)
Uncoil the compressor pipe B
.
)
Connect this pipe to the valve of the
repaired wheel.
)
Connect the compressor's electric plug to
the vehicle's 12 V socket (ignition switch in
position "ON" or "ACC").
)
Star t the compressor by turning the
switch A
to the "ON
" position.
)
Using the compressor, adjust the pressure
in accordance with the vehicle's tyre
pressure label (located in the driver's door
aperture).
A loss of pressure indicates that the
puncture has not been fully plugged;
contact a CITROËN dealer or a qualified
workshop for assistance.
)
Remove the compressor and stow the kit.
)
Drive off straight away at reduced speed
(50 mph [80 km/h] max) limiting the
distance travelled to approximately
120 miles (200 km).
As soon as possible, go to a CITROËN
dealer or a qualified workshop.
Tell the technician that you have used
the kit. After checking, the technician
will advise you whether the tyre can be
repaired or must be replaced.
If after around 5 to 7 minutes the
pressure is not attained, this indicates
that the tyre is not repairable; contact
a CITROËN dealer or a qualified
workshop for assistance.
Page 99 of 164
8
!
Practical information
97

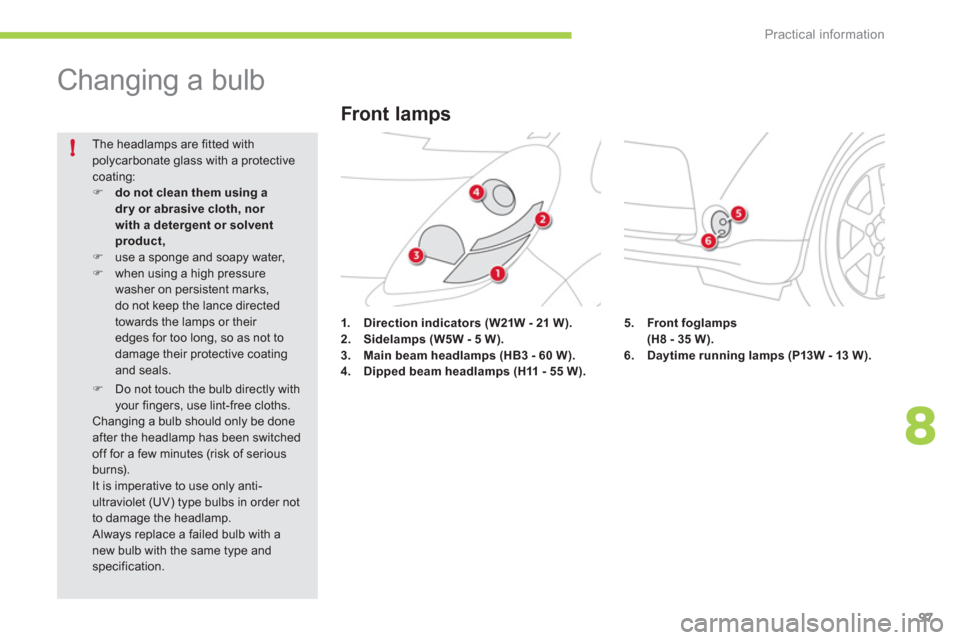

Changing a bulb
1.
Direction indicators
(W21W - 21 W).
2.
Sidelamps (W5W - 5 W).
3.
Main beam headlamps (HB3 - 60 W).
4.
Dipped beam headlamps (H11 - 55 W)
.
The headlamps are fitted with
polycarbonate glass with a protective
coating:
)
do not clean them using a
dr y or abrasive cloth, nor
with a detergent or solvent
product,
)
use a sponge and soapy water,
)
when using a high pressure
washer on persistent marks,
do not keep the lance directed
towards the lamps or their
edges for too long, so as not to
damage their protective coating
and seals.
)
Do not touch the bulb directly with
your fingers, use lint-free cloths.
Changing a bulb should only be done
after the headlamp has been switched
off for a few minutes (risk of serious
burns).
It is imperative to use only anti-
ultraviolet (UV) type bulbs in order not
to damage the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.
Front lamps
5.
Front foglamps
(H8 - 35 W).
6.
Daytime running lamps (P13W - 13 W).
Page 101 of 164
8
Practical information
99
)
Slacken fixing screw D
, while holding the
bumper away.
)
Slacken fixing screw E
.
)
Pull the lamp towards you, and disengage
the tab F
to remove it completely.
Page 104 of 164
i
i
Practical information
102
1.
Brake lamps/Sidelamps (LEDs).
2.
Direction indicators (W Y21W - 21 W).
3.
Reversing lamps (W21W - 21 W).
Rear lamps
Amber coloured bulbs, such as the
direction indicators, must be replaced
with bulbs of identical specification and
colour. In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.
Changing an integrated direction
indicator side repeater
(WY5W - 5 W)
)
Push the repeater towards the rear and
detach it.
)
Turn the bulb holder to the left and
pull it out.
)
Pull the bulb out and replace it.
To refit, carry out these operations in reverse
order.
Page 105 of 164
8
Practical information
103
Changing a direction indicator
bulb
)
Turn the bulb holder to the left and pull it out.
)
Pull the bulb out and replace it.
To refit, carry out these operations in reverse
order.

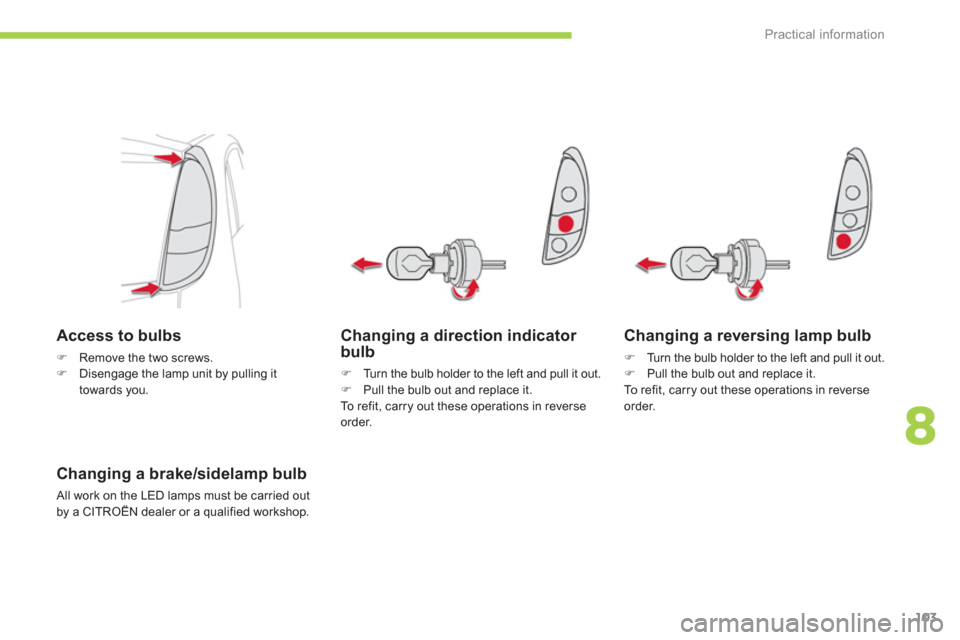

Access to bulbs
)
Remove the two screws.
)
Disengage the lamp unit by pulling it
towards you.
Changing a brake/sidelamp bulb
All work on the LED lamps must be carried out
by a CITROËN dealer or a qualified workshop.
Changing a reversing lamp bulb
)
Turn the bulb holder to the left and pull it out.
)
Pull the bulb out and replace it.
To refit, carry out these operations in reverse
order.
Page 107 of 164
8
i
!
Practical information
105
Changing a fuse
The extraction tweezer is fitted to the back of
the fusebox cover in the dashboard (right hand
side).
For access:
)
Unclip the cover and remove it completely
by pulling it towards you.
)
Remove the tweezer.
Access to tools
Before changing a fuse, the cause of
the failure must be identified
and rectified.
)
Check that the ignition switch is in
the " LOCK
" position.
)
Identify the failed fuse by checking
the condition of its filament.
Changing a fuse
Good Failed
)
Use the special tweezer to extract the fuse
from its location.
)
Always replace the failed fuse with a fuse
of the same rating.
)
Check that the number marked on the box,
the rating marked on the top of the fuse
and the tables below all agree. CITROËN will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying the malfunctions
resulting from the installation of
accessories not supplied and not
recommended by CITROËN and
not installed in accordance with its
instructions, in par ticular when the
consumption of all of the additional
equipment connected exceeds
10 milliamperes. Your vehicle’s electrical system is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories in your
vehicle, contact a CITROËN dealer or a
qualified workshop.
Page 111 of 164
8
Practical information
109
Access to the fuses
)
Open the bonnet (refer to the "Checks"
section),
)
Unclip the cover and remove it completely
by pulling towards you.
)
Change the fuse (refer to the
corresponding paragraph).
)
When you have finished, close the cover
carefully to ensure sealing of the fusebox.
Fuse N°
Rating
Functions
11
10 A
On-board charger.
12
10 A
Direction indicator.
13
10 A
Horn.
14
10 A
Daytime running lamps.
15
15 A
Battery fan.
16
10 A
Air conditioning compressor.
17
20 A
Right hand dipped beam.
18
20 A
Left hand dipped beam, headlamp adjusters.
19
10 A
Right hand main beam.
20
10 A
Left hand main beam.
