2011 Citroen BERLINGO FIRST technical data

3CONTENTS
-
113 - 124  AUDIO
Audio system 113
125 - 129  VISUAL INDEX 58 - 63  LIFE ON BOARD
Front layout 58
Courtesy lights 59
Headlamp adjustment 60
Steering wheel adjustment 60
Lashing rings 61
Rear layout 62
64 - 71  DRIVING
Le frein de stationnement 64
ABS and EBFD systems 64
Speed limiter 65
Cruise control 67
Airbags 69
72 - 97  PRACTICAL INFORMATION
Under the bonnet 72
Levels 77
Checks 78
Changing a wheel 79
Changing a bulb 82
Changing a fuse 88
Battery 92
Energy economy mode 92
Fitting audio equipment, speakers 93
Snow screen 94
Towing 95
Towing a trailer 96
Accessories 97
98 - 112  TECHNICAL DATA
Dimensions 98
Engines 102
Light van weights and loads 106
Ludospace weights
and loads 108
Identifi cation features 112

TECHNICAL DATA
98 -
EXTERIOR DIMENSIONS (IN MM)

99 TECHNICAL DATA
-




Light van
Ludospace


L1


4 137


L2


4 437


H


1 796 to 1 819
1 810







A


2 693


B


836


C


608


D


570
550


E


1 440
1 440 or 1 452


F


1 960


G


1 420
1 420 or 1 436


I


1 724

TECHNICAL DATA
100 -
INTERIOR DIMENSIONS (IN MM) AND VOLUMES (IN M3) LIGHT VAN



L1



L2




J


1 155


K


1 320


M


1 190


N


1 190


O


568


P


1 340
1 640


m
3


3.25
3.6

101 TECHNICAL DATA
-
INTERIOR DIMENSIONS (IN MM) LUDOSPACE






L1



L2




Row 2
bench seat
in position




- normal



1.25
1.75



- fully folded



2.8
3.25
VOLUMES (IN M3) LUDOSPACE 7 SEAT VERSION






L2




Row 2 and
row 3 bench
seats in
position




- normal



0.2



- fully folded



3
3)LUDOSPACE 5 SEAT VERSION

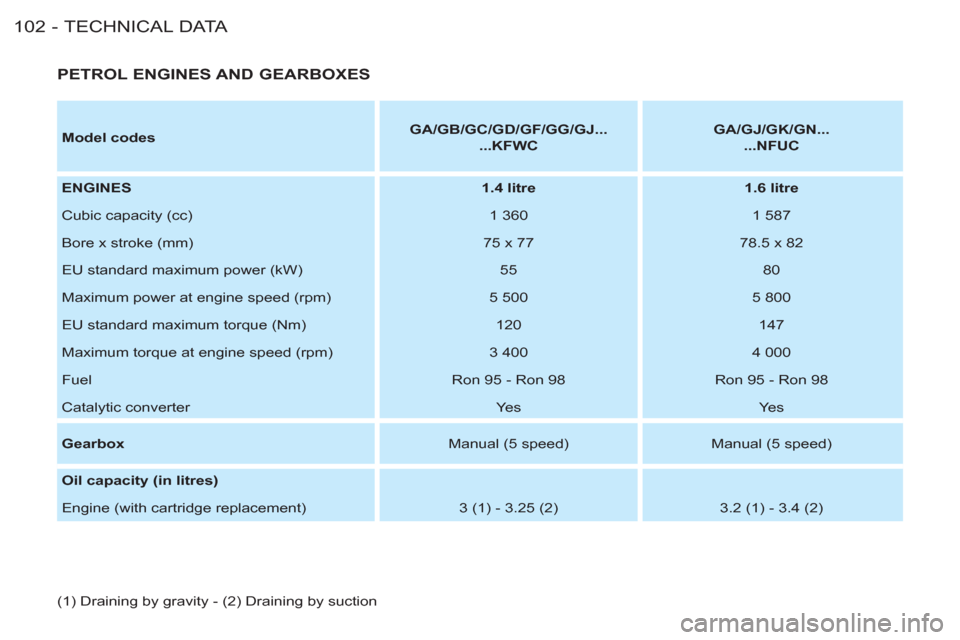

TECHNICAL DATA
102 -

PETROL ENGINES AND GEARBOXES


Model codes


GA/GB/GC/GD/GF/GG/GJ...


...KFWC



GA/GJ/GK/GN...


...NFUC



ENGINES


1.4 litre



1.6 litre


Cubic capacity (cc)
1 360
1 587
Bore x stroke (mm)
75 x 77
78.5 x 82
EU standard maximum power (kW)
55
80
Maximum power at engine speed (rpm)
5 500
5 800
EU standard maximum torque (Nm)
120
147
Maximum torque at engine speed (rpm)
3 400
4 000
Fuel
Ron 95 - Ron 98
Ron 95 - Ron 98
Catalytic converter
Yes
Yes

Gearbox

Manual (5 speed)
Manual (5 speed)

Oil capacity (in litres)


Engine (with cartridge replacement)
3 (1) - 3.25 (2)
3.2 (1) - 3.4 (2)
(1) Draining by gravity - (2) Draining by suction

103 TECHNICAL DATA
-

Model codes


GA/GB/GC/GD/GF/GG/
GJ/GK/GN...


...9HWC



GA/GB/GC/GD/GF/GG/
GJ/GK/GN
...
... 9HXC



GA/GB/GC/GD/GF/GG/
GJ/GK/GN...


... WJYB



ENGINES


1.6 litre Turbo HDI 75



1.6 litre Turbo HDI 92



1.9 litre


Cubic capacity (cc)
1 560
1 560
1 867
Bore x stroke (mm)
75 x 88.3
75 x 88.3
82.2 x 88
EU standard maximum power (kW)
55
66
51
Maximum power at engine speed (rpm)
4 000
4 000
4 600
EU standard maximum torque (Nm)
175
215
125
Maximum torque at engine speed (rpm)
1 750
1 750
2 500
Fuel
Diesel
Diesel
Diesel
Catalytic converter
Yes
Ye s
Yes

Gearbox

Manual (5 speed)
Manual (5 speed)
Manual (5 speed)

Oil capacity (in litres)


Engine (with cartridge replacement)
3.75
3.8
4.8


DIESEL ENGINES AND GEARBOXES

TECHNICAL DATA
104 -









Quality of the fuel used for petrol engines









Quality of the fuel used for Diesel engines


The petrol engines are perfectly compatible with E10 type petrol biofuels (containing 10 % ethanol), conforming to European
standards EN 228 and EN 15376.
E85 type fuels (containing up to 85 % ethanol) are reserved exclusively for vehicles marketed for the use of this type of fuel
(BioFlex vehicles). The quality of the ethanol must comply with European standard EN 15293.
For Brazil only, special vehicles are marketed to run on fuels containing up to 100 % ethanol (E100 type).


The Diesel engines are perfectly compatible with biofuels which conform to current and future European standards (Diesel
fuel which complies with standard EN 590 mixed with a biofuel which complies with standard EN 14214) available at the
pumps (containing up to 7 % Fatty Acid Methyl Ester).
The B30 biofuel can be used in certain Diesel engines; however, this use is subject to strict application of the special servicing
conditions. Contact a CITROËN dealer or a qualifi ed workshop.
The use of any other type of (bio)fuel (vegetable or animal oils, pure or diluted, domestic fuel...) is strictly prohibited (risk of
damage to the engine and fuel system).
