5 FAMILIARISATION
-
INSTRUMENTS AND CONTROLS
12.
Windscreen demisting vents.
13.
Speaker (tweeter).
14.
Door window demisting vents.
15.
Side adjustable heating/
ventilation vents.
16.
Passenger's airbag deactivation
switch.
17.
Upper glove box or passenger's
airbag.
18.
Lower glove box.
19.
Audio system.
20.
Heating/air conditioning controls.
21.
Storage compartment.
22.
Portable ashtray.
23.
Gear lever.
24.
Cigarette lighter.
25.
Parking brake.
26.
Heated seats control.
27.
Steering lock and ignition.
28.
Steering wheel adjustment
control.
29.
Bonnet release.
30.
Fusebox.
31.
Headlamp height adjustment.
32.
Passenger's electric mirror control.
1.
Speed limiter/cruise control
switches.
2.
Lighting and direction indicators
control stalk.
3.
Driver's airbag.
Horn.
4.
Instrument panel.
5.
Audio system steering mounted
controls.
6.
Wipers/screenwash control stalk.
7.
Central adjustable heating/
ventilation vents.
8.
Hazard warning lamps switch.
9.
Multifunction screen or clock.
10.
Central locking button.
11 .
Controls:
- Electric windows.
- Rear door windows or tailgate
demisting.
- Air conditioning.
89 PRACTICAL INFORMATION
-
Fuse
Rating
Functions
1
15A
Rear wiper.
4
20A
Multi-function scren - Instrument panel -
Audio system - Steering mounted controls.
5
-
Not used.
6
10A
Diagnostic socket.
7
-
Not used.
9
30A
Heated seats.
10
40A
Rear window and door mirrors demisting.
11
15A
Rear wiper (tailgate).
12
30A
Front electric windows.
14
10A
Engine fusebox - Steering mounted controls.
15
15A
Instrument panel - Multi-function screen -
Audio system.
16
30A
Locking/unlocking controls for doors,
bonnet and boot.
20
10A
Right-hand brake lamp.
21
15A
Left-hand brake lamp.
22
20A
Front courtesy lamp - Map reading lamp -
Cigarette lighter - Electric mirror.
VISUAL INDEX126 -
INSTRUMENTS AND CONTROLS
Overhead storage, sun visor,
courtesy lamp ................14, 58-59
Rear view mirrors ....................... 57
Instrument panel, dials,
speedometer ............................ 18
Warning lamps,
indicator lamps ....................19-21
Indicators, displays, screen ...21-25
Setting the time, dimmer,
resetting to zero ..................23-24
Interior fuses ..........................88-90
Parking brake,
handbrake .......................... 64, 78
Front fi ttings ...........................58-59
Electric windows ......................... 56
Signal/hazard warning
lamps ........................................ 60
Audio system ..................... 113-124
Fitting audio equipment,
speakers ................................... 93
Heating/Air conditioning.........26-31
- vent, demisting, defrosting,
- air conditioning A/C,
- air recirculation,
- ventilation.
Opening the bonnet .............. 16, 53

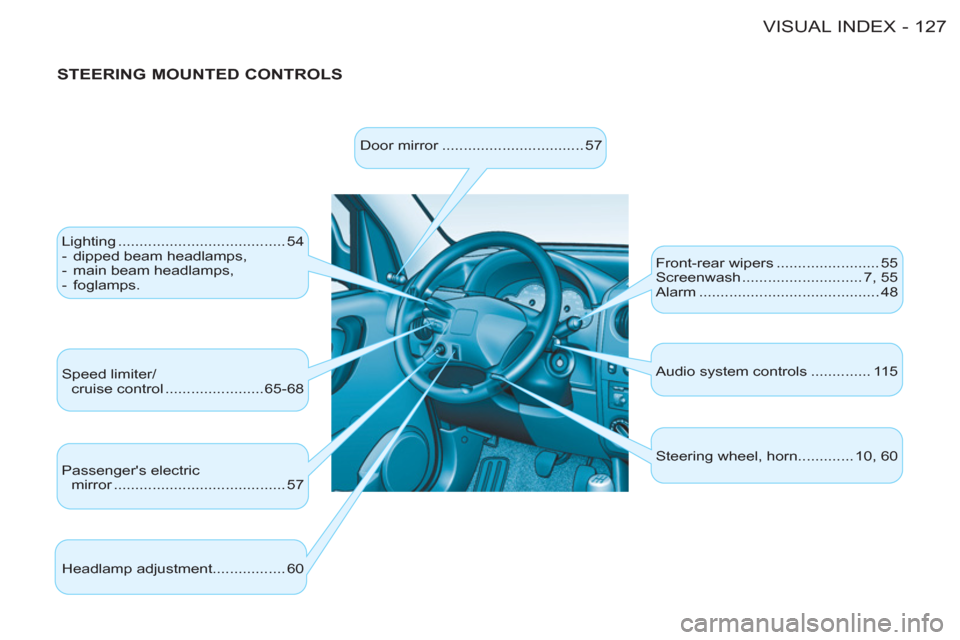

127 VISUAL INDEX-
STEERING MOUNTED CONTROLS
Lighting ....................................... 54
- dipped beam headlamps,
- main beam headlamps,
- foglamps.
Speed limiter/
cruise control .......................65-68
Passenger's electric
mirror ........................................ 57
Door mirror ................................. 57
Headlamp adjustment................. 60 Audio system controls .............. 115
Steering wheel, horn............. 10, 60
Front-rear wipers ........................ 55
Screenwash ............................ 7, 55
Alarm .......................................... 48
