2011 CADILLAC ESCALADE HYBRID maintenance

Black plate (19,1)Cadillac Escalade Hybrid - 2011
Vehicle Care 10-19
When a low tire pressure condition
is detected, the TPMS will illuminate
the low tire pressure warning
symbol located on the instrument
panel cluster. If the warning light
comes on, stop as soon as possible
and inflate the tires to the
recommended pressure shown on
the tire loading information label.
See “ Vehicle Load Limits ” in the
owner manual for more information.
At the same time a message to
check the pressure in a specific tire
appears on the Driver Information
Center (DIC) display. The low tire
pressure warning light and the DIC
warning message come on at each
ignition cycle until the tires are
inflated to the correct inflation
pressure. Using the DIC, tire
pressure levels can be viewed by
the driver. For additional information and details about the DIC operation
and displays see Driver Information
Center (DIC) on page 5 ‑ 5 .
The low tire pressure warning light
may come on in cool weather when
the vehicle is first started, and then
turn off as you start to drive. This
could be an early indicator that the
air pressure in the tire(s) are getting
low and need to be inflated to the
proper pressure.
A Tire and Loading Information
label, attached to your vehicle,
shows the size of your vehicle's
original equipment tires and the
correct inflation pressure for your
vehicle's tires when they are cold.
See “ Vehicle Load Limits ” for an
example of the Tire and Loading
Information label and its location on
your vehicle. Also see Tire Pressure
on page 10 ‑ 17 .
Your vehicle's TPMS can warn you
about a low tire pressure condition
but it does not replace normal tire maintenance. See “ Tire Inspection, ”
“ Tire Rotation ” and “ Tires ” in the
owner manual for more information.
Notice: Tire sealant materials are
not all the same. A non-approved
tire sealant could damage the Tire
Pressure Monitor System (TPMS)
sensors. TPMS sensor damage
caused by using an incorrect tire
sealant is not covered by the
vehicle warranty. Always use only
the GM approved tire sealant
available through your dealer or
included in the vehicle.
Your vehicle, when new, included a
factory ‐ installed Tire Sealant and
Compressor Kit. This kit uses a GM
approved liquid tire sealant. See
Tire Sealant and Compressor Kit on
page 10 ‑ 24 .

Black plate (22,1)Cadillac Escalade Hybrid - 2011
10-22 Vehicle Care
Tire Rotation Tires should be rotated every
12 000 km (7,500 miles).
Any time you notice unusual
wear, rotate your tires as soon
as possible and check wheel
alignment. Also check for
damaged tires or wheels. See
“ When It Is Time for New Tires ”
and “ Wheel Replacement ” in the
owner manual for more
information.
The purpose of regular rotation
is to achieve more uniform wear
for all tires on the vehicle. The
first rotation is the most
important. See “ Scheduled
Maintenance ” in the owner
manual. When rotating your tires, always
use the correct rotation pattern
shown here.
After the tires have been
rotated, adjust the front and rear
inflation pressures as shown on
the Tire and Loading Information
label. See “ Vehicle Load Limits ”
in the owner manual for an
example of the label and its
location on your vehicle. The Tire Pressure Monitor
System (TPMS) sensors will
need to be reset after a tire
rotation. See “ TPMS Sensor
Identification Codes ” under “ Tire
Pressure Monitor Operation ” .
Make certain that all wheel nuts
are properly tightened. See
“ Wheel Nut Torque ” under
“ Capacities and Specifications ”
in the owner manual.
Lightly coat the center of the
wheel hub with wheel bearing
grease after a wheel change or
tire rotation to prevent corrosion
or rust build-up. Do not get
grease on the flat wheel
mounting surface or on the
wheel nuts or bolts.

Black plate (1,1)Cadillac Escalade Hybrid - 2011
Service and Maintenance 11-1
Service and
Maintenance Scheduled Maintenance Scheduled Maintenance . . . . . 11-1
Recommended Fluids,
Lubricants, and Parts Recommended Fluids and
Lubricants . . . . . . . . . . . . . . . . . . 11-2
Scheduled
Maintenance In addition to the scheduled
maintenance services described in
the owner manual, the following
service should be performed. Once a Year
This vehicle has a Tire Sealant and
Compressor Kit. Check the sealant
expiration date printed on the
instruction label of the kit. See Tire
Sealant and Compressor Kit on
page 10 ‑ 24 .

Black plate (2,1)Cadillac Escalade Hybrid - 2011

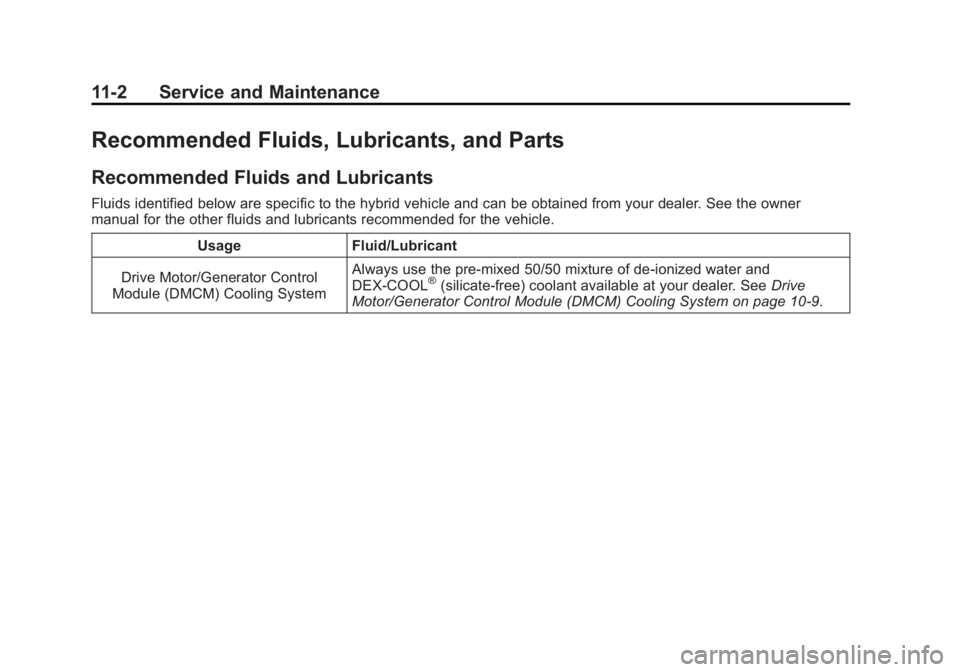

11-2 Service and Maintenance
Recommended Fluids, Lubricants, and Parts Recommended Fluids and Lubricants Fluids identified below are specific to the hybrid vehicle and can be obtained from your dealer. See the owner
manual for the other fluids and lubricants recommended for the vehicle.
Usage Fluid/Lubricant
Drive Motor/Generator Control
Module (DMCM) Cooling System Always use the pre-mixed 50/50 mixture of de ‐ ionized water and
DEX-COOL ®
(silicate-free) coolant available at your dealer. See Drive
Motor/Generator Control Module (DMCM) Cooling System on page 10 ‑ 9 .

Black plate (2,1)Cadillac Escalade Hybrid - 2011
i-2 INDEX
FFlat Tire . . . . . . . . . . . . . . . . . . . . . . 10-23
Fluid
Automatic Transmission . . . . . . 10-6
Four-Wheel Drive
Transfer Case . . . . . . . . . . . . . . . 9-11
Power Steering . . . . . . . . . . . . . 10-13
Four-Wheel Drive . . . . . . . 10-14, 9-11
Fuel Economy Gauge . . . . . . . . . . 5-3
Fuses
Engine Compartment
Fuse Block . . . . . . . . . . . . . . . . 10-15
Fuses and Circuit
Breakers . . . . . . . . . . . . . . . . . . 10-15
GGauges
Fuel Economy . . . . . . . . . . . . . . . . . 5-3
Tachometer . . . . . . . . . . . . . . . . . . . . 5-3 H Heater
Engine Coolant . . . . . . . . . . . . . . . . 9-4
Heating and Air Conditioning . . . 8-1
High Voltage Devices and
Wiring . . . . . . . . . . . . . . . . . . . . . . . 10-15
I Instrument Cluster . . . . . . . . . . . . . . 5-2
Introduction . . . . . . . . . . . . . . . . . . . ii, 7-1
J Jump Starting . . . . . . . . . . . . . . . . . 10-31
L Lights
Charging System . . . . . . . . . . . . . . 5-4
Engine Oil Pressure . . . . . . . . . . . 5-4 M Maintenance Schedule
Recommended Fluids and
Lubricants . . . . . . . . . . . . . . . . . . . 11-2
Scheduled Maintenance . . . . . . 11-1
Transfer Case . . . . . . . . . . . . . . . . 9-11
Manual Mode . . . . . . . . . . . . . . . . . . 9-10
Messages
Battery Voltage and
Charging . . . . . . . . . . . . . . . . . . . . . 5-6
Brake System . . . . . . . . . . . . . . . . . 5-6
Door Ajar . . . . . . . . . . . . . . . . . . . . . . 5-6
Engine Oil . . . . . . . . . . . . . . . . . . . . . 5-7
Service Vehicle . . . . . . . . . . . . . . . . 5-7
Transmission . . . . . . . . . . . . . . . . . . 5-7
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . 5-5
O Oil
Messages . . . . . . . . . . . . . . . . . . . . . 5-7
Pressure Light . . . . . . . . . . . . . . . . . 5-4

Black plate (3,1)Cadillac Escalade Hybrid - 2011
INDEX i-3
PPark
Shifting Into . . . . . . . . . . . . . . . . . . . . 9-5
Power
Steering Fluid . . . . . . . . . . . . . . . 10-13
RRear Storage . . . . . . . . . . . . . . . . . . . 4-1
Recommended Fluids and
Lubricants . . . . . . . . . . . . . . . . . . . . 11-2
Recreational Vehicle
Towing . . . . . . . . . . . . . . . . . . . . . . 10-36
Regenerative Braking . . . . . . . . . . 9-16
Replacement Parts
Airbags . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Replacing Airbag System . . . . . . . 3-1
Rotation, Tires . . . . . . . . . . . . . . . . 10-22
Routing, Engine Drive Belt . . . . . 12-3
Running the Vehicle While
Parked . . . . . . . . . . . . . . . . . . . . . . . . 9-7 S Scheduled Maintenance . . . . . . . 11-1
Sealant Kit, Tire . . . . . . . . . . . . . . 10-24
Service
Doing Your Own Work . . . . . . . . 10-2
Vehicle Messages . . . . . . . . . . . . . 5-7
Shifting
Into Park . . . . . . . . . . . . . . . . . . . . . . . 9-5
Specifications and
Capacities . . . . . . . . . . . . . . . . . . . . 12-2
Starting the Vehicle . . . . . . . . . . . . . 9-2
Steering . . . . . . . . . . . . . . . . . . . . . . . . 9-1
Fluid, Power . . . . . . . . . . . . . . . . 10-13
Storage
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Storing the Tire Sealant
and Compressor Kit . . . . . . . . . 10-31
Supplement
Using . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii T Tachometer . . . . . . . . . . . . . . . . . . . . . 5-3
Tires
If a Tire Goes Flat . . . . . . . . . . 10-23
Inflation Monitor System . . . . 10-18
Rotation . . . . . . . . . . . . . . . . . . . . 10-22
Sealant and
Compressor Kit . . . . . . . . . . . 10-24
Sealant and Compressor
Kit, Storing . . . . . . . . . . . . . . . . 10-31
Towing
Equipment . . . . . . . . . . . . . . . . . . . . 9-17
Recreational Vehicle . . . . . . . . 10-36
Trailer . . . . . . . . . . . . . . . . . . . . . . . . 9-16
Trailer Towing . . . . . . . . . . . . . . . . . 9-16
Transfer Case . . . . . . . . . . . . . . . . . 9-11
Transmission
Automatic . . . . . . . . . . . . . . . . . . . . . . 9-7
Fluid, Automatic . . . . . . . . . . . . . . 10-6
Messages . . . . . . . . . . . . . . . . . . . . . 5-7
