10-24 Vehicle Care After repairing a tire with the tire
inflator kit, take your vehicle to an
authorized dealer to have the tire
inspected and repaired as soon as
possible. The tire sealant is a
temporary repair only. See Tire
Sealant and Compressor Kit on
page 10 ‑ 24 .
Tire Sealant and
Compressor Kit
{ WARNINGIdling a vehicle in an enclosed
area with poor ventilation is
dangerous. Engine exhaust may
enter the vehicle. Engine exhaust
contains Carbon Monoxide (CO)
which cannot be seen or smelled.
It can cause unconsciousness
and even death. Never run the
engine in an enclosed area that
has no fresh air ventilation. For
more information, see ” Engine
Exhaust ” in the owner manual. { WARNINGOver-inflating a tire could cause
the tire to rupture and you or
others could be injured. Be sure
to read and follow the tire sealant
and compressor kit instructions
and inflate the tire to its
recommended pressure. Do not
exceed the recommended
pressure.
{ WARNINGStoring the tire sealant and
compressor kit or other
equipment in the passenger
compartment of the vehicle could
cause injury. In a sudden stop or
collision, loose equipment could
strike someone. Store the tire
sealant and compressor kit in its
original location. If this vehicle has a tire sealant and
compressor kit, there may not be a
spare tire, tire changing equipment,
and on some vehicles there may not
be a place to store a tire.
The tire sealant and compressor
can be used to temporarily seal
punctures up to 6 mm (¼ inch) in
the tread area of the tire. It can also
be used to inflate an under
inflated tire.
If the tire has been separated from
the wheel, has damaged sidewalls,
or has a large puncture, the tire is
too severely damaged for the tire
sealant and compressor kit to be
effective. See “ Roadside Assistance
Program ” in the owner manual.
Read and follow all of the tire
sealant and compressor kit
instructions.

Black plate (25,1)Cadillac Escalade Hybrid - 2011
Vehicle Care 10-25The kit includes:

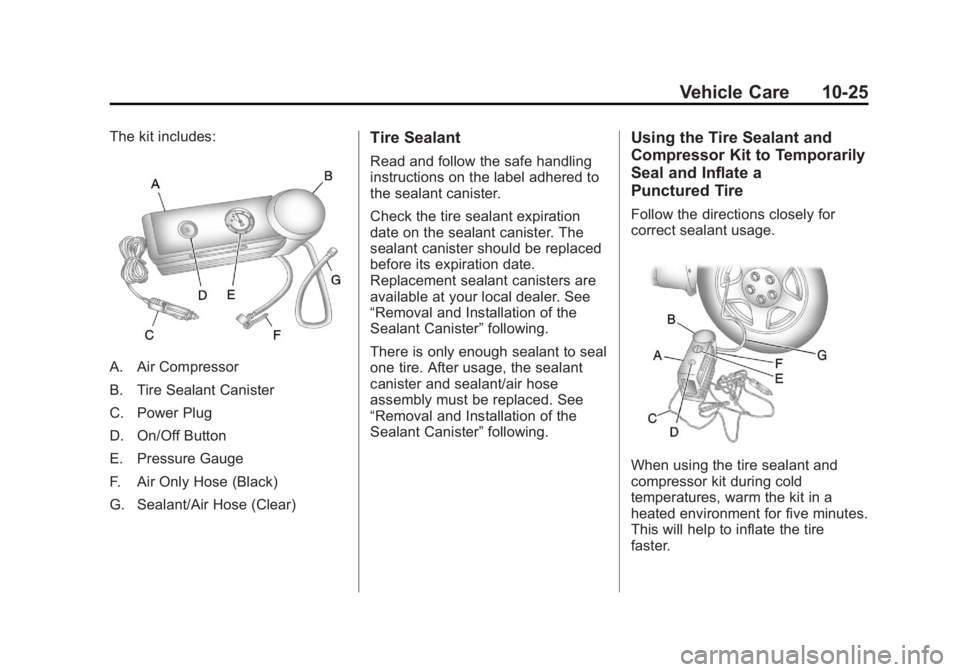

A. Air Compressor
B. Tire Sealant Canister
C. Power Plug
D. On/Off Button
E. Pressure Gauge
F. Air Only Hose (Black)
G. Sealant/Air Hose (Clear) Tire Sealant Read and follow the safe handling
instructions on the label adhered to
the sealant canister.
Check the tire sealant expiration
date on the sealant canister. The
sealant canister should be replaced
before its expiration date.
Replacement sealant canisters are
available at your local dealer. See
“ Removal and Installation of the
Sealant Canister ” following.
There is only enough sealant to seal
one tire. After usage, the sealant
canister and sealant/air hose
assembly must be replaced. See
“ Removal and Installation of the
Sealant Canister ” following. Using the Tire Sealant and
Compressor Kit to Temporarily
Seal and Inflate a
Punctured Tire Follow the directions closely for
correct sealant usage.
When using the tire sealant and
compressor kit during cold
temperatures, warm the kit in a
heated environment for five minutes.
This will help to inflate the tire
faster.

Black plate (26,1)Cadillac Escalade Hybrid - 2011
10-26 Vehicle Care If a tire goes flat, avoid further tire
and wheel damage by driving slowly
to a level place. Turn on the hazard
warning flashers.
See If a Tire Goes Flat on
page 10 ‑ 23 for other important
safety warnings.
Do not remove any objects that
have penetrated the tire.
1. Remove the tire sealant and
compressor kit from its storage
location. See Storing the Tire
Sealant and Compressor Kit on
page 10 ‑ 31 .
Make sure the on/off button (D)
is in the off (O) position.
2. Unwrap the sealant/air hose (G)
and the power plug (C).
3. Place the kit on the ground.
Make sure the tire valve stem is
positioned close to the ground
so the hose will reach it.
4. Remove the valve stem cap from
the flat tire by turning it
counterclockwise. 5. Attach the sealant/air hose (G)
onto the tire valve stem. Turn it
clockwise until it is tight.
6. Plug the power plug (C) into the
accessory power outlet in the
vehicle. Unplug all items from
other accessory power outlets.
See “ Power Outlets ” in the
owner manual.
If the vehicle has an accessory
power outlet, do not use the
cigarette lighter.
If the vehicle only has a cigarette
lighter, use the cigarette lighter.
Do not pinch the power plug
cord in the door or window.
7. Start the vehicle. The vehicle
must be running while using the
air compressor.
8. Press the on/off (D) button to
turn the tire sealant and
compressor kit on.
The compressor will inject
sealant and air into the tire. The pressure gauge (E) will
initially show a high pressure
while the compressor pushes the
sealant into the tire. Once the
sealant is completely dispersed
into the tire, the pressure will
quickly drop and start to rise
again as the tire inflates with
air only.
9. Inflate the tire to the
recommended inflation pressure
using the pressure gauge (E).
The recommended inflation
pressure can be found on the
Tire and Loading Information
label. See Tire Pressure on
page 10 ‑ 17 .
The pressure gauge (E) may
read higher than the actual tire
pressure while the compressor is
on. Turn the compressor off to
get an accurate pressure
reading. The compressor may
be turned on/off until the correct
pressure is reached.

Black plate (27,1)Cadillac Escalade Hybrid - 2011
Vehicle Care 10-27Notice: If the recommended
pressure cannot be reached after
approximately 25 minutes, the
vehicle should not be driven
farther. The tire is too severely
damaged and the tire sealant and
compressor kit cannot inflate the
tire. Remove the power plug from
the accessory power outlet and
unscrew the inflating hose from
the tire valve. See “ Roadside
Assistance Program ” in the
owner manual.
10. Press the on/off button (D) to
turn the tire sealant and
compressor kit off.
The tire is not sealed and will
continue to leak air until the
vehicle is driven and the
sealant is distributed in the tire,
therefore, Steps 11 through
17 must be done immediately
after Step 10.
Be careful while handling the
tire sealant and compressor kit
as it could be warm after
usage. 11. Unplug the power plug (C) from
the accessory power outlet in
the vehicle.
12. Turn the sealant/air hose (G)
counterclockwise to remove it
from the tire valve stem.
13. Replace the tire valve
stem cap.
14. Replace the sealant/air
hose (G), and the power
plug (C) back in their original
location.
15. If the flat tire was able to
inflate to the recommended
inflation pressure, remove the
maximum speed label from the
sealant canister (B) and place
it in a highly visible location. Do not exceed the speed on
this label until the damaged tire
is repaired or replaced.
16. Return the equipment to its
original storage location in the
vehicle.
17. Immediately drive the vehicle
8 km (5 miles) to distribute the
sealant in the tire.
18. Stop at a safe location and
check the tire pressure. Refer
to Steps 1 through 11 under
“ Using the Tire Sealant and
Compressor Kit without Sealant
to Inflate a Tire (Not
Punctured). ”
If the tire pressure has fallen
more than 68 kPa (10 psi)
below the recommended
inflation pressure, stop driving
the vehicle. The tire is too
severely damaged and the tire
sealant cannot seal the tire.
See “ Roadside Assistance
Program ” in the owner manual.

Black plate (28,1)Cadillac Escalade Hybrid - 2011
10-28 Vehicle Care If the tire pressure has not
dropped more than 68 kPa
(10 psi) from the recommended
inflation pressure, inflate the
tire to the recommended
inflation pressure.
19. Wipe off any sealant from the
wheel, tire or vehicle.
20. Dispose of the used sealant
canister (B) and sealant/air
hose (G) assembly at a local
dealer or in accordance with
local state codes and practices.
21. Replace it with a new canister
available from your dealer.
22. After temporarily sealing a tire
using the tire sealant and
compressor kit, take the
vehicle to an authorized dealer
within a 161 km (100 miles) of
driving to have the tire repaired
or replaced. Using the Tire Sealant and
Compressor Kit without
Sealant to Inflate a Tire (Not
Punctured) To use the air compressor to inflate
a tire with air only and not sealant:
If a tire goes flat, avoid further tire
and wheel damage by driving slowly
to a level place. Turn on the hazard
warning flashers. See If a Tire Goes Flat on
page 10 ‑ 23 for other important
safety warnings.
1. Remove the tire sealant and
compressor kit from its storage
location. See Storing the Tire
Sealant and Compressor Kit on
page 10 ‑ 31 .
2. Unlock the air only hose (F) from
the sealant canister (B) by
pulling up on the lever.
3. Pull the air only hose (F) from
the sealant canister (B).
4. Remove the power plug (C) from
the air compressor (A).
5. Place the kit on the ground.
Make sure the tire valve stem is
positioned close to the ground
so the hose will reach it.

Black plate (29,1)Cadillac Escalade Hybrid - 2011
Vehicle Care 10-296. Remove the tire valve stem cap
by turning it counterclockwise.
7. Attach the air only hose (F) onto
the tire valve stem and press the
lever down to secure it.
8. Plug the power plug (C) into the
accessory power outlet in the
vehicle. Unplug all items from
other accessory power outlets.
See “ Power Outlets ” in the
owner manual.
If the vehicle has an accessory
power outlet, do not use the
cigarette lighter.
If the vehicle only has a cigarette
lighter, use the cigarette lighter.
Do not pinch the power plug
cord in the door or window.
9. Start the vehicle. The vehicle
must be running while using the
air compressor. 10. Press the on/off (D) button to
turn the compressor on.
The compressor will inflate the
tire with air only.
11. Inflate the tire to the
recommended inflation
pressure using the pressure
gauge (E). The recommended
inflation pressure can be found
on the Tire and Loading
Information label. See Tire
Pressure on page 10 ‑ 17 .
The pressure gauge (E) may
read higher than the actual tire
pressure while the compressor
is on. Turn the compressor off
to get an accurate reading. The
compressor may be turned on/
off until the correct pressure is
reached. 12. Press the on/off button (D) to
turn the tire sealant and
compressor kit off.
Be careful while handling the
tire sealant and compressor kit
as it could be warm after
usage.
13. Unplug the power plug (C) from
the accessory power outlet in
the vehicle.
14. Disconnect the air only
hose (C) from the tire valve
stem, by turning it
counterclockwise, and replace
the tire valve stem cap.
15. Replace the air only hose (F)
and the power plug (C) back in
its original location.
16. Place the equipment in the
original storage location in the
vehicle.

Black plate (2,1)Cadillac Escalade Hybrid - 2011
i-2 INDEX
FFlat Tire . . . . . . . . . . . . . . . . . . . . . . 10-23
Fluid
Automatic Transmission . . . . . . 10-6
Four-Wheel Drive
Transfer Case . . . . . . . . . . . . . . . 9-11
Power Steering . . . . . . . . . . . . . 10-13
Four-Wheel Drive . . . . . . . 10-14, 9-11
Fuel Economy Gauge . . . . . . . . . . 5-3
Fuses
Engine Compartment
Fuse Block . . . . . . . . . . . . . . . . 10-15
Fuses and Circuit
Breakers . . . . . . . . . . . . . . . . . . 10-15
GGauges
Fuel Economy . . . . . . . . . . . . . . . . . 5-3
Tachometer . . . . . . . . . . . . . . . . . . . . 5-3 H Heater
Engine Coolant . . . . . . . . . . . . . . . . 9-4
Heating and Air Conditioning . . . 8-1
High Voltage Devices and
Wiring . . . . . . . . . . . . . . . . . . . . . . . 10-15
I Instrument Cluster . . . . . . . . . . . . . . 5-2
Introduction . . . . . . . . . . . . . . . . . . . ii, 7-1
J Jump Starting . . . . . . . . . . . . . . . . . 10-31
L Lights
Charging System . . . . . . . . . . . . . . 5-4
Engine Oil Pressure . . . . . . . . . . . 5-4 M Maintenance Schedule
Recommended Fluids and
Lubricants . . . . . . . . . . . . . . . . . . . 11-2
Scheduled Maintenance . . . . . . 11-1
Transfer Case . . . . . . . . . . . . . . . . 9-11
Manual Mode . . . . . . . . . . . . . . . . . . 9-10
Messages
Battery Voltage and
Charging . . . . . . . . . . . . . . . . . . . . . 5-6
Brake System . . . . . . . . . . . . . . . . . 5-6
Door Ajar . . . . . . . . . . . . . . . . . . . . . . 5-6
Engine Oil . . . . . . . . . . . . . . . . . . . . . 5-7
Service Vehicle . . . . . . . . . . . . . . . . 5-7
Transmission . . . . . . . . . . . . . . . . . . 5-7
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . 5-5
O Oil
Messages . . . . . . . . . . . . . . . . . . . . . 5-7
Pressure Light . . . . . . . . . . . . . . . . . 5-4

Black plate (3,1)Cadillac Escalade Hybrid - 2011
INDEX i-3
PPark
Shifting Into . . . . . . . . . . . . . . . . . . . . 9-5
Power
Steering Fluid . . . . . . . . . . . . . . . 10-13
RRear Storage . . . . . . . . . . . . . . . . . . . 4-1
Recommended Fluids and
Lubricants . . . . . . . . . . . . . . . . . . . . 11-2
Recreational Vehicle
Towing . . . . . . . . . . . . . . . . . . . . . . 10-36
Regenerative Braking . . . . . . . . . . 9-16
Replacement Parts
Airbags . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Replacing Airbag System . . . . . . . 3-1
Rotation, Tires . . . . . . . . . . . . . . . . 10-22
Routing, Engine Drive Belt . . . . . 12-3
Running the Vehicle While
Parked . . . . . . . . . . . . . . . . . . . . . . . . 9-7 S Scheduled Maintenance . . . . . . . 11-1
Sealant Kit, Tire . . . . . . . . . . . . . . 10-24
Service
Doing Your Own Work . . . . . . . . 10-2
Vehicle Messages . . . . . . . . . . . . . 5-7
Shifting
Into Park . . . . . . . . . . . . . . . . . . . . . . . 9-5
Specifications and
Capacities . . . . . . . . . . . . . . . . . . . . 12-2
Starting the Vehicle . . . . . . . . . . . . . 9-2
Steering . . . . . . . . . . . . . . . . . . . . . . . . 9-1
Fluid, Power . . . . . . . . . . . . . . . . 10-13
Storage
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Storing the Tire Sealant
and Compressor Kit . . . . . . . . . 10-31
Supplement
Using . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii T Tachometer . . . . . . . . . . . . . . . . . . . . . 5-3
Tires
If a Tire Goes Flat . . . . . . . . . . 10-23
Inflation Monitor System . . . . 10-18
Rotation . . . . . . . . . . . . . . . . . . . . 10-22
Sealant and
Compressor Kit . . . . . . . . . . . 10-24
Sealant and Compressor
Kit, Storing . . . . . . . . . . . . . . . . 10-31
Towing
Equipment . . . . . . . . . . . . . . . . . . . . 9-17
Recreational Vehicle . . . . . . . . 10-36
Trailer . . . . . . . . . . . . . . . . . . . . . . . . 9-16
Trailer Towing . . . . . . . . . . . . . . . . . 9-16
Transfer Case . . . . . . . . . . . . . . . . . 9-11
Transmission
Automatic . . . . . . . . . . . . . . . . . . . . . . 9-7
Fluid, Automatic . . . . . . . . . . . . . . 10-6
Messages . . . . . . . . . . . . . . . . . . . . . 5-7
