2011 CADILLAC ESCALADE ESV instrument cluster

Black plate (3,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
In Brief 1-3A. Air Vents on page 8 ‑ 8 .
B. Turn and Lane ‐ Change Lever.
See Turn and Lane-Change
Signals on page 6 ‑ 9 .
Windshield Wiper/Washer on
page 5 ‑ 5 .
C. Instrument Cluster on
page 5 ‑ 12 .
D. Hazard Warning Flashers on
page 6 ‑ 8 .
E. Shift Lever. See Automatic
Transmission on page 9 ‑ 40 .
Driver Shift Control (DSC). See
Manual Mode on page 9 ‑ 43 .
F. Tow/Haul Mode on page 9 ‑ 43 .
G. Driver Information Center (DIC)
Buttons. See Driver Information
Center (DIC) on page 5 ‑ 26 . H. Clock on page 5 ‑ 8 .
I. Infotainment on page 7 ‑ 2 .
J. StabiliTrak ®
System on
page 9 ‑ 47 .
Rear Park Aid Disable Button.
See Ultrasonic Parking Assist
on page 9 ‑ 54 .
K. Steering Wheel Adjustment on
page 5 ‑ 2 .
L. Exterior Lamp Controls on
page 6 ‑ 1 .
M. Dome Lamp Override. See
Dome Lamps on page 6 ‑ 10 .
Instrument Panel Illumination
Control on page 6 ‑ 10 .
Fog Lamps on page 6 ‑ 9 .
N. Data Link Connector (DLC)
(Out of View). See Malfunction
Indicator Lamp on page 5 ‑ 18 . O. Automatic Transfer Case
Control (Hybrid only). See the
hybrid supplement for more
information.
P. Cruise Control on page 9 ‑ 51 .
Heated Steering Wheel on
page 5 ‑ 5 (If Equipped).
Q. Horn on page 5 ‑ 5 .
R. Steering Wheel Controls on
page 5 ‑ 3 .
S. Dual Automatic Climate Control
System on page 8 ‑ 1 .
T. Pedal Adjust Button. See
Adjustable Throttle and Brake
Pedal on page 9 ‑ 31 .
Power Assist Steps on
page 2 ‑ 13 (If Equipped).
U. Glove Box on page 4 ‑ 1 .

Black plate (19,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
In Brief 1-19
Driver Information
Center (DIC) The DIC display is located at the
bottom of the instrument panel
cluster. It shows the status of
many vehicle systems and enables
access to the personalization menu.
The DIC buttons are located on
the instrument panel, next to the
steering wheel. 3 : Press to display the
odometer, trip odometer, fuel
range, average economy, fuel
used, timer, transmission
temperature, instantaneous
economy, and average vehicle
speed. The compass and outside
air temperature will also be shown
in the display. The temperature will
be shown in °C or °F depending on
the units selected.
T : Press to display the oil life,
units, side blind zone system on/off,
tire pressure readings for vehicles
with the Tire Pressure Monitor
System (TPMS), compass zone
setting, and compass recalibration.
U : Press to customize the feature
settings on your vehicle. See
Vehicle Personalization on
page 5 ‑ 40 for more information. V : Press to set or reset certain
functions and to turn off or
acknowledge messages on the DIC.
For more information, see Driver
Information Center (DIC) on
page 5 ‑ 26 .
Vehicle Customization Some vehicle features can be
programmed by using the DIC
buttons next to the steering wheel.
These features include: .
Language .
Door Lock and Unlock Settings .
RKE Lock and Unlock Feedback .
Lighting .
Chime Volume .
Memory Features .
Digital Speedometer Display
See Vehicle Personalization on
page 5 ‑ 40 .

Black plate (15,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
Keys, Doors and Windows 2-15
Immobilizer Operation This vehicle has PASS-Key ®
III+
(Personalized Automotive Security
System) theft-deterrent system.
PASS-Key III+ is a passive
theft-deterrent system.
The system is automatically armed
when the key is removed from the
ignition.
The system is automatically
disarmed when the key is turned
to ON/RUN, ACC/ACCESSORY,
or START from the LOCK/OFF
position.
You do not have to manually arm or
disarm the system.
The security light will come on if
there is a problem with arming or
disarming the theft-deterrent
system.
When the PASS-Key III+ system
senses that someone is using the
wrong key, it prevents the vehicle
from starting. Anyone using a trial-and-error method to start the
vehicle will be discouraged because
of the high number of electrical key
codes.
If the engine does not start and the
security light on the instrument
panel cluster comes on when trying
to start the vehicle, there may be a
problem with the theft-deterrent
system. Turn the ignition off and try
again.
If the engine still does not start, and
the key appears to be undamaged,
try another ignition key. At this time,
you may also want to check the
fuse. See Fuses and Circuit
Breakers on page 10 ‑ 39 . If the
engine still does not start with the
other key, the vehicle needs service.
If the vehicle does start, the first key
may be faulty. See your dealer who
can service the PASS-Key III+ to
have a new key made.
It is possible for the PASS-Key III+
decoder to learn the transponder
value of a new or replacement key. Up to 10 keys may be programmed
for the vehicle. The following
procedure is for programming
additional keys only. If all the
currently programmed keys are lost
or do not operate, you must see
your dealer or a locksmith who can
service PASS-Key III+ to have keys
made and programmed to the
system.
See your dealer or a locksmith who
can service PASS-Key III+ to get a
new key blank cut exactly as the
ignition key that operates the
system.
To program the new additional key:
1. Verify that the new key has
a
1 stamped on it.
2. Insert the original, already
programmed key in the ignition
and start the engine. If the
engine will not start, see your
dealer for service.

Black plate (37,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
Seats and Restraints 3-37
{ WARNINGAirbags inflate with great force,
faster than the blink of an eye.
Anyone who is up against, or
very close to, any airbag when it
inflates can be seriously injured
or killed. Do not sit unnecessarily
close to any airbag, as you would
be if you were sitting on the edge
of the seat or leaning forward.
Safety belts help keep you in
position before and during a
crash. Always wear a safety belt,
even with airbags. The driver
should sit as far back as possible
while still maintaining control of
the vehicle.
Occupants should not lean on or
sleep against the door or side
windows in seating positions with
seat-mounted side impact airbags
and/or roof-rail airbags. { WARNINGChildren who are up against,
or very close to, any airbag
when it inflates can be seriously
injured or killed. Airbags plus
lap-shoulder belts offer protection
for adults and older children, but
not for young children and infants.
Neither the vehicle safety belt
system nor its airbag system
is designed for them. Young
children and infants need the
protection that a child restraint
system can provide. Always
secure children properly in the
vehicle. To read how, see Older
Children on page 3 ‑ 51 or Infants
and Young Children on
page 3 ‑ 53 . There is an airbag readiness light
on the instrument panel cluster,
which shows the airbag symbol.
The system checks the airbag
electrical system for malfunctions.
The light tells you if there is an
electrical problem. See Airbag
Readiness Light on page 5 ‑ 16 for
more information.

Black plate (1,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
Instruments and Controls 5-1
Instruments and
Controls Controls Steering Wheel Adjustment . . . 5-2
Steering Wheel Controls . . . . . . 5-3
Heated Steering Wheel . . . . . . . 5-5
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5
Windshield Wiper/Washer . . . . . 5-5
Rear Window Wiper/
Washer . . . . . . . . . . . . . . . . . . . . . . 5-6
Compass . . . . . . . . . . . . . . . . . . . . . 5-6
Clock . . . . . . . . . . . . . . . . . . . . . . . . . 5-8
Power Outlets . . . . . . . . . . . . . . . . . 5-9
Cigarette Lighter . . . . . . . . . . . . . 5-10
Ashtrays . . . . . . . . . . . . . . . . . . . . . 5-11 Warning Lights, Gauges, and
Indicators Warning Lights, Gauges, and
Indicators . . . . . . . . . . . . . . . . . . . 5-11
Instrument Cluster . . . . . . . . . . . 5-12
Speedometer . . . . . . . . . . . . . . . . 5-13
Odometer . . . . . . . . . . . . . . . . . . . . 5-13
Trip Odometer . . . . . . . . . . . . . . . 5-13
Tachometer . . . . . . . . . . . . . . . . . . 5-13
Fuel Gauge . . . . . . . . . . . . . . . . . . 5-13
Engine Coolant Temperature
Gauge . . . . . . . . . . . . . . . . . . . . . . 5-14
Safety Belt Reminders . . . . . . . 5-15
Airbag Readiness Light . . . . . . 5-16
Passenger Airbag Status
Indicator . . . . . . . . . . . . . . . . . . . . 5-16
Charging System Light . . . . . . 5-18
Malfunction
Indicator Lamp . . . . . . . . . . . . . 5-18 Brake System Warning
Light . . . . . . . . . . . . . . . . . . . . . . . 5-21
Antilock Brake System (ABS)
Warning Light . . . . . . . . . . . . . . 5-22
Tow/Haul Mode Light . . . . . . . . 5-23
StabiliTrak ®
Indicator Light . . . 5-23
Tire Pressure Light . . . . . . . . . . 5-23
Engine Oil Pressure Light . . . . 5-24
Security Light . . . . . . . . . . . . . . . . 5-25
High-Beam On Light . . . . . . . . . 5-25
Front Fog Lamp Light . . . . . . . . 5-25
Lamps On Reminder . . . . . . . . . 5-25
Cruise Control Light . . . . . . . . . 5-25
Information Displays Driver Information
Center (DIC) . . . . . . . . . . . . . . . 5-26

Black plate (12,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
5-12 Instruments and Controls

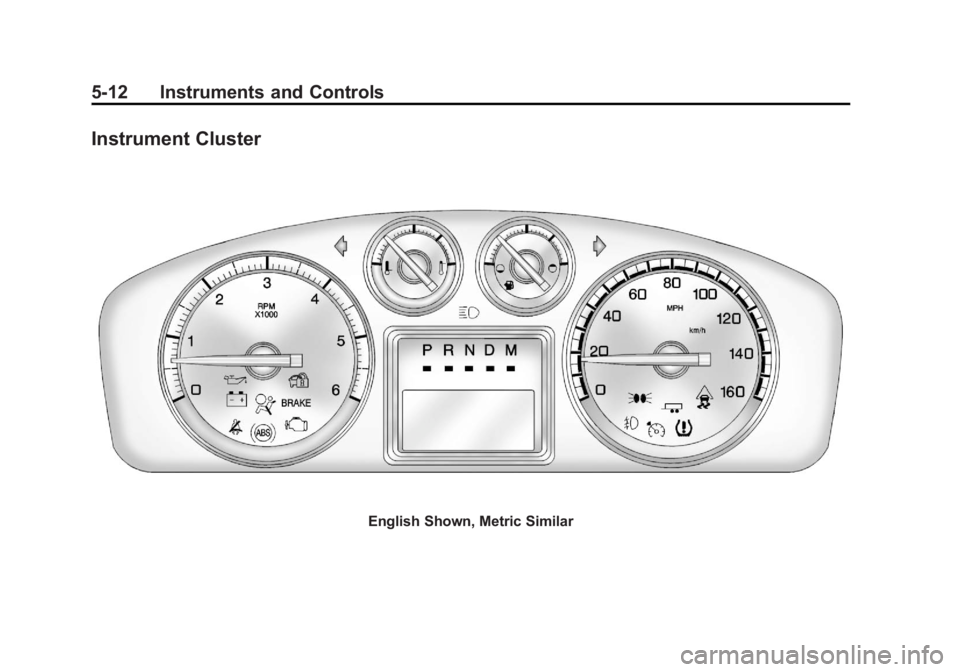

Instrument Cluster
English Shown, Metric Similar

Black plate (13,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
Instruments and Controls 5-13If the vehicle is a hybrid, see the
hybrid supplement for more
information.
Speedometer The speedometer shows the vehicle
speed in both kilometers per hour
(km/h) and miles per hour (mph).
Odometer The vehicle's odometer works
together with the Driver Information
Center (DIC). The Trip odometer can
be set. See “ Trip Odometer ” under
Driver Information Center (DIC) on
page 5 ‑ 26 for more information.
To check the odometer mileage
while the vehicle is not running,
press the trip stem on the
instrument panel cluster. If the vehicle ever needs a new
odometer installed, the new one will
be set to the correct mileage total of
the old odometer.
Trip Odometer The trip odometer can show how far
the vehicle has been driven since
the trip odometer was last set
to zero.
For more information see “ Trip
Odometer ” under Driver Information
Center (DIC) on page 5 ‑ 26 .
Tachometer The tachometer displays the engine
speed in revolutions per
minute (rpm). Fuel Gauge
When the ignition is on, the fuel
gauge shows about how much fuel
the vehicle has left in the tank.
An arrow on the fuel gauge
indicates the side of the vehicle the
fuel door is on.
The gauge will first indicate empty
before the vehicle is out of fuel, but
the vehicle's fuel tank should be
filled soon.

Black plate (26,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
5-26 Instruments and Controls
Information Displays Driver Information
Center (DIC) Your vehicle has a Driver
Information Center (DIC).
The DIC displays information
about your vehicle. It also displays
warning messages if a system
problem is detected. The DIC
also allows some features to
be customized. See Vehicle
Personalization on page 5 ‑ 40
for more information.
All messages will appear in the DIC
display located in the center of the
instrument panel cluster.
The DIC comes on when the ignition
is on. After a short delay, the DIC
will display the information that was
last displayed before the engine
was turned off. Operation and Displays The DIC has different displays
which can be accessed by pressing
the DIC buttons located on the
instrument panel, next to the
steering wheel.
The DIC displays trip, fuel, and
vehicle system information, and
warning messages if a system
problem is detected. A digital
speedometer also appears at the
bottom of the DIC display. The
digital speedometer can be
enabled or disabled. See “ DISPLAY
DIGITAL SPEED ” under Vehicle
Personalization on page 5 ‑ 40 for
more information. DIC Buttons
The buttons are the trip/fuel,
vehicle information, customization,
and set/reset buttons. The button
functions are detailed in the
following pages.
3 (Trip/Fuel): Press to display
the odometer, trip odometer, fuel
range, average economy, fuel
used, timer, transmission
temperature, instantaneous
economy, and average vehicle
