Black plate (84,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
10-84 Vehicle Care
The remote negative ( − ) terminal
is a stud located on the right
front of the engine, where the
negative battery cable attaches.
See Engine Compartment
Overview on page 10 ‑ 6 for more
information on the location of the
remote positive (+) and remote
negative ( − ) terminals. { WARNINGAn electric fan can start up even
when the engine is not running
and can injure you. Keep hands,
clothing and tools away from any
underhood electric fan.
{ WARNINGUsing an open flame near a
battery can cause battery gas to
explode. People have been hurt
doing this, and some have been
blinded. Use a flashlight if you
need more light.
Be sure the battery has enough
water. You do not need to add
water to the battery installed in
your new vehicle. But if a battery
has filler caps, be sure the right
amount of fluid is there. If it is low,
(Continued) WARNING (Continued) add water to take care of that
first. If you do not, explosive gas
could be present.
Battery fluid contains acid that
can burn you. Do not get it on
you. If you accidentally get it in
your eyes or on your skin, flush
the place with water and get
medical help immediately.
{ WARNING
Fans or other moving engine
parts can injure you badly. Keep
your hands away from moving
parts once the engine is running.
5. Check that the jumper cables
do not have loose or missing
insulation. If they do, you could
get a shock. The vehicles could
be damaged too.

Black plate (85,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
Vehicle Care 10-85Before you connect the cables,
here are some basic things you
should know. Positive (+) will go
to positive (+) or to a remote
positive (+) terminal if the vehicle
has one. Negative ( − ) will go to a
heavy, unpainted metal engine
part or to a remote negative ( − )
terminal if the vehicle has one.
Do not connect positive (+) to
negative ( − ) or you will get a
short that would damage the
battery and maybe other parts
too. And do not connect the
negative ( − ) cable to the
negative ( − ) terminal on the
dead battery because this can
cause sparks. 6. Connect the red positive (+)
cable to the positive (+) terminal
of the vehicle with the dead
battery. Use a remote
positive (+) terminal if the
vehicle has one.
7. Do not let the other end
touch metal. Connect it to
the positive (+) terminal of the
good battery. Use a remote
positive (+) terminal if the vehicle
has one. 8. Now connect the black
negative ( − ) cable to the
negative ( − ) terminal of the
good battery. Use a remote
negative ( − ) terminal if the
vehicle has one.
Do not let the other end touch
anything until the next step. The
other end of the negative ( − )
cable does not go to the dead
battery. It goes to a heavy,
unpainted metal engine part
or to the remote negative ( − )
terminal on the vehicle with the
dead battery.
9. Connect the other end of the
negative ( − ) cable to the remote
negative ( − ) terminal, on the
vehicle with the dead battery.
10. Now start the vehicle with
the good battery and run the
engine for a while.

Black plate (86,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
10-86 Vehicle Care 11. Try to start the vehicle that
had the dead battery. If it will
not start after a few tries, it
probably needs service.
Notice: If the jumper cables are
connected or removed in the
wrong order, electrical shorting
may occur and damage the
vehicle. The repairs would not be
covered by the vehicle warranty.
Always connect and remove the
jumper cables in the correct
order, making sure that the
cables do not touch each other

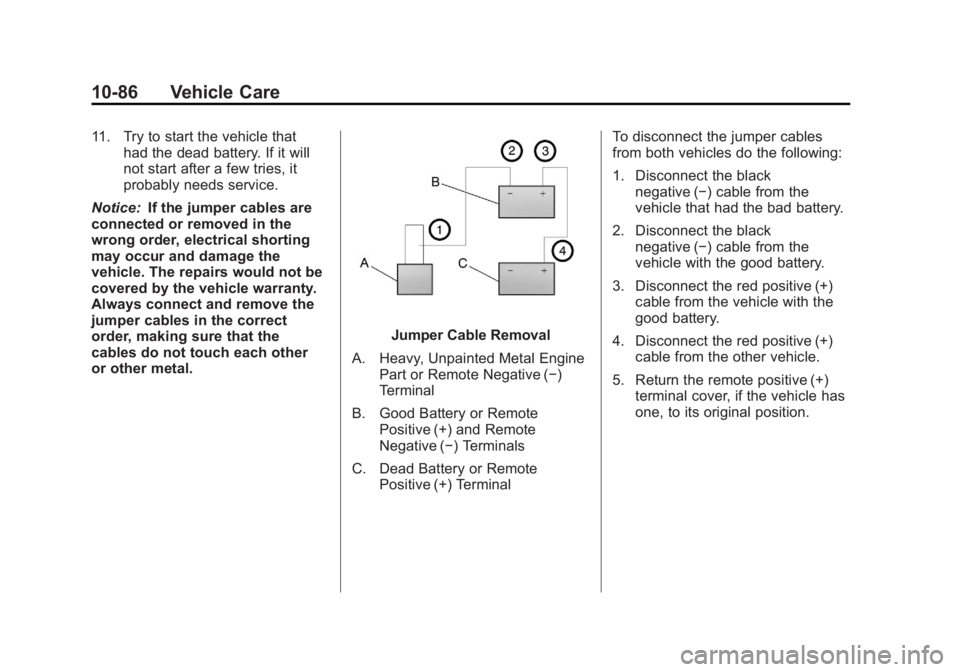

or other metal. Jumper Cable Removal
A. Heavy, Unpainted Metal Engine
Part or Remote Negative ( − )
Terminal
B. Good Battery or Remote
Positive (+) and Remote
Negative ( − ) Terminals
C. Dead Battery or Remote
Positive (+) Terminal To disconnect the jumper cables
from both vehicles do the following:
1. Disconnect the black
negative ( − ) cable from the
vehicle that had the bad battery.
2. Disconnect the black
negative ( − ) cable from the
vehicle with the good battery.
3. Disconnect the red positive (+)
cable from the vehicle with the
good battery.
4. Disconnect the red positive (+)
cable from the other vehicle.
5. Return the remote positive (+)
terminal cover, if the vehicle has
one, to its original position.

Black plate (19,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
Customer Information 13-19
OnStar ®
If the vehicle is equipped with an
active OnStar system, that system
may also record data in crash or
near crash ‐ like situations. The
OnStar Terms and Conditions
provides information on data
collection and use and is available
in the OnStar glove box kit, at
www.onstar.com (U.S.) or
www.onstar.ca (Canada), or by
pressing the
Q button and
speaking to an advisor.
Navigation System If the vehicle has a navigation
system, use of the system may
result in the storage of destinations,
addresses, telephone numbers, and
other trip information. See Using the
Navigation System on page 7 ‑ 60 for
information on stored data and for
deletion instructions. Radio Frequency
Identification (RFID) RFID technology is used in some
vehicles for functions such as tire
pressure monitoring and ignition
system security, as well as in
connection with conveniences
such as key fobs for remote door
locking/unlocking and starting, and
in-vehicle transmitters for garage
door openers. RFID technology in
GM vehicles does not use or record
personal information or link with
any other GM system containing
personal information. Radio Frequency
Statement This vehicle has systems that
operate on a radio frequency that
comply with Part 15 of the Federal
Communications Commission (FCC)
rules and with Industry Canada
Standards RSS ‐ 210/220/310.
Operation is subject to the following
two conditions:
1. The device may not cause
interference.
2. The device must accept any
interference received, including
interference that may cause
undesired operation of the
device.
Changes or modifications to any of
these systems by other than an
authorized service facility could void
authorization to use this equipment.

Black plate (6,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
i-6 INDEX High-Beam On Light . . . . . . . . . . . 5-25
High-Speed Operation . . . . . . . . 10-54
Highway Hypnosis . . . . . . . . . . . . . 9-20
Hill and Mountain Roads . . . . . . . 9-20
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . 10-5
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5
How to Wear Safety Belts
Properly . . . . . . . . . . . . . . . . . . . . . . 3-22
IIgnition Positions . . . . . . . . . . . . . . 9-32
Ignition Transmission Lock
Check . . . . . . . . . . . . . . . . . . . . . . . 10-31
Immobilizer . . . . . . . . . . . . . . . . . . . . 2-14
Infants and Young Children,
Restraints . . . . . . . . . . . . . . . . . . . . 3-53
Infotainment . . . . . . . . . . . . . . . . . . . . 7-2
Instrument Cluster . . . . . . . . . . . . . 5-12
Introduction . . . . . . . . . . . . . . . . . . . . . . . iii
JJump Starting . . . . . . . . . . . . . . . . . 10-82 K Key and Lock Messages . . . . . . . 5-35
Keyless Entry
Remote (RKE) System . . . . . . . . 2-3
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
L Labeling, Tire Sidewall . . . . . . . . 10-48
Lamp Messages . . . . . . . . . . . . . . . 5-35
Lamps
Daytime Running (DRL) . . . . . . . 6-6
Dome . . . . . . . . . . . . . . . . . . . . . . . . . 6-10
Exterior Controls . . . . . . . . . . . . . . . 6-1
Exterior Lamps Off
Reminder . . . . . . . . . . . . . . . . . . . . 6-5
License Plate . . . . . . . . . . . . . . . 10-37
Malfunction Indicator . . . . . . . . . 5-18
On Reminder . . . . . . . . . . . . . . . . . 5-25
Reading . . . . . . . . . . . . . . . . . . . . . . 6-11
Lap Belt . . . . . . . . . . . . . . . . . . . . . . . 3-33
Lap-Shoulder Belt . . . . . . . . . . . . . 3-27
LATCH System
Replacing Parts After a
Crash . . . . . . . . . . . . . . . . . . . . . . . 3-67 LATCH, Lower Anchors and
Tethers for Children . . . . . . . . . . 3-59
LED Lighting . . . . . . . . . . . . . . . . . . 10-36
Level Control
Automatic . . . . . . . . . . . . . . . . . . . . . 9-50
Liftgate
Carbon Monoxide . . . . . . . . 2-9, 2-10
Lighter, Cigarette . . . . . . . . . . . . . . 5-10
Lighting
Entry . . . . . . . . . . . . . . . . . . . . . . . . . 6-11
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-11
Illumination Control . . . . . . . . . . . 6-10
LED . . . . . . . . . . . . . . . . . . . . . . . . 10-36
Lights
Airbag Readiness . . . . . . . . . . . . . 5-16
Antilock Brake System
(ABS) Warning . . . . . . . . . . . . . . 5-22
Brake System Warning . . . . . . . 5-21
Charging System . . . . . . . . . . . . . 5-18
Cruise Control . . . . . . . . . . . . . . . . 5-25
Engine Oil Pressure . . . . . . . . . . 5-24
Flash-to-Pass . . . . . . . . . . . . . . . . . . 6-6
Front Fog Lamp . . . . . . . . . . . . . . 5-25
High-Beam On . . . . . . . . . . . . . . . . 5-25

Black plate (9,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
INDEX i-9Program
Courtesy Transportation . . . . .13-11
Proposition 65 Warning,
California . . . . . . . . . . . . . . . . . . . . . 10-2
RRadio Frequency
Identification (RFID) . . . . . . . . 13-19
Statement . . . . . . . . . . . . . . . . . . 13-19
Radios
AM-FM Radio . . . . . . . . . . . . . . . . . 7-10
CD/DVD Player . . . . . . . . . . . . . . . 7-19
Reception . . . . . . . . . . . . . . . . . . . . 7-17
Satellite . . . . . . . . . . . . . . . . . . . . . . . 7-16
Reading Lamps . . . . . . . . . . . . . . . . 6-11
Rear Axle . . . . . . . . . . . . . . . . . . . . . 10-29
Locking . . . . . . . . . . . . . . . . . . . . . . . 9-49
Rear Climate Control System . . . 8-6
Rear Seat Audio (RSA)
System . . . . . . . . . . . . . . . . . . . . . . . 7-58
Rear Seat
Entertainment
System . . . . . . . . . . . . . . . . . 7-33, 7-43
Rear Seat Audio (RSA) . . . . . . . 7-58
Rear Seats
Heated . . . . . . . . . . . . . . . . . . . . . . . . 3-9 Rear Side Window Antenna . . . 7-18
Rear Storage . . . . . . . . . . . . . . . . . . . 4-2
Rear Vision Camera (RVC) . . . . 9-59
Rear Window Washer/Wiper . . . . 5-6
Rearview Mirror
Automatic Dimming . . . . . . . . . . . 2-18
Reclining Seatbacks . . . . . . . . . . . . 3-6
Recommended Fluids and
Lubricants . . . . . . . . . . . . . . . . . . . . 11-7
Recommended Fuel . . . . . . . . . . . 9-64
Records
Maintenance . . . . . . . . . . . . . . . . .11-10
Recreational Vehicle
Towing . . . . . . . . . . . . . . . . . . . . . . 10-87
Reimbursement Program,
GM Mobility . . . . . . . . . . . . . . . . . . 13-7
Remote Keyless Entry
(RKE) System . . . . . . . . . . . . . 2-2, 2-3
Remote Vehicle Start . . . . . . . . . . . 2-5
Replacement
Glass . . . . . . . . . . . . . . . . . . . . . . . 10-33
Replacement Bulbs . . . . . . . . . . . 10-38
Replacement Parts
Airbags . . . . . . . . . . . . . . . . . . . . . . . 3-50
Maintenance . . . . . . . . . . . . . . . . . . 11-9 Replacing Airbag System . . . . . . 3-50
Replacing LATCH System
Parts After a Crash . . . . . . . . . . . 3-67
Replacing Safety Belt
System Parts After a
Crash . . . . . . . . . . . . . . . . . . . . . . . . 3-35
Reporting Safety Defects
Canadian Government . . . . . . 13-17
General Motors . . . . . . . . . . . . . 13-17
U.S. Government . . . . . . . . . . . 13-16
Restraints
Where to Put . . . . . . . . . . . . . . . . . 3-58
Retained Accessory
Power (RAP) . . . . . . . . . . . . . . . . . 9-35
Ride Control Systems
Messages . . . . . . . . . . . . . . . . . . . . 5-37
Road Sensing Suspension . . . 9-50
Road Sensing Suspension . . . . 9-50
Roads
Driving, Wet . . . . . . . . . . . . . . . . . . 9-18
Roadside Service . . . . . . . 13-7, 13-10
Roof
Sunroof . . . . . . . . . . . . . . . . . . . . . . . 2-22
Roof Rack System . . . . . . . . . . . . . . 4-3

Black plate (10,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
i-10 INDEX Rotation, Tires . . . . . . . . . . . . . . . . 10-59
Routing, Engine Drive Belt . . . . . 12-3
Running the Vehicle While
Parked . . . . . . . . . . . . . . . . . . . . . . . 9-39
SSafety Belts . . . . . . . . . . . . . . . . . . . 3-18
Care . . . . . . . . . . . . . . . . . . . . . . . . . . 3-34
Extender . . . . . . . . . . . . . . . . . . . . . . 3-34
How to Wear Safety Belts
Properly . . . . . . . . . . . . . . . . . . . . . 3-22
Lap Belt . . . . . . . . . . . . . . . . . . . . . . 3-33
Lap-Shoulder Belt . . . . . . . . . . . . 3-27
Reminders . . . . . . . . . . . . . . . . . . . . 5-15
Replacing After a Crash . . . . . . 3-35
Use During Pregnancy . . . . . . . . 3-32
Safety Defects Reporting
Canadian Government . . . . . . 13-17
General Motors . . . . . . . . . . . . . 13-17
U.S. Government . . . . . . . . . . . 13-16
Safety Locks . . . . . . . . . . . . . . . . . . . . 2-8
Safety System Check . . . . . . . . . . 3-34
Satellite Radio . . . . . . . . . . . . . . . . . 7-16
Scheduled Maintenance . . . . . . . 11-2
Scheduling Appointments . . . . . 13-10 Seats
Head Restraints . . . . . . . . . . . . . . . 3-2
Heated and Ventilated Front . . . 3-8
Heated, Rear . . . . . . . . . . . . . . . . . . 3-9
Lumbar Adjustment, Front . . . . . 3-6
Power Adjustment, Front . . . . . . 3-3
Reclining Seatbacks . . . . . . . . . . . 3-6
Second Row . . . . . . . . . . . . . . . . . . 3-10
Third Row Seat . . . . . . . . . . . . . . . 3-14
Second Row Seats . . . . . . . . . . . . 3-10
Secondary Latch System . . . . . 10-79
Securing Child
Restraints . . . . . . . . . . . . . . 3-68, 3-71
Security
Light . . . . . . . . . . . . . . . . . . . . . . . . . . 5-25
Vehicle . . . . . . . . . . . . . . . . . . . . . . . 2-13
Service
Accessories and
Modifications . . . . . . . . . . . . . . . . 10-3
Doing Your Own Work . . . . . . . . 10-4
Engine Soon Light . . . . . . . . . . . . 5-18
Maintenance Records . . . . . . .11-10
Maintenance, General
Information . . . . . . . . . . . . . . . . . . 11-1 Service (cont.)
Parts Identification Label . . . . . 12-1
Publications Ordering
Information . . . . . . . . . . . . . . . . 13-15
Scheduling Appointments . . . 13-10
Servicing the Airbag . . . . . . . . . . . 3-48
Shift Lock Control Function
Check, Automatic
Transmission . . . . . . . . . . . . . . . . 10-31
Shifting
Into Park . . . . . . . . . . . . . . . . . . . . . . 9-36
Out of Park . . . . . . . . . . . . . . . . . . . 9-37
Side Blind Zone Alert . . . . . . . . . . 9-56
Signals, Turn and
Lane-Change . . . . . . . . . . . . . . . . . 6-9
Specifications and
Capacities . . . . . . . . . . . . . . . . . . . . 12-2
Speedometer . . . . . . . . . . . . . . . . . . 5-13
StabiliTrak ®
Indicator Light . . . . 5-23
StabiliTrak ®
System . . . . . . . . . . . 9-47
Start Vehicle, Remote . . . . . . . . . . 2-5
Starter Switch Check . . . . . . . . . 10-30
Starting the Engine . . . . . . . . . . . . 9-33

Black plate (12,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
i-12 INDEX Transportation Program,
Courtesy . . . . . . . . . . . . . . . . . . . . 13-11
Trip Odometer . . . . . . . . . . . . . . . . . 5-13
Turn and Lane-Change
Signals . . . . . . . . . . . . . . . . . . . . . . . . 6-9
UUltrasonic Parking Assist . . . . . . 9-54
Uniform Tire Quality
Grading . . . . . . . . . . . . . . . . . . . . . 10-63
Universal Remote System . . . . . 5-50
Operation . . . . . . . . . . . . . . . . . . . . . 5-55
Programming . . . . . . . . . . . . . . . . . 5-50
Updates
Map Data . . . . . . . . . . . . . . . . . . . . . 7-99
Using this Manual . . . . . . . . . . . . . . . . iv
VVehicle
Canadian Owners . . . . . . . . . . . . . . . iii
Control . . . . . . . . . . . . . . . . . . . . . . . . 9-3
Identification
Number (VIN) . . . . . . . . . . . . . . . 12-1
Load Limits . . . . . . . . . . . . . . . . . . . 9-24
Messages . . . . . . . . . . . . . . . . . . . . 5-31
Personalization . . . . . . . . . . . . . . . 5-40 Vehicle (cont.)
Positioning . . . . . . . . . . . . . . . . . . . 7-97
Reminder Messages . . . . . . . . . . 5-40
Remote Start . . . . . . . . . . . . . . . . . . 2-5
Security . . . . . . . . . . . . . . . . . . . . . . 2-13
Towing . . . . . . . . . . . . . . . . . . . . . . 10-87
Vehicle Care
Tire Pressure . . . . . . . . . . . . . . . 10-52
Vehicle Identification
Service Parts Identification
Label . . . . . . . . . . . . . . . . . . . . . . . . 12-1
Ventilation, Air . . . . . . . . . . . . . . . . . . 8-8
Visors . . . . . . . . . . . . . . . . . . . . . . . . . 2-22
Voice Recognition . . . . . . . . . . . . 7-100
W Warning
Brake System Light . . . . . . . . . . . 5-21
Warning Lights, Gauges,
and Indicators . . . . . . . . . . . . . . . . 5-11
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . iv
Cautions and Danger . . . . . . . . . . . .iv
Hazard Flashers . . . . . . . . . . . . . . . 6-8 Washer Fluid . . . . . . . . . . . . . . . . . 10-24
Washer Fluid Messages . . . . . . . 5-40
Wheels
Alignment and Tire
Balance . . . . . . . . . . . . . . . . . . . 10-65
Different Size . . . . . . . . . . . . . . . 10-62
Replacement . . . . . . . . . . . . . . . 10-65
When It Is Time for New
Tires . . . . . . . . . . . . . . . . . . . . . . . . 10-60
Where to Put the Restraint . . . . 3-58
Windows . . . . . . . . . . . . . . . . . . . . . . 2-19
Power . . . . . . . . . . . . . . . . . . . . . . . . 2-20
Windshield
Wiper/Washer . . . . . . . . . . . . . . . . . 5-5
Winter
Driving . . . . . . . . . . . . . . . . . . . . . . . . 9-21
Wiper Blade Replacement . . . . 10-32
Wipers
Rear Washer . . . . . . . . . . . . . . . . . . 5-6
