Black plate (2,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
11-2 Service and Maintenance
{ WARNINGPerforming maintenance work can
be dangerous. Some jobs can
cause serious injury. Perform
maintenance work only if you
have the required know-how and
the proper tools and equipment.
If in doubt, see your dealer to
have a qualified technician do the
work. See Doing Your Own
Service Work on page 10 ‑ 4 .
At your dealer, you can be
certain that you will receive the
highest level of service available.
Your dealer has specially trained
service technicians, uses genuine
replacement parts, as well as,
up ‐ to ‐ date tools and equipment
to ensure fast and accurate
diagnostics. The proper replacement parts,
fluids, and lubricants to use are
listed in Recommended Fluids and
Lubricants on page 11 ‑ 7 and
Maintenance Replacement Parts on
page 11 ‑ 9 . We recommend the use
of genuine parts from your dealer.
Rotation of New Tires
To maintain ride, handling, and
performance of the vehicle, it is
important that the first rotation
service for new tires be performed.
Tires should be rotated every
12 000 km/7,500 miles. See Tire
Rotation on page 10 ‑ 59 .Scheduled
Maintenance When the Change Engine Oil
Soon Message Displays Change engine oil and filter. See
Engine Oil on page 10 ‑ 7 . An
Emission Control Service.
When the CHANGE ENGINE OIL
SOON message displays, service is
required for the vehicle as soon as
possible, within the next 1 000 km/
600 miles. If driving under the best
conditions, the engine oil life system
might not indicate the need for
vehicle service for more than a year.
The engine oil and filter must be
changed at least once a year and
the oil life system must be reset.
Your dealer has trained service
technicians who will perform this
work and reset the system.

Black plate (3,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
Service and Maintenance 11-3If the engine oil life system is reset
accidentally, service the vehicle
within 5 000 km/3,000 miles since
the last service. Reset the oil life
system whenever the oil is changed.
See Engine Oil Life System on
page 10 ‑ 10 .
When the Change Engine Oil Soon
message displays, certain services,
checks, and inspections are
required.
Every Engine Oil Change .
Change engine oil and filter.
See Engine Oil on page 10 ‑ 7 .
An Emission Control Service. .
Engine coolant level check. See
Engine Coolant on page 10 ‑ 16 . .
Engine cooling system
inspection. Visual inspection
of hoses, pipes, fittings, and
clamps and replacement,
if needed. .
Windshield washer fluid level
check. See Washer Fluid on
page 10 ‑ 24 . .
Windshield wiper blade
inspection for wear, cracking,
or contamination and windshield
and wiper blade cleaning,
if contaminated. See Exterior
Care on page 10 ‑ 90 . Worn or
damaged wiper blade
replacement. See Wiper Blade
Replacement on page 10 ‑ 32 ..
Tire inflation pressures check.
See Tire Pressure on
page 10 ‑ 52 . .
Tire wear inspection. See Tire
Inspection on page 10 ‑ 58 . .
Rotate tires if necessary. See
Tire Rotation on page 10 ‑ 59 . .
Fluids visual leak check (or
every 12 months, whichever
occurs first). A leak in any
system must be repaired and
the fluid level checked. .
Engine air cleaner filter
inspection. See Engine Air
Cleaner/Filter on page 10 ‑ 14 . .
Brake system inspection (or
every 12 months, whichever
occurs first). .
Lubricate the front suspension,
steering linkage, and parking
brake cable guides. Control arm
ball joints are maintenance ‐ free.

Black plate (4,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
11-4 Service and Maintenance .
Steering and suspension
inspection. Visual inspection
for damaged, loose, or missing
parts or signs of wear. .
Body hinges and latches, key
lock cylinders, rear compartment
hinges, outer tailgate handle
pivot points, and folding seat
hardware lubrication. See
Recommended Fluids and
Lubricants on page 11 ‑ 7 . More
frequent lubrication may be
required when the vehicle is
exposed to a corrosive
environment. Applying silicone
grease on weatherstrips with a
clean cloth makes them last
longer, seal better, and not
stick or squeak. .
Restraint system component
check. See Safety System
Check on page 3 ‑ 34 . .
Fuel system inspection for
damage or leaks. .
Exhaust system and nearby heat
shields inspection for loose or
damaged components.
Additional Required Services Every 12 000 km/7,500 Miles .
Rotate tires. Tires should be
rotated every 12 000 km/
7,500 miles. See Tire Rotation
on page 10 ‑ 59 . At Each Fuel Stop .
Engine oil level check. See
Engine Oil on page 10 ‑ 7 . .
Engine coolant level check. See
Engine Coolant on page 10 ‑ 16 . .
Windshield washer fluid level
check. See Washer Fluid on
page 10 ‑ 24 .
Once a Month .
Tire inflation pressures check.
See Tire Pressure on
page 10 ‑ 52 . .
Tire wear inspection. See Tire
Inspection on page 10 ‑ 58 . .
Sunroof track and seal
inspection, if equipped. See
Sunroof on page 2 ‑ 22 .

Black plate (5,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
Service and Maintenance 11-5Once a Year .
See Starter Switch Check on
page 10 ‑ 30 ..
See Automatic Transmission
Shift Lock Control Function
Check on page 10 ‑ 31 ..
See Ignition Transmission Lock
Check on page 10 ‑ 31 ..
See Park Brake and P (Park)
Mechanism Check on
page 10 ‑ 32 ..
Accelerator pedal check for
damage, high effort, or binding.
Replace if needed. .
Underbody flushing service. .
Hood/Decklid/Liftgate/Liftglass
Support Gas Strut Service:
Visually inspect gas strut,
if equipped, for signs of wear,
cracks, or other damage. Check
the hold open ability of the gas
strut. Contact your dealer if
service is required. First Engine Oil Change After
Every 80 000 km/50,000 Miles .
Engine air cleaner filter
replacement. See Engine Air
Cleaner/Filter on page 10 ‑ 14 ..
Automatic transmission fluid and
filter change (severe service) for
vehicles mainly driven in heavy
city traffic in hot weather, in hilly
or mountainous terrain, when
frequently towing a trailer,
or used for taxi, police,
or delivery service. See
Automatic Transmission Fluid on
page 10 ‑ 11 . .
All ‐ wheel drive only: Transfer
case fluid change (severe
service) for vehicles mainly
driven when frequently towing a
trailer, or used for taxi, police,
or delivery service. Check vent
hose at transfer case for kinks
and proper installation.
Check to be sure vent hose is
unobstructed, clear, and free of
debris. During any maintenance,
if a power washer is used to
clean mud and dirt from the
underbody, care should be taken
to not directly spray the transfer
case output seals. High pressure
water can overcome the seals
and contaminate the transfer
case fluid. Contaminated fluid
will decrease the life of the
transfer case and should be
replaced.

Black plate (6,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
11-6 Service and Maintenance .
Evaporative control system
inspection. Check all fuel and
vapor lines and hoses for proper
hook ‐ up, routing, and condition.
Check that the purge valve,
if the vehicle has one, works
properly. Replace as needed.
An Emission Control Service.
The U.S. Environmental
Protection Agency or the
California Air Resources Board
has determined that the failure
to perform this maintenance item
will not nullify the emission
warranty or limit recall liability
prior to the completion of the
vehicle's useful life. We,
however, urge that all
recommended maintenance
services be performed at the
indicated intervals and the
maintenance be recorded. First Engine Oil Change After
Every 160 000 km/100,000 Miles .
Automatic transmission fluid and
filter change (normal service).
See Automatic Transmission
Fluid on page 10 ‑ 11 . .
All ‐ wheel drive only: Transfer
case fluid change (normal
service). Check vent hose at
transfer case for kinks and
proper installation. Check to be
sure vent hose is unobstructed,
clear, and free of debris. During
any maintenance, if a power
washer is used to clean mud
and dirt from the underbody,
care should be taken to not
directly spray the transfer case
output seals. High pressure
water can overcome the seals
and contaminate the transfer
case fluid. Contaminated fluid
will decrease the life of the
transfer case and should be
replaced. .
Spark plug replacement and
spark plug wires inspection. An
Emission Control Service.
First Engine Oil Change After
Every 240 000 km/150,000 Miles .
Engine cooling system drain,
flush, and refill (or every five
years, whichever occurs first).
See Engine Coolant on
page 10 ‑ 16 . An Emission
Control Service. .
Engine drive belts inspection for
fraying, excessive cracks,
or obvious damage (or every
10 years, whichever occurs
first). Replace, if needed.

Black plate (7,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
Service and Maintenance 11-7
Recommended Fluids, Lubricants, and Parts Recommended Fluids and Lubricants Fluids and lubricants identified below by name, part number, or specification can be obtained from your dealer.
Usage Fluid/Lubricant
Engine Oil The engine requires engine oil approved to the dexos specification. Oils
meeting this specification can be identified with the dexos certification
mark. Look for and use only an engine oil that displays the dexos
certification mark of the proper viscosity grade. See Engine Oil on
page 10 ‑ 7 .
Engine Coolant 50/50 mixture of clean, drinkable water and use only DEX-COOL Coolant.
See Engine Coolant on page 10 ‑ 16 .
Hydraulic Brake System DOT 3 Hydraulic Brake Fluid (GM Part No. 12377967, in
Canada 89021320).
Windshield Washer Optikleen ®
Washer Solvent.
Power Steering System GM Power Steering Fluid (GM Part No. 89021184, in Canada 89021186).
Automatic Transmission DEXRON ®
-VI Automatic Transmission Fluid.
Key Lock Cylinders Multi-Purpose Lubricant, Superlube (GM Part No. 12346241, in
Canada 10953474).
Chassis Lubrication Chassis Lubricant (GM Part No. 12377985, in Canada 88901242) or
lubricant meeting requirements of NLGI #2, Category LB or GC-LB.

Black plate (8,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011

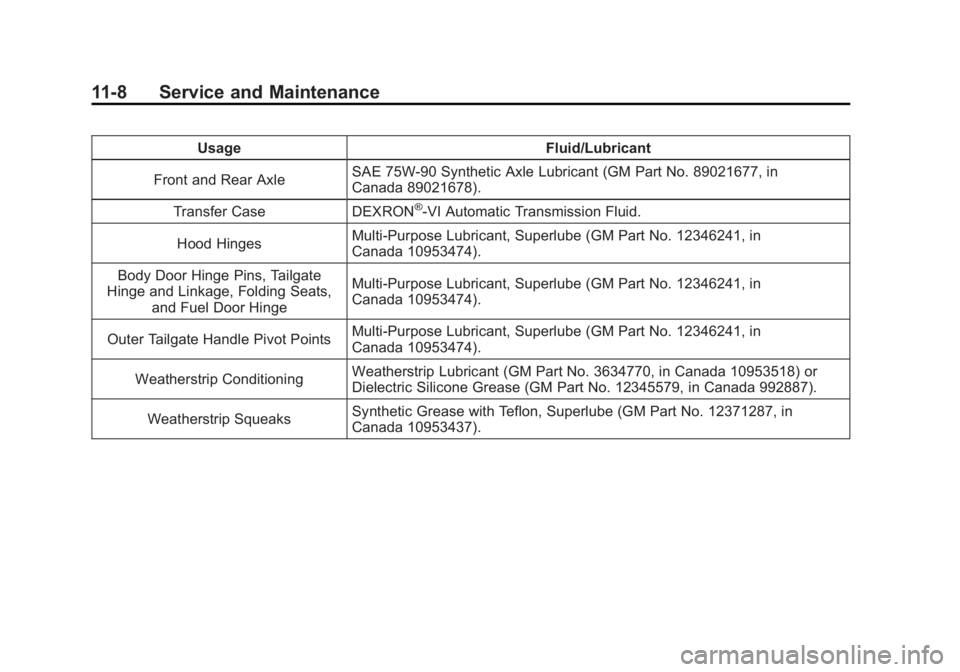

11-8 Service and Maintenance Usage Fluid/Lubricant
Front and Rear Axle SAE 75W-90 Synthetic Axle Lubricant (GM Part No. 89021677, in
Canada 89021678).
Transfer Case DEXRON ®
-VI Automatic Transmission Fluid.
Hood Hinges Multi-Purpose Lubricant, Superlube (GM Part No. 12346241, in
Canada 10953474).
Body Door Hinge Pins, Tailgate
Hinge and Linkage, Folding Seats,
and Fuel Door Hinge Multi-Purpose Lubricant, Superlube (GM Part No. 12346241, in
Canada 10953474).
Outer Tailgate Handle Pivot Points Multi-Purpose Lubricant, Superlube (GM Part No. 12346241, in
Canada 10953474).
Weatherstrip Conditioning Weatherstrip Lubricant (GM Part No. 3634770, in Canada 10953518) or
Dielectric Silicone Grease (GM Part No. 12345579, in Canada 992887).
Weatherstrip Squeaks Synthetic Grease with Teflon, Superlube (GM Part No. 12371287, in
Canada 10953437).

Black plate (9,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
Service and Maintenance 11-9
Maintenance Replacement Parts Replacement parts identified here by name, part number, or specification can be obtained from your dealer.
Part GM Part Number ACDelco Part Number
Engine Air Cleaner/Filter 15908916 A3086C
Oil Filter 89017524 PF48
Spark Plugs 12621258 41-110
Wiper Blades
Front – 55.0 cm (21.6 in) 25877402 —
Rear – 30.0 cm (11.8 in) 25820122 —
