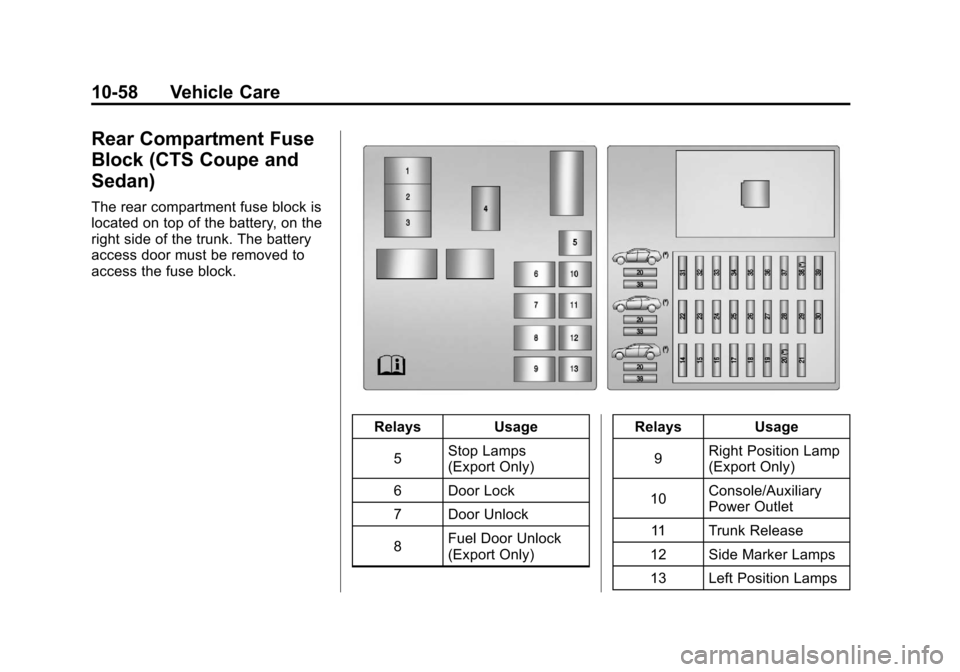

Rear Compartment Fuse
Block (CTS Coupe and
Sedan)
The rear compartment fuse block is
located on top of the battery, on the
right side of the trunk. The battery
access door must be removed to
access the fuse block.
RelaysUsage
5 Stop Lamps
(Export Only)
6 Door Lock
7 Door Unlock
8 Fuel Door Unlock
(Export Only) Relays
Usage
9 Right Position Lamp
(Export Only)
10 Console/Auxiliary
Power Outlet
11 Trunk Release
12 Side Marker Lamps
13 Left Position Lamps
Page 378 of 496
Black plate (60,1)Cadillac CTS/CTS-V Owner Manual - 2011
10-60 Vehicle Care
Rear Compartment Fuse
Block (CTS-V Coupe and
Sedan)
The rear compartment fuse block is
located on top of the battery, on the
right side of the trunk. The battery
access door must be removed to
access the fuse block.
RelaysUsage
5 Stop Lamps
(Export Only)
6 Door Lock
7 Door Unlock
8 Fuel Door Unlock
(Export Only) Relays
Usage
9 Right Position Lamp
(Export Only)
10 Console/Auxiliary
Power Outlet
11 Trunk Release
12 Side Marker Lamps
13 Left Position Lamps
Page 380 of 496
Black plate (62,1)Cadillac CTS/CTS-V Owner Manual - 2011
10-62 Vehicle Care
Rear Compartment Fuse
Block (CTS Wagon)
The rear compartment fuse block is
located on the passenger side of the
vehicle, behind the trim panel in the
rear compartment.
RelaysUsage
5 Stop Lamps
(Export Only)
6 Door Lock
7 Door Unlock
8 Fuel Door Unlock
(Export Only) Relays
Usage
9 Right Position Lamp
(Export Only)
10 Console/Auxiliary
Power Outlet
11 Not Used
12 Side Marker Lamps
13 Left Position Lamps
Page 382 of 496
Black plate (64,1)Cadillac CTS/CTS-V Owner Manual - 2011
10-64 Vehicle Care
Rear Compartment Fuse
Block (CTS-V Wagon)
The rear compartment fuse block is
located on the passenger side of the
vehicle, behind the trim panel in the
rear compartment.
RelaysUsage
5 Stop Lamps
(Export Only)
6 Door Lock
7 Door Unlock
8 Fuel Door Unlock
(Export Only) Relays
Usage
9 Right Position Lamp
(Export Only)
10 Console/Auxiliary
Power Outlet
11 Not Used
12 Side Marker Lamps
13 Left Position Lamps
