2011 BUICK LUCERNE check engine

Black plate (17,1)Buick Lucerne Owner Manual - 2011
A.Underhood Fuse Blockon page 6‑108.
B. Remote Positive (+) Terminal. See Jump Starting
on page 6‑44.
C. Windshield Washer Fluid Reservoir. See “Adding
Washer Fluid” underWindshield Washer Fluid
on
page 6‑38.
D. Engine Coolant Surge Tank and Pressure Cap. See Cooling System on page 6‑27.
E. Remote Negative (−) Terminal. See Jump Starting
on page 6‑44.
F. Power Steering Fluid on page 6‑37. G. Engine Oil Fill Cap. See
“When to Add Engine Oil”
under Engine Oil on page 6‑18.
H. Engine Oil Dipstick. See “Checking Engine Oil”
under Engine Oil on page 6‑18.
I. Brake Master Cylinder Reservoir. See “Brake
Fluid” under Brakes on page 6‑39.
J. Automatic Transmission Fluid Cap and Dipstick (Out of View). See Automatic Transmission Fluid
on page 6‑24.
K. Engine Air Cleaner/Filter on page 6‑23.
6-17

Black plate (18,1)Buick Lucerne Owner Manual - 2011
Engine Oil
To ensure proper engine performance and long life,
careful attention must be paid to engine oil. Following
these simple, but important steps will help protect your
investment:
.Always use engine oil approved to the proper
specification and of the proper viscosity grade. See
“Selecting the Right Engine Oil”in this section.
.Check the engine oil level regularly and maintain
the proper oil level. See“Checking Engine Oil”and
“When to Add Engine Oil” in this section.
.Change the engine oil at the appropriate time. See
Engine Oil Life System on page 6‑22.
.Always dispose of engine oil properly. See “What
to Do with Used Oil” in this section.
Checking Engine Oil
It is a good idea to check the engine oil level at each
fuel fill. In order to get an accurate reading, the vehicle
must be on level ground. The engine oil dipstick handle
is a yellow loop. See Engine Compartment Overview
on
page 6‑14for the location of the engine oil dipstick.
Obtaining an accurate oil level reading is essential: 1. If the engine has been running recently, turn off the engine and allow several minutes for the oil to
drain back into the oil pan. Checking the oil level
too soon after engine shutoff will not provide an
accurate oil level reading.
2. Pull out the dipstick and clean it with a paper towel or cloth, then push it back in all the way. Remove it
again, keeping the tip down, and check the level.
6-18

Black plate (19,1)Buick Lucerne Owner Manual - 2011
When to Add Engine Oil
3.9L V6 Engine
4.6L V8 Engine
If the oil is below the cross-hatched area at the tip of
the dipstick, add 1 L (1 qt) of the recommended oil
and then recheck the level. See “Selecting the Right
Engine Oil” in this section for an explanation of what
kind of oil to use. For engine oil crankcase capacity, see
Capacities and Specifications on page 6‑116. Notice:
Do not add too much oil. Oil levels above or
below the acceptable operating range shown on the
dipstick are harmful to the engine. If you find that
you have an oil level above the operating range, i.e.,
the engine has so much oil that the oil level gets
above the cross-hatched area that shows the proper
operating range, the engine could be damaged. You
should drain out the excess oil or limit driving of the
vehicle and seek a service professional to remove
the excess amount of oil.
See Engine Compartment
Overviewon page 6‑14for the location of the
engine oil fill cap.
Add enough oil to put the level somewhere in the proper
operating range. Push the dipstick all the way back in
when through.
6-19

Black plate (22,1)Buick Lucerne Owner Manual - 2011
Engine Oil Life System
When to Change Engine Oil
This vehicle has a computer system that indicates when
to change the engine oil and filter. This is based on
engine revolutions and engine temperature, and not on
mileage. Based on driving conditions, the mileage at
which an oil change is indicated can vary considerably.
For the oil life system to work properly, the system must
be reset every time the oil is changed.
When the system has calculated that oil life has been
diminished, it indicates that an oil change is necessary.
A CHANGE ENGINE OIL SOON message comes on.
SeeDIC Warnings and Messages
on page 4‑49.
Change the oil as soon as possible within the next
600 miles (1 000 km). It is possible that, if driving under
the best conditions, the oil life system might indicate
that an oil change is not necessary for up to a year. The
engine oil and filter must be changed at least once a
year and, at this time, the system must be reset. Your
dealer has trained service people who will perform this
work and reset the system. It is also important to check
the oil regularly over the course of an oil drain interval
and keep it at the proper level. If the system is ever reset accidentally, the oil must be
changed at 3,000 miles (5 000 km) since the last oil
change. Remember to reset the oil life system
whenever the oil is changed.
How to Reset the Engine Oil Life
System
Reset the system whenever the engine oil is changed
so that the system can calculate the next engine oil
change. Always reset the engine oil life to 100% after
every oil change. It will not reset itself. To reset the
system:
1. Display the OIL LIFE REMAINING on the DIC.
2. Press and hold the SET/RESET button on the DIC for more than five seconds. The oil life will change
to 100%.
If the CHANGE ENGINE OIL SOON message comes
back on when the vehicle is started, the engine oil life
system has not been reset. Repeat the procedure.
6-22

Black plate (24,1)Buick Lucerne Owner Manual - 2011
To reinstall the cover:1. Align the two hinges located on the inboard side of the cover.
2. Push the cover slightly down and towards the engine to engage the tabs in the hinges and align
the two screws.
3. Tighten the two screws on the top of the engine air cleaner/filter cover.
{WARNING:
Operating the engine with the air cleaner/filter off
can cause you or others to be burned. The air
cleaner not only cleans the air; it helps to stop
flames if the engine backfires. Use caution when
working on the engine and do not drive with the
air cleaner/filter off.
Notice: If the air cleaner/filter is off, dirt can easily
get into the engine, which could damage it. Always
have the air cleaner/filter in place when you are
driving.
Automatic Transmission Fluid
When to Check and Change Automatic
Transmission Fluid
A good time to check the automatic transmission fluid
level is when the engine oil is changed.
Change the fluid and filter at the intervals listed in
Scheduled Maintenance
on page 7‑3and be sure
to use the transmission fluid listed in Recommended
Fluids and Lubricants on page 7‑8.
How to Check Automatic Transmission
Fluid (3.9L Engine)
Because this operation can be a little difficult, you
may choose to have this done at the dealer service
department.
If you do it yourself, be sure to follow all the instructions
here, or you could get a false reading on the dipstick.
Notice: Too much or too little fluid can damage
the transmission. Too much can mean that some
of the fluid could come out and fall on hot engine
parts or exhaust system parts, starting a fire. Too
little fluid could cause the transmission to overheat.
Be sure to get an accurate reading if checking the
transmission fluid.
6-24

Black plate (25,1)Buick Lucerne Owner Manual - 2011
Wait at least 30 minutes before checking the
transmission fluid level if you have been driving:
.When outside temperatures are above
90°F (32°C).
.At high speed for quite a while.
.In heavy traffic—especially in hot weather.
.While pulling a trailer.
To get the right reading, the fluid should be at normal
operating temperature, which is 180°F to 200°F
(82°C to 93°C).
Get the vehicle warmed up by driving about 15 miles
(24 km) when outside temperatures are above 50°F
(10°C). If it is colder than 50°F (10°C), you may have to
drive longer.
Checking the Fluid Level
Prepare the vehicle as follows: 1. Park the vehicle on a level place. Keep the engine running.
2. With the parking brake applied, place the shift lever in P (Park). 3. With your foot on the brake pedal, move the shift
lever through each gear range, pausing for about
three seconds in each range. Then, position the
shift lever in P (Park).
4. Let the engine run at idle for three to five minutes.
Then, without shutting off the engine, follow these
steps:
1. For the 3.9L V6 engine, locate the transmission
fluid dipstick top which
is a round loop with
this symbol.
See Engine Compartment Overview
on page 6‑14for more information on location.
2. Pull out the dipstick and wipe it with a clean rag or paper towel.
3. Push it back in all the way, wait three seconds, and then pull it back out again.
6-25

Black plate (26,1)Buick Lucerne Owner Manual - 2011
3.9L V6 Engine
4. Check both sides of the dipstick and read the lower level. The fluid level must be in the
cross-hatched area.
5. If the fluid level is in the acceptable range, push the dipstick back in all the way.
How to Add Automatic Transmission
Fluid
Refer to the Maintenance Schedule to determine what
kind of transmission fluid to use. See Recommended
Fluids and Lubricants on page 7‑8.
If the fluid level is low, add only enough of the proper
fluid to bring the level into the cross-hatched area on
the dipstick.
1. Pull out the dipstick.
2. Using a long-neck funnel, add enough fluid at the dipstick hole to bring it to the proper level.
It does not take much fluid, generally less than
one pint (0.5 L). Do not overfill.
Notice: Use of the incorrect automatic transmission
fluid may damage the vehicle, and the damages may
not be covered by the vehicle's warranty. Always
use the automatic transmission fluid listed in
Recommended Fluids and Lubricants on page 7‑8.
6-26

Black plate (27,1)Buick Lucerne Owner Manual - 2011

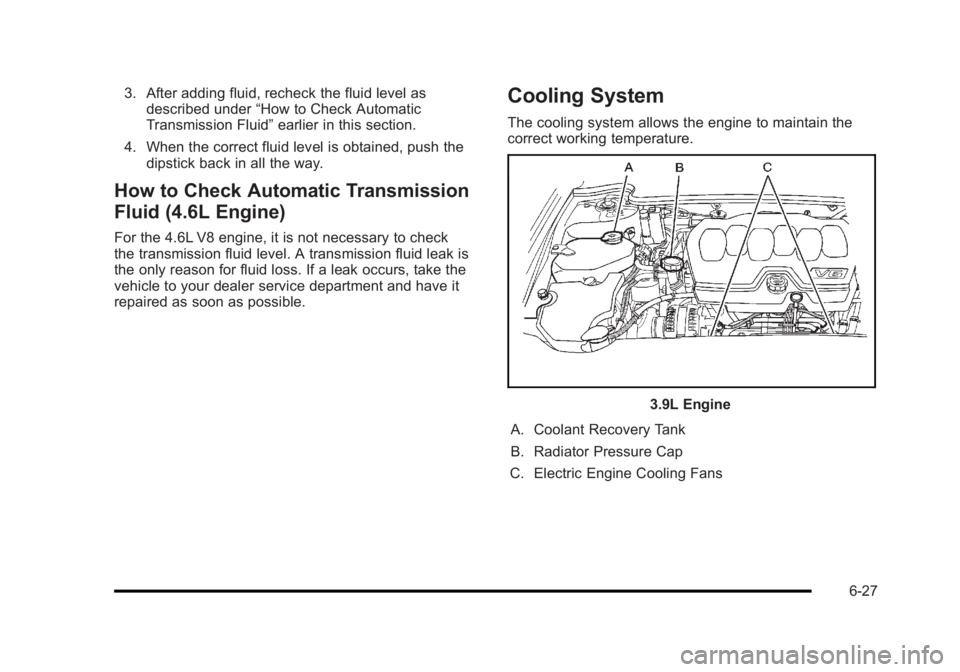

3. After adding fluid, recheck the fluid level asdescribed under “How to Check Automatic
Transmission Fluid” earlier in this section.
4. When the correct fluid level is obtained, push the dipstick back in all the way.
How to Check Automatic Transmission
Fluid (4.6L Engine)
For the 4.6L V8 engine, it is not necessary to check
the transmission fluid level. A transmission fluid leak is
the only reason for fluid loss. If a leak occurs, take the
vehicle to your dealer service department and have it
repaired as soon as possible.
Cooling System
The cooling system allows the engine to maintain the
correct working temperature.
3.9L Engine
A. Coolant Recovery Tank
B. Radiator Pressure Cap
C. Electric Engine Cooling Fans
6-27
