Controls
113Reference
At a glance
Driving tips
Communications
Navigation
Entertainment
Mobility

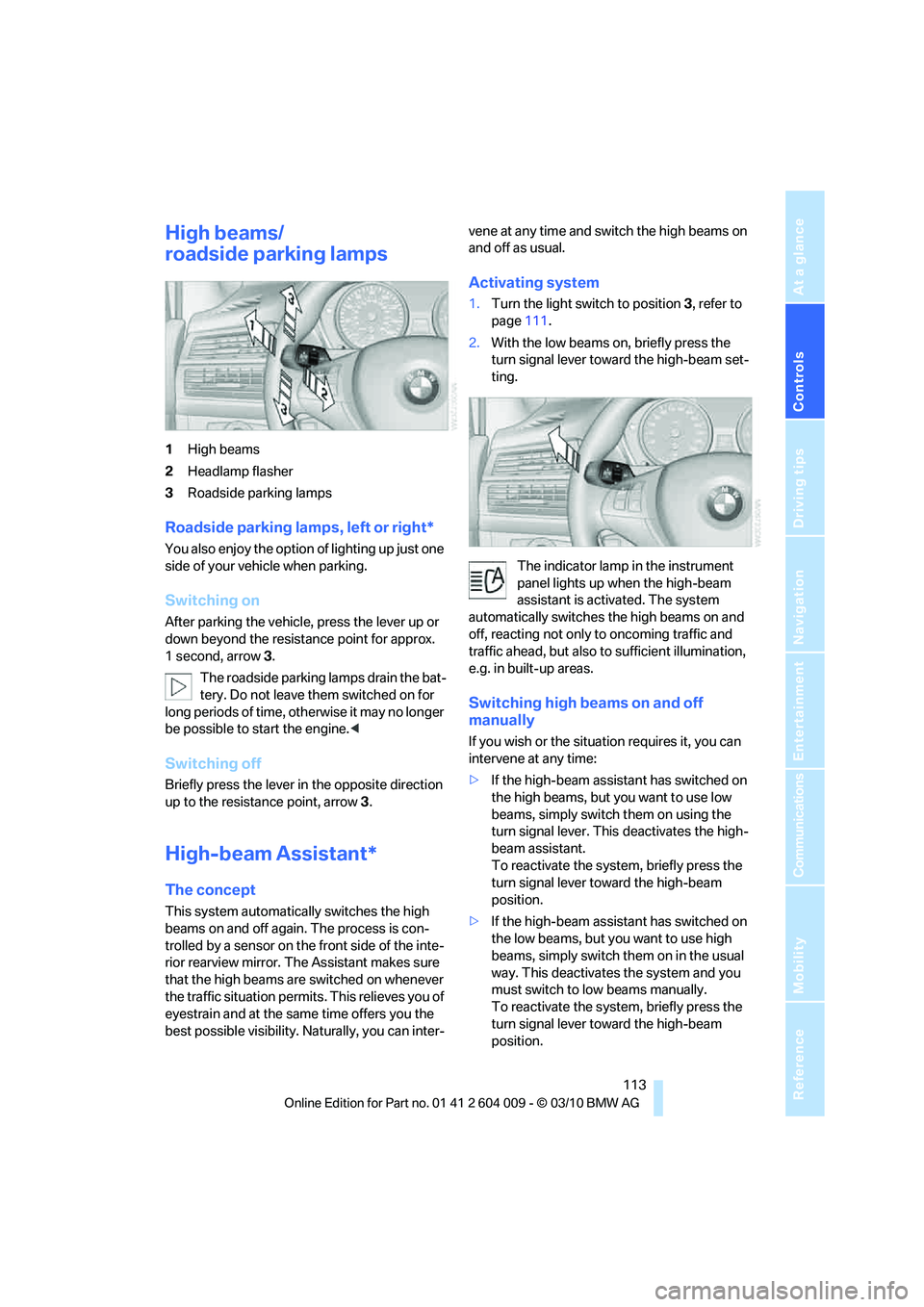

High beams/
roadside parking lamps
1High beams
2Headlamp flasher
3Roadside parking lamps
Roadside parking lamps, left or right*
You also enjoy the option of lighting up just one
side of your vehicle when parking.
Switching on
After parking the vehicle, press the lever up or
down beyond the resistance point for approx.
1 second, arrow3.
The roadside parking lamps drain the bat-
tery. Do not leave them switched on for
long periods of time, otherwise it may no longer
be possible to start the engine.<
Switching off
Briefly press the lever in the opposite direction
up to the resistance point, arrow 3.
High-beam Assistant*
The concept
This system automatically switches the high
beams on and off again. The process is con-
trolled by a sensor on the front side of the inte-
rior rearview mirror. The Assistant makes sure
that the high beams are switched on whenever
the traffic situation permits. This relieves you of
eyestrain and at the same time offers you the
best possible visibility. Naturally, you can inter-vene at any time and switch the high beams on
and off as usual.
Activating system
1.Turn the light switch to position3, refer to
page111.
2.With the low beams on, briefly press the
turn signal lever toward the high-beam set-
ting.
The indicator lamp in the instrument
panel lights up when the high-beam
assistant is activated. The system
automatically switches the high beams on and
off, reacting not only to oncoming traffic and
traffic ahead, but also to sufficient illumination,
e.g. in built-up areas.
Switching high beams on and off
manually
If you wish or the situation requires it, you can
intervene at any time:
>If the high-beam assistant has switched on
the high beams, but you want to use low
beams, simply switch them on using the
turn signal lever. This deactivates the high-
beam assistant.
To reactivate the system, briefly press the
turn signal lever toward the high-beam
position.
>If the high-beam assistant has switched on
the low beams, but you want to use high
beams, simply switch them on in the usual
way. This deactivates the system and you
must switch to low beams manually.
To reactivate the system, briefly press the
turn signal lever toward the high-beam
position.

Lamps

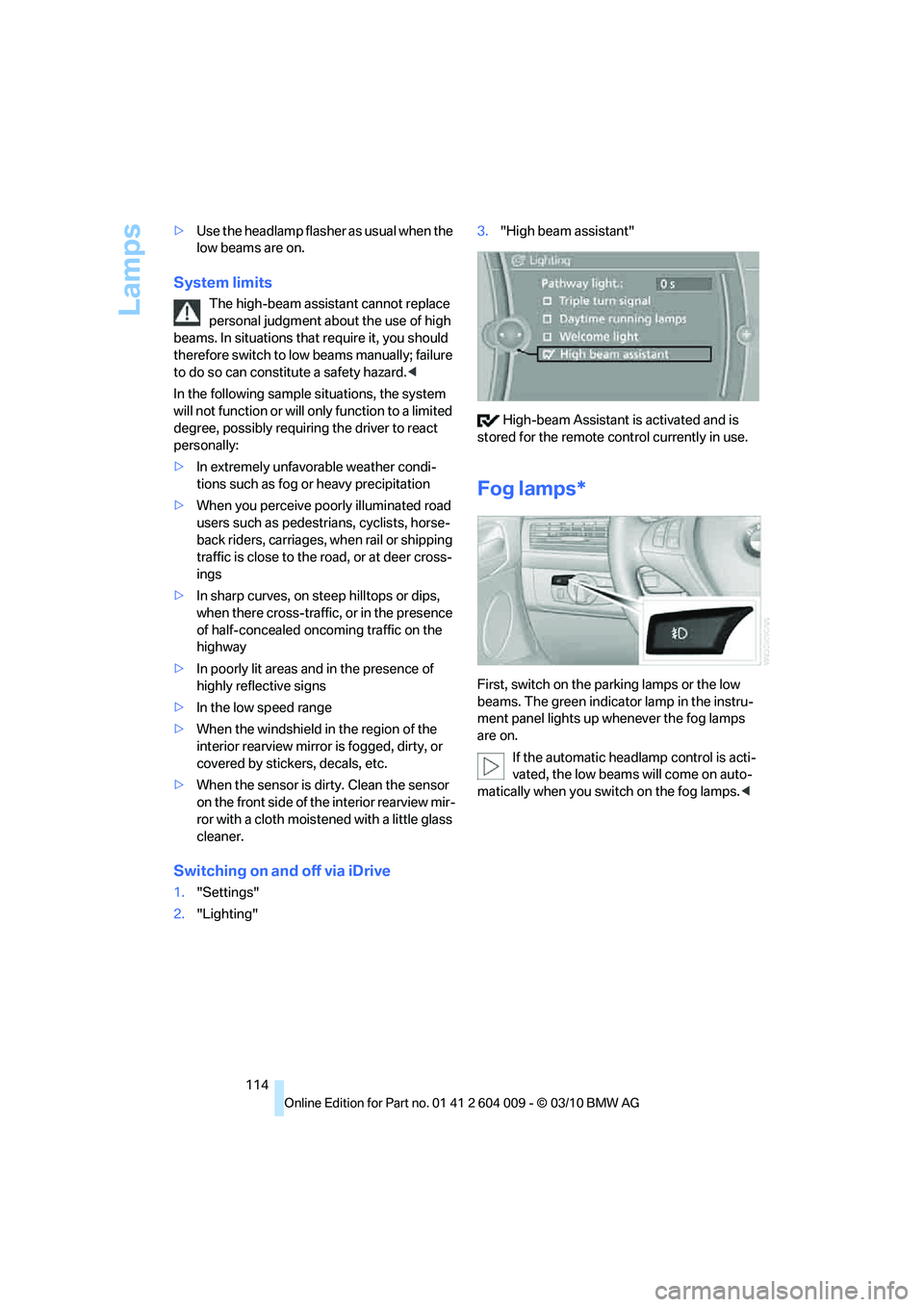

114 >Use the headlamp flasher as usual when the
low beams are on.
System limits
The high-beam assistant cannot replace
personal judgment about the use of high
beams. In situations that require it, you should
therefore switch to low beams manually; failure
to do so can constitute a safety hazard.<
In the following sample situations, the system
will not function or will only function to a limited
degree, possibly requiring the driver to react
personally:
>In extremely unfavorable weather condi-
tions such as fog or heavy precipitation
>When you perceive poorly illuminated road
users such as pedestrians, cyclists, horse-
back riders, carriages, when rail or shipping
traffic is close to the road, or at deer cross-
ings
>In sharp curves, on steep hilltops or dips,
when there cross-traffic, or in the presence
of half-concealed oncoming traffic on the
highway
>In poorly lit areas and in the presence of
highly reflective signs
>In the low speed range
>When the windshield in the region of the
interior rearview mirror is fogged, dirty, or
covered by stickers, decals, etc.
>When the sensor is dirty. Clean the sensor
on the front side of the interior rearview mir-
ror with a cloth moistened with a little glass
cleaner.
Switching on and off via iDrive
1."Settings"
2."Lighting"3."High beam assistant"
High-beam Assistant is activated and is
stored for the remote control currently in use.
Fog lamps*
First, switch on the parking lamps or the low
beams. The green indicator lamp in the instru-
ment panel lights up whenever the fog lamps
are on.
If the automatic headlamp control is acti-
vated, the low beams will come on auto-
matically when you switch on the fog lamps.<

Mobility
259Reference
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment

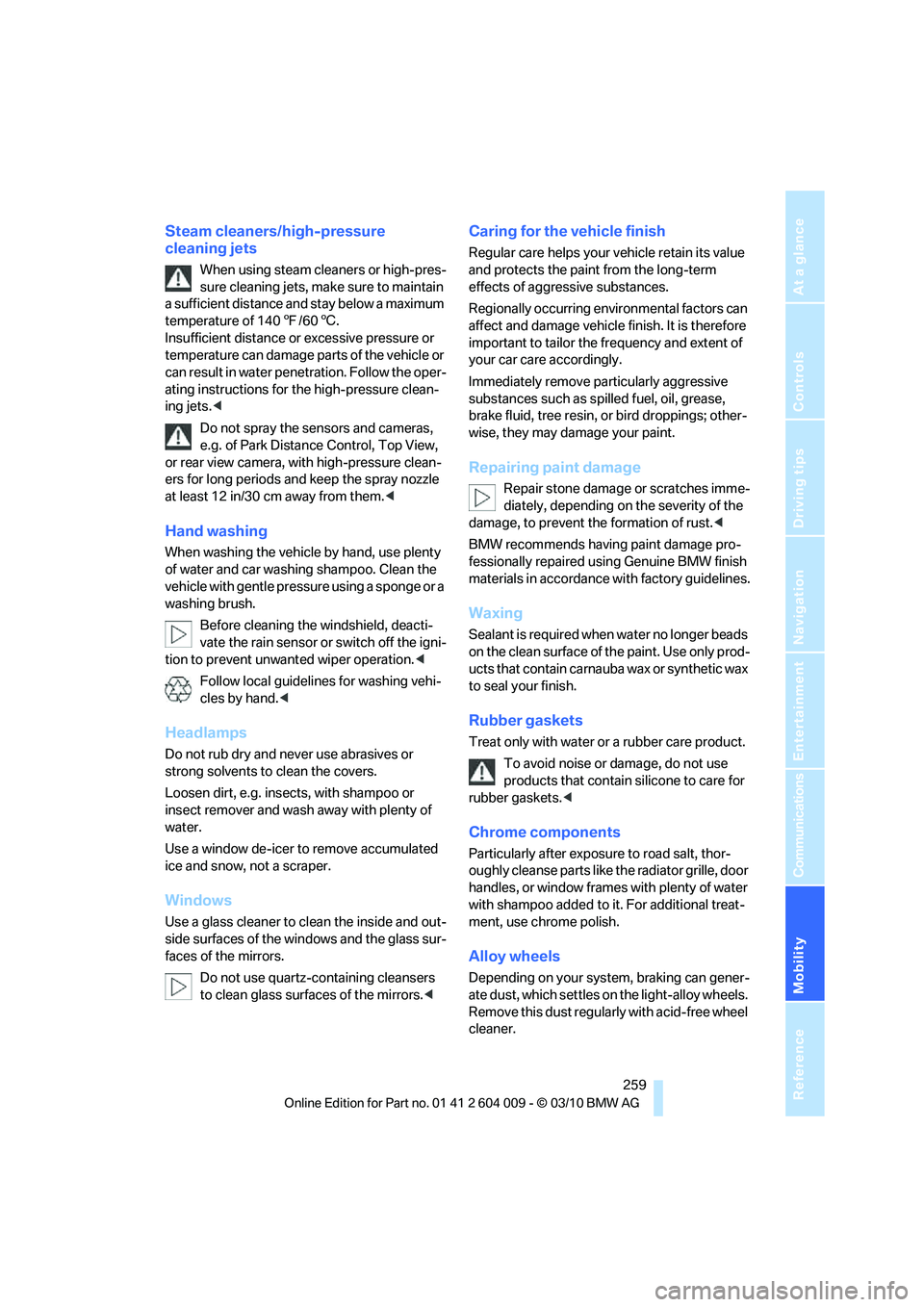

Steam cleaners/high-pressure
cleaning jets
When using steam cleaners or high-pres-
sure cleaning jets, make sure to maintain
a sufficient distance and stay below a maximum
temperature of 1407/606.
Insufficient distance or excessive pressure or
temperature can damage parts of the vehicle or
can result in water penetration. Follow the oper-
ating instructions for the high-pressure clean-
ing jets.<
Do not spray the sensors and cameras,
e.g. of Park Distance Control, Top View,
or rear view camera, with high-pressure clean-
ers for long periods and keep the spray nozzle
at least 12 in/30 cm away from them.<
Hand washing
When washing the vehicle by hand, use plenty
of water and car washing shampoo. Clean the
vehicle with gentle pressure using a sponge or a
washing brush.
Before cleaning the windshield, deacti-
vate the rain sensor or switch off the igni-
tion to prevent unwanted wiper operation.<
Follow local guidelines for washing vehi-
cles by hand.<
Headlamps
Do not rub dry and never use abrasives or
strong solvents to clean the covers.
Loosen dirt, e.g. insects, with shampoo or
insect remover and wash away with plenty of
water.
Use a window de-icer to remove accumulated
ice and snow, not a scraper.
Windows
Use a glass cleaner to clean the inside and out-
side surfaces of the windows and the glass sur-
faces of the mirrors.
Do not use quartz-containing cleansers
to clean glass surfaces of the mirrors.<
Caring for the vehicle finish
Regular care helps your vehicle retain its value
and protects the paint from the long-term
effects of aggressive substances.
Regionally occurring environmental factors can
affect and damage vehicle finish. It is therefore
important to tailor the frequency and extent of
your car care accordingly.
Immediately remove particularly aggressive
substances such as spilled fuel, oil, grease,
brake fluid, tree resin, or bird droppings; other-
wise, they may damage your paint.
Repairing paint damage
Repair stone damage or scratches imme-
diately, depending on the severity of the
damage, to prevent the formation of rust.<
BMW recommends having paint damage pro-
fessionally repaired using Genuine BMW finish
materials in accordance with factory guidelines.
Waxing
Sealant is required when water no longer beads
on the clean surface of the paint. Use only prod-
ucts that contain carnauba wax or synthetic wax
to seal your finish.
Rubber gaskets
Treat only with water or a rubber care product.
To avoid noise or damage, do not use
products that contain silicone to care for
rubber gaskets.<
Chrome components
Particularly after exposure to road salt, thor-
oughly cleanse parts like the radiator grille, door
handles, or window frames with plenty of water
with shampoo added to it. For additional treat-
ment, use chrome polish.
Alloy wheels
Depending on your system, braking can gener-
ate dust, which settles on the light-alloy wheels.
Remove this dust regularly with acid-free wheel
cleaner.

Reference 299
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility

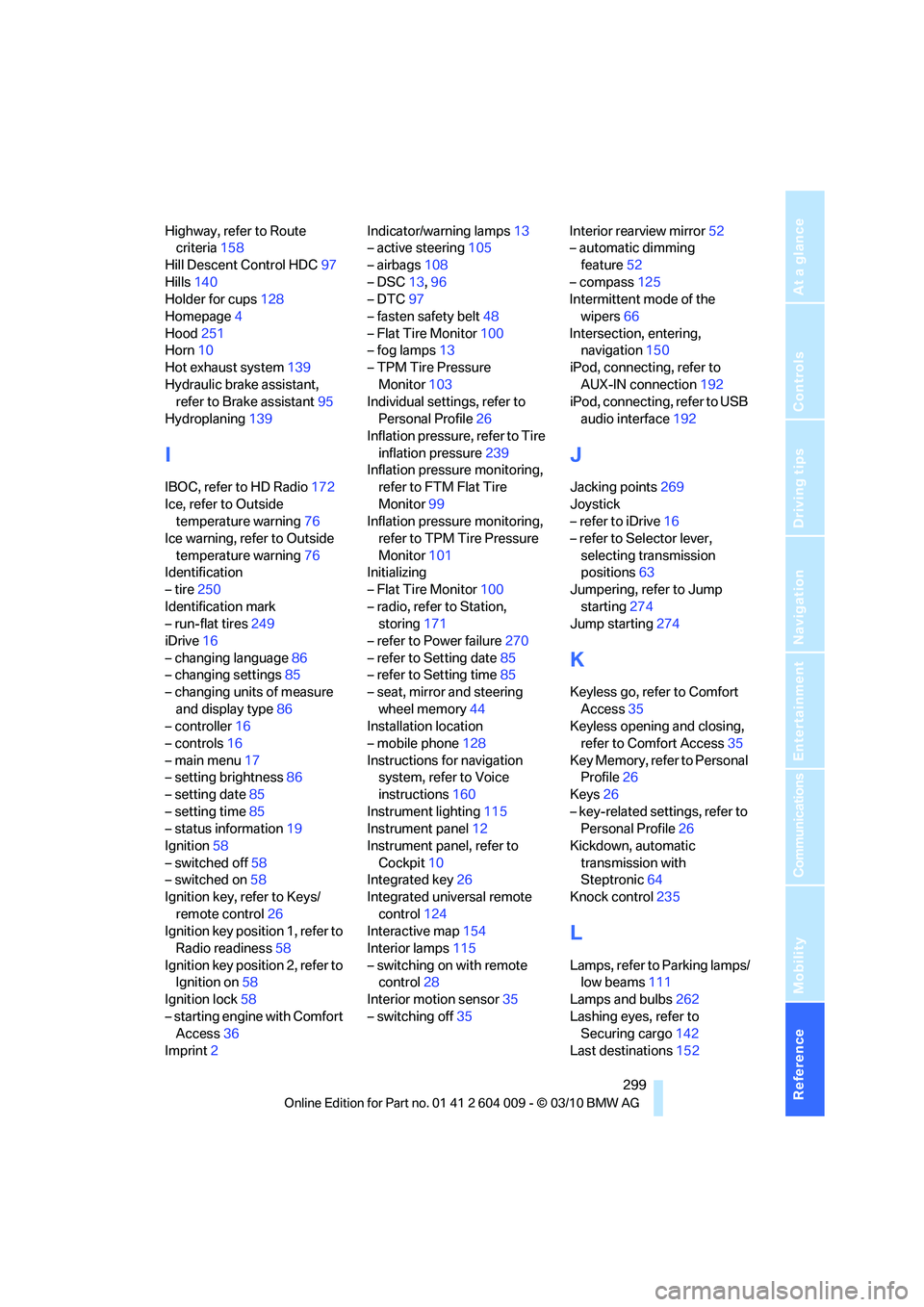

Highway, refer to Route
criteria158
Hill Descent Control HDC97
Hills140
Holder for cups128
Homepage4
Hood251
Horn10
Hot exhaust system139
Hydraulic brake assistant,
refer to Brake assistant95
Hydroplaning139
I
IBOC, refer to HD Radio172
Ice, refer to Outside
temperature warning76
Ice warning, refer to Outside
temperature warning76
Identification
– tire250
Identification mark
– run-flat tires249
iDrive16
– changing language86
– changing settings85
– changing units of measure
and display type86
– controller16
– controls16
– main menu17
– setting brightness86
– setting date85
– setting time85
– status information19
Ignition58
– switched off58
– switched on58
Ignition key, refer to Keys/
remote control26
Ignition key position 1, refer to
Radio readiness58
Ignition key position 2, refer to
Ignition on58
Ignition lock58
– starting engine with Comfort
Access36
Imprint2Indicator/warning lamps13
– active steering105
– airbags108
– DSC13,96
– DTC97
– fasten safety belt48
– Flat Tire Monitor100
– fog lamps13
– TPM Tire Pressure
Monitor103
Individual settings, refer to
Personal Profile26
Inflation pressure, refer to Tire
inflation pressure239
Inflation pressure monitoring,
refer to FTM Flat Tire
Monitor99
Inflation pressure monitoring,
refer to TPM Tire Pressure
Monitor101
Initializing
– Flat Tire Monitor100
– radio, refer to Station,
storing171
– refer to Power failure270
– refer to Setting date
85
– refer to Setting time85
– seat, mirror and steering
wheel memory44
Installation location
– mobile phone128
Instructions for navigation
system, refer to Voice
instructions160
Instrument lighting115
Instrument panel12
Instrument panel, refer to
Cockpit10
Integrated key26
Integrated universal remote
control124
Interactive map154
Interior lamps115
– switching on with remote
control28
Interior motion sensor35
– switching off35Interior rearview mirror52
– automatic dimming
feature52
– compass125
Intermittent mode of the
wipers66
Intersection, entering,
navigation150
iPod, connecting, refer to
AUX-IN connection192
iPod, connecting, refer to USB
audio interface192
J
Jacking points269
Joystick
– refer to iDrive16
– refer to Selector lever,
selecting transmission
positions63
Jumpering, refer to Jump
starting274
Jump starting274
K
Keyless go, refer to Comfort
Access35
Keyless opening and closing,
refer to Comfort Access35
Key Memory, refer to Personal
Profile26
Keys26
– key-related settings, refer to
Personal Profile26
Kickdown, automatic
transmission with
Steptronic64
Knock control235
L
Lamps, refer to Parking lamps/
low beams111
Lamps and bulbs262
Lashing eyes, refer to
Securing cargo142
Last destinations152

Reference 301
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility

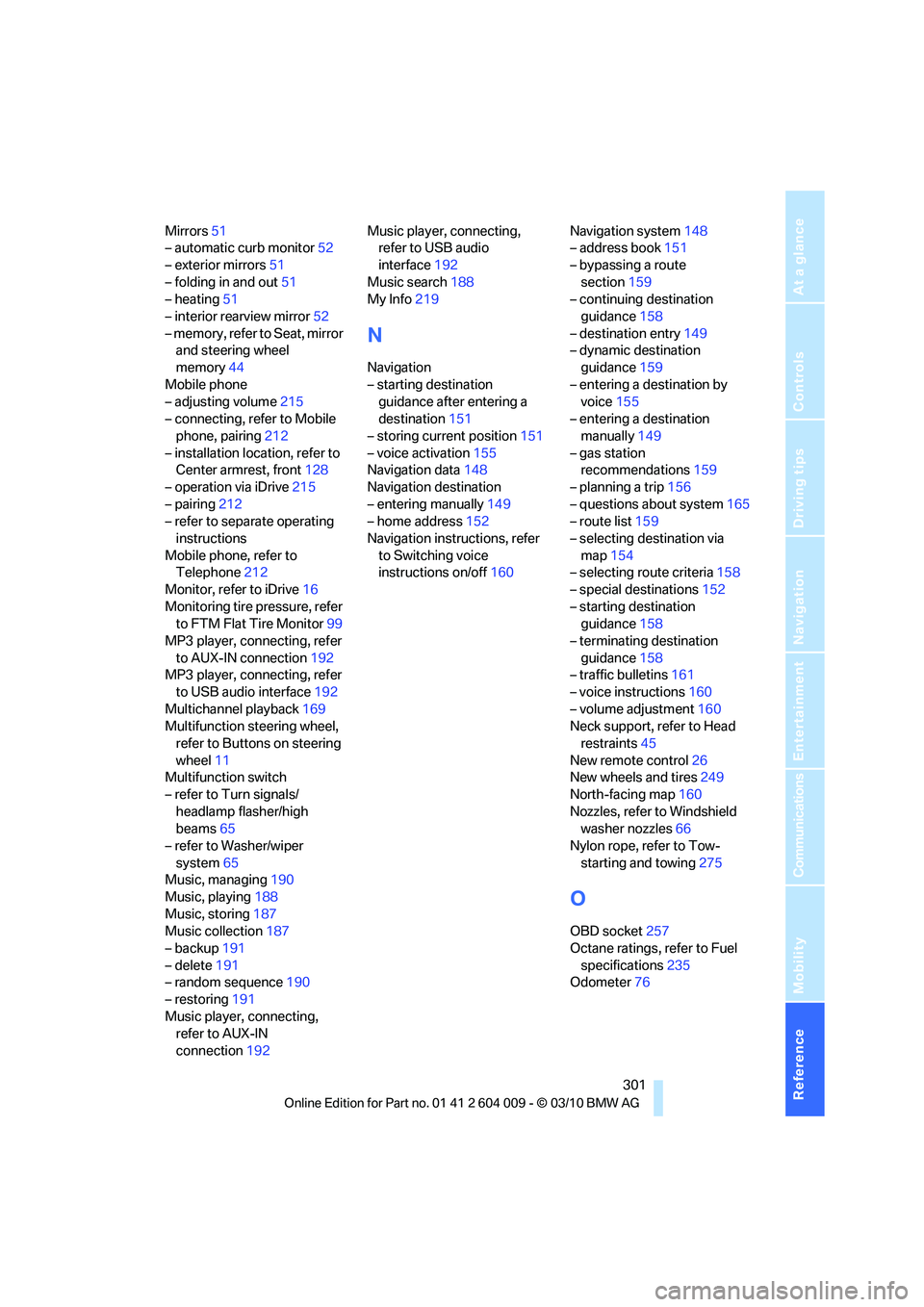

Mirrors51
– automatic curb monitor52
– exterior mirrors51
– folding in and out51
– heating51
– interior rearview mirror52
– memory, refer to Seat, mirror
and steering wheel
memory44
Mobile phone
– adjusting volume215
– connecting, refer to Mobile
phone, pairing212
– installation location, refer to
Center armrest, front128
– operation via iDrive215
– pairing212
– refer to separate operating
instructions
Mobile phone, refer to
Telephone212
Monitor, refer to iDrive16
Monitoring tire pressure, refer
to FTM Flat Tire Monitor99
MP3 player, connecting, refer
to AUX-IN connection192
MP3 player, connecting, refer
to USB audio interface192
Multichannel playback169
Multifunction steering wheel,
refer to Buttons on steering
wheel11
Multifunction switch
– refer to Turn signals/
headlamp flasher/high
beams65
– refer to Washer/wiper
system65
Music, managing190
Music, playing188
Music, storing187
Music collection187
– backup191
– delete191
– random sequence190
– restoring191
Music player, connecting,
refer to AUX-IN
connection192Music player, connecting,
refer to USB audio
interface192
Music search188
My Info219
N
Navigation
– starting destination
guidance after entering a
destination151
– storing current position151
– voice activation155
Navigation data148
Navigation destination
– entering manually149
– home address152
Navigation instructions, refer
to Switching voice
instructions on/off160Navigation system148
– address book151
– bypassing a route
section159
– continuing destination
guidance158
– destination entry149
– dynamic destination
guidance159
– entering a destination by
voice155
– entering a destination
manually149
– gas station
recommendations159
– planning a trip156
– questions about system165
– route list159
– selecting destination via
map154
– selecting route criteria158
– special destinations152
– starting destination
guidance158
– terminating destination
guidance158
– traffic bulletins161
– voice instructions160
– volume adjustment160
Neck support, refer to Head
restraints45
New remote control26
New wheels and tires249
North-facing map160
Nozzles, refer to Windshield
washer nozzles66
Nylon rope, refer to Tow-
starting and towing275
O
OBD socket257
Octane ratings, refer to Fuel
specifications235
Odometer76

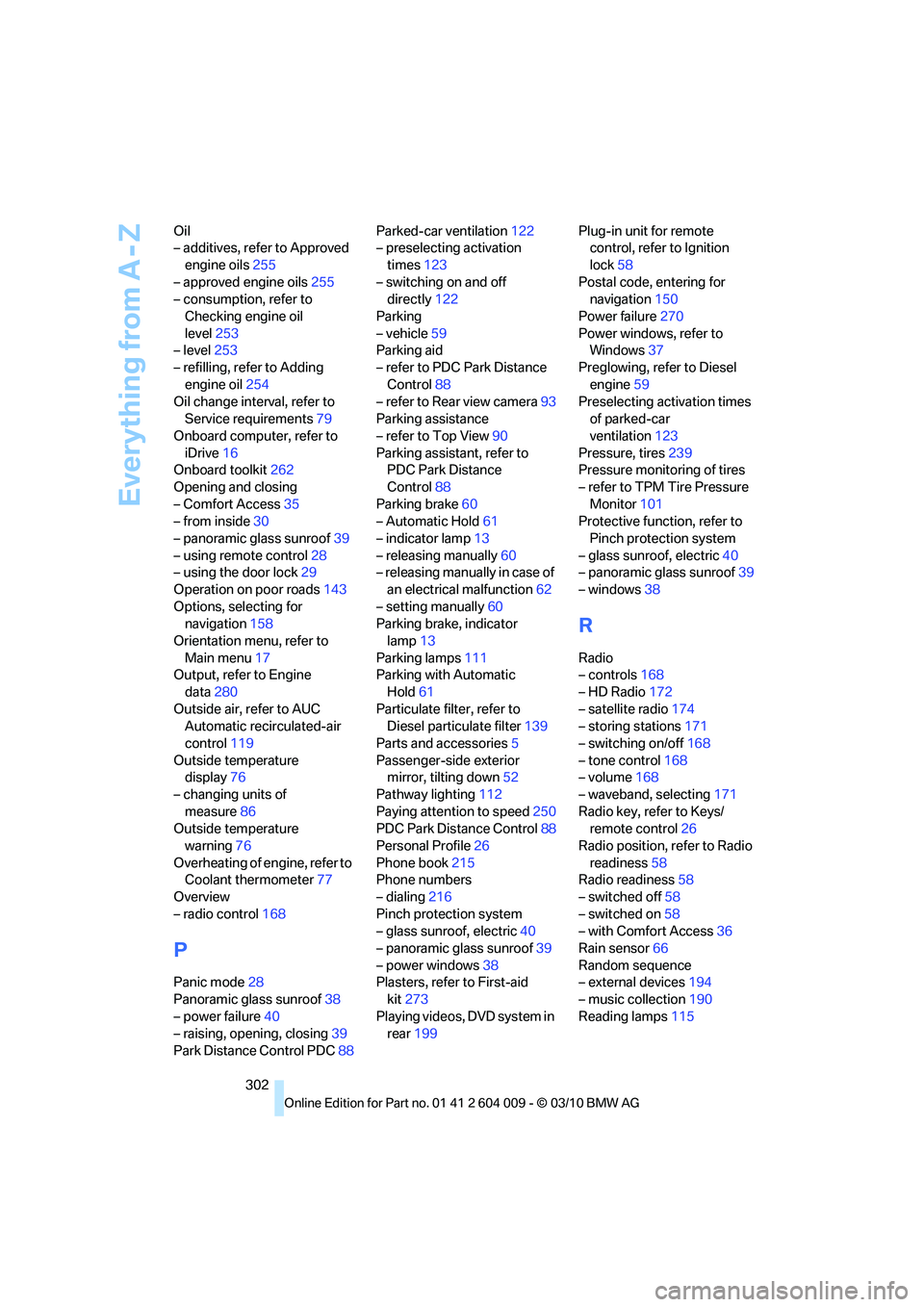

Everything from A - Z
302 Oil
– additives, refer to Approved
engine oils255
– approved engine oils255
– consumption, refer to
Checking engine oil
level253
– level253
– refilling, refer to Adding
engine oil254
Oil change interval, refer to
Service requirements79
Onboard computer, refer to
iDrive16
Onboard toolkit262
Opening and closing
– Comfort Access35
– from inside30
– panoramic glass sunroof39
– using remote control28
– using the door lock29
Operation on poor roads143
Options, selecting for
navigation158
Orientation menu, refer to
Main menu17
Output, refer to Engine
data280
Outside air, refer to AUC
Automatic recirculated-air
control119
Outside temperature
display76
– changing units of
measure86
Outside temperature
warning76
Overheating of engine, refer to
Coolant thermometer77
Overview
– radio control168
P
Panic mode28
Panoramic glass sunroof38
– power failure40
– raising, opening, closing39
Park Distance Control PDC88Parked-car ventilation122
– preselecting activation
times123
– switching on and off
directly122
Parking
– vehicle59
Parking aid
– refer to PDC Park Distance
Control88
– refer to Rear view camera93
Parking assistance
– refer to Top View90
Parking assistant, refer to
PDC Park Distance
Control88
Parking brake60
– Automatic Hold61
– indicator lamp13
– releasing manually60
– releasing manually in case of
an electrical malfunction62
– setting manually60
Parking brake, indicator
lamp13
Parking lamps111
Parking with Automatic
Hold61
Particulate filter, refer to
Diesel particulate filter139
Parts and accessories5
Passenger-side exterior
mirror, tilting down52
Pathway lighting112
Paying attention to speed250
PDC Park Distance Control88
Personal Profile26
Phone book215
Phone numbers
– dialing216
Pinch protection system
– glass sunroof, electric40
– panoramic glass sunroof39
– power windows38
Plasters, refer to First-aid
kit273
Playing videos, DVD system in
rear199Plug-in unit for remote
control, refer to Ignition
lock58
Postal code, entering for
navigation150
Power failure270
Power windows, refer to
Windows37
Preglowing, refer to Diesel
engine
59
Preselecting activation times
of parked-car
ventilation123
Pressure, tires239
Pressure monitoring of tires
– refer to TPM Tire Pressure
Monitor101
Protective function, refer to
Pinch protection system
– glass sunroof, electric40
– panoramic glass sunroof39
– windows38
R
Radio
– controls168
– HD Radio172
– satellite radio174
– storing stations171
– switching on/off168
– tone control168
– volume168
– waveband, selecting171
Radio key, refer to Keys/
remote control26
Radio position, refer to Radio
readiness58
Radio readiness58
– switched off58
– switched on58
– with Comfort Access36
Rain sensor66
Random sequence
– external devices194
– music collection190
Reading lamps115

Reference 303
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Rear automatic climate
control
– air flow122
– switching off122
Rear entertainment, refer to
DVD system in rear196
Rear fog lamps
– indicator lamp13
Rear lamps, refer to Tail
lamps264,266
– replacing bulbs264,266
Rear seat backrest,
folding132
Rear seats
– adjusting47
– adjusting head restraints47
– folding over backrest132
– head restraint adjustment47
– heating50
Rear seats, heating50
Rear socket130
Rear ventilation120
– automatic climate control in
rear121
– 3rd row seats120
Rear view camera93
– cleaning95
– displays on Control
Display95
– driver assistance
functions93
– switching off93
– switching on93
Rearview mirror51
Rear window
– replacing wiper blade262
– windshield wiper66,258
Rear window, heating118
Rear window safety switch38
Rear window wiper, replacing
wiper blade262
Reception
– quality172
– radio station172
Reception level of mobile
phone, refer to Status
information19Recirculated-air mode119
– air recirculation119
– AUC Automatic
recirculated-air control119
Reclining seat, refer to
Seats43
Reflectors, refer to Tail
lamps264,266
Refueling234
Releasing
– hood251
Releasing, refer to
Unlocking36
Remaining distance, refer to
Cruising range78
Remaining distance to
destination, refer to
Computer79
Remote control26
– Comfort Access35
– garage door opener124
– liftgate28
– malfunction29,37
– replacing battery37
Remote control, DVD system
in rear197
– battery replacement198
Removing condensation on
the windows118
Replacement fuses271
Replacement of tires249
– changing wheels268
– new wheels and tires249
Replacing bulbs, refer to
Lamps and bulbs262
Replacing wheels/tires, refer
to New wheels and tires249
Replacing wiper blades262
Reporting an accident, refer to
Initiating an emergency
request273
Reporting safety defects7
Reserve warning, refer to Fuel
gauge78
Reset, refer to Resetting tone
settings170
Residual heat119Restraint systems
– for children54
– refer to Safety belts48
Retreaded tires249
Reverse
– CD changer181
– CD player181
Reverse gear, automatic
transmission with
Steptronic64
Road map160
Roadside
Assistance227,274
Roadside parking lamps113
Roller blind
– luggage compartment roller
cover131
Roller blinds
– roller sun blinds127
Roller blinds, refer to Roller
sun blinds127
Roller sun blinds127
Roof load capacity
283
Roof-mounted luggage
rack143
Rope, refer to Tow-starting
and towing275
Rotary pushbutton, refer to
iDrive16
Route158,159
– bypassing sections159
– changing158,159
– changing criteria158
– displaying map view160
– displaying streets or towns/
cities159
– selecting158
Route instructions, refer to
Destination guidance
through voice
instructions160
Route map, refer to Map
display160
Route section, changing159
Route selection158
RSC Runflat System
Component, refer to Run-
flat tires249

Everything from A - Z
304 Runflat System Component
RSC, refer to Run-flat
tires249
Run-flat tires249
– driving with a damaged
tire100,103
– flat tire100,103
– inflation pressure100,103
– new wheels and tires249
– replacing249
– tire inflation pressure239
S
Safety5
Safety belts48
– damage49
– sitting safely42
– warning lamp48
Safety belt tensioners
– refer to Airbags107
– refer to Safety belts48
Safety systems
– ABS Antilock Brake
System95
– airbags107
– driving stability control
systems95
– DSC Dynamic Stability
Control95
– safety belts48
Safety tires, refer to Run-flat
tires249
Satellite radio174
– channel, activating or
deactivating174
– channel, selecting175
– channel, storing175
– favorites176
– time shift176
– Traffic Jump177
Screen, refer to iDrive16
Screw thread for tow
fitting276
SDARS, refer to Satellite
radio174
Seat heating49,50Seats43
– adjusting43
– adjusting electrically43
– adjusting manually43
– backrest width44
– heating49,50
– in rear47
– lumbar support44
– memory, refer to Seat, mirror
and steering wheel
memory44
– 2nd row seats47
– shoulder support44
– sitting safely42
– storing the setting44
– thigh support43,44
– 3rd row seats48
– ventilation, refer to Active
seat ventilation and Seat
heating50
2nd row seats47
Securing load
– refer to Securing cargo142
– with ski bag, refer to
Securing cargo135
Selecting a detour164
Selecting new scale for
navigation161
Selector lever, automatic
transmission with
Steptronic63
Selector lever lock, refer to
Reverse gear64
Self-leveling suspension99
Service, refer to Roadside
Assistance274
Service and Warranty
Information Booklet for
US models256
Service interval indicator, refer
to Service requirements79
Service Request229
Service requirements79
– also refer to CBS Condition
Based Service256
Service status230Settings
– changing on Control
Display85
– clock, 12h/24h mode85
– configuring, refer to
Personal Profile26
– DVD182
– language86
Settings for the map
display161
Setting speed limit84
Setting time, refer to
Preselecting activation
times123
Shifting, automatic
transmission with
Steptronic64
Shift paddles64
Short commands of the voice
activation system285
Short route in navigation, refer
to Selecting route158
Shoulder support44
Shuffled, refer to Random
– CD changer180
– CD player180
Side airbags107
Side marker lamps, replacing
bulbs264
Side View92
Signal horn, refer to Horn10
Sitting safely42
– with airbags42
– with head restraint42
– with safety belts42
Ski bag134
Slide show, refer to Displaying
images204
Sliding/tilt sunroof, refer to
Glass sunroof, electric
40
Sliding/tilt sunroof, refer to
Panoramic glass sunroof38
Slope assistant, refer to Drive-
off assistant99
Smokers' package, refer to
Ashtray129
Snap-in adapter
– inserting/removing222
– use212
