Replacing the reversing lamp and inner
brake lamp
1.Loosen the two fasteners, arrow 1 and pull
down on the lamp holder to remove, arrow 2.
2.Press the defective bulb gently into the
socket, turn counterclockwise and remove.
3.Insert the new bulb.
Installing the bulb holder
1.Slide the bulb holder onto the two guide
pins, arrow 1. Insert the two contacts, ar‐
row 2, into the connections, arrow 3.
2.Press on the bulb holder. Make sure that the
two exterior fasteners latch into place.
3.Swing the trim back onto the trunk lid and
secure.
Tail lamp, license plate lamp and
central brake lamp
Follow the General instructions on lamps and
bulbs, refer to page 279.
The lamps feature LED technology. Contact
your service center in the event of a malfunction.
Changing wheels
Notes
The vehicle equipment does not include a spare
tire.
When using run-flat tires or tire sealants, a tire
does not need to be changed immediately in the
event of pressure loss due to a flat tire.
The tools for changing wheels are available as
accessories from your service center.
Jacking points for the vehicle jack
The jacking points for the vehicle jack are lo‐
cated at the positions shown.
Vehicle battery
Maintenance
The battery is maintenance-free, i.e., the elec‐
trolyte will last for the life of the battery.
Your service center will be glad to advise you on
questions regarding the battery.
Battery replacement
Use approved vehicle batteries only
Only use vehicle batteries that have been
approved for your vehicle by the manufacturer;
otherwise, the vehicle could be damaged and
systems or functions may not be fully availa‐
ble.◀
After a battery replacement, have the battery
registered on the vehicle by your service center
Seite 287
Replacing componentsMobility
287Online Edition for Part no. 01 40 2 608 633 - 11 09 490

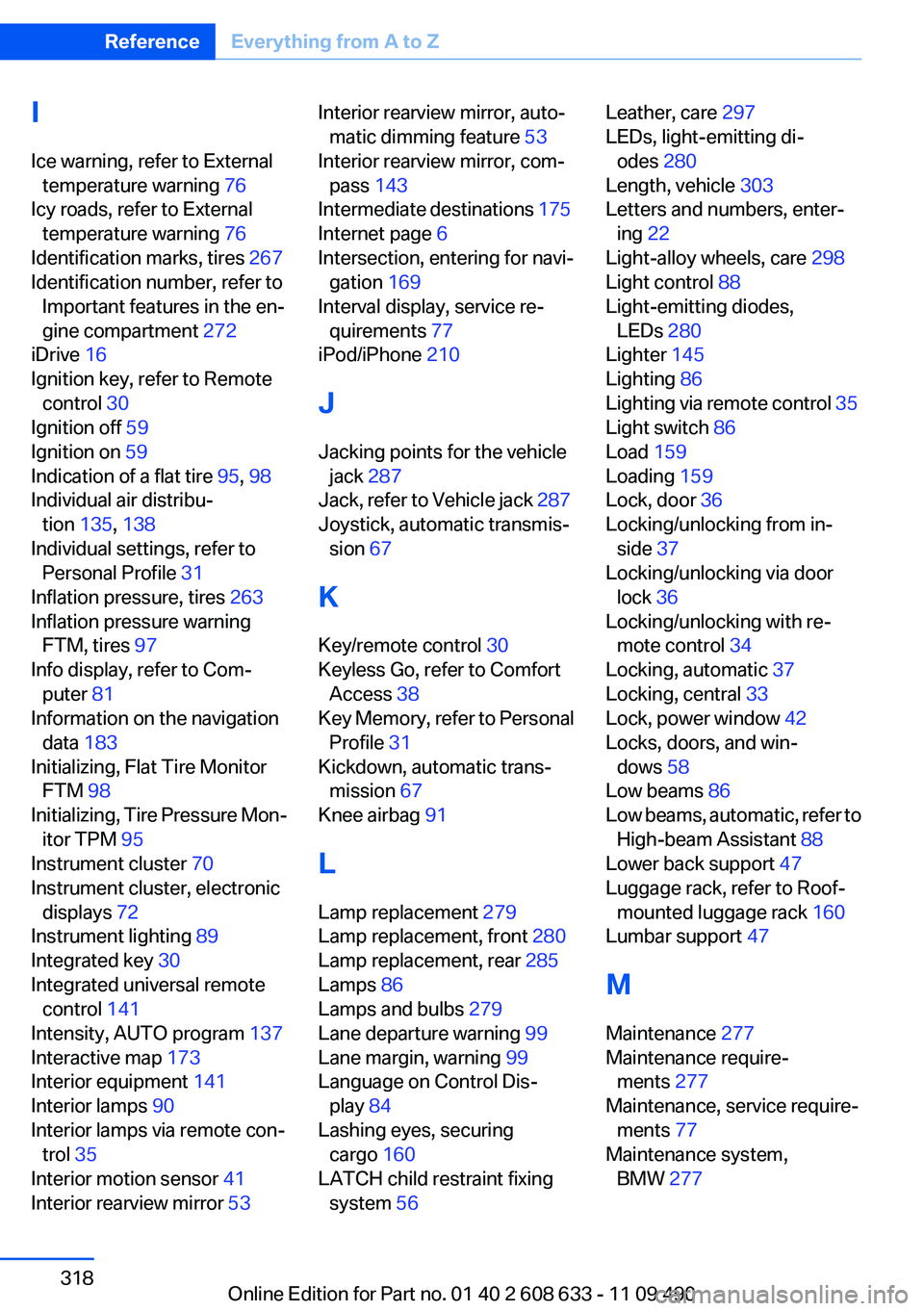

I
Ice warning, refer to External
temperature warning 76
Icy roads, refer to External
temperature warning 76
Identification marks, tires 267
Identification number, refer to
Important features in the en‐
gine compartment 272
iDrive 16
Ignition key, refer to Remote
control 30
Ignition off 59
Ignition on 59
Indication of a flat tire 95, 98
Individual air distribu‐
tion 135, 138
Individual settings, refer to
Personal Profile 31
Inflation pressure, tires 263
Inflation pressure warning
FTM, tires 97
Info display, refer to Com‐
puter 81
Information on the navigation
data 183
Initializing, Flat Tire Monitor
FTM 98
Initializing, Tire Pressure Mon‐
itor TPM 95
Instrument cluster 70
Instrument cluster, electronic
displays 72
Instrument lighting 89
Integrated key 30
Integrated universal remote
control 141
Intensity, AUTO program 137
Interactive map 173
Interior equipment 141
Interior lamps 90
Interior lamps via remote con‐
trol 35
Interior motion sensor 41
Interior rearview mirror 53
Interior rearview mirror, auto‐
matic dimming feature 53
Interior rearview mirror, com‐
pass 143
Intermediate destinations 175
Internet page 6
Intersection, entering for navi‐
gation 169
Interval display, service re‐
quirements 77
iPod/iPhone 210
J
Jacking points for the vehicle
jack 287
Jack, refer to Vehicle jack 287
Joystick, automatic transmis‐
sion 67
K
Key/remote control 30
Keyless Go, refer to Comfort
Access 38
Key Memory, refer to Personal
Profile 31
Kickdown, automatic trans‐
mission 67
Knee airbag 91
L
Lamp replacement 279
Lamp replacement, front 280
Lamp replacement, rear 285
Lamps 86
Lamps and bulbs 279
Lane departure warning 99
Lane margin, warning 99
Language on Control Dis‐
play 84
Lashing eyes, securing
cargo 160
LATCH child restraint fixing
system 56
Leather, care 297
LEDs, light-emitting di‐
odes 280
Length, vehicle 303
Letters and numbers, enter‐
ing 22
Light-alloy wheels, care 298
Light control 88
Light-emitting diodes,
LEDs 280
Lighter 145
Lighting 86
Lighting via remote control 35
Light switch 86
Load 159
Loading 159
Lock, door 36
Locking/unlocking from in‐
side 37
Locking/unlocking via door
lock 36
Locking/unlocking with re‐
mote control 34
Locking, automatic 37
Locking, central 33
Lock, power window 42
Locks, doors, and win‐
dows 58
Low beams 86
Low beams, automatic, refer to
High-beam Assistant 88
Lower back support 47
Luggage rack, refer to Roof-
mounted luggage rack 160
Lumbar support 47
M
Maintenance 277
Maintenance require‐
ments 277
Maintenance, service require‐
ments 77
Maintenance system,
BMW 277
Seite 318
ReferenceEverything from A to Z
318Online Edition for Part no. 01 40 2 608 633 - 11 09 490
