If you have to wash the engine compart-
ment, take care not to aim the jet of wa-
ter directly at the fuse box or windscreen
wiper motors.
FUSE LOCATION
Fuses are grouped together in three fuseboxes located in the engine compartment, on the dashboard and inside the boot.
Engine compartment fusebox fig. 153
This is located by the side of the battery: loosen the screws A-fig. 152 and remove the lid B to access the fuses. The number of the
electrical component corresponding to each fuse can be found on the back of the cover. After replacing the fuse, make sure you close
cover B on the fusebox.
fig. 152A0K0174mfig. 153A0K0231m

189
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
Fusebox on dashboard
Insert a hand in the seat A-fig. 154 and lower the flap B to access the fuses. The fuses are located in the fusebox shown in fig. 155.
fig. 154A0K0206mfig. 155A0K0232m

190
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
Boot fusebox
The fuse box (fig. 157) is located on the left side of the luggage compartment underneath the side cover. Contact Alfa Romeo Autho-
rized Services to access it.
fig. 157A0K0045m

7.5
7.5
7.5
7.5
15
15
7.5
7.5
10F91
F90
F12
F13
F12
F13
F93
F92
F32155
155
155
155
155
155
155
155
155
191
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS

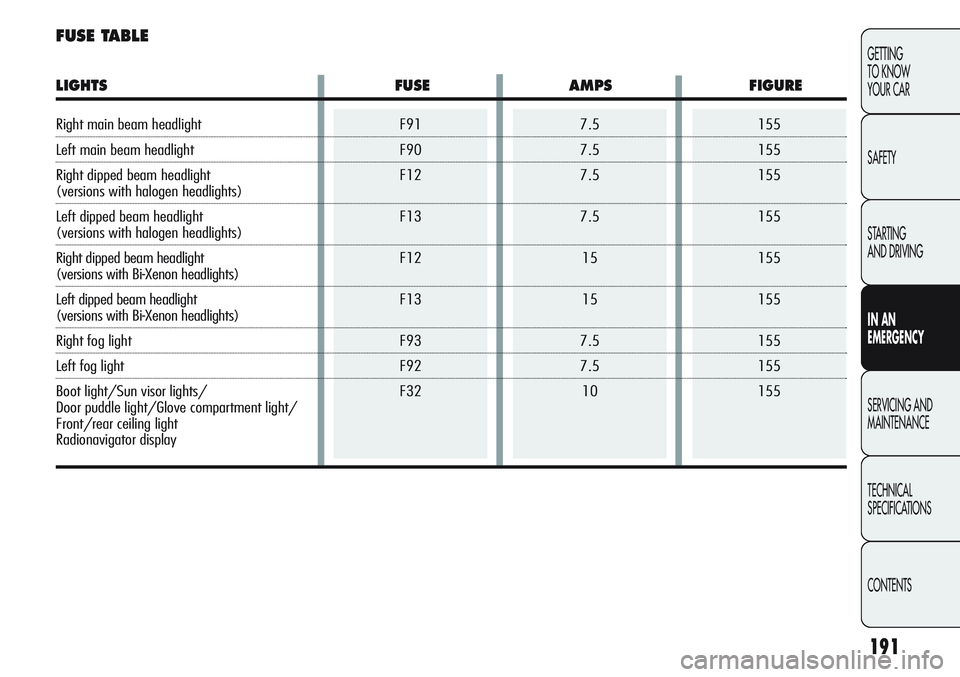

FUSE TABLE
LIGHTS FUSE AMPS FIGURE
Right main beam headlight
Left main beam headlight
Right dipped beam headlight
(versions with halogen headlights)
Left dipped beam headlight
(versions with halogen headlights)
Right dipped beam headlight
(versions with Bi-Xenon headlights)
Left dipped beam headlight
(versions with Bi-Xenon headlights)
Right fog light
Left fog light
Boot light/Sun visor lights/
Door puddle light/Glove compartment light/
Front/rear ceiling light
Radionavigator display

153
153
153
153
153
153
155
155
155
155
155
155
15530
15
7.5
30
15
20
5
20
20
10
7.5
20
5F09
F10
F19
F20
F21
F21
F31
F33
F34
F36
F37
F38
F42
192
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
USERS FUSE AMPS FIGURE
Headlight washer pump supply
Horn
AC compressor
Heated rear window
Fuel pump
Fuel pump (1750 Turbo Petrol version)
Various devices
Rear electric window (left side)
Rear electric window (right side)
+30
Various devices
Central locking
Body Computer power supply

20
20
20
5
5
7.5
15
15
20
15
15
15
15
15
5
7.5155
155
155
155
155
155
157
157
157
157
157
157
153
153
153
153
193
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
F43
F47
F48
F49
F51
F53
F60
F61
F62
F63
F64
F65
F85
F86
F87
F88
USERS FUSE AMPS FIGURE
Two-way windscreen washer pump
Front electric window (driver side)
Front electric window (passenger side)
Various devices
Various devices
+30
Lumbar adjustments
Front seat heater
BOSE amplifier + Subwoofer
Left front seat movement
Right front seat movement
Electric sunroof
Cigar lighter/power socket
12V boot power socket
IBS Battery charge status sensor for Start&Stop system
External mirror defrosters

194
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
RECHARGING THE BATTERY
IMPORTANT The battery recharging procedure is provided for in-
formation purposes only. Contact Alfa Romeo Authorized Services
to carry out this operation.
We recommend recharging the battery slowly for approximately
24 hours at low amperage. A prolonged recharge might damage
the battery.
VERSIONS WITHOUT Start&Stop
(for versions/markets, where provided)
Charge the battery as follows:
❍disconnect the battery negative terminal;
❍connect the charger leads to the battery terminals, observing
the polarity;
❍turn on the charger;
❍when you have finished, turn the charger off before discon-
necting the battery;
❍reconnect battery negative terminal.

195
GETTING
TO KNOW
YOUR CAR
SAFETY
STARTING
AND DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
CONTENTS
VERSIONS WITH Start&Stop fig. 158
(for versions/markets, where provided)
Charge the battery as follows:
❍proceed as follows: detach the connector A (by pressing but-
ton B) from sensor C for monitoring the status of the battery
installed on the battery negative pole D;
fig. 158A0K0200m
❍connect the positive cable to the positive battery terminal E and
the negative terminal to the sensor D as shown in the figure;
❍turn on the charger. Turn the device off after recharging;
❍after having disconnected the recharging device, reconnect the
connector A to the sensor C as shown in the figure.
