2011 Acura TL headlight bulb

The headlights were properly aimed
when your vehicle was new. If you
regularly carry heavy items in the
trunk, readjustment may be
required. Adjustments should be
done by your dealer or another
qualified technician.Your vehicle has halogen high beam
headlight bulbs which are also used
f or the daytime running light.
Handle it by its base and protect the
glass from contact with your skin or
hard objects. If you touch the glass,
clean it with denatured alcohol and a
clean cloth.
Open the hood.
Remove all engine compartment
covers (see page ). If youarereplacingthebulbon
the driver’s side, remove the three
holding clips with a f lat-tip
screwdriver. Then remove the
upper part of the air intake duct by
pulling it straight up.
The low beam headlight bulbs are a
type of high voltage discharge tube.
High voltage can remain in the
circuit even with the light switch off
and the key removed (or the
vehicle is in VEHICLE OFF
(LOCK) mode on models with
keyless access system). Because of
this, you should not attempt to
examine or change a low beam
headlight bulb yourself. If a low
beam headlight bulb fails, take
the vehicle to your dealer to have
it replaced.
1.
2.
508
CONT INUED
Headlight A iming
Low Beam Headlight
Bulb Replacement Replacing a High Beam
Headlight/Daytime Running
Light Bulb
Lights
Maint enance
521
HOLDING CLIP
Halogen bulbs get very hot when lit. Oil,
perspiration, or a scratch on the glass
can cause the bulb to overheat and
shatter.
10/07/29 12:48:43 31TK4620_526
2011 TL

Push the electrical connector back
onto the bulb. Make sure it is on
all the way.
Remove the electrical connector
f rom the bulb by pushing on the
tab and pulling the connector
down.
Remove the bulb by turning it one-
quarter turn counterclockwise.
Insert the new bulb into the hole,
and turn it one-quarter turn
clockwise to lock it in place.
To change a bulb on the
passenger’s side, remove the
engine coolant reserve tank by
pulling it out of its stay. Turn on the headlights to test the
new bulb.
Install the upper part of the air
intake duct securely. Reinstall the
holding clips. (Driver’s side)
Install all engine compartment
covers. Install the engine coolant reserve
tank. (Passenger’s side)
4.
5. 6.
7.
8.
3. 9.
10.
Lights
522

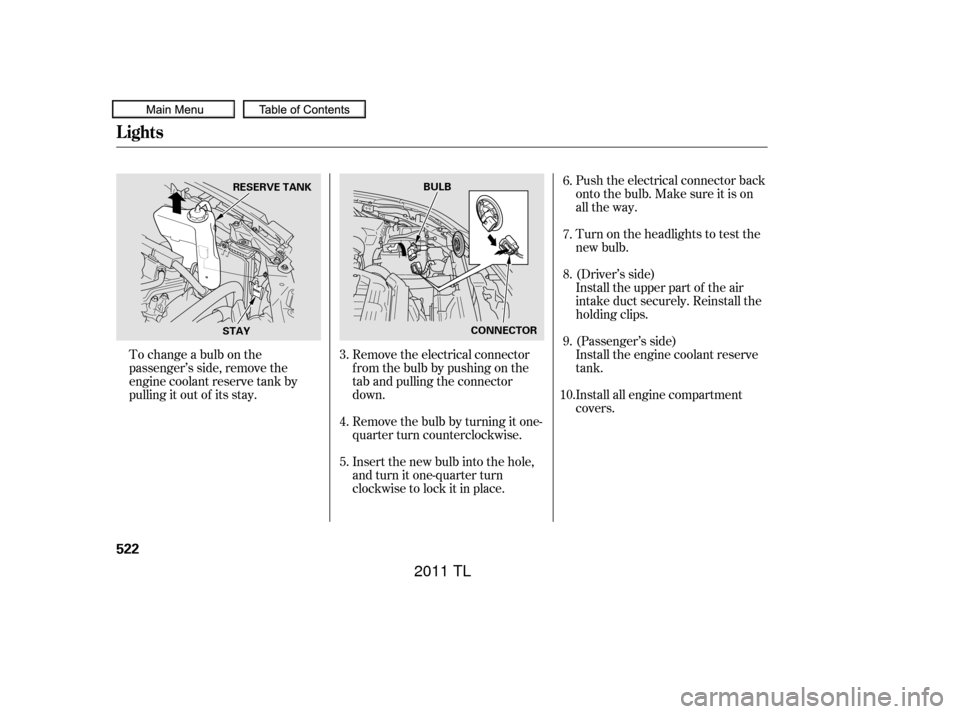

RESERVE TANK BULB
CONNECTOR
STAY
10/07/29 12:48:54 31TK4620_527
2011 TL

Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.Start the engine. If you are
replacing a driver’s side bulb, turn
the steering wheel all the way to
theright.If youarereplacinga
passenger’s side bulb, turn the
steering wheel to the lef t. Turn of f
the engine.
Remove the bulb by pulling it
straight out of its socket. Install the new bulb in the socket
by pushing it straight in the socket
until it bottoms.
Insert the socket into the
headlight assembly. Turn it
clockwise to lock it in place.
Turn on the lights to make sure
the new bulb is working.
Push the under cover in place and
set the spoiler and inner f ender
cover in the original position.
Install the bolts and tighten them
securely. Put the holding clip, and
lock it by pushing on its center.
4.
5. 6.
7.
8.
1.
9. Replacing a Front T urn Signal/
Parking L ight Bulb
Lights
524
SOCKET
BULB
10/07/29 12:49:08 31TK4620_529
2011 TL

ÎÎ Î
Î
Î
µ
µ
Î
Î
CONT INUED
Specif ications
Technical Inf ormation
581
Engine (2WD)
Engine (SH-AWD)
Fuses
Battery Lights 3.50 x 3.66 in (89.0 x 93.0 mm)Water cooled 4-stroke
SOHC VTEC 6-cylinder (V6), gasoline engine
212 cu-in (3,471 cm
)
11.2 : 1
ILZKR7B11
Type
BorexStroke
Displacement
Compression ratio
Spark plugs
Type
BorexStroke
Displacement
Compression ratio
Spark plugs
SXU22HCR11S11.2 : 1
223.5 cu-in (3,664 cm
)
3.54 x 3.78 in (90.0 x 96.0 mm) Water cooled 4-stroke
SOHC IN/EX VTEC 6-cylinder (V6), gasoline engineSXU22HCR11
ILZKR7B-11S
Interior
Under-hood
Capacity
12 V 12 V72 AH/20 HR
60 AH/5 HR
On vehicles with high voltage discharge type low beam headlights,
replacement of a bulb should be performed by your dealer.
Headlight (Low beam )
Headlight (High beam/DRL)
Front turn signal/parking
lights
Front side marker lights
Front fog lights
Rear turn signal lights
Back-up lights
Rear side marker lights
Stop/taillights
Side turn signal lights
High-mount brake light
License plate lights
Trunk light
Door courtesy lights
Vanity mirror lights
Console compartment light
Glove box Light
Foot light
See pages570or the fuse label
attached on the side panel.
See pages 571or the fuse label
attached to the inside of the fuse
box door.
See page 569or the fuse box
cover.
35 W (D2S)
60 W (HB3)
24/2.2 CP
3CP
55 W (H11)
21 W
16 W
3CP
3CP
5W
3.4 W
1.4 W
1.4 W
1.4 W
DENSO:
NGK:
NGK: DENSO:
1:
2 : Replacement of a light bulb should be done by your dealer. LED
Driver’s side
Passenger’s side
LED
LED
LED
(Amber)
(Amber)
1
2 2
2
2
10/07/29 12:56:34 31TK4620_586
