2011 Acura MDX display

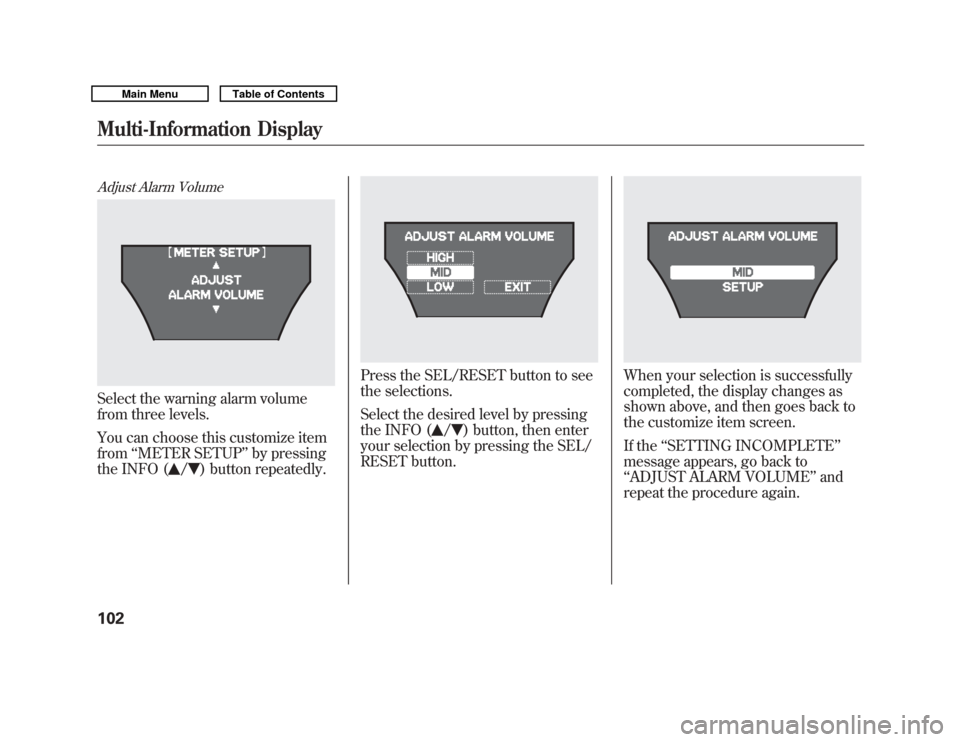

Adjust Alarm VolumeSelect the warning alarm volume
from three levels.
You can choose this customize item
from‘‘METER SETUP ’’by pressing
the INFO (
/
) button repeatedly.
Press the SEL/RESET button to see
the selections.
Select the desired level by pressing
the INFO (
/
) button, then enter
your selection by pressing the SEL/
RESET button.
When your selection is successfully
completed, the display changes as
shown above, and then goes back to
the customize item screen.
If the ‘‘SETTING INCOMPLETE ’’
message appears, go back to
‘‘ ADJUST ALARM VOLUME ’’and
repeat the procedure again.
Multi-Information Display10210/06/29 11:59:04 11 ACURA MDX MMC North America Owner's M 50 31STX640 enu

Elapsed Time ResetThere are four elapsed time reset
choices you can make:
MANUAL ONLY－You can reset
the elapsed time, when Trip
Computer's Elapsed Time is
displayed (see page 84).
IGN OFF －The elapsed time is
reset when you turn the ignition
switch to the LOCK (0) position.
TRIP A －The elapsed time is reset
when the Trip A is reset.
TRIP B －The elapsed time is reset
when the Trip B is reset.
You can choose this customize item
from ‘‘METER SETUP ’’by pressing
the INFO (
/
) button repeatedly.
Press the SEL/RESET button to see
the selections.
Select the desired setting by
pressing the INFO (
/
) button,
then enter your selection by pressing
the SEL/RESET button.CONTINUED
Multi-Information Display
103
Instruments and Controls
10/06/29 11:59:04 11 ACURA MDX MMC North America Owner's M 50 31STX640 enu

When your selection is successfully
completed, the display changes as
shown above, and then goes back to
the customize item screen.
If the‘‘SETTING INCOMPLETE ’’
message appears, go back to
‘‘ ELAPSED TIME RESET ’’and
repeat the procedure again.
Auto Interior IlluminationWhile the headlight switch is turned
on, the interior lights gradually dim,
as the outside light level gets low.
You can customize at which outside
light level the lights start to dim.
There are MAX, HIGH, MID, LOW
and MIN levels and OFF for the auto
interior illumination settings.
If you want the illuminations to start
dimming as early as possible, select
MAX. For illuminations to start
dimming as late as possible, select
MIN. Choose HIGH, MID, or LOW
for levels in between.
To disable the auto interior
illumination function, select OFF.
You can choose this customize item
from ‘‘METER SETUP ’’by pressing
the INFO (
/
) button repeatedly.
Multi-Information Display10410/06/29 11:59:04 11 ACURA MDX MMC North America Owner's M 50 31STX640 enu

Press the SEL/RESET button to see
the selections.
Select the desired setting by
pressing the INFO (
/
) button,
then enter your selection by pressing
the SEL/RESET button.
When your selection is successfully
completed, the display changes as
shown above, and then goes back to
the customize item screen.
If the ‘‘SETTING INCOMPLETE ’’
message appears, go back to ‘‘AUTO
INTERIOR ILLUMINATION ’’and
repeat the procedure again.
CONTINUED
Multi-Information Display
105
Instruments and Controls
10/06/29 11:59:04 11 ACURA MDX MMC North America Owner's M 50 31STX640 enu

Position Setup
Here are the two custom settings for
the position setup:●
MEMORY POSITION LINK
●
AUTO TILT & TELESCOPE
STEERING WHEEL
While ‘‘POSITION SETUP ’’is
shown, press the SEL/RESET button
to enter the customize mode.
Each time you press the INFO
(/
) button, the screen changes as
shown in the illustration. Press the
INFO (
/
) button until you see the
setting you want to customize, then
press the SEL/RESET button to
enter your selection.
SEL/RESET
BUTTON
INFO ( ▲or▼ )
BUTTON
Multi-Information Display10610/06/29 11:59:04 11 ACURA MDX MMC North America Owner's M 50 31STX640 enu

Memory Position LinkIf‘‘MEMORY POSITION LINK ’’is
set to ‘‘ON, ’’the driver's seat, the
steering wheel, and outside mirror
positions move to the position stored
in the memory when you open the
driver's door, using the remote
transmitter.
You can choose this customize item
from ‘‘POSITION SETUP ’’by
pressing the INFO (
/
) button
repeatedly.
Press the SEL/RESET button to see
the selections.
Select ON or OFF by pressing the
INFO (
/
) button, then enter your
selection by pressing the SEL/
RESET button.
When your selection is successfully
completed, the display changes as
shown above, and then goes back to
the customize item screen.
If the ‘‘SETTING INCOMPLETE ’’
message appears, go back to
‘‘ MEMORY POSITION LINK ’’and
repeat the procedure again.
CONTINUED
Multi-Information Display
107
Instruments and Controls
10/06/29 11:59:04 11 ACURA MDX MMC North America Owner's M 50 31STX640 enu

Auto Tilt & Telescope Steering WheelWhen‘‘AUTO TILT & TELESCOPE
STEERING WHEEL ’’is set to ‘‘ON, ’’
the steering wheel automatically
moves fully in and up when you turn
the ignition switch to the LOCK (0)
position and remove the key.
You can choose this customize item
from ‘‘POSITION SETUP ’’by
pressing the INFO (
/
) button
repeatedly.
Press the SEL/RESET button to see
the selections.
Select ON or OFF by pressing the
INFO (
/
) button, then enter your
selection by pressing the SEL/
RESET button.
When your selection is successfully
completed, the display changes as
shown above, and then goes back to
the customize item screen.
If the ‘‘SETTING INCOMPLETE ’’
message appears, go back to ‘‘AUTO
TILT & TELESCOPE STEERING
WHEEL ’’and repeat the procedure
again.
Multi-Information Display10810/06/29 11:59:04 11 ACURA MDX MMC North America Owner's M 50 31STX640 enu

Lighting Setup
Here are the three custom settings
for the lighting setup:●
INTERIOR LIGHT DIMMING
TIME
●
HEADLIGHT AUTO OFF TIMER
●
AUTO LIGHT SENSITIVITY
While ‘‘LIGHTING SETUP ’’is
shown, press the SEL/RESET button
to enter the customize mode.
Each time you press the INFO
(/
) button, the screen changes as
shown in the illustration. Press the
INFO (
/
) button until you see the
setting you want to customize, then
press the SEL/RESET button to
enter your selection.
SEL/RESET
BUTTON
INFO ( ▲or▼ )
BUTTON
CONTINUED
Multi-Information Display
109
Instruments and Controls
