2011 Abarth Punto Evo mirror

35
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
ELECTROCHROMIC REAR-VIEW MIRROR
fig. 26 (for versions/markets where provided)
Some versions have an electrochromic mirror with
automatic antiglare function.
When the function is active, LED A on the mirror is on.
F0U025Abfig. 25
REAR VIEW MIRRORS
REAR VIEW MIRROR fig. 25
The mirror is fitted with a safety device that causes its
release in the event of a violent impact with the
passenger.
Lever A can be used to move the mirror to two
different positions: normal or antiglare.
F0U026Abfig. 26

F0U027Abfig. 27
DOOR MIRRORS
Adjustment fig. 27
This operation is possible only with the key turned to
MAR.
To carry out the adjustment, proceed as follows:
❒use switch B to select the required mirror (left or
right);
❒to adjust the mirror, move switch C in the four
directions.
Folding
When required (for example when the shape causes
difficulty in narrow spaces), it is possible to fold the
mirrors by moving them from position 1-fig. 28 to
position 2.
36
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
As the driver’s wing mirror is curved, it
may slightly alter the perception of
distance.
WARNING
Defrosting/demisting
(for versions/markets where provided)
The mirrors are fitted with resistors that are activated
when the heated rear windscreen is turned on (by
pressing button
().
IMPORTANT This function is timed and it will turn off
automatically after a few minutes.
When driving, the mirrors should always
be in position 1-fig. 28.
F0U028Abfig. 28

43
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS

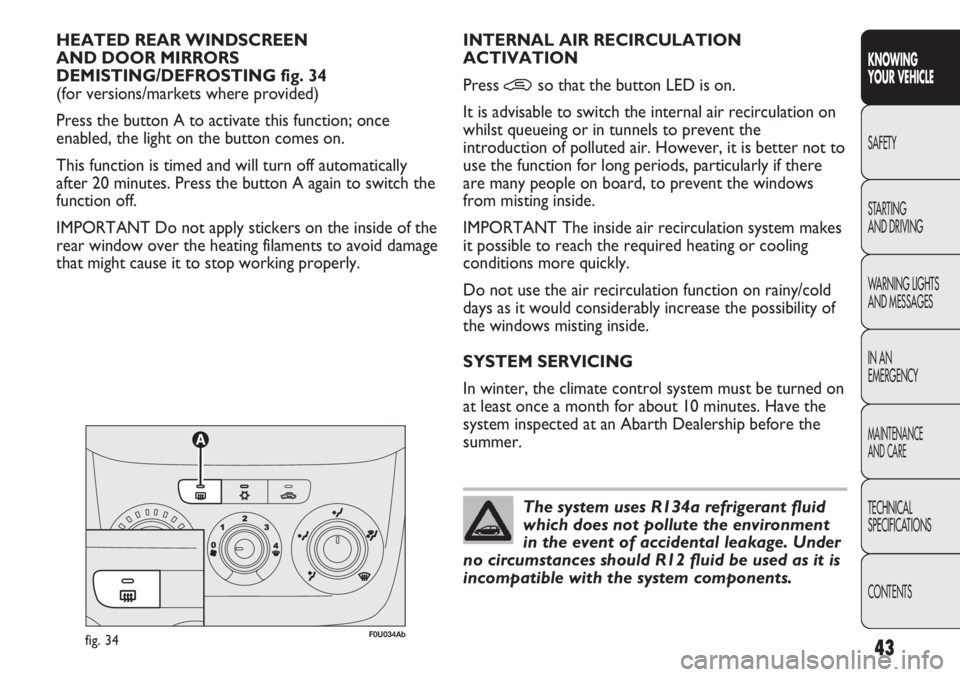

HEATED REAR WINDSCREEN
AND DOOR MIRRORS
DEMISTING/DEFROSTING fig. 34
(for versions/markets where provided)
Press the button A to activate this function; once
enabled, the light on the button comes on.
This function is timed and will turn off automatically
after 20 minutes. Press the button A again to switch the
function off.
IMPORTANT Do not apply stickers on the inside of the
rear window over the heating filaments to avoid damage
that might cause it to stop working properly.INTERNAL AIR RECIRCULATION
ACTIVATION
Press
•so that the button LED is on.
It is advisable to switch the internal air recirculation on
whilst queueing or in tunnels to prevent the
introduction of polluted air. However, it is better not to
use the function for long periods, particularly if there
are many people on board, to prevent the windows
from misting inside.
IMPORTANT The inside air recirculation system makes
it possible to reach the required heating or cooling
conditions more quickly.
Do not use the air recirculation function on rainy/cold
days as it would considerably increase the possibility of
the windows misting inside.
SYSTEM SERVICING
In winter, the climate control system must be turned on
at least once a month for about 10 minutes. Have the
system inspected at an Abarth Dealership before the
summer.
The system uses R134a refrigerant fluid
which does not pollute the environment
in the event of accidental leakage. Under
no circumstances should R12 fluid be used as it is
incompatible with the system components.
fig. 34F0U034Ab

46
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
These functions are:
❒climate control compressor engagement (with an
outside temperature above 4°C);
❒switching off, if previously on, of the interior air
recirculation (LED on button
Toff);
❒switching on of heated rear windscreen (LED on
button
-on) and door mirror heater coils;
❒setting maximum air temperature;
❒activation of air flow.
DEMISTING/DEFROSTING
OF HEATED REAR WINDOW AND
DOOR MIRRORS
Press button (to activate; when this function is
activated, the button LED lights up.
This function is timed and will turn off automatically
after 20 minutes. Press the button (again to switch
the function off.
IMPORTANT Do not apply stickers on the inside of the
rear window over the heating filaments to avoid
damage.
IMPORTANT Press
Tto introduce air from the
outside (in this case the LED on the button should be off).INTERNAL AIR RECIRCULATION
ACTIVATION
Press button
T.
Air recirculation is carried out according to two
possible operating modes:
❒permanently off (air recirculation always off with
introduction of external air), indicated by the LED
on button
Tbeing off;
❒permanently on (air recirculation always on),
signalled by the LED on button
Tbeing lit.
When OFF is pressed, the climate control system
automatically activates internal air recirculation (LED on
button
Ton). It is still possible to activate outside air
recirculation (LED on the button off) and vice versa, by
pressing button
T.
IMPORTANT The inside air recirculation system makes
it possible to reach the required heating or cooling
conditions faster depending on the mode selected. It is
not advisable to switch the air recirculation on when it
is rainy/cold to prevent the windows from misting up,
especially if the climate control is not turned on. It is
advisable to switch the internal air recirculation on
whilst queueing or in tunnels to prevent the
introduction of polluted air.
Do not use the function for a long time, particularly if
there are several passengers on board, to prevent the
windows from misting up.

52
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
The wiper stops working three strokes after the stalk is
released. A further stroke 6 seconds later completes
the wiping operation.
RAIN SENSOR
(for versions/markets where provided)
The rain sensor is located behind the rear view mirror
in contact with the windscreen and has the purpose of
automatically adjusting the frequency of the windscreen
wiper strokes depending on the intensity of the rain
during intermittent operation.
IMPORTANT Keep the glass in the sensor area clean.
Activation
Move the twist switch on the right-hand stalk to
≤fig.
38. The activation of the sensor is signalled by a wiper
stroke. Through the setup menu it is possible to
increase the sensitivity of the rain sensor. The increasing
of the rain sensor sensitivity is signalled by a “stroke” to
show the command has been acquired. If the
windscreen washer is used with the rain sensor
activated, the normal washing cycle is performed, after
which the rain sensor resumes its normal automatic
operation.
Never use the windscreen wipers to
remove layers of snow or ice from the
windscreen. In such conditions, the
windscreen wipers may be subjected to excessive
stress and the motor protection which prevents
operation for a few seconds may intervene. If
operation is not restored, even after turning the
key and restarting the engine, go to an Abarth
Dealership.
When released, the stalk returns to its default position
and the wipers automatically switch off.
With the twist switch at
≤, the windscreen wiper will
automatically adapt to the speed of the car.
IMPORTANT Replace the wiper blades as specified in
the “Maintenance and care” section.
“Smart washing” function
Pull the stalk towards the steering wheel (unstable
position) to operate the windscreen washer.
Keeping the lever pulled for more than half a second,
with just one movement it is possible to operate the
washer jet and the wiper at the same time.

66
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
F0U062Abfig. 61
SUN VISORS fig. 61
They are located at the sides of the driving rear view
mirror. They may be positioned at the front and at the
side.
F0U063Abfig. 62
DOCUMENT HOLDER POCKET
(for versions/markets where provided)
On certain versions a document holder pocket is
located on the back of the seat backrest fig. 62.

174
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
7.5
7.5
5
5
10
5
20
20
20
20
5
5
7.5 1
8
13
2
5
11
4
6
14
7
12
3
10
FUSE SUMMARY TABLE
Dashboard fuse box fig. 157
USERSFUSE AMPERE
Right dipped headlamp
Left dipped beam headlight, headlight alignment corrector
INT/A supply for switch coils on engine fuse box
and relay switch coils on body computer control unit
Courtesy light, boot light, glove compartment light
Supply and battery for EOBD diagnosis, automatic climate
control unit, alarm, radio, Blue&Me™ control unit
INT supply for instrument panel, switch on brake pedal
(NO contact), third brake light
Door locking/unlocking motors, dead lock activation motors, boot
unlocking motor
Windscreen/rear window washer pump
Driver’s front electric window motor
Passenger side front electric window motor
INT supply for dashboard control lights, TMPS tyre pressure
measurement control unit, electric wing mirror movement, sunroof control
unit, my-port infotelematic system socket, electrochromic rear view mirror
Instrument panel
INT supply for brake pedal switch (NC contact), clutch
pedal switch, interior heating unit, Blue&Me™ control unit,
sound system wiring, voltage stabiliser control unit, reverse light on bumper,
brake servo sensor, relay switch coils on engine compartment fusebox

175
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
09
10
14
19
20
21
30
85
86
87
8820
10
15
7.5
30
15
15
–
15
5
7.5 Engine compartment fusebox fig. 159
USERSFUSE AMPERE
Hi-Fi sound system with radio, control unit and subwoofer
Horn
Left main beam headlamp, right main beam headlamp
Air climate control compressor
Heated rear window
Fuel pump on tank
Left fog light, right fog light
Socket (set-up)
Passenger compartment socket, cigar lighter
Battery charge status sensor
Demister on driver-side door mirror, demister on passenger-side door
mirror
