If the key is turned to MAR, even if the
engine is switched off, airbags may be
deployed when the car is stationary and hit by
another vehicle. For this reason, children must
never sit on the front seat, even if the car is not
moving. We remind you that if the key is turned
to the STOP position, no safety device (airbag
or pretensioner) activates following a collision.
Non-deployment in such cases should not be
considered as the sign of a malfunction.
WARNING
If the car has been stolen or has been
the subject of an attempted theft, if it
has been vandalised or flooded, have the airbag
system checked at an Abarth Dealership.
WARNING
When the ignition key is turned to MAR,
the warning light “turns on (with front
airbag on passenger’s side enabled) and blinks
for a few seconds to remind you that the
passenger airbag will activate in the event of a
collision. Then it turns off.
WARNING
Do not pressure wash the seats with
steam or water (either by hand or at
automatic seat washing stations).
WARNING
The front airbags deploy in the event of
more severe collisions than those
required for deploying the pretensioners. For
collisions in the range between the two
activation thresholds, pretensioner activation
alone is normal.
WARNING
Do not hook rigid objects to clothes
hangers and support handles.
WARNING
The airbag does not replace seat belts; it
increases their effectiveness.
Furthermore, since front airbags are not
deployed in low speed collisions, side-on
collisions, rear-end shunts or roll-overs, the
passengers are protected only by the seat belts
which must therefore be fastened at all times.
WARNING

140
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
❒slightly open the windows;
❒cover the car with a cloth or perforated plastic
sheet. Do not use sheets of non-perforated plastic
as they do not allow moisture on the car body to
evaporate;
❒inflate tyres to +0.5 bar above the standard
specified pressure and check it periodically;
❒if you don’t disconnect the battery from the
electrical system, check its charge every month and
recharge it if the indicator shows a dark colour
without the central green area;
❒do not drain the engine cooling system.
IMPORTANT Where relevant, switch off the car alarm
with the remote control.
CAR INACTIVITY
If the car is to be left inactive for longer than a month,
the following precautions should be followed:
❒park the car in covered, dry and if possible well-
ventilated premises;
❒engage a gear;
❒check that the handbrake is not engaged;
❒disconnect the negative battery terminal and check
battery charge. Repeat this check once every three
months during storage. Recharge if the optical
indicator shows a dark colour without the central
green area;
❒clean and protect the painted parts using protective
wax;
❒clean and protect the shiny metal parts using special
compounds commercially available;
❒sprinkle talcum powder on the rubber windscreen
and rear window wiper blades and lift them off the
glass;

145
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Contact an Abarth Dealership as soon
as possible if the warning light Udoes
not light up when the key is turned to MAR or
if, during travel, the warning light comes on
either constantly or flashing (along with a
message on the display). The operation of the
warning light Umay be checked by the traffic
control authorities using specific devices. Always
comply with the traffic regulations in force in
the country where you are driving.
WARNING
If the light flashes, release the accelerator pedal to
reduce engine revs until the warning light stops flashing;
continue the journey at a moderate speed, trying to
avoid driving conditions that may cause further flashing,
and contact an Abarth Dealership as soon as possible.EXCESSIVE ENGINE COOLANT
TEMPERATURE (red)
When the key is turned to the MAR position
the warning light comes on but should go out after a
few seconds. The warning light turns on when the
engine is overheated. If the warning light comes on
when driving, proceed as follows:
❒when driving normally: stop the car, switch off the
engine and check that the water level in the
reservoir is not below the MIN mark. If it is not, wait
for a few minutes for the engine to cool down then
slowly and carefully open the cap, top up with
coolant and check that the level is between the MIN
and MAX marks. Also check visually for any fluid
leaks. Contact an Abarth Dealership if the warning
should come on when the engine is started again.
❒if the vehicle is used under demanding conditions
(e.g. towing trailers uphill or fully loaded): slow down
and, if the light stays on, stop the car. Wait for 2 or
3 minutes with the engine running and slightly
accelerated to further favour the coolant circulation.
Then stop the engine. Check correct liquid level as
described above.
IMPORTANT Over demanding routes, it is advisable to
keep the engine on and slightly accelerated for a few
minutes before switching it off.
The display shows the dedicated message.
ç

147
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
CRUISE CONTROL (green)
(for versions/markets where provided)
When the key is turned to the MAR position
the warning light comes on but should go out
after a few seconds.
The warning light switches on by rotating the Cruise
Control twist switch to ON.
The display will show a dedicated message.
Ü
MAIN BEAM HEADLIGHTS (blue)
The warning light comes on when the main
beams are turned on.
1
REAR FOG LIGHTS (amber)
The warning light comes on when the rear fog
lights are turned on.
4
INCOMPLETE DOOR LOCKING (red)
The symbol is shown on the display when one
or more doors or the tailgate are not perfectly
closed.
The display shows the dedicated message.
An acoustic signal is emitted with the doors open and
the car moving.
´
ENGINE OIL LEVEL LOW (red)
The symbol is shown on the display when the
engine oil level falls below the minimum
recommended value. Restore the correct engine
oil level (see “Checking fluid levels” in the “Servicing and
maintenance” section).
The display shows the dedicated message.
k
GENERIC WARNING
(amber)
Engine oil pressure sensor failure
The symbol is shown on the display when a fault in the
engine oil pressure sensor is detected. Contact an Abarth
Dealership to have the fault fixed as soon as possible.
è
ELECTRIC STEERING FAILURE
(red)
When the symbol is shown on the display, you
will not benefit from the electric power steering and the
effort needed to turn the wheel will be greatly
increased, although it will still be possible to steer the
car. Contact an Abarth Dealership.
The display shows the dedicated message.
g

STARTING THE ENGINE
EMERGENCY STARTING
If the instrument panel warning light
Ystays on
permanently, contact an Abarth Dealership immediately.
IN AN EMERGENCY
In an emergency we recommend that you call the free-phone number found on the Warranty Booklet. You can
also find the Abarth Dealership nearest to you on the web site www.fiat.com.
This procedure must be performed by
expert personnel because incorrect
actions could cause electrical discharge of
considerable intensity. Furthermore, battery
fluid is poisonous and corrosive: avoid contact
with skin and eyes. Keep naked flames away
from the battery. No smoking. Do not cause
sparks.
WARNING
IMPORTANT For the jump starting procedure, refer to
“Knowing your car” section, paragraph “Start&Stop
system”.
fig. 126F0U187Ab
151
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
JUMP STARTING fig. 126
If the battery is flat, the engine may be started using an
auxiliary battery with the same capacity or a little higher
than the flat one. It is advisable to contact an Abarth
Dealership to check/replace the battery.

F0U131Abfig. 130F0U130Abfig. 129

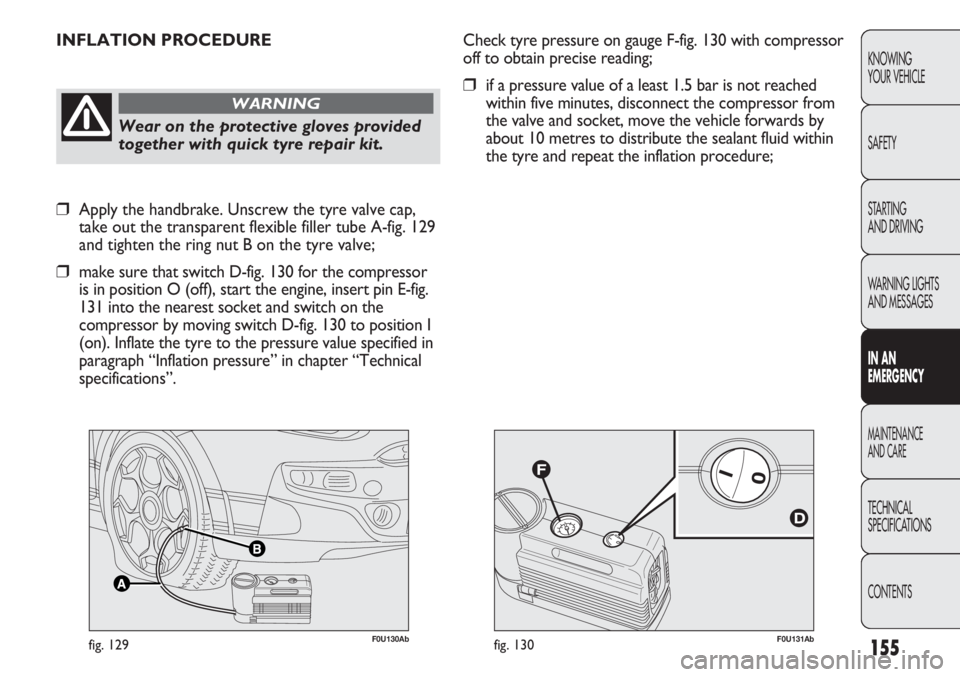

INFLATION PROCEDURE
Wear on the protective gloves provided
together with quick tyre repair kit.
WARNING
Check tyre pressure on gauge F-fig. 130 with compressor
off to obtain precise reading;
❒if a pressure value of a least 1.5 bar is not reached
within five minutes, disconnect the compressor from
the valve and socket, move the vehicle forwards by
about 10 metres to distribute the sealant fluid within
the tyre and repeat the inflation procedure;
155
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
❒Apply the handbrake. Unscrew the tyre valve cap,
take out the transparent flexible filler tube A-fig. 129
and tighten the ring nut B on the tyre valve;
❒make sure that switch D-fig. 130 for the compressor
is in position O (off), start the engine, insert pin E-fig.
131 into the nearest socket and switch on the
compressor by moving switch D-fig. 130 to position I
(on). Inflate the tyre to the pressure value specified in
paragraph “Inflation pressure” in chapter “Technical
specifications”.

157
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Inform the dealership that the tyre has
been repaired using the quick tyre repair
kit. Hand the instruction brochure over to the
personnel charged with treating the tyre
repaired with the kit.
WARNING
FOR CHECKING AND RESTORING
PRESSURE ONLY
The compressor can also be used solely for restoring
pressure. Release the quick coupling and connect it
directly to the tyre valve fig. 133; in this way, the
cylinder will not be connected to the compressor and
no sealant will be injected.
F0U134Abfig. 133
If the pressure has fallen below 1.8 bar,
do not drive any further: the automatic
Fix&Go Automatic quick tyre repair kit cannot
guarantee the correct hold because the tyre is
too damaged. Contact an Abarth Dealership.
WARNING
❒if at least 1.8 bar pressure is read, restore the correct
pressure (with engine running and handbrake on) and
restart;
❒drive with the utmost care to the nearest Abarth
Dealership.

184
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
●●● ●● ●
●●● ●● ●
●●● ●● ●
●●● ●● ●
●●● ●● ●
●●● ●● ●
●●● ●● ●
●●● ●● ●
●●● ●● ●
●●● ●● ●
●●
SCHEDULED SERVICING PLAN
Services must be carried out every 15,000 km.
Thousands of kilometres 15 30 45 60 75 90 105 120 135 150 165 180
Check tyre condition/wear and adjust pressure if required
Check operation of lighting system (headlamps,
direction indicators, hazard warning lights, luggage compartment,
passenger compartment, glove box,
instrument panel warning lights, etc.)
Check operation of windscreen washer system and adjust
nozzles if necessary
Check windscreen/rear window wiper blade position/wear
Check condition and wear of front disc brake pads
and operation of pad wear indicator
Check condition and wear of rear disc brake pads
and operation of pad wear indicator
Visually inspect the condition of: exterior bodywork,
underbody protection, rigid pipes and hoses (exhaust –
fuel supply – brakes), rubber parts (boots, sleeves, bushes, etc.)
Check cleanliness of locks, lids, engine and boot, and the
cleanliness and lubrication of linkage
Check and, if necessary, top up fluid levels (brakes/hydraulic
clutch, windscreen washer, battery, engine coolant, etc.)
Check handbrake lever travel and adjust if necessary
Visually inspect conditions of the accessory drive belt(s)
